Dataram 16GB DDR4 SDRAM Memory Module
Dataram

Dataram 16GB DDR4 SDRAM Memory Module

16 GB (1 x 16GB) - DDR4-2666/PC4-21333 DDR4 SDRAM - 2666 MHz - CL19 - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

SKU
DTM68131-H
Category
RAM Modules

MSRP$100.00

$72.28

Save 28%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DTM68131-H
Category
RAM Modules

Overview

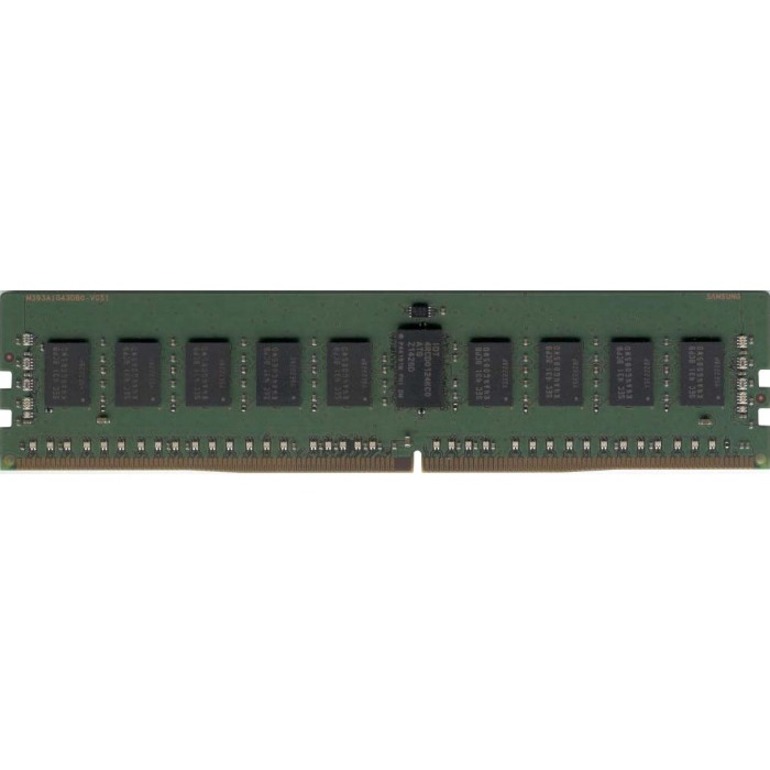

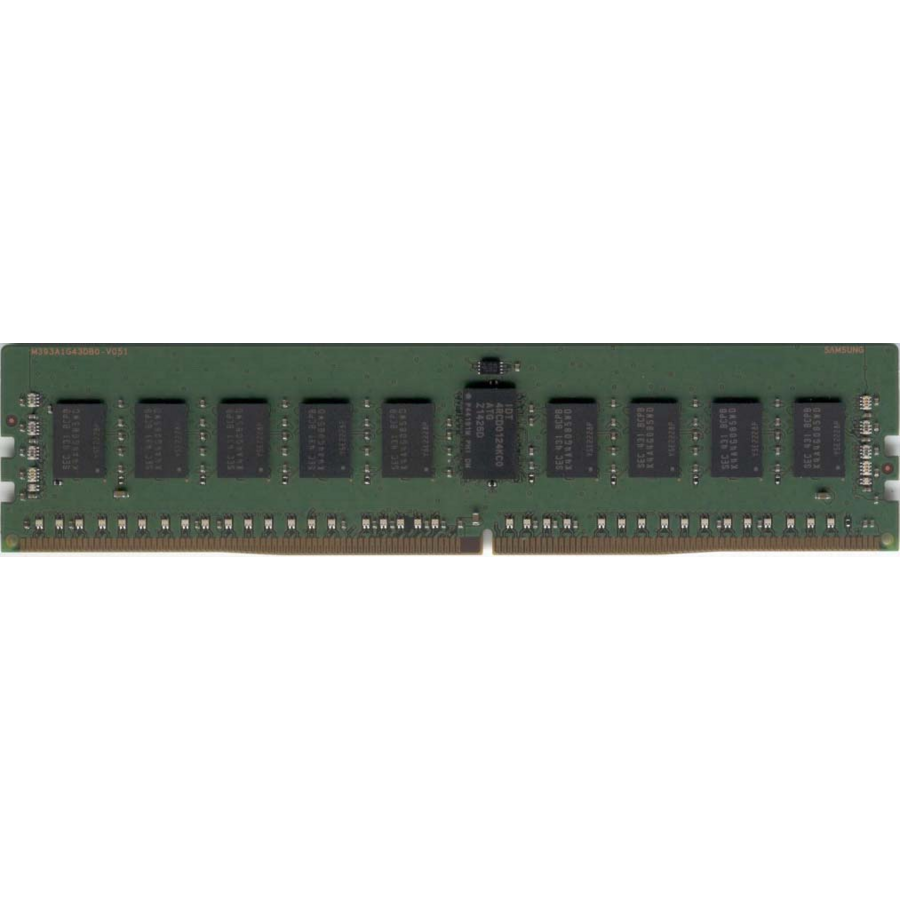

DTM68131-H is a registered 2Gx72 memory module, which conforms to JEDEC's PC4-2666 standard. The assembly is Dual-Rank with each rank containing: nine SKHynix 1Gbx8 DDR4-2666 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Highlights

  • Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
  • No matter how heavy and numerous the applications that you are using, 2666 MHz memory speed with registered signal and CL19 latency will run them smoothly
  • DIMM 16 GB capacity is enough to execute all memory hungry programs simultaneously
  • DDR4-2666/PC4-21333 interface synchronizes electrical and clock signals for an efficient data transfer rate
  • 1 x 16GB modules for quick access and retrieval of data and information to ensure maximum usability
  • 288-pin for enhanced, dependable system performance with maximum usability
  • CL19 CAS latency for reliable, fast response and improved performance
  • Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
  • DIMM form factor with 288-pin and 16 GB memory size for enhanced performance and speed to allow maximum usability
  • Registered signal processing allows high speed and accuracy to allow maximum reliability

Specifications

Product TypeRAM Module
CAS LatencyCL19
Device SupportedServer
Error CheckingECC
Manufacturer Part NumberDTM68131-H
Number of Modules1 x 16GB
Number of Pins288-pin
Signal ProcessingRegistered
Limited WarrantyLifetime
Thickness156.7 mil
Form FactorDIMM
Length1.3"
ManufacturerDataram Corporation
Memory Speed2666 MHz
Product Name16GB DDR4 SDRAM Memory Module
Memory Size16 GB
Brand NameDataram
Memory TechnologyDDR4 SDRAM
Country of OriginUnited States
Memory StandardDDR4-2666/PC4-21333
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.20 V
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
