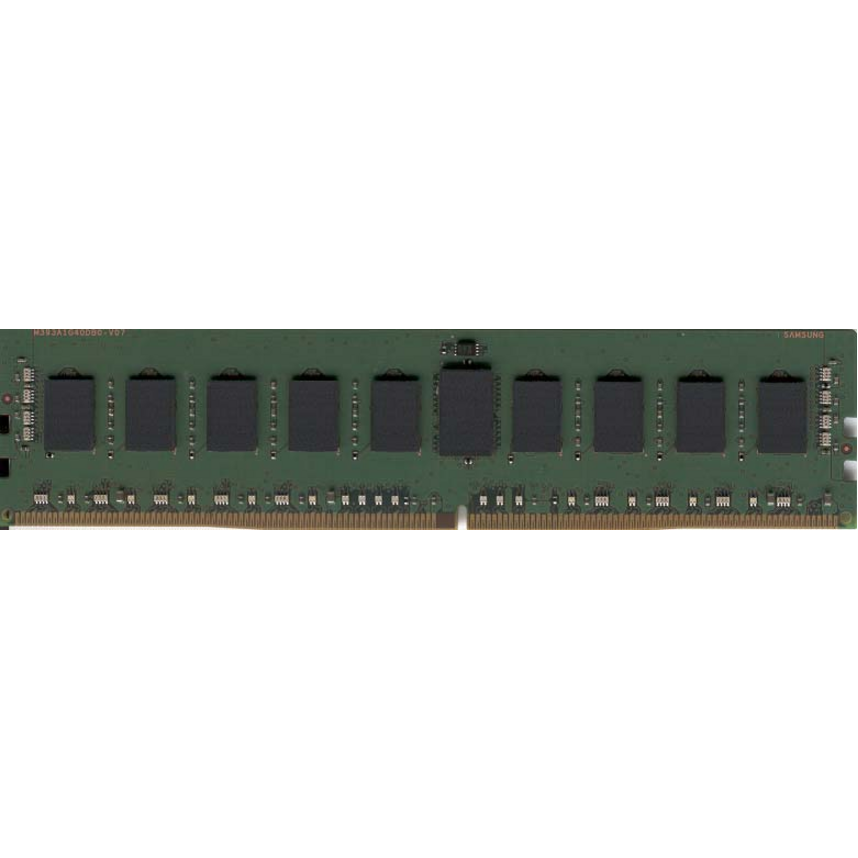

Dataram 16GB DDR4 SDRAM Memory Module
16 GB (1 x 16GB) - DDR4-2666/PC4-21300 DDR4 SDRAM - 2666 MHz - CL19 - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty
- SKU
- DTM68129-H
- Category
- RAM Modules
MSRP$122.00
$88.11
Save 28%Back ordered — ships when restocked.
Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DTM68129-H
- Category
- RAM Modules
Overview
DTM68129-H is a registered 1Gx72 memory module, which conforms to JEDEC's PC4-2666 standard. The assembly is Single-Rank with the rank containing eighteen SKHynix 2Gbx4 DDR4-2666 SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
Highlights
- Allow convenient and fast access to the stored information your computer is actively using for maximum efficiency
- Up to 2666 MHz speed with registered signal and CL19 latency for smooth computer performance
- 16 GB bar will run multiple applications together and enhance your computer's performance
- DDR4 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
- 1 x 16GB modules for enhanced memory reliability and productivity
- 288-pin for enhanced, dependable system performance with maximum usability
- CL19 CAS latency for reliable, fast response and improved performance
- Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
- DIMM form factor with 288-pin and 16 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
- Registered signal processing provides increased processing power to allow maximum productivity
Specifications
| Product Type | RAM Module |
|---|---|
| CAS Latency | CL19 |
| Device Supported | Server |
| Error Checking | ECC |
| Manufacturer Part Number | DTM68129-H |
| Number of Modules | 1 x 16GB |
| Number of Pins | 288-pin |
| Signal Processing | Registered |
| Limited Warranty | Lifetime |
| Thickness | 156.7 mil |
| Form Factor | DIMM |
| Length | 1.3" |
| Manufacturer | Dataram Corporation |
| Memory Speed | 2666 MHz |
| Product Name | 16GB DDR4 SDRAM Memory Module |
| Memory Size | 16 GB |
| Brand Name | Dataram |
| Memory Technology | DDR4 SDRAM |
| Country of Origin | United States |
| Memory Standard | DDR4-2666/PC4-21300 |
| Width | 1.2" |
| Environmentally Friendly | Yes |
| Memory Voltage | 1.20 V |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
