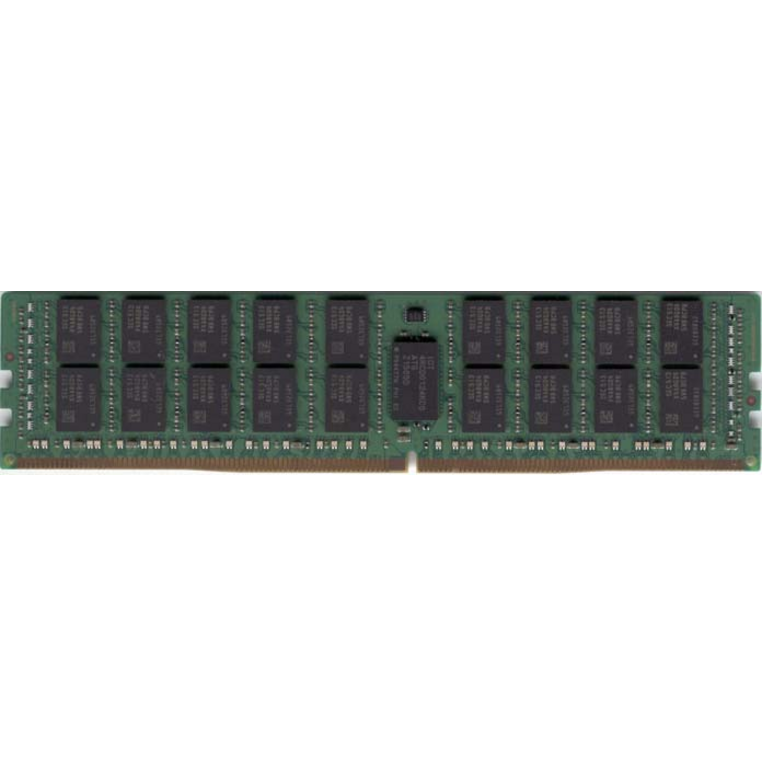

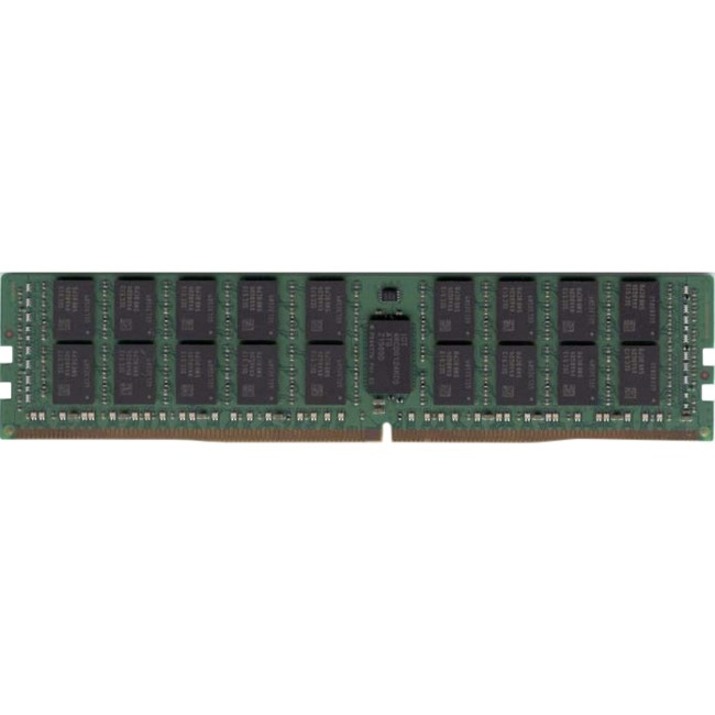

Dataram 32GB DDR4 SDRAM Memory Module
Dataram

Dataram 32GB DDR4 SDRAM Memory Module

32 GB (1 x 32GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - 2400 MHz - CL17 - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

SKU
DTM68116-S
Category
RAM Modules

MSRP$176.30

$127.25

Save 28%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DTM68116-S
Category
RAM Modules

Overview

DTM68116-S is a registered 4Gx72 memory module, which conforms to JEDEC's PC4-2400 standard. The assembly is Dual-Rank with each rank containing of eighteen Samsung 2Gbx4 DDR4-2400 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Highlights

  • Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
  • Up to 2400 MHz speed with registered signal for playing the latest games and using heavy software
  • DIMM 32 GB of memory can produce approx. 10K MIPS and as a result, your system gets more room to run complex apps.
  • 288-pin DDR4 SDRAM interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance
  • 1 x 32GB modules for dependable storage efficiency and maximum convenience
  • 288-pin for enhanced, dependable system performance with maximum usability
  • CL17 CAS latency for quicker access to the required location in a timely efficient manner
  • Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
  • DIMM form factor with 288-pin and 32 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
  • Registered signal processing allows convenient and easy reconfiguration according to your requirements

Specifications

Product TypeRAM Module
CAS LatencyCL17
Device SupportedServer
Error CheckingECC
Manufacturer Part NumberDTM68116-S
Number of Modules1 x 32GB
Number of Pins288-pin
Signal ProcessingRegistered
Limited WarrantyLifetime
Thickness156.7 mil
Form FactorDIMM
Length5.3"
ManufacturerDataram Corporation
Memory Speed2400 MHz
Product Name32GB DDR4 SDRAM Memory Module
Memory Size32 GB
Brand NameDataram
Memory TechnologyDDR4 SDRAM
Country of OriginUnited States
Memory StandardDDR4-2400/PC4-19200
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.20 V
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
