Dataram 4GB DDR4 SDRAM Memory Module
Dataram

Dataram 4GB DDR4 SDRAM Memory Module

4 GB (1 x 4GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - 2400 MHz - 1.20 V - ECC - Unbuffered - 288-pin - DIMM

SKU
DTI24E1T8W/4G
Category
RAM Modules

MSRP$47.20

$35.06

Save 26%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DTI24E1T8W/4G
Category
RAM Modules

Overview

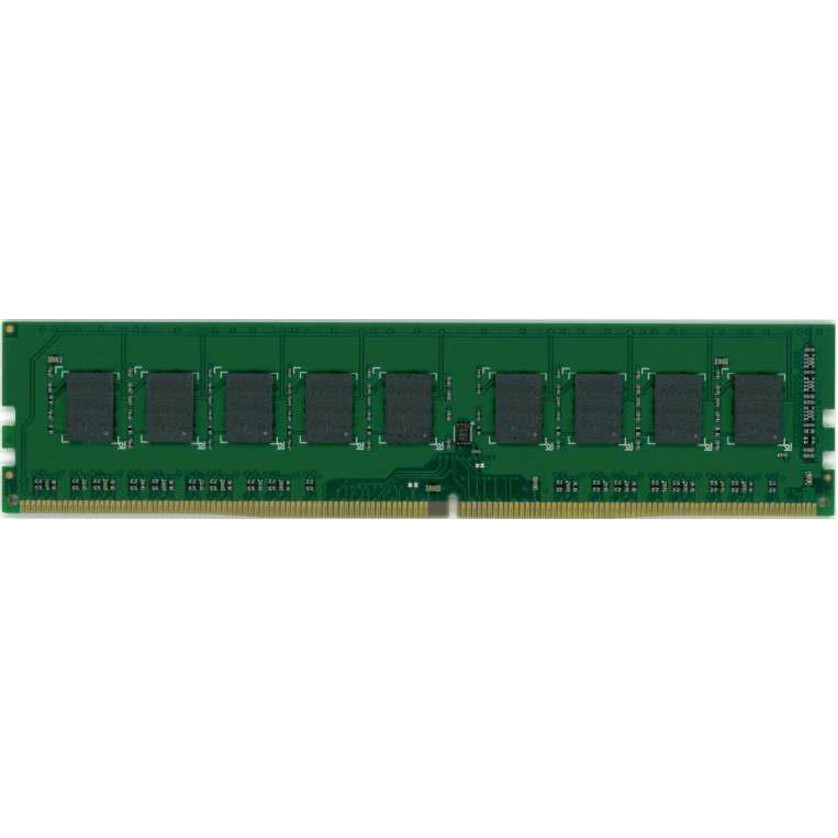

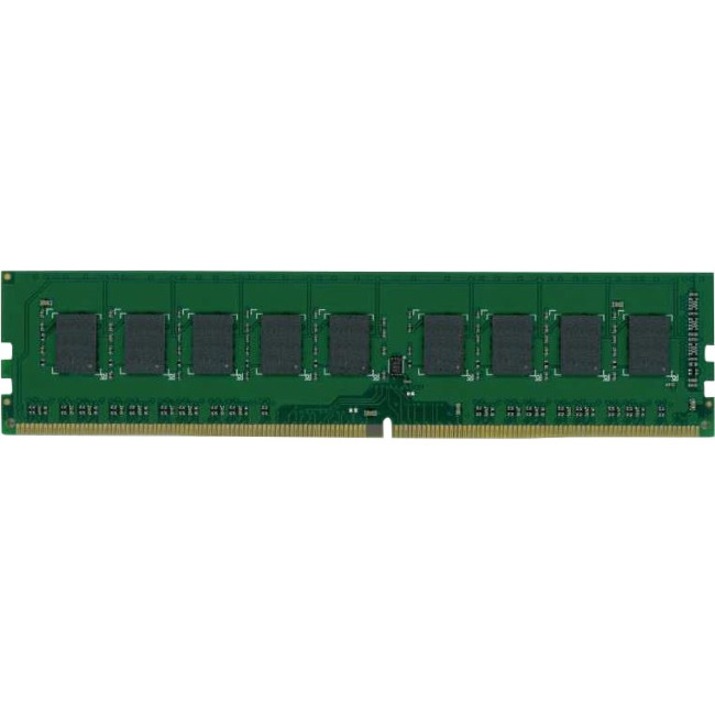

DTI24E1T8W/4G is an Unbuffered 512Mx72 memory module, which conforms to JEDEC's DDR4-2400T, PC4-2400T standard. The assembly is Single-Rank, comprised of nine 512Mbx8 DDR4- 2400T Industrial Temperature Range SDRAMs.

One EEPROM is used for Serial Presence Detect.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Highlights

  • Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
  • Up to 2400 MHz speed for playing the latest games and using heavy software
  • DIMM 4 GB memory smoothly executes complex apps and games
  • DDR4-2400/PC4-19200 operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
  • 1 x 4GB modules for quick access and retrieval of data and information to ensure maximum usability
  • 288-pin for optimal performance and maximum reliability
  • DIMM form factor with 288-pin and 4 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
  • Unbuffered signal processing allows higher accuracy and enhanced ram module performance

Specifications

Product TypeRAM Module
Error CheckingECC
Manufacturer Part NumberDTI24E1T8W/4G
Number of Modules1 x 4GB
Number of Pins288-pin
Signal ProcessingUnbuffered
Form FactorDIMM
Length5.3"
ManufacturerDataram Corporation
Memory Speed2400 MHz
Product Name4GB DDR4 SDRAM Memory Module
Memory Size4 GB
Brand NameDataram
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-2400/PC4-19200
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.20 V
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
