Dataram 32GB DDR4 SDRAM Memory Module
Dataram

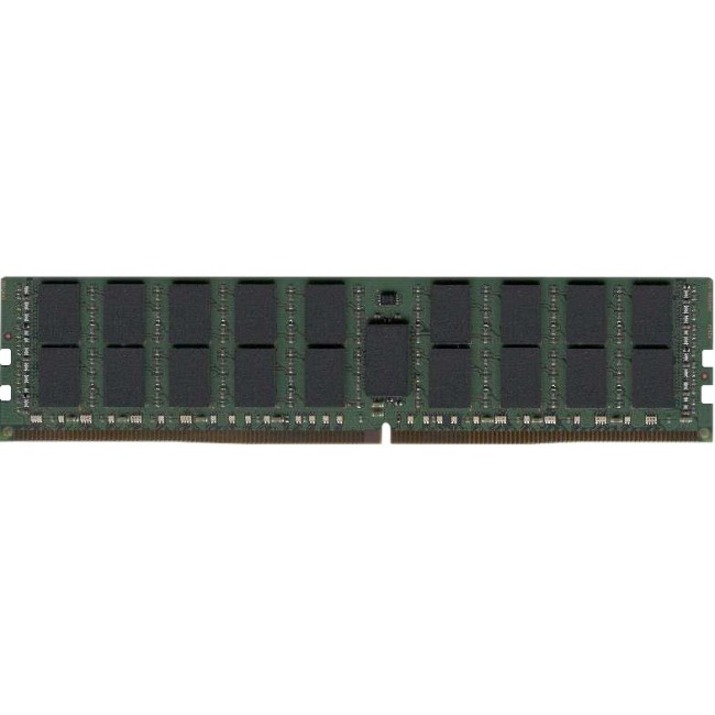

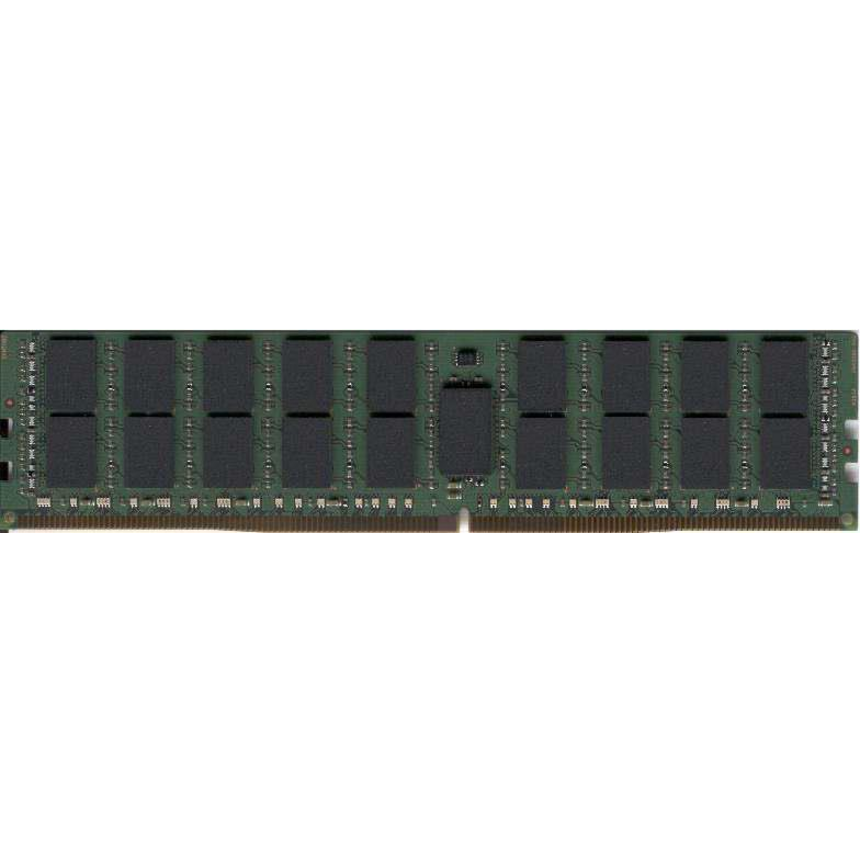

Dataram 32GB DDR4 SDRAM Memory Module

For Server - 32 GB (1 x 32GB) - DDR4-3200/PC4-25600 DDR4 SDRAM - 3200 MHz - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

SKU
DRL3200RD4/32GB
Category
RAM Modules

MSRP$140.00

$101.10

Save 28%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DRL3200RD4/32GB
Category
RAM Modules

Overview

The DRL3200R upgrades are registered memory which conform to JEDEC's DDR4-3200, PC4-3200AA standard.

One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 85C.

Highlights

  • 288-pin JEDEC-compliant DIMMs
  • 133.35 mm wide by 31.25 mm high (5.25" x 1.23")
  • Data Transfer Rate: 25.6 Gigabytes/sec
  • Operating Voltage: 1.2V (1.14V~1.26V)
  • Fully RoHS Compliant
  • Thermal Sensor

Specifications

Product TypeRAM Module
CompatibilityDell PowerEdge C6525 Server
Device SupportedServer
Error CheckingECC
Manufacturer Part NumberDRL3200RD4/32GB
Number of Modules1 x 32GB
Number of Pins288-pin
Signal ProcessingRegistered
Limited WarrantyLifetime
Thickness156.7 mil
Form FactorDIMM
Length5.3"
ManufacturerDataram Corporation
Memory Speed3200 MHz
Product Name32GB DDR4 SDRAM Memory Module
Memory Size32 GB
Brand NameDataram
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-3200/PC4-25600
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.20 V
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
