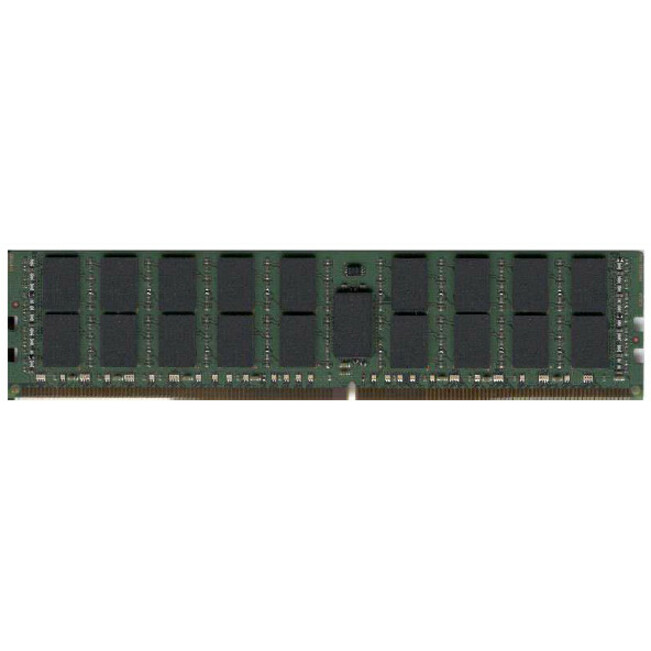

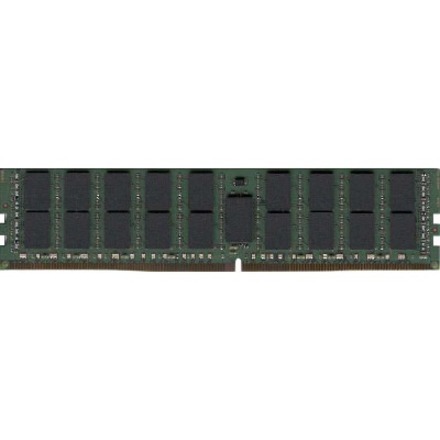

Dataram 16GB DDR4 SDRAM Memory Module
Dataram

Dataram 16GB DDR4 SDRAM Memory Module

16 GB (1 x 16GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - 2400 MHz - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

SKU
DRL2400R8/16GB
Category
RAM Modules

MSRP$90.00

$65.03

Save 28%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DRL2400R8/16GB
Category
RAM Modules

Overview

The DRL2400R upgrades are registered memory modules, which conform to JEDEC's DDR4, PC4-2400T standard. The DRL2400LR is a load-reduced memory module (LRDIMM). One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.

Highlights

  • 288-pin JEDEC-compliant DIMMs
  • 133.35 mm wide by 31.25 mm high (5.25" x 1.23")
  • Data Transfer Rate: 19.2 Gigabytes/sec
  • Operating Voltage: 1.2V (1.14V~1.26V)
  • Fully RoHS Compliant
  • Thermal Sensor

Specifications

Product TypeRAM Module
CompatibilityDell PowerEdge C6320p 2U Rack Server
Device SupportedServer
Error CheckingECC
Manufacturer Part NumberDRL2400R8/16GB
Number of Modules1 x 16GB
Number of Pins288-pin
Signal ProcessingRegistered
Limited WarrantyLifetime
Thickness156.7 mil
Form FactorDIMM
Length5.3"
ManufacturerDataram Corporation
Memory Speed2400 MHz
Product Name16GB DDR4 SDRAM Memory Module
Memory Size16 GB
Brand NameDataram
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-2400/PC4-19200
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.20 V
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
