Dataram DDR3-1600, PC3-12800, Registered, ECC, 1.35V, 240-pin, 2 Ranks
For Server - 8 GB (1 x 8GB) - DDR3-1600/PC3-12800 DDR3 SDRAM - 1600 MHz - 1.35 V - ECC - Registered - 240-pin - DIMM - Lifetime Warranty
- SKU
- DRL1600RL/8GB
- Category
- RAM Modules
MSRP$20.00
$17.14
Save 14%Back ordered — ships when restocked.
Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DRL1600RL/8GB
- Category
- RAM Modules
Overview

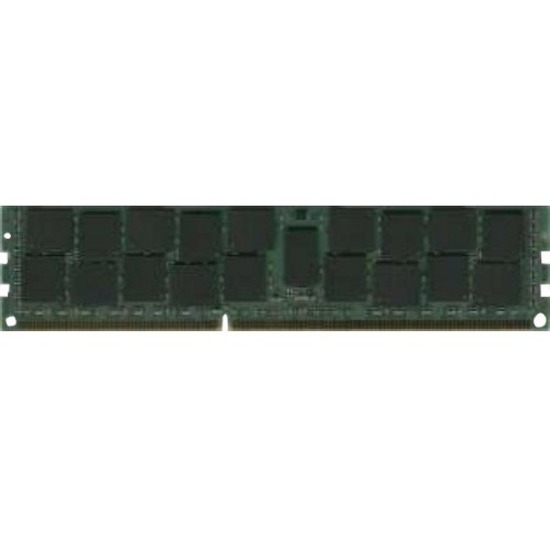

Each DRL1600RL upgrade consists of a single DDR3-1600 Registered ECC DIMM that conforms to JEDEC's DDR3, PC3L-12800 standard. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL with Address and Command Parity is also used. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
Highlights
- Allow convenient and fast access to the stored information your computer is actively using for maximum efficiency
- Up to 1600 MHz speed with registered signal for playing the latest games and using heavy software
- 8 GB of memory to heighten your computer's performance
- 240-pin-pin DDR3 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
- 1 x 8GB modules for quick access and retrieval of data and information to ensure maximum usability
- 240-pin for enhanced, dependable system performance with maximum usability
- Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
- DIMM form factor with 240-pin and 8 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
- Registered signal processing allows higher accuracy and enhanced ram module performance
Specifications
| Product Type | RAM Module |
|---|---|
| Compatibility | Dell PowerEdge C6220 Server |
| Device Supported | Server |
| Error Checking | ECC |
| Manufacturer Part Number | DRL1600RL/8GB |
| Number of Modules | 1 x 8GB |
| Number of Pins | 240-pin |
| Signal Processing | Registered |
| Limited Warranty | Lifetime |
| Thickness | 155.1 mil |
| Form Factor | DIMM |
| Length | 5.3" |
| Manufacturer | Dataram Corporation |
| Memory Speed | 1600 MHz |
| Product Name | DDR3-1600, PC3-12800, Registered, ECC, 1.35V, 240-pin, 2 Ranks |
| Memory Size | 8 GB |
| Brand Name | Dataram |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Width | 1.2" |
| Environmentally Friendly | Yes |
| Memory Voltage | 1.35 V |
