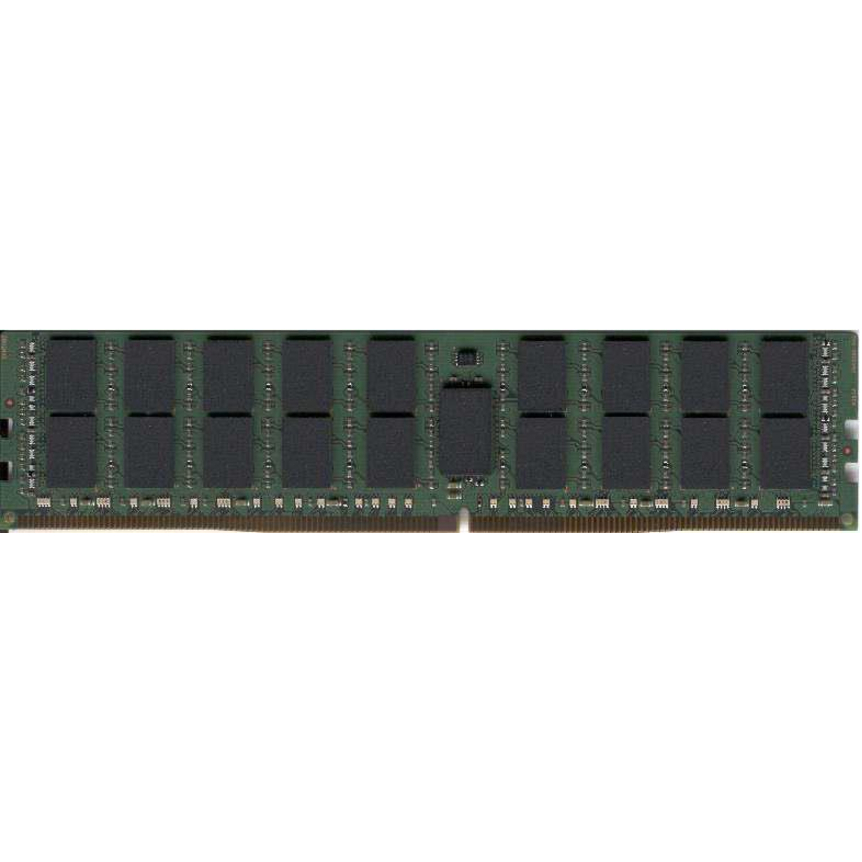

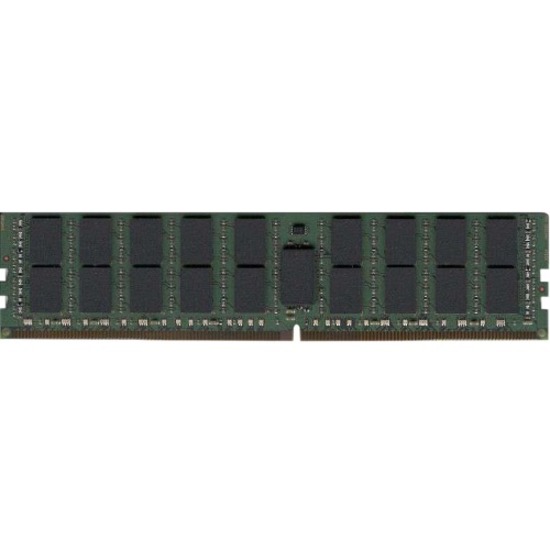

Dataram 8GB DDR4 SDRAM Memory Module
Dataram

Dataram 8GB DDR4 SDRAM Memory Module

8 GB (1 x 8GB) - DDR4-2666/PC4-21300 DDR4 SDRAM - 2666 MHz - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

SKU
DRHA2666RS/8GB
Category
RAM Modules

MSRP$64.80

$46.87

Save 28%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DRHA2666RS/8GB
Category
RAM Modules

Overview

The DRHA2666R upgrades are registered memory modules, which conform to JEDEC's DDR4, PC4-2666 standard. The DRHA2666LR are load-reduced memory modules (LRDIMMs). One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.

Highlights

  • 288-pin JEDEC-compliant DIMMs
  • 133.35 mm wide by 31.25 mm high (5.25" x 1.23")
  • Data Transfer Rate: 21.3 Gigabytes/sec
  • Operating Voltage: 1.2V (1.14V~1.26V)
  • Fully RoHS Compliant
  • Thermal Sensor
  • HP SmartMemory compliant

Specifications

Product TypeRAM Module
CompatibilityHPE ProLiant DL385 Gen10 Server
Device SupportedServer
Error CheckingECC
Manufacturer Part NumberDRHA2666RS/8GB
Number of Modules1 x 8GB
Number of Pins288-pin
Signal ProcessingRegistered
Limited WarrantyLifetime
Thickness156.7 mil
Form FactorDIMM
Length5.3"
ManufacturerDataram Corporation
Memory Speed2666 MHz
Product Name8GB DDR4 SDRAM Memory Module
Memory Size8 GB
Brand NameDataram
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-2666/PC4-21300
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.20 V
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
