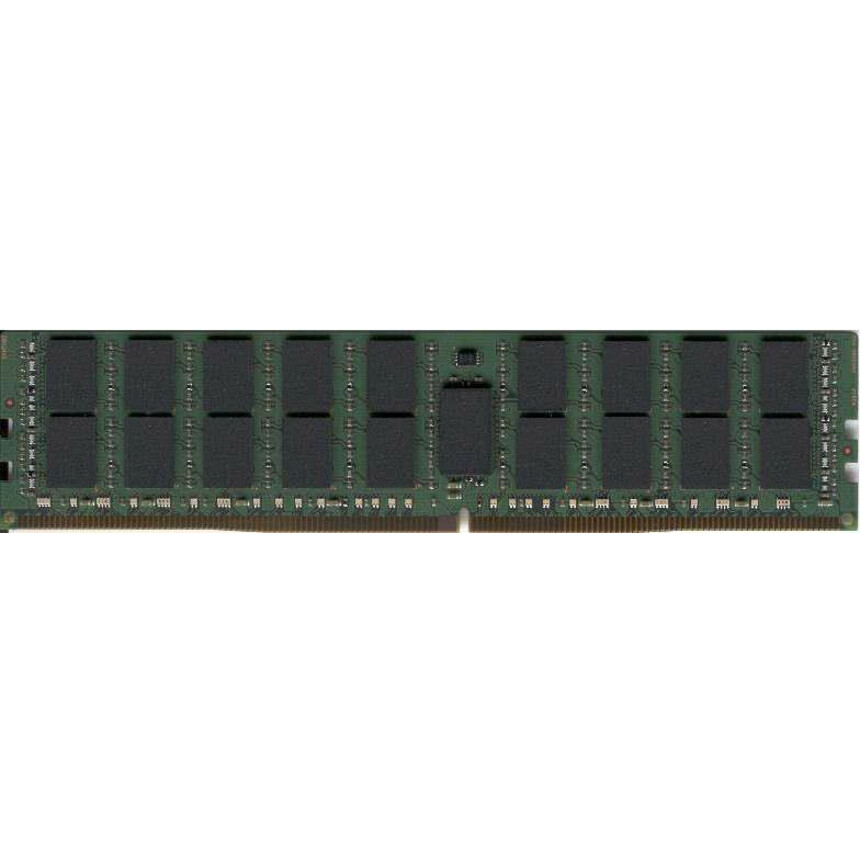

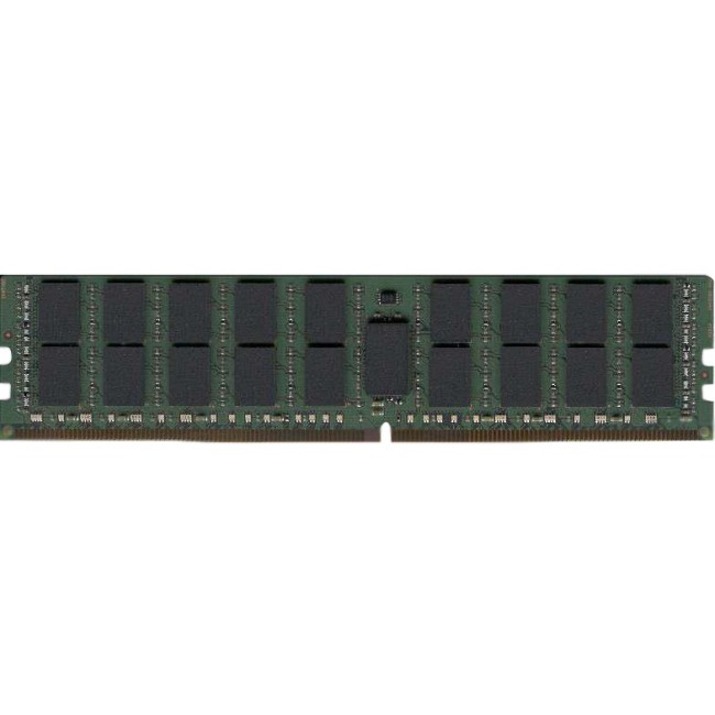

Dataram 32GB DDR4 SDRAM Memory Module
For Server - 32 GB (1 x 32GB) - DDR4-2933/PC4-23466 DDR4 SDRAM - 2933 MHz - 1.20 V - ECC - Registered - 288-pin - DIMM
- SKU
- DRF2933RD4/32GB
- Category
- RAM Modules
MSRP$140.00
$101.10
Save 28%Back ordered
Back ordered — ships when restocked.
Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DRF2933RD4/32GB
- Category
- RAM Modules
Overview
The DRF2933R upgrades are registered memory modules, which conform to JEDEC's DDR4-2933, PC4- 2933Y standard. One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.
Highlights
- 288-pin JEDEC-compliant DIMMs
- 133.35 mm wide by 31.25 mm high (5.25" x 1.23")
- Data Transfer Rate: 23.4 Gigabytes/sec
- Operating Voltage: 1.2V (1.14V~1.26V)
- Fully RoHS Compliant
- Thermal Sensor
Specifications
| Product Type | RAM Module |
|---|---|
| Compatibility | Fujitsu Primergy RX2520 M5 Server |
| Device Supported | Server |
| Error Checking | ECC |
| Manufacturer Part Number | DRF2933RD4/32GB |
| Number of Modules | 1 x 32GB |
| Number of Pins | 288-pin |
| Signal Processing | Registered |
| Thickness | 156.7 mil |
| Form Factor | DIMM |
| Length | 5.3" |
| Manufacturer | Dataram Corporation |
| Memory Speed | 2933 MHz |
| Product Name | 32GB DDR4 SDRAM Memory Module |
| Memory Size | 32 GB |
| Brand Name | Dataram |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Width | 1.2" |
| Environmentally Friendly | Yes |
| Memory Voltage | 1.20 V |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
