CyberPower PR2200RTXL2UACN Smart App Sinewave UPS Systems
2200VA/2200W, 100 - 120 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
- SKU
- PR2200RTXL2UACN
- Category
- General Purpose UPS
MSRP$3,750.00
$2,080.01
Save 45%Back ordered — ships when restocked.
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PR2200RTXL2UACN
- Category
- General Purpose UPS
Overview

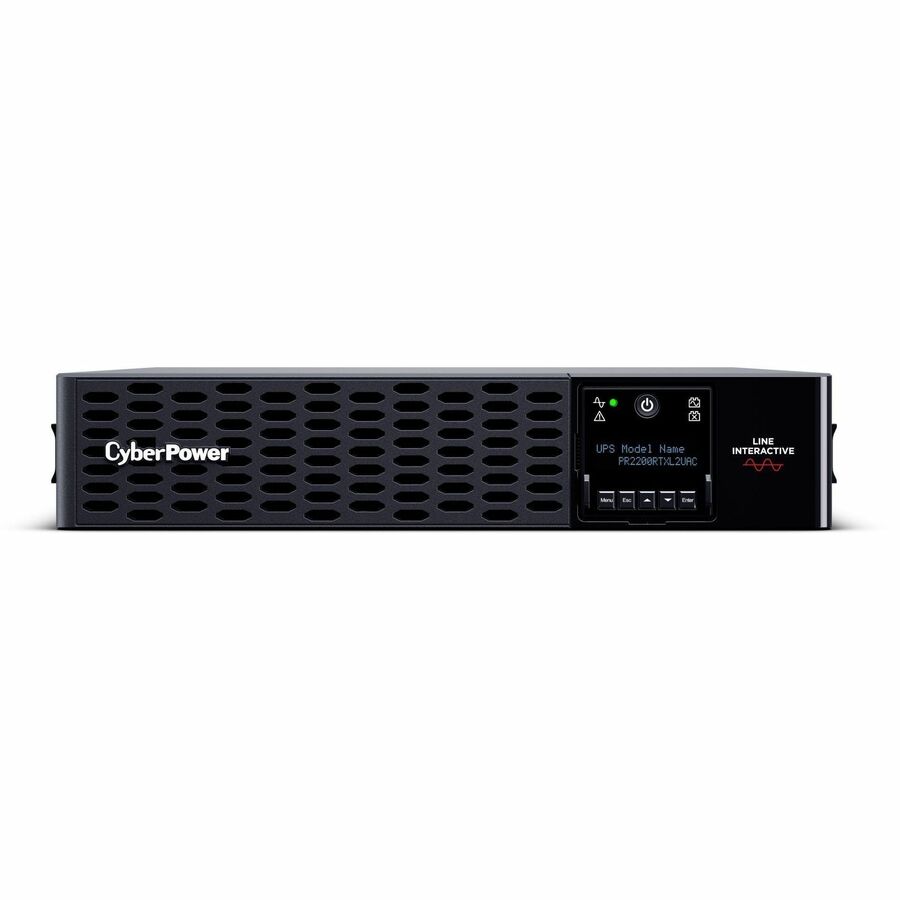

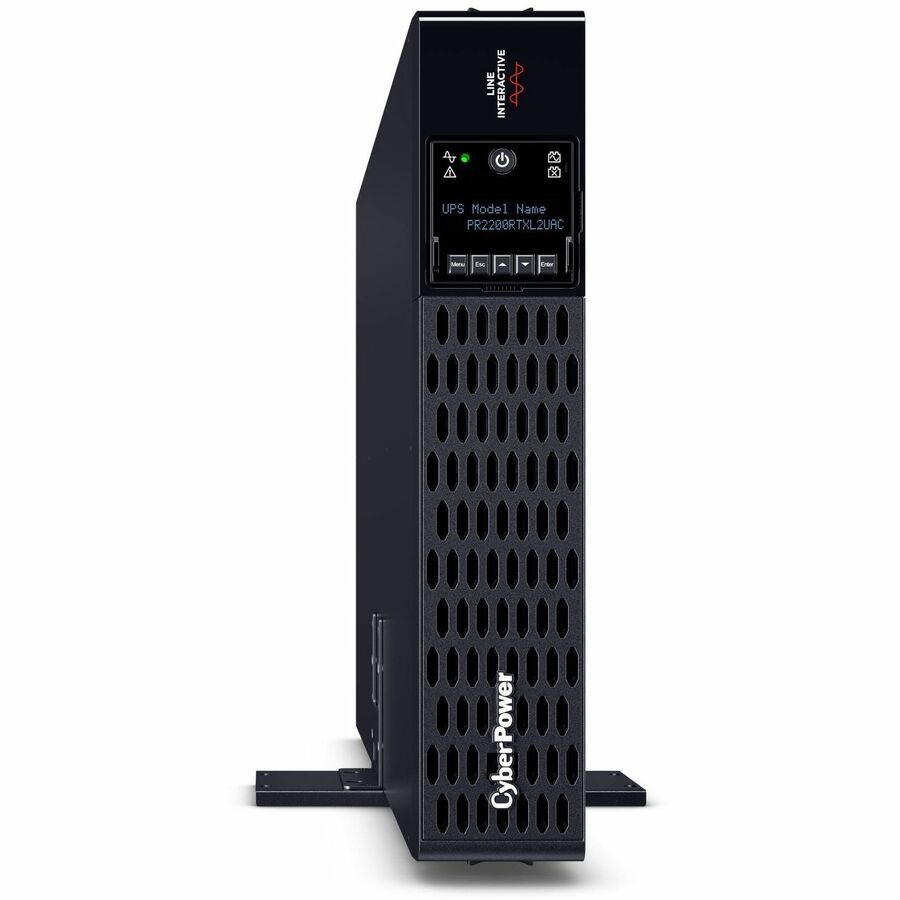

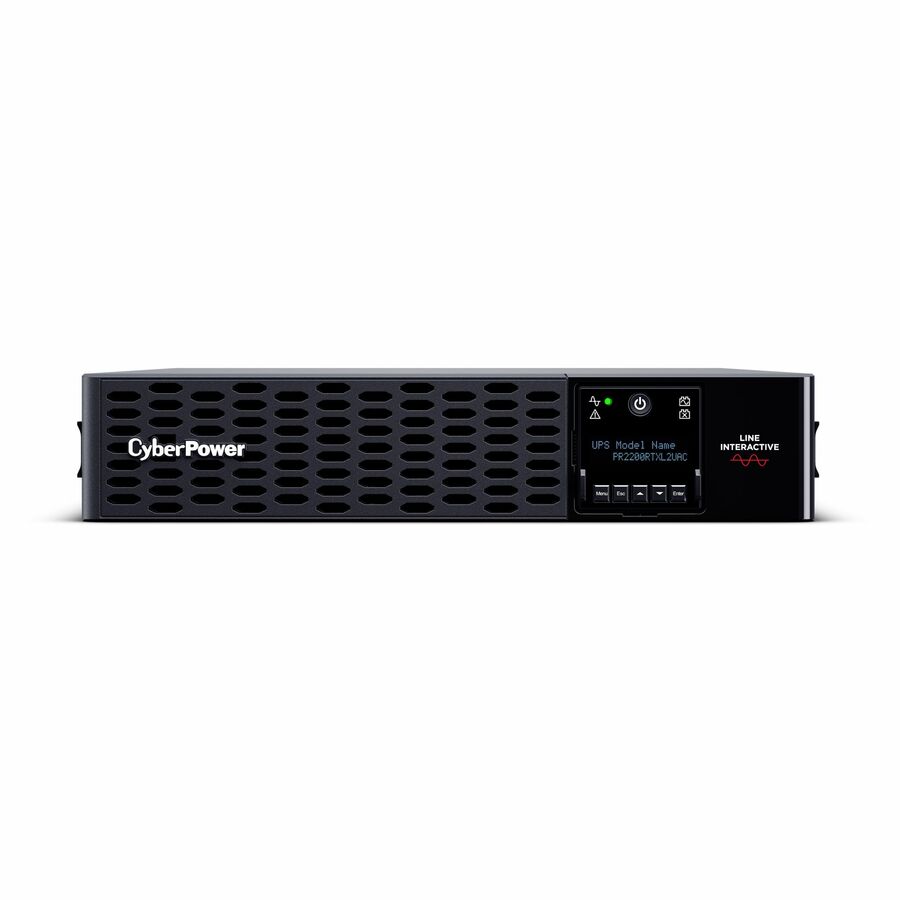

The PR2200RTXL2UACN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

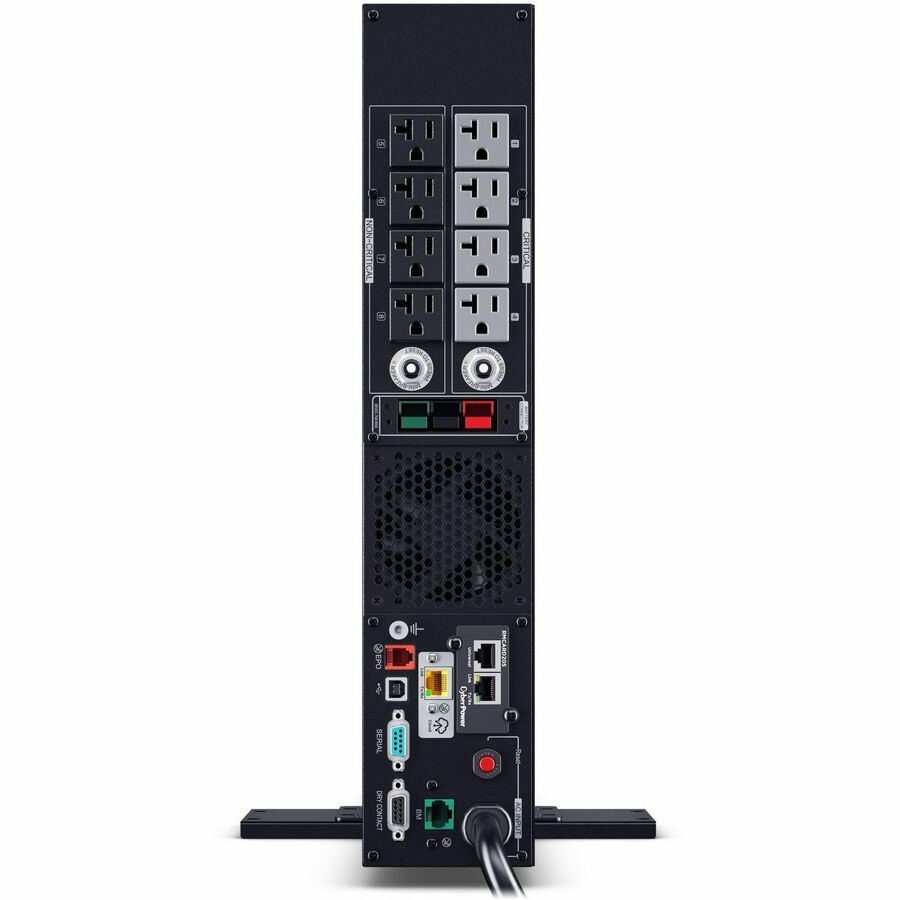

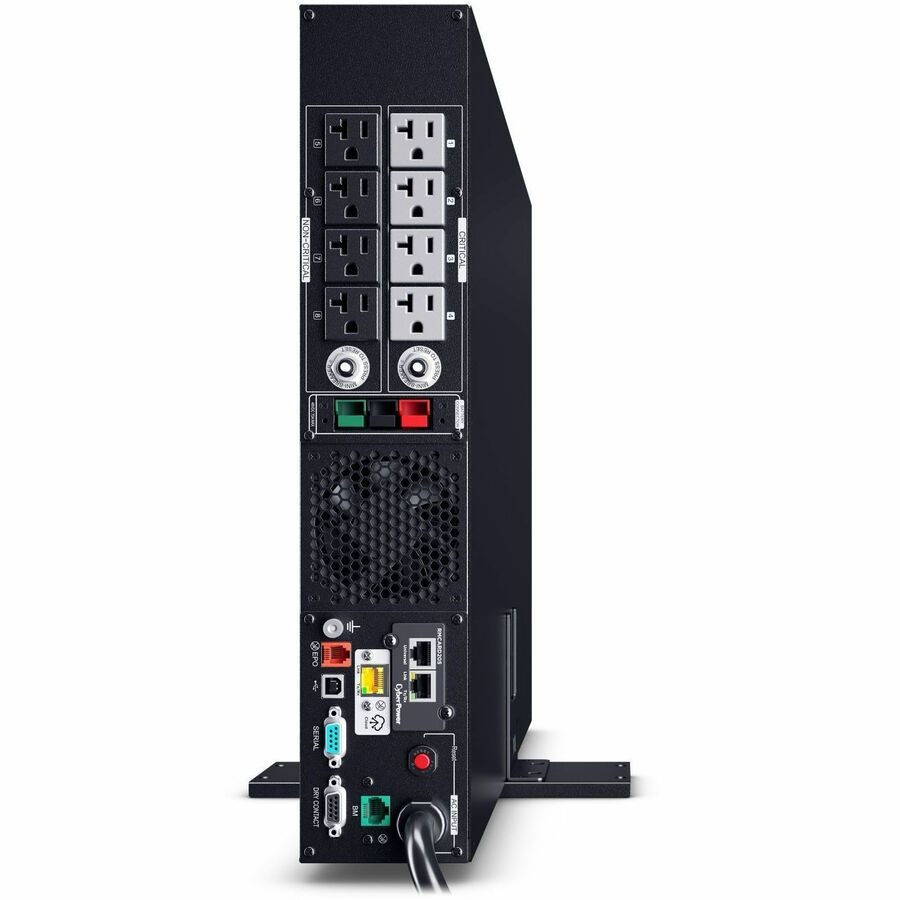

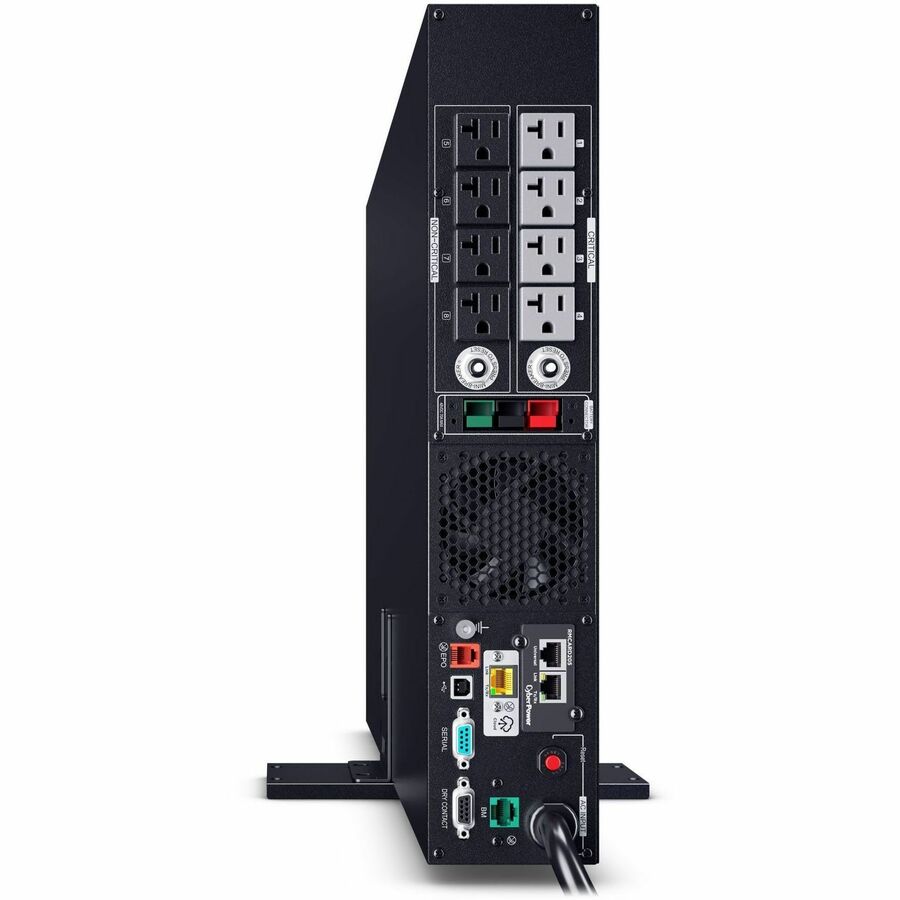

The Smart App Sinewave PR2200RTXL2UACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes built-in cloud monitoring and pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UACN.
More from the Manufacturer
Highlights
- Capacity: 2200 VA / 2200 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-120 VAC ± 5%
- Runtime (half/full): 15.8 minutes / 5.5 minutes
- Plug type & cord: NEMA L5-30P, 10 ft. cord
- Outlets: 8 surge + battery backup
- Outlet types: 8 × NEMA 5-20R
- Communication: USB, Serial, SNMP, Relay, EPO, Cloud
- Management software: PowerPanel® Business
- Remote management: Yes, pre-installed RMCARD205 and built-in cloud
- Warranty: 3 year
- Connected Equipment Guarantee: $400,000
- ENERGY STAR® certified: Yes
Specifications
| Application/Usage | Network, Server, Telecommunication, VoIP Phone System, Equipment, Storage Device, Network Device, Corporate |
|---|---|
| Battery Chemistry | Lead Acid |
| Product Type | Line-interactive UPS |
| Circuit Breaker | Yes |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | PR2200RTXL2UACN |
| Limited Warranty | 3 Year |
| Output Voltage | 100 V AC, 110 V AC, 120 V AC |
| Weight (Approximate) | 93 lb |
| Features | Audible Alarm |
| Form Factor | Rack/Tower |
| Status Indicators | Power On |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR2200RTXL2UACN |
| Product Name | PR2200RTXL2UACN Smart App Sinewave UPS Systems |
| Network Management | SNMP/HTTP Remote Monitoring, Network Card, Dry Contact, Relay-MS Card |
| Overload Protection | Yes |
| Surge Energy Rating | 2430 J |
| Surge Suppression | Yes |
| Thermal Dissipation | 39.56 W |
| Waveform Type | Sine Wave |
| Product Series | New Smart App Sinewave UPS |
| Rack Height | 2U |
| Brand Name | CyberPower |
| Plug/Connector Type | NEMA L5-30P |
| Input Voltage Range | 75 V AC - 155 V AC, 100 V AC - 120 V AC, 70 V AC - 155 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Alarm | Battery Mode, Low Battery, Overload, Over-charge, Overheat |
| Cord Length | 10 ft |
| Height | 3.40" |
| Width | 17.10" |
| Depth | 24.80" |
| Input Frequency | 50 Hz, 60 Hz |
| Battery Size | 12V |
| Receptacle Type | NEMA 5-20R |
| Battery Capacity | 5700 mAh |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of Batteries | 8 |
| Backup/Run Time (Half Load) | 15.80 Minute |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Battery Characteristics | Sealed |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 2200 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS? Bypass Technology |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 9843 ft |
| Maximum Storage Elevation | 49213 ft |
| Operating Humidity | 0% - 95% |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 6 ms |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Output Power Factor | 1 |
| Receptacle Detail | 8 x NEMA 5-20R |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
