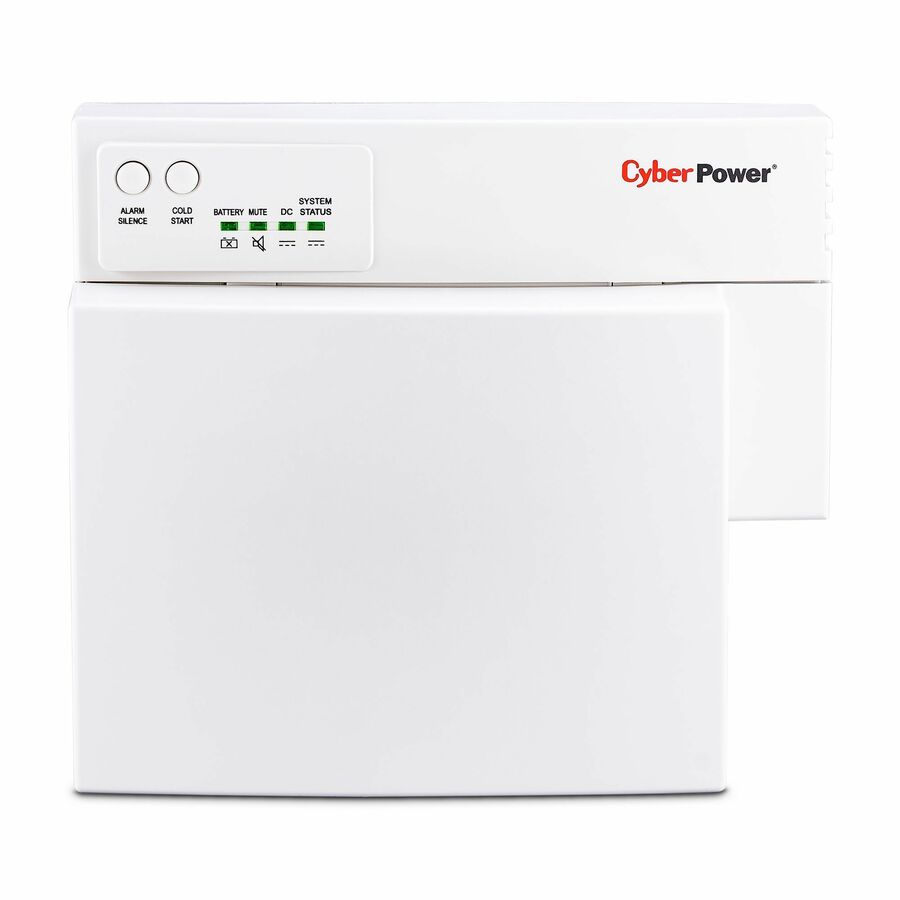

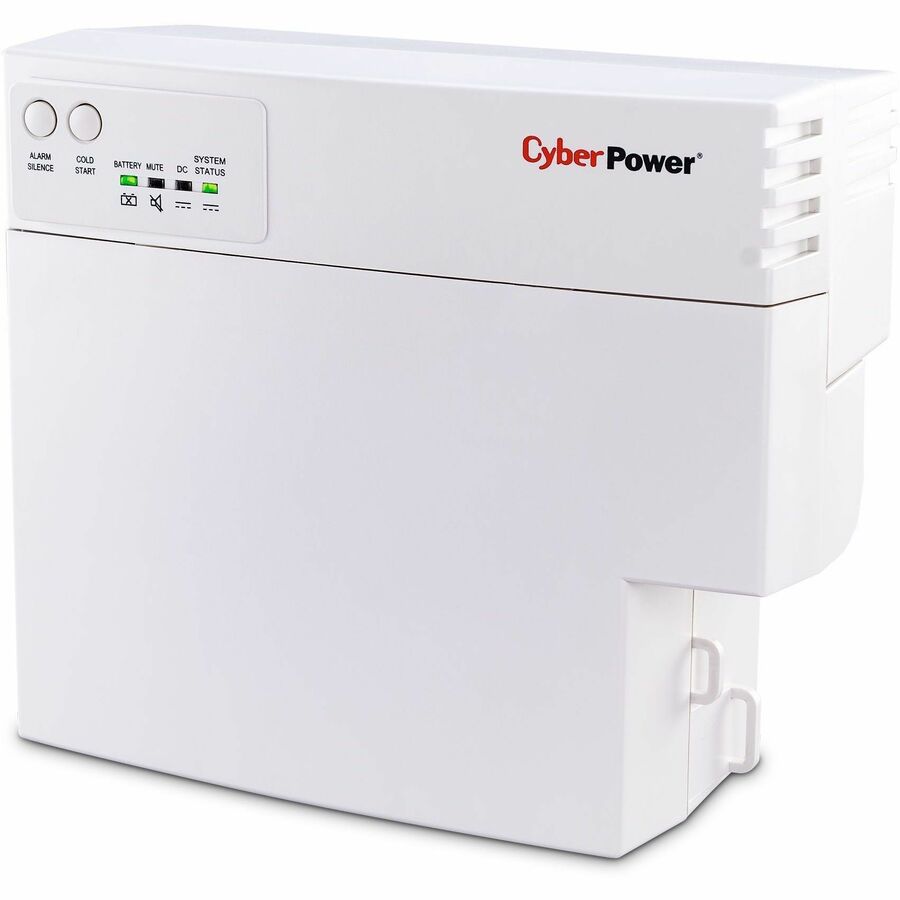

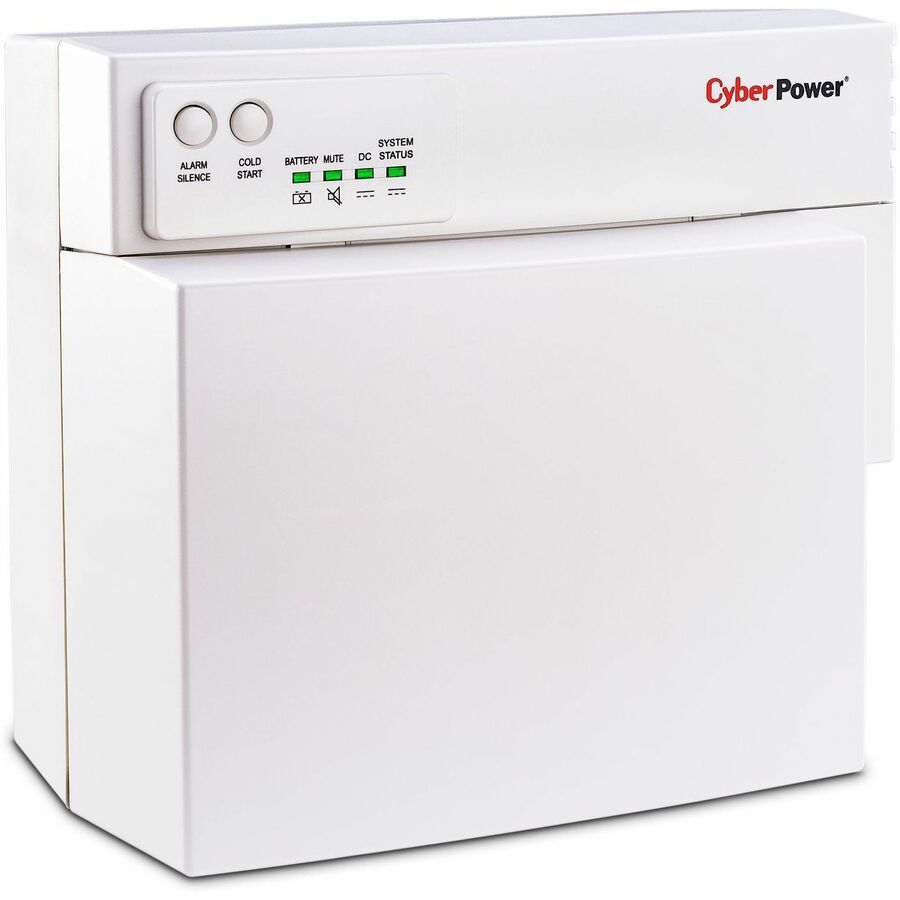

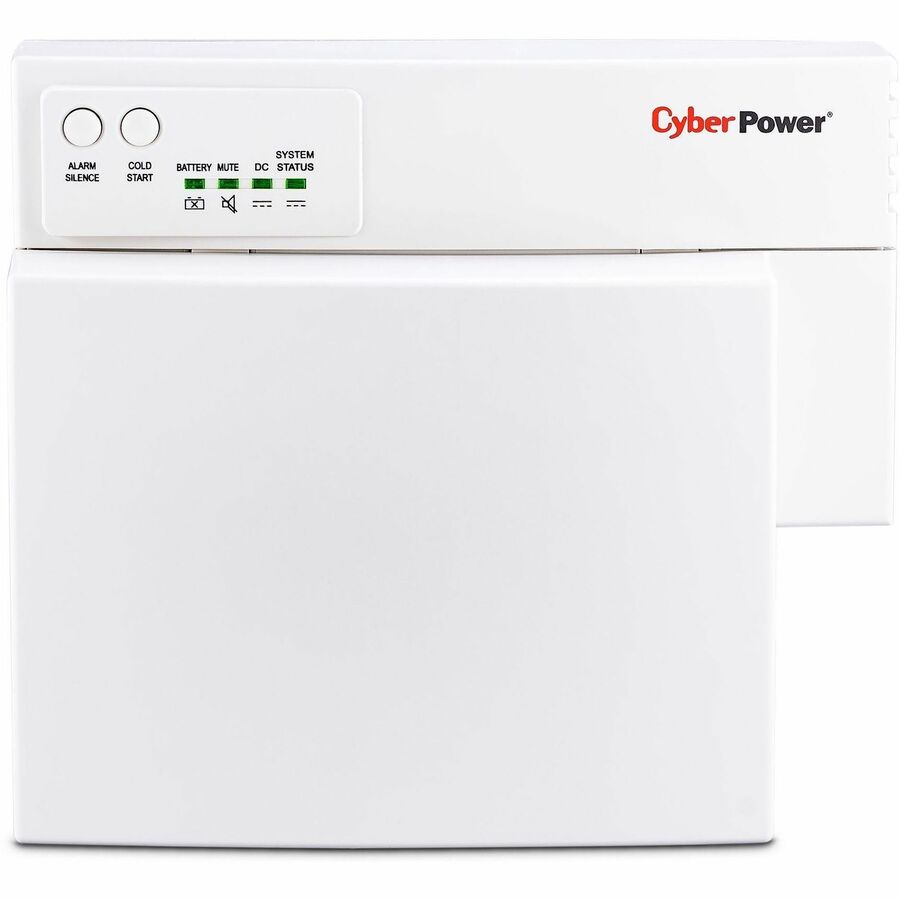

CyberPower Indoor FTTx Battery Backup CSN27U12V-12
12 VDC 27 W 12 V / 12 Ah IEC320 C7 2-Prong Cord 3YR Warranty
- SKU
- CSN27U12V-12
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CSN27U12V-12
- Category
- General Purpose UPS
Overview
The CyberPower CyberShield indoor battery backup series provides cable telephone, wireless local loop (WLL) and fiber to the premise (FTTP) providers with a dependable and cost effective local power supply for customer premise equipment (CPE) during power outages. The CyberShield indoor family provides Multiple Service Operators with a local powering solution that has lower installation costs, lower operational costs and higher quality than competing power technologies.
CyberShield indoor battery backup products supply continuous 12Vdc or 48Vdc (depending on model) to local power network interface devices (NIDs), cable telephone modems, wireless base stations and fiber to the home Optical Network Terminals (ONTs) or integrated access devices.
Highlights
- Indoor design
- Audible alarm signals
- Microprocessor intelligent control
- Telemetry interface
- Optional extendable runtime
- Silenceable audible-alarm for signaling utility power failure and low battery
Specifications
| Application/Usage | Cable Telephone, Wireless Local Loop, Equipment, Network, Modem, Wireless Base Station, Optical Network Terminal (ONT), Integrated Access Device |
|---|---|
| Battery Chemistry | Lead Acid |
| Product Type | DC UPS |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | CSN27U12V-12 |
| Output Voltage | 12 V DC |
| Weight (Approximate) | 6.68 lb |
| Features | Audible Alarm, Cold Start Function |
| Form Factor | External |
| Status Indicators | LED Indicators: Replace Battery Mute DC System Status |
| Length | 6.6" |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | CSN27U12V-12 |
| Product Name | CyberShield FTTx CSN27U12V-12 27W External UPS |
| Overload Protection | Yes |
| Product Line | CyberShield |
| Product Series | FTTx |
| Brand Name | CyberPower |
| Plug/Connector Type | IEC 60320 C7 |
| Input Voltage Range | 90 V AC - 264 V AC |
| Alarm | Low Battery, Utility Power Failure |
| Width | 7.48" |
| Depth | 3.27" |
| Input Frequency | 47 Hz, 70 Hz |
| Battery Size | 12V |
| Receptacle Type | NEMA 1-15R |
| Battery Capacity | 12000 mAh |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed |
| Load Capacity (Watt) | 27 W |
| Replaceable Battery | Yes |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Operating Humidity | 0% - 95% |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |

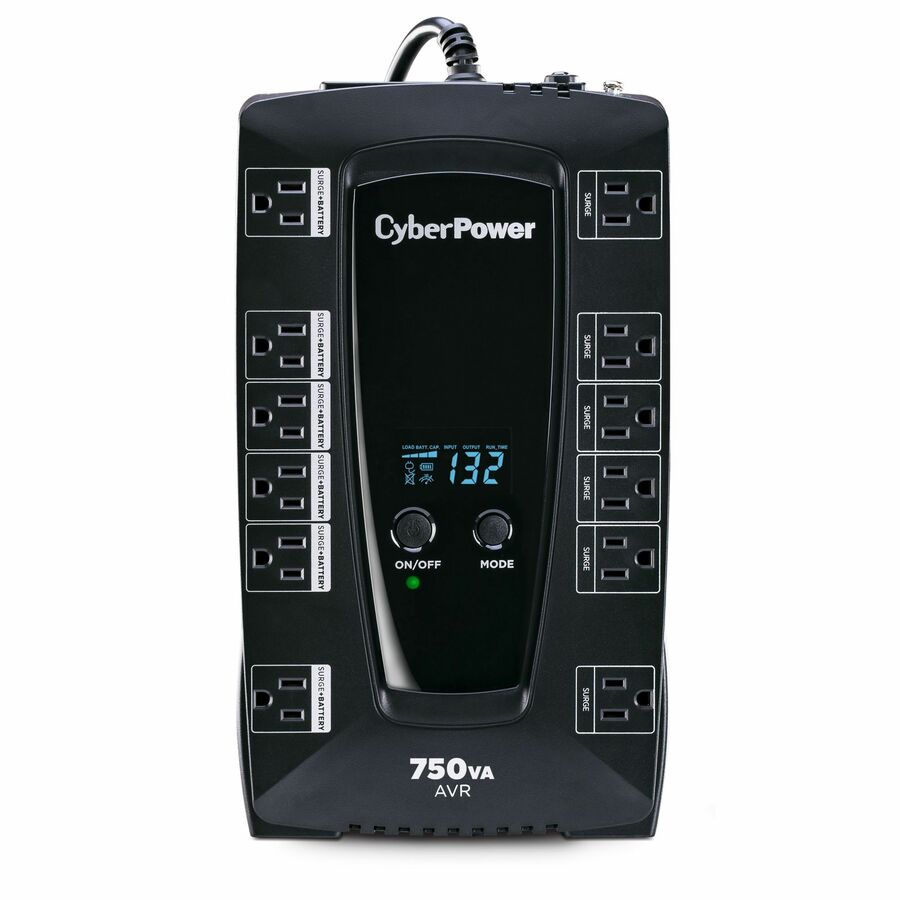

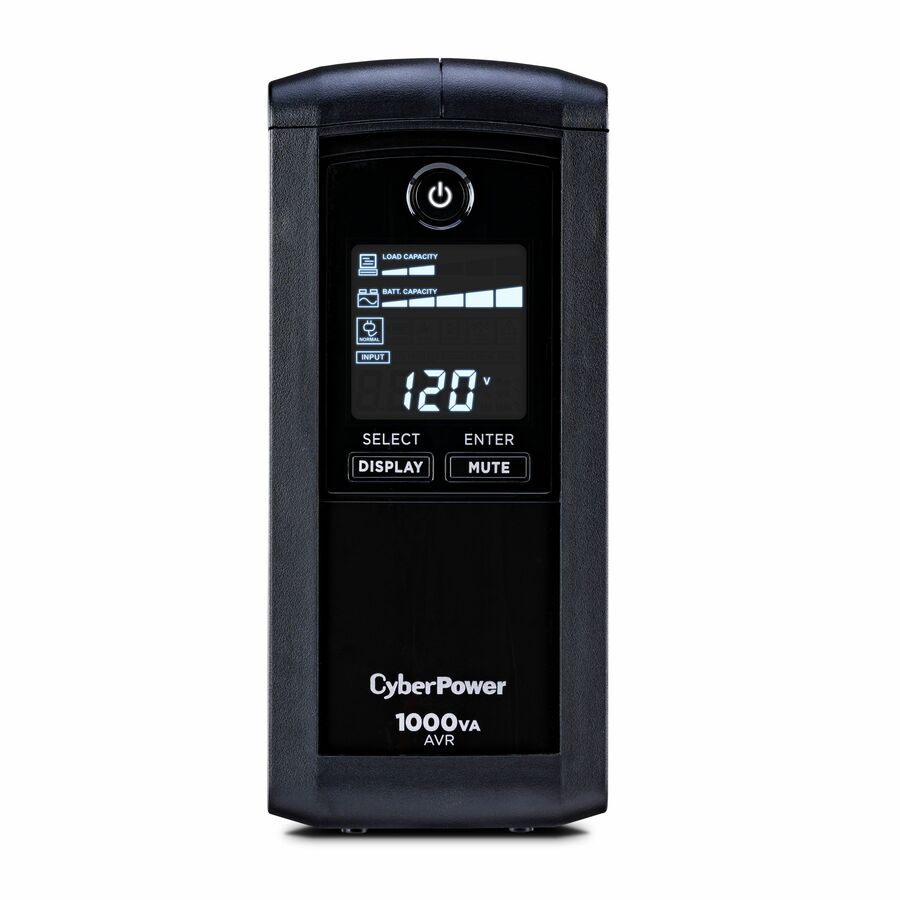

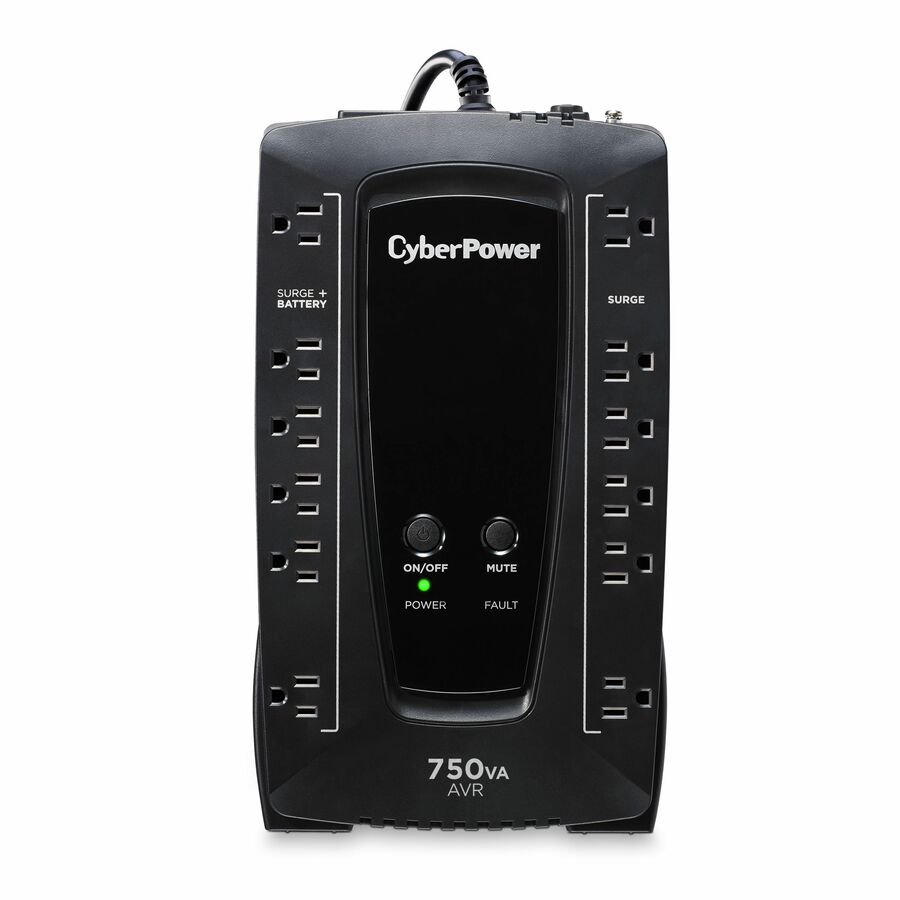

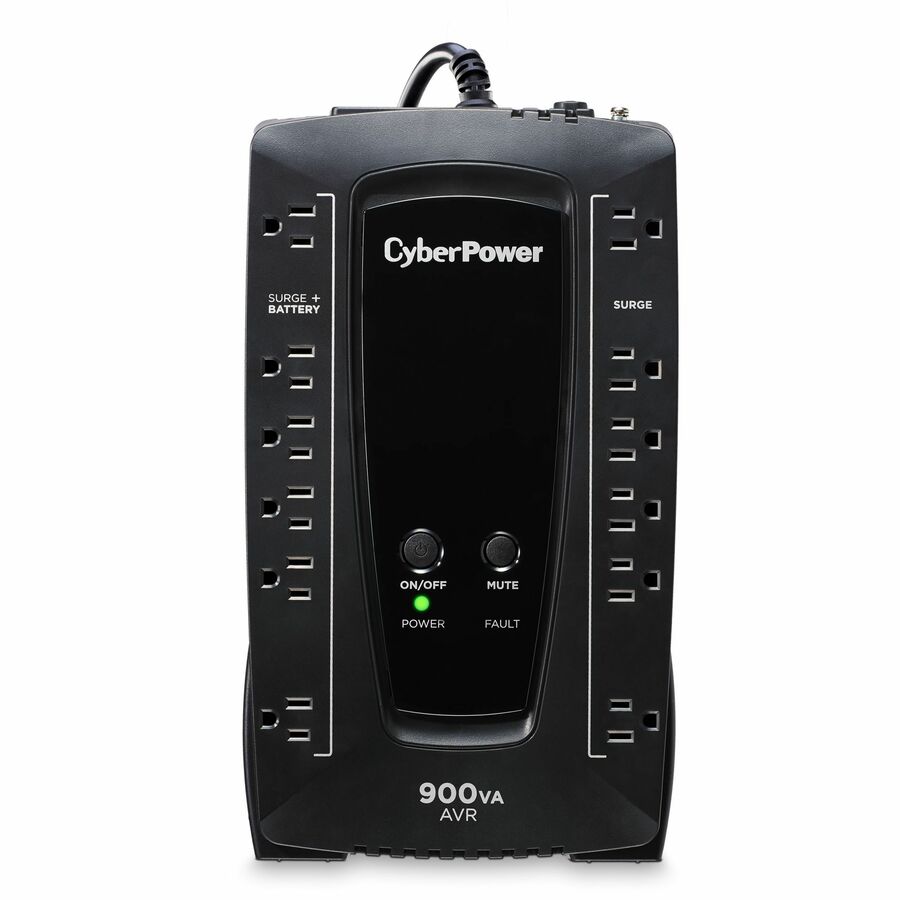

More General Purpose UPS from CyberPower Systems
