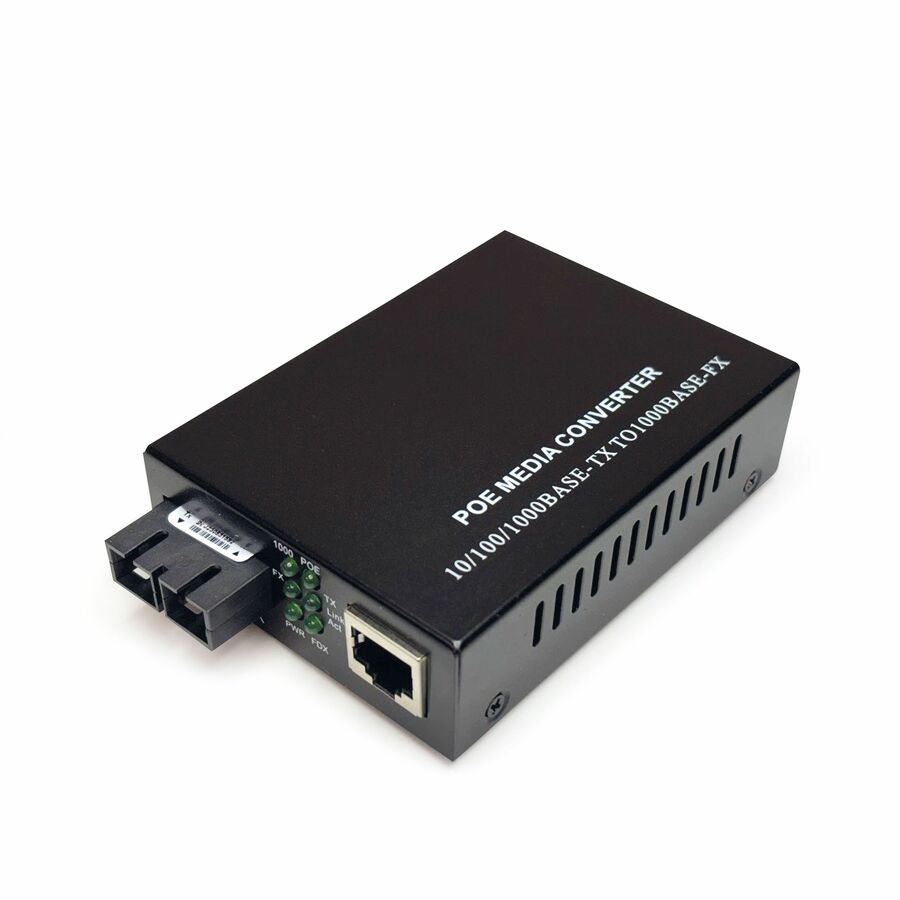

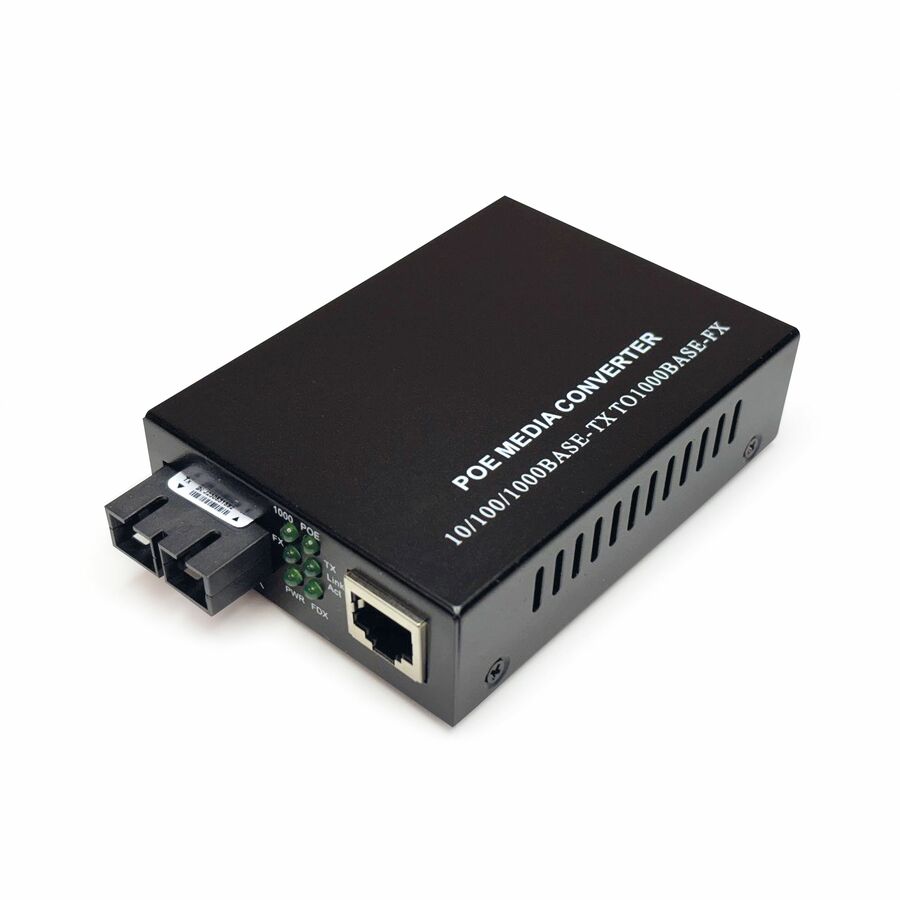

Black Box Gigabit Ethernet (1000-Mbps) PoE+ Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber
Black Box

Black Box Gigabit Ethernet (1000-Mbps) PoE+ Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber

Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - DuplexSC Port - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX/LX - 10 km - AC - TAA Compliant

SKU
LPS603A-SM1310
Category
Transceivers/Media Converters

MSRP$385.38

$301.87

Save 22%

In stock: 5

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LPS603A-SM1310
Category
Transceivers/Media Converters

Overview

Use the PoE PSE Media Converter 10/100/1000BASE-T to 1000BASE-SX/LX to connect two types of network segments easily and inexpensively. It features a UTP RJ-45 port and a fiber port. Depending on the model, the fiber port can be an SFP slot, or a singlemode or multimode duplex fiber SC connector. The SFP model is customizable using swappable SFPs for singlemode or multimode applications.

The media converter automatically detects 10-/100-/1000-Mbps bandwidth on the copper side and supplies power to PoE+ powered devices. The converter includes an AC power supply to power the unit.

Highlights

  • Connects 10/100/1000BASE-T to 1000BASE-SX/LX network segments easily and inexpensively

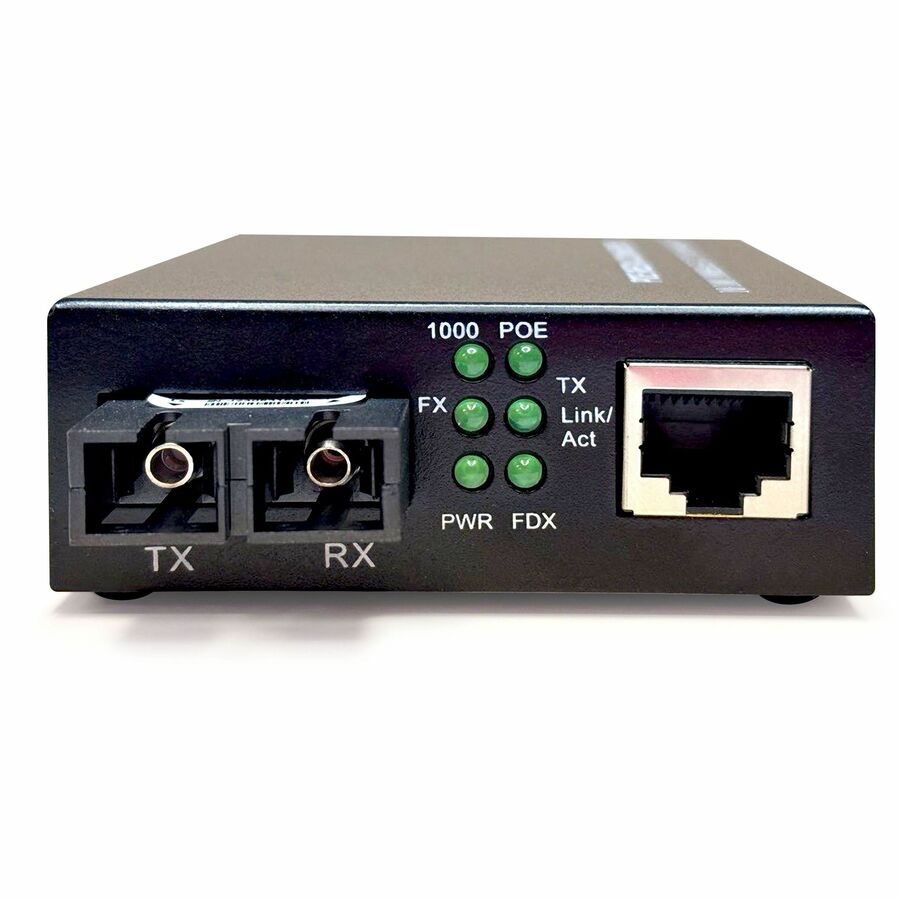

  • Includes an UTP RJ-45 port and an SFP slot or SM/MM SC connector
  • SFP model supports swappable SM or MM modules
  • Automatically senses 10/100/1000-Mbps bandwidth
  • Supplies power to PoE+ powered devices (PDs)

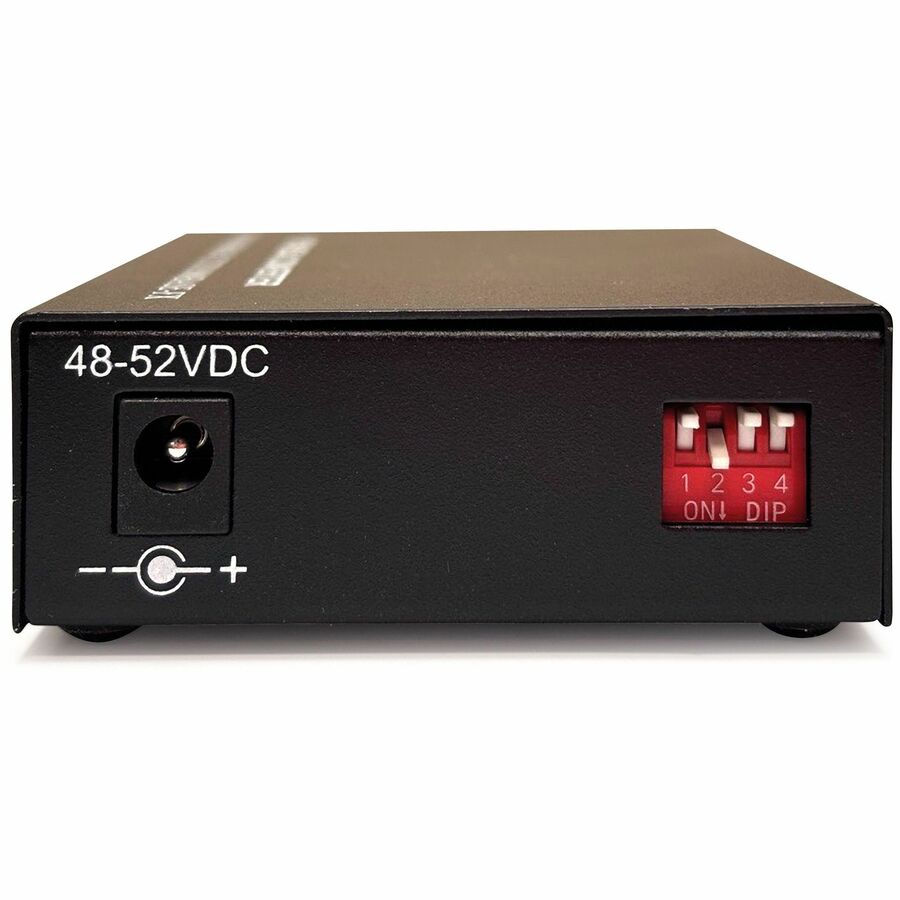

  • Includes an AC power supply

Specifications

Additional Warranty InformationDouble Diamond Warranty (Standard)
Package Contents
  • Gigabit Ethernet (1000-Mbps) PoE+ Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber
  • 1 x AC Power Supply
  • 1 x Power Cord
Product TypeTransceiver/Media Converter
Manufacturer Part NumberLPS603A-SM1310
Maximum Distance Supported10 km
Packaged Quantity1
Power SourceAC
Limited Warranty1 Year
Weight (Approximate)1.14 lb
ManufacturerBlack Box Corporation
Product NameGigabit Ethernet (1000-Mbps) PoE+ Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber
Network Technology10/100/1000Base-T, 1000Base-SX/LX
Brand NameBlack Box
Country of OriginPhilippines
Height1"
Width2.8"
Depth3.7"
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of PoE+ (RJ-45) Ports1
Number of SC Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
PoE Port TypePD
TAA CompliantYes
Fiber Optic Cable Wavelength1310 nm
