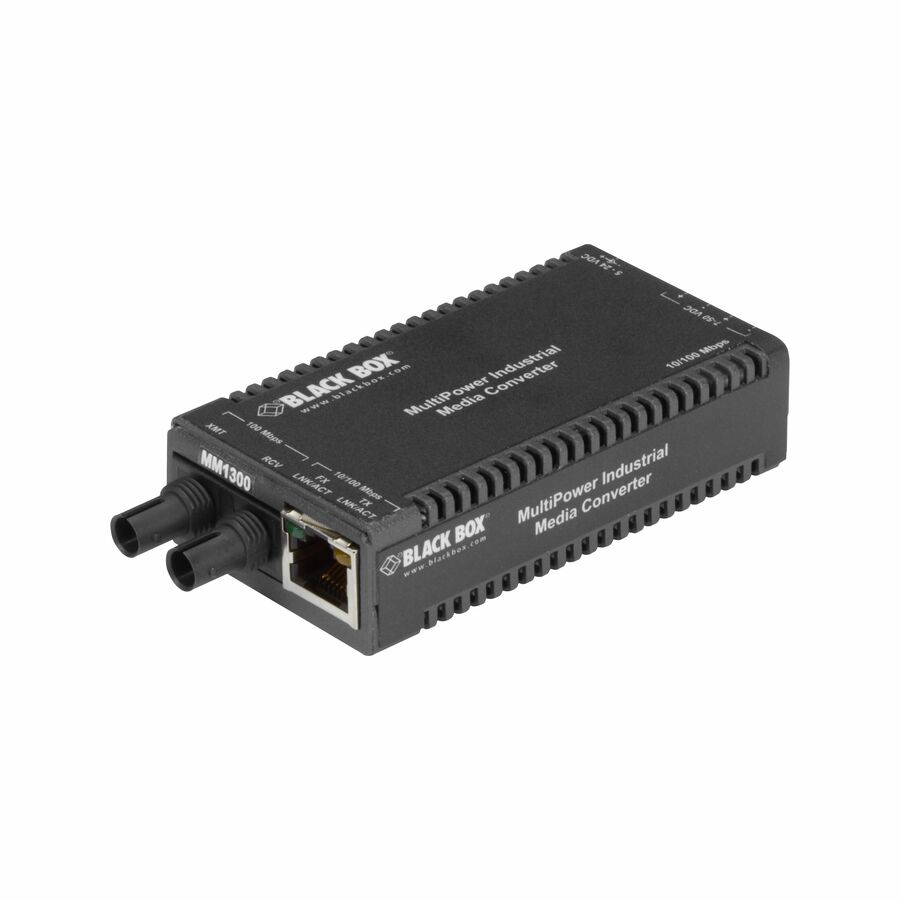

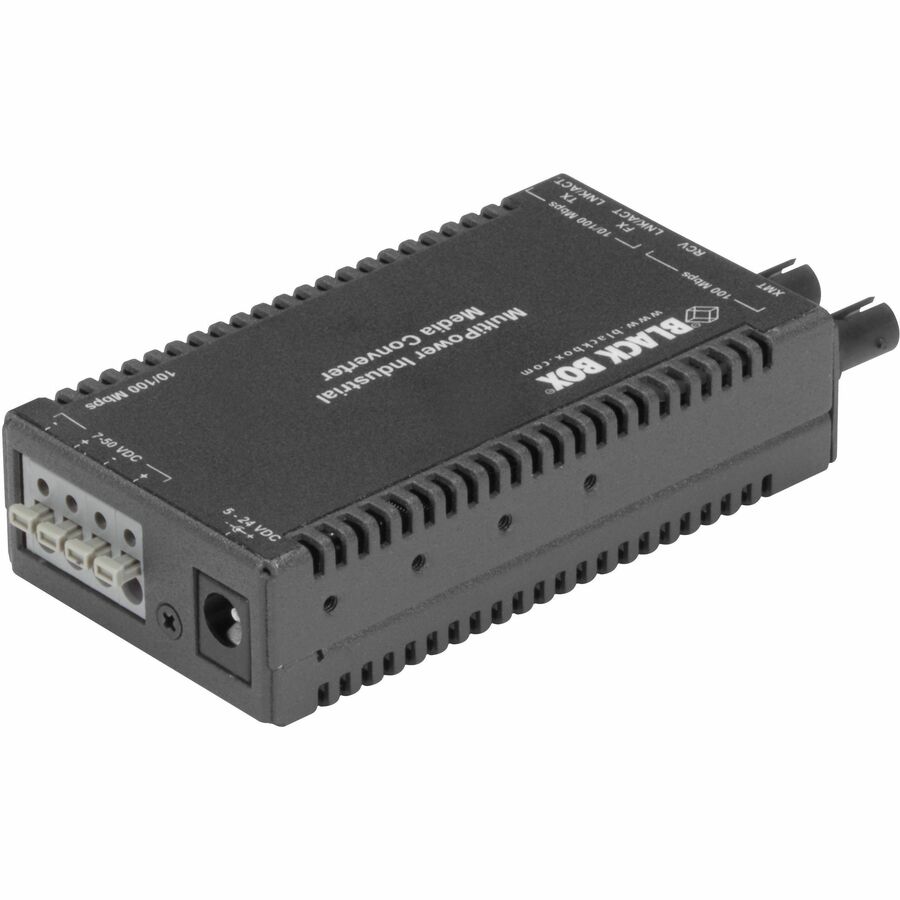

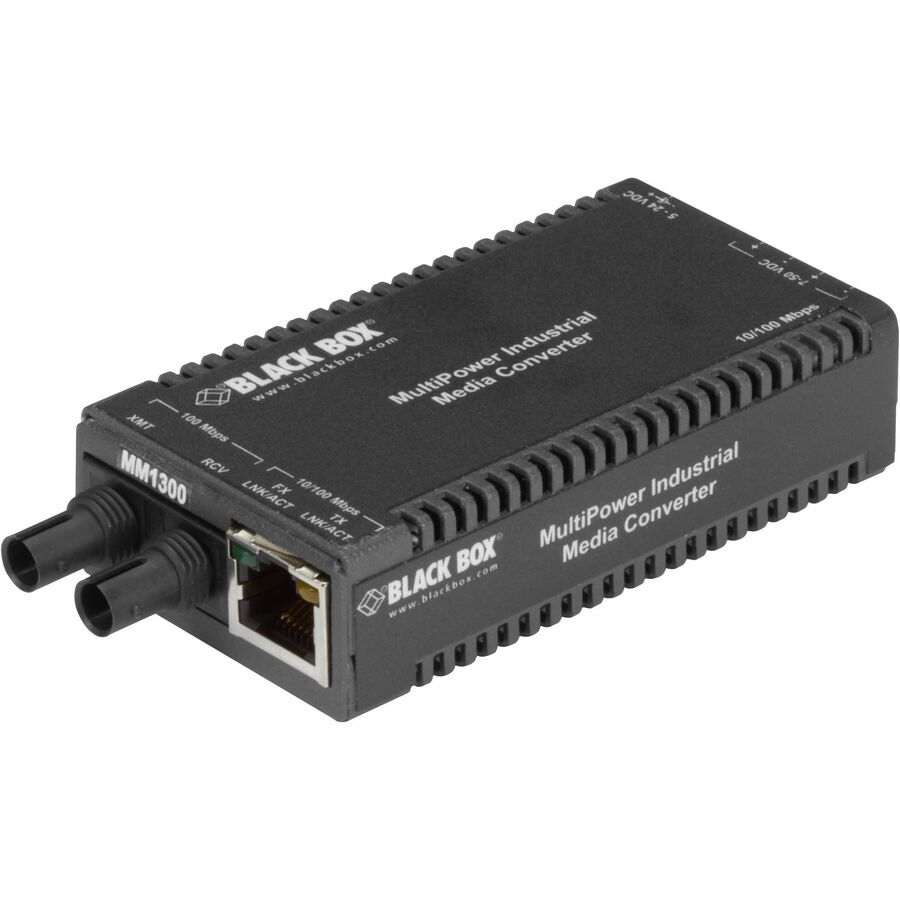

Black Box MultiPower Miniature Transceiver/Media Converter

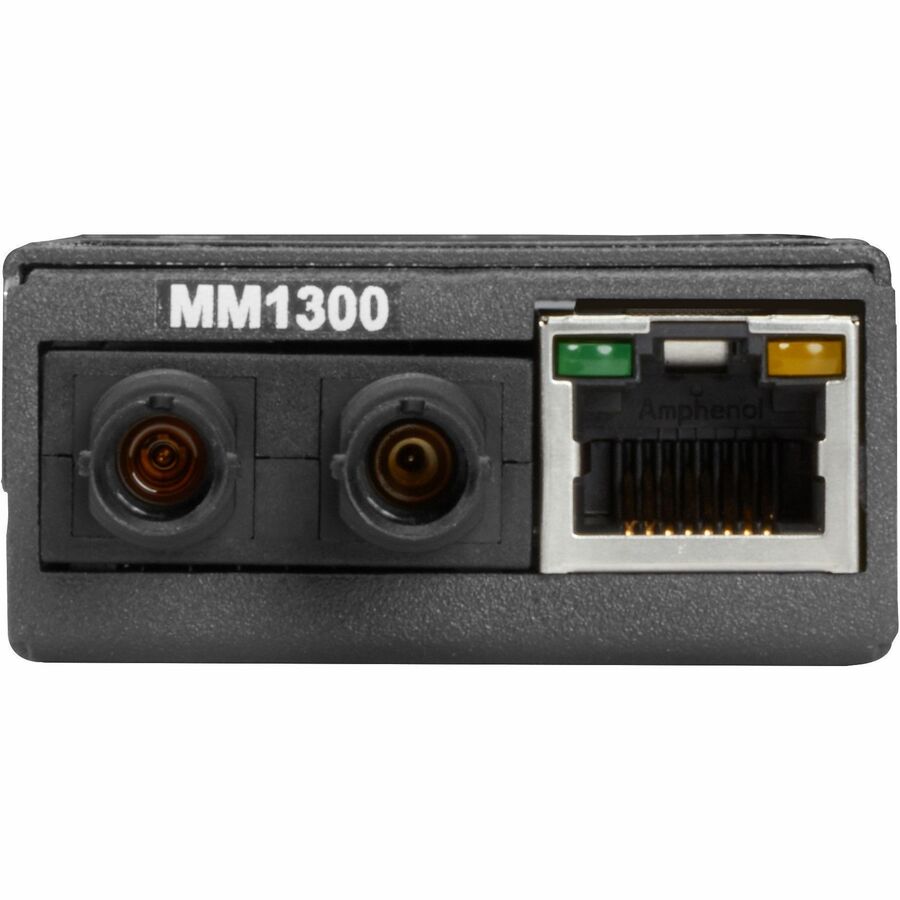

1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-FX, 100Base-TX - 2 km - AC Adapter - DIN Rail Mountable, Rack-mountable - TAA Compliant
- SKU
- LIC022A-R4
- Category
- Transceivers/Media Converters
MSRP$384.89
$301.31
Save 22%Back ordered — ships when restocked.
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LIC022A-R4
- Category
- Transceivers/Media Converters
Overview
Hardened and Rugged
These ultra-compact, plug-and-play converters support USB power using an optional USB power cable (part number LHC021A). Plus, Industrial MultiPower Media Converters are designed for use in harsh industrial environments.
Versatile Power Options

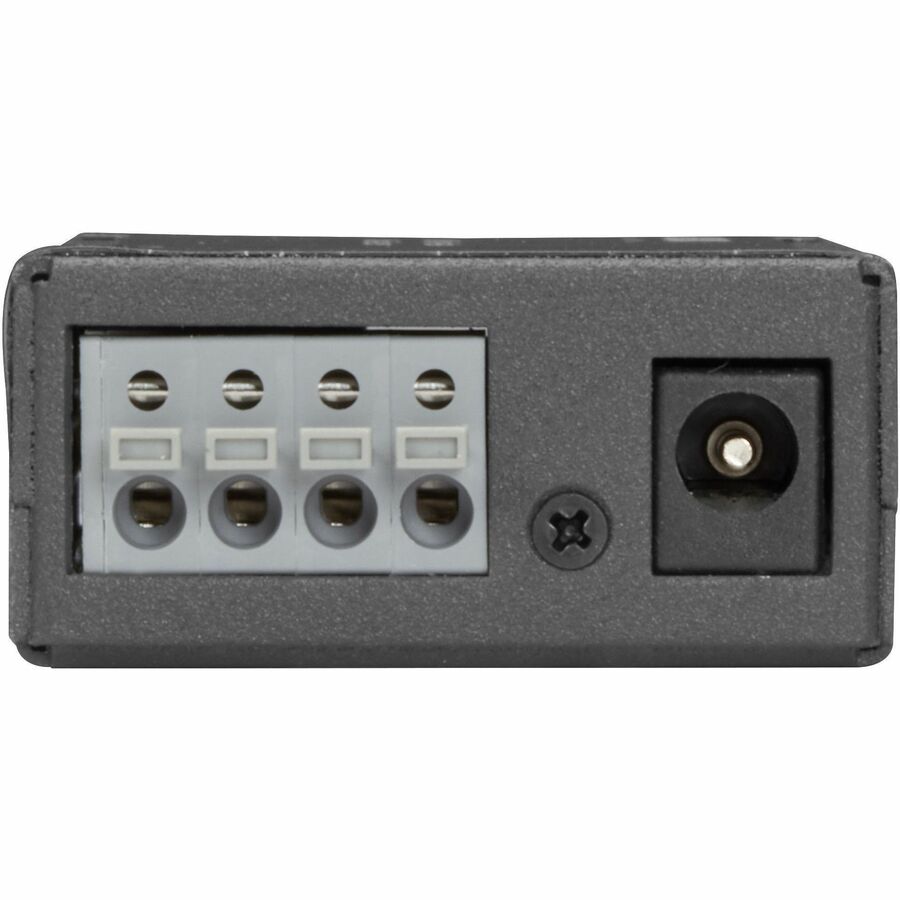

For added flexibility, the Industrial MultiPower Media Converter can be powered via an external AC adapter or 5-50-VDC terminal block power. Alternately, an optional USB Power Adapter Cable (sold separately, part number LHC021A) allows you to power the unit through the PC's USB port.
Maximum Redundancy
Multiple power options can be used simultaneously for maximum redundancy, ensuring continuous operation of mission-critical applications. If one source fails, the others will seamlessly keep the converter powered, so you can use AC and DC power together or USB and DC power together. AC and USB use the same power connection on the device and can never be used at the same time.
Link Fault Pass-Through (LFPT) Support
LFPT functionality can be enabled or disabled via a DIP switch on the unit. This feature combines TX LinkLoss (for twisted pair/copper interfaces) and FX LinkLoss (for fiber interfaces) between paired media converters. When enabled, LFPT passes a link fault through the device at each segment. If a link fails on one interface, the media converter will bring down the link on its partner and pass the fault to the next interface. Disabling LFPT helps when troubleshooting by not propagating the fault through the unit so the area where the issue resides can be determined.
Easy DIN Rail Installation
The converter includes a DIN-rail clip for easy attachment to a DIN rail. When installing multiple Industrial MultiPower Media Converters, use a single DC input source and cascade from one DC block to the next, up to the maximum available current.
Highlights
- Compliant to EN62368
- Supports link fault passthrough for troubleshooting
- Includes clips for mounting on DIN rails
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | LIC022A-R4 |
| Maximum Distance Supported | 2 km |
| Power Source | AC Adapter |
| Weight (Approximate) | 11.20 oz |
| Form Factor | DIN Rail Mountable, Rack-mountable |
| Manufacturer | Black Box Corporation |
| Product Name | MultiPower Miniature Transceiver/Media Converter |
| Network Technology | 100Base-FX, 100Base-TX |
| Product Line | Multipower Miniature |
| Brand Name | Black Box |
| Height | 0.8" |
| Width | 1.8" |
| Depth | 3.4" |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 1300 nm |
