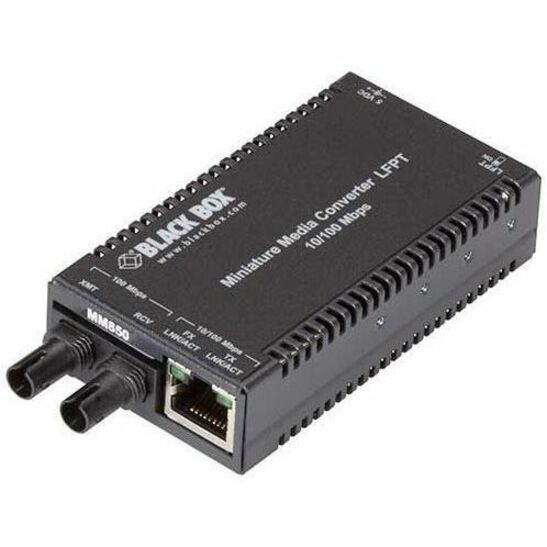

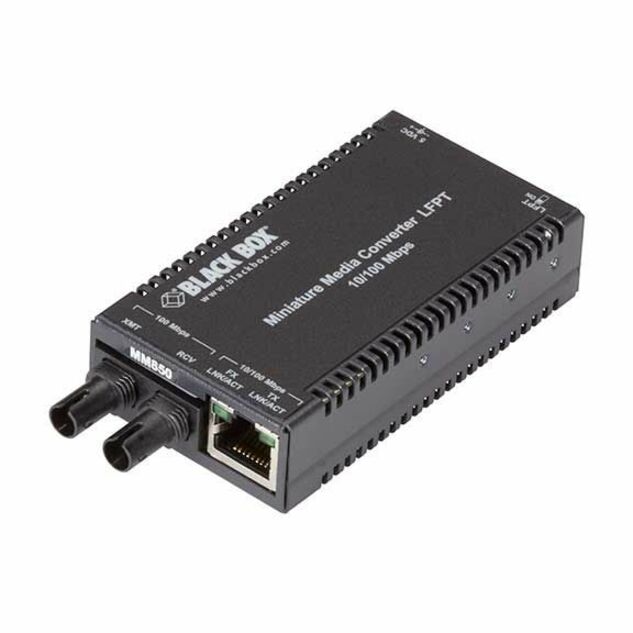

Black Box Multipower Miniature Transceiver/Media Converter
1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode - 850 nm Fiber - Fast Ethernet - 10/100Base-T, 100Base-X - 0.50 km - Power Supply - Rack-mountable, Desktop - TAA Compliant
- SKU
- LHC040A-R4
- Category
- Transceivers/Media Converters
MSRP$239.92
$187.96
Save 22%In stock: 1
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LHC040A-R4
- Category
- Transceivers/Media Converters
Overview
• Autonegotiates for speed and duplex.
• A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting.
• Powered by the included universal AC power supply, a PC's USB port (with optional USB Power Adapter Cable), or the optional rackmountable PowerTray.
• Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5x cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. The converter not only links 10- and 100-Mbps segments to fiber cabling, it also works as a data rate converter, performing 10/100 autonegotiation on the twisted-pair port. For extra versatility, you can power the Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), or through the optional rackmount PowerTray (LHC018A-AC-R2).
Highlights
- Compliant to EN62368
- Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
- Powered by a universal AC power supply or the optional rackmountable PowerTray.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
- Converters may also be powered from a USB port using the LHC021A USB power cable.
Specifications
| Additional Warranty Information | Double Diamond? Warranty (Standard) Take the risk out of equipment purchases with the Double Diamond? Warranty from Black Box Network Services. The Double Diamond Warranty is our warranty that protects your Black Box® brand products from accidental damage, including drops, water, and power surges. The FST ETH MED CONV 10/100Mbps COP to 100Mbps MM FBR 850nm 0.5km ST comes with a standard 6 Year Double Diamond? Warranty (Standard) warranty already included. During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE! |
|---|---|
| Package Contents |
|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | LHC040A-R4 |
| Maximum Distance Supported | 0.50 km |
| Power Source | Power Supply |
| Limited Warranty | 6 Year |
| Weight (Approximate) | 1.20 lb |
| Form Factor | Rack-mountable, Desktop |
| Manufacturer | Black Box Corporation |
| Product Name | Multipower Miniature Transceiver/Media Converter |
| Network Technology | 10/100Base-T, 100Base-X |
| Product Line | Multipower Miniature |
| Brand Name | Black Box |
| Height | 1" |
| Width | 2" |
| Depth | 4.7" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 850 nm |
