Black Box Pure Networking Transceiver/Media Converter
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - Single-mode, Multi-mode - Gigabit Ethernet - 1000Base-T, 1000Base-X, 100Base-FX - 0.10 km - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Adapter - Standalone
- SKU
- LGC215A-R2
- Category
- Transceivers/Media Converters
MSRP$251.80
$197.60
Save 22%Back ordered — ships when restocked.
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LGC215A-R2
- Category
- Transceivers/Media Converters
Overview
10/100/1000BASE-T to 1000BASE-X 802.3af/at
Easily convert 10/100/1000BASE-T to 1000BASE-X 802.3af/at Ethernet with this PoE converter. Know link media issues immediately
Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net.
Know where connections are down
Link Loss Carry Forward (LLCF) informs you of failing links. LLCF means when a device connected to the converter and the TP line lose the link, the converter's fiber will disconnect the link of transmit.
Highlights
- Compliant to EN62368
- Converts 10/100/1000BASE-T to 1000BASE-X 802.3af/at Ethernet

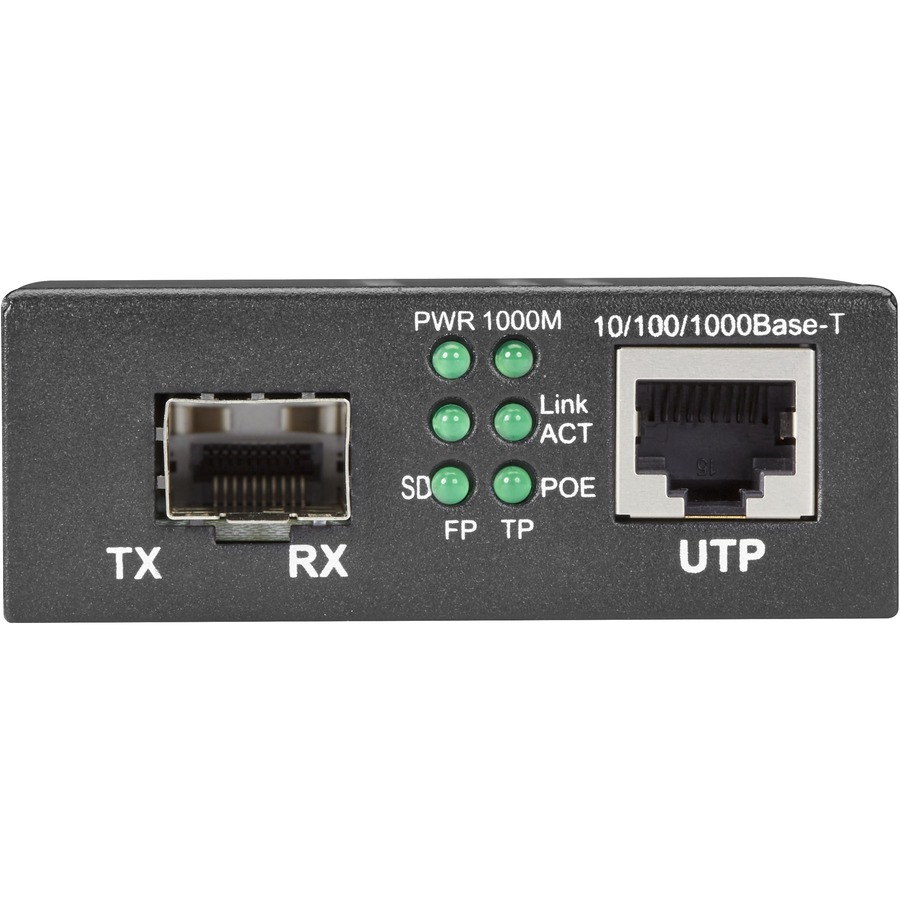

- One RJ45 twisted-pair jack, one fiber-optic connector and four LED indicators
- Link fault pass-through functionality
- PoE function
- Link Loss Carry Forward and Link Loss Return functionality
- Standalone media converter (not to be used with chassis)
Specifications
| Additional Warranty Information | 45 Day Standard Returns Policy |
|---|---|
| Package Contents |
|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | LGC215A-R2 |
| Maximum Distance Supported | 0.10 km |
| Packaged Quantity | 1 |
| Power Source | Power Adapter |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 11.20 oz |
| Form Factor | Standalone |
| Manufacturer | Black Box Corporation |
| Product Name | Pure Networking Transceiver/Media Converter |
| Network Technology | 1000Base-T, 1000Base-X, 100Base-FX |
| Power Consumption | 33 W |
| Product Line | Pure Networking |
| Brand Name | Black Box |
| Plug/Connector Type | Barrel, C13/C14 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Country of Origin | China |
| Height | 1" |
| Width | 3.7" |
| Depth | 2.7" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 1 |
| Number of PoE+ (RJ-45) Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode, Multi-mode |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| PoE Port Type | PD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm, 62.5/125 µm, 8.3/125 µm, 9/125 µm, 10/125 µm |
