Black Box MultiPower LGC011A-R2 Transceiver/Media Converter
Black Box

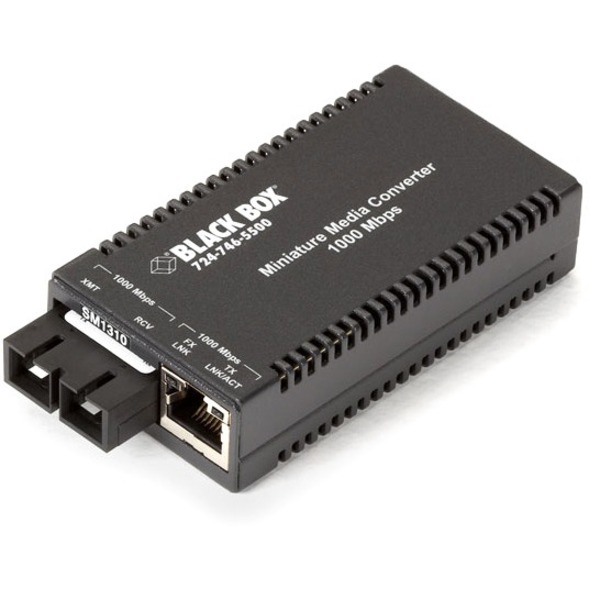

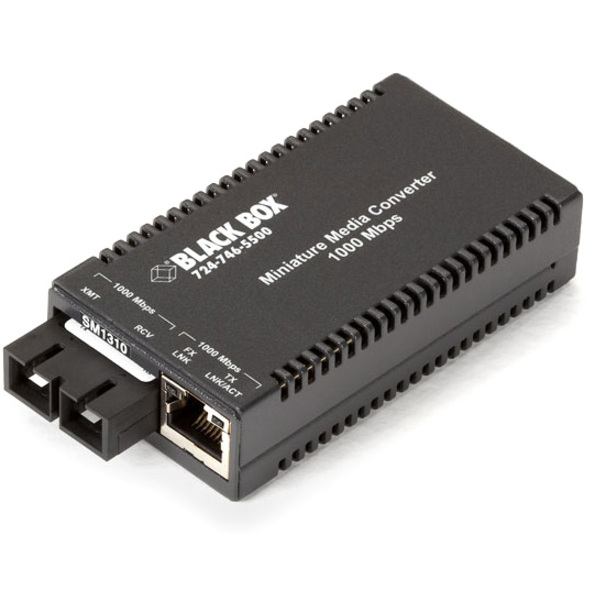

Black Box MultiPower LGC011A-R2 Transceiver/Media Converter

1 x Network (RJ-45) - 1 x SC Ports - 1310 nm Fiber - 1000Base-LX, 1000Base-TX - 10 km - External, Rail-mountable, Rack-mountable - TAA Compliant

SKU
LGC011A-R2
Category
Transceivers/Media Converters

MSRP$538.92

$423.86

Save 21%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LGC011A-R2
Category
Transceivers/Media Converters

Overview

Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. Choose from multimode and single-mode duplex fiber versions. For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).

Highlights

  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • Compact size; measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

Specifications

Package Contents
  • MultiPower LGC011A-R2 Transceiver/Media Converter
  • External 100-240-VAC, 50-60-Hz Adapter
Product TypeTransceiver/Media Converter
Manufacturer Part NumberLGC011A-R2
Maximum Distance Supported10 km
Limited Warranty6 Year
Form FactorExternal, Rail-mountable, Rack-mountable
ManufacturerBlack Box Corporation
Product ModelLGC011A-R2
Product NameMultiPower LGC011A-R2 Transceiver/Media Converter
Network Technology1000Base-LX, 1000Base-TX
Product LineMultiPower
Brand NameBlack Box
Country of OriginUnited States
Height0.8"
Width1.8"
Depth3.4"
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Management PortNo
Number of SC Ports1
Media Type SupportedOptical Fiber, Twisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
TAA CompliantYes
Fiber Optic Cable Wavelength1310 nm
