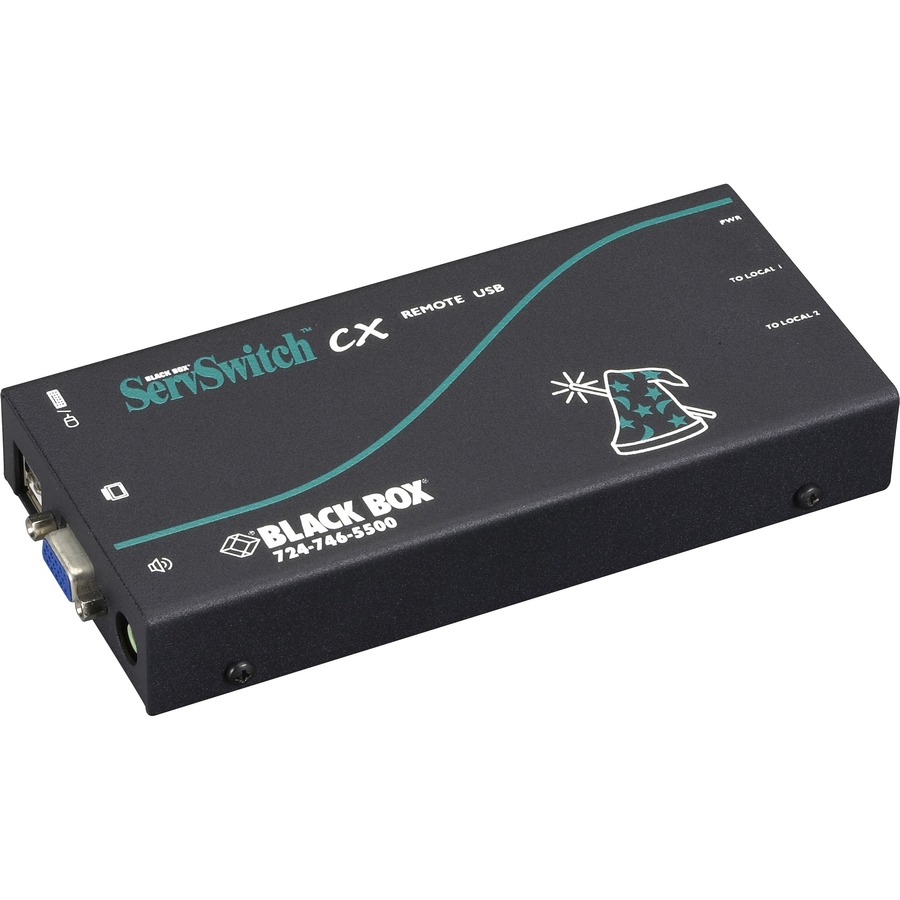

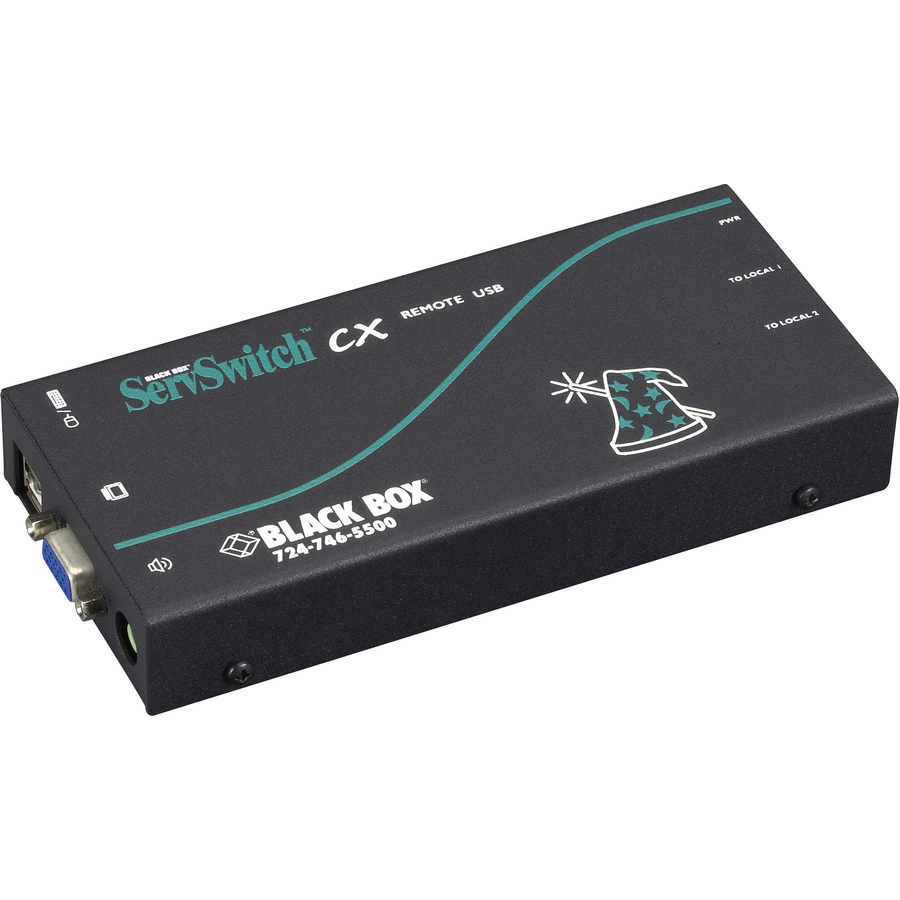

Black Box ServSwitch CATmix KVM Extender
1 Computer(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1900 x 1440 Maximum Video Resolution - 1 x Network (RJ-45) - 2 - 1 x USB - 1 x VGA - External
- SKU
- KV04AUS-REM
- Category
- KVM Consoles/Extenders
MSRP$864.73
$686.39
Save 21%In stock: 4
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- KV04AUS-REM
- Category
- KVM Consoles/Extenders
Overview
Compact and cost effective KVM extension over CATx
• Small form factor.
• Easy video fine tuning over keyboard hotkeys.
• Uni-directional and DeSkew options.
• Choose between PS/2 single and USB dual receivers.
• Place server up to 100m or 300m away from the receiver.
• Flash upgradable.USB receivers are capable of switching between two transmitters.
Specifications
| Package Contents |
|
|---|---|
| Product Type | KVM Console |
| Manufacturer Part Number | KV04AUS-REM |
| Packaged Quantity | 1 |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Form Factor | External |
| Manufacturer | Black Box Corporation |
| Product Name | ServSwitch CATmix KVM Extender |
| Product Line | ServSwitch |
| Brand Name | Black Box |
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1900 x 1440 |
| Graphic Mode | WUXGA |
| Maximum Operating Distance | 984.25 ft |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 1 |
| Number of PS/2 Ports | 2 |
| Number of VGA Ports | 1 |
| Number of Computers Supported | 1 |
| Number of Remote Users Supported | 1 |
| Receiver Height | 0.98" |
| Receiver Width | 1.77" |
| Receiver Depth | 2.56" |
| Receiver Weight (Approximate) | 3.53 oz |
