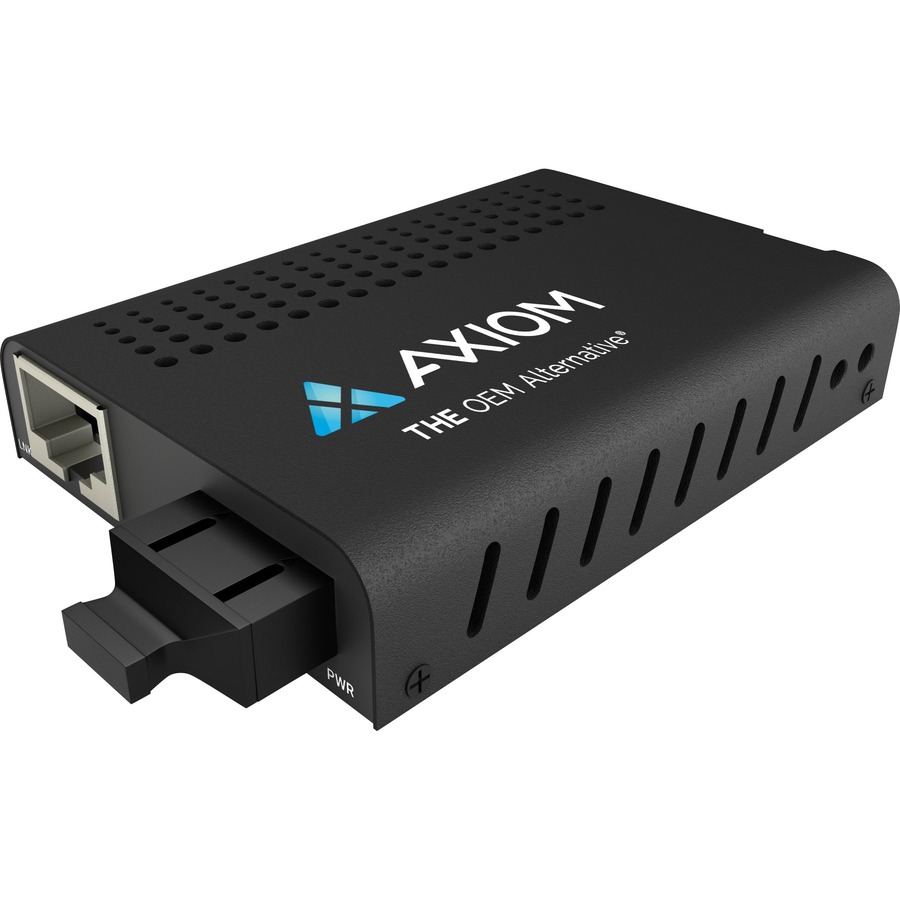

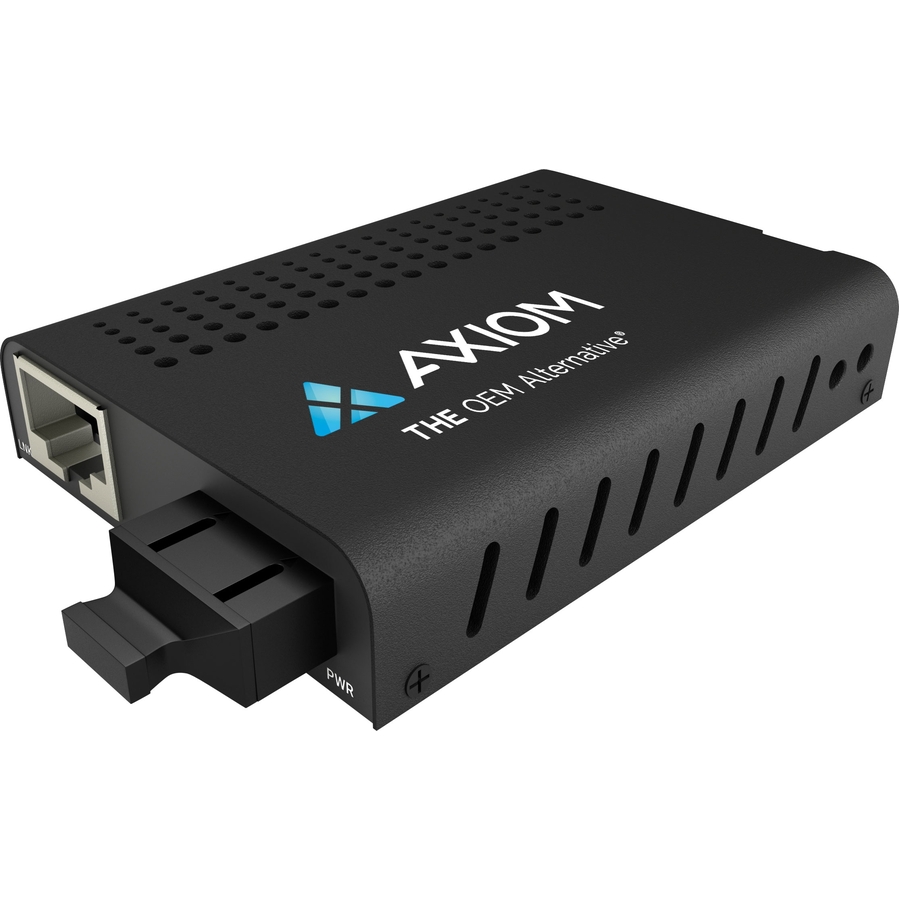

Axiom Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1550 nm Fiber - Gigabit Ethernet - 1000Base-ZX, 10/100/1000Base-TX - 80 km - DC
- SKU
- MC03-S5S80-AX
- Category
- Transceivers/Media Converters
MSRP$202.00
$159.48
Save 21%In stock: 1
Genuine Axiom Memory Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MC03-S5S80-AX
- Category
- Transceivers/Media Converters
Overview
Features
The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
• Unit and Port LEDs allow for quick status information
• Auto-Negotiation
• Full-Duplex or Half-Duplex Operation Modes
• Auto-MDI/MDIX
• Automatic Link Restoration
• Connect to legacy network equipment
• Eliminate Collision Domains
• 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
• Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
• Available with Open SFP Port or optional built in LC/SC/ST Connections
• DIP switch to set different configurations
• Compact package size
• Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function
Highlights
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 1000Base-ZX technology get up to 1000Mbps data transfer rate over optical fiber cable
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | MC03-S5S80-AX |
| Maximum Distance Supported | 80 km |
| Power Source | DC |
| Limited Warranty | 1 Year |
| Manufacturer | Axiom Memory Solutions |
| Product Name | Transceiver/Media Converter |
| Network Technology | 1000Base-ZX, 10/100/1000Base-TX |
| Brand Name | Axiom |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Fiber Optic Cable Wavelength | 1550 nm |
