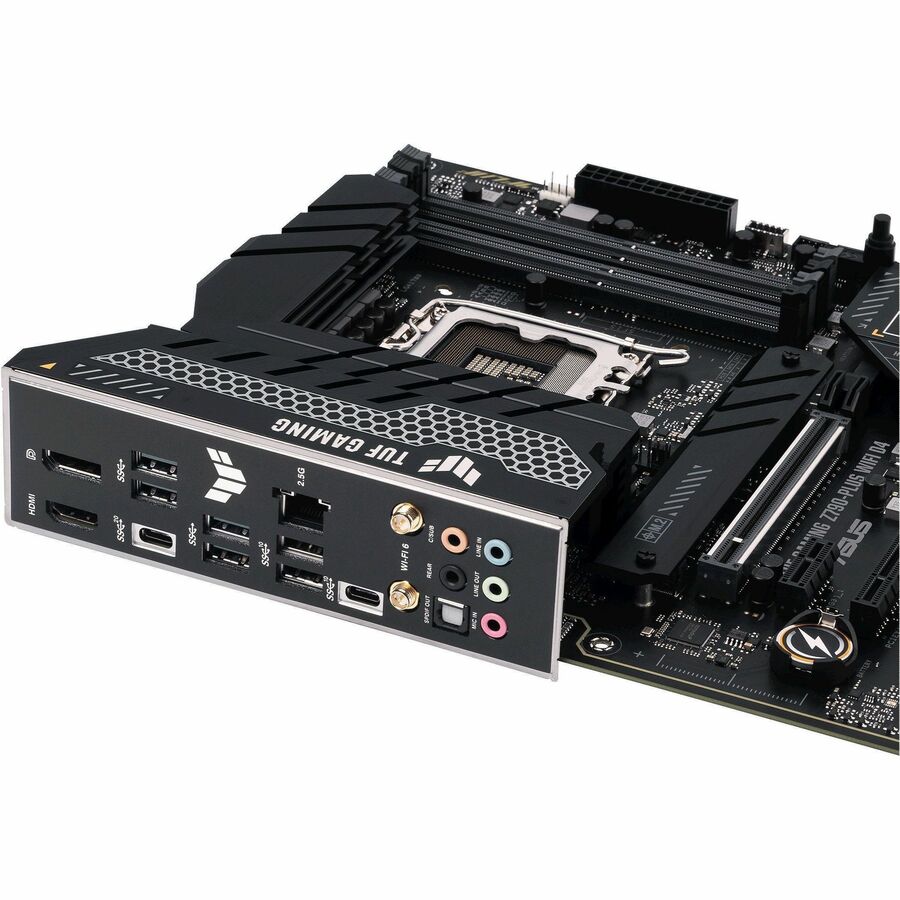

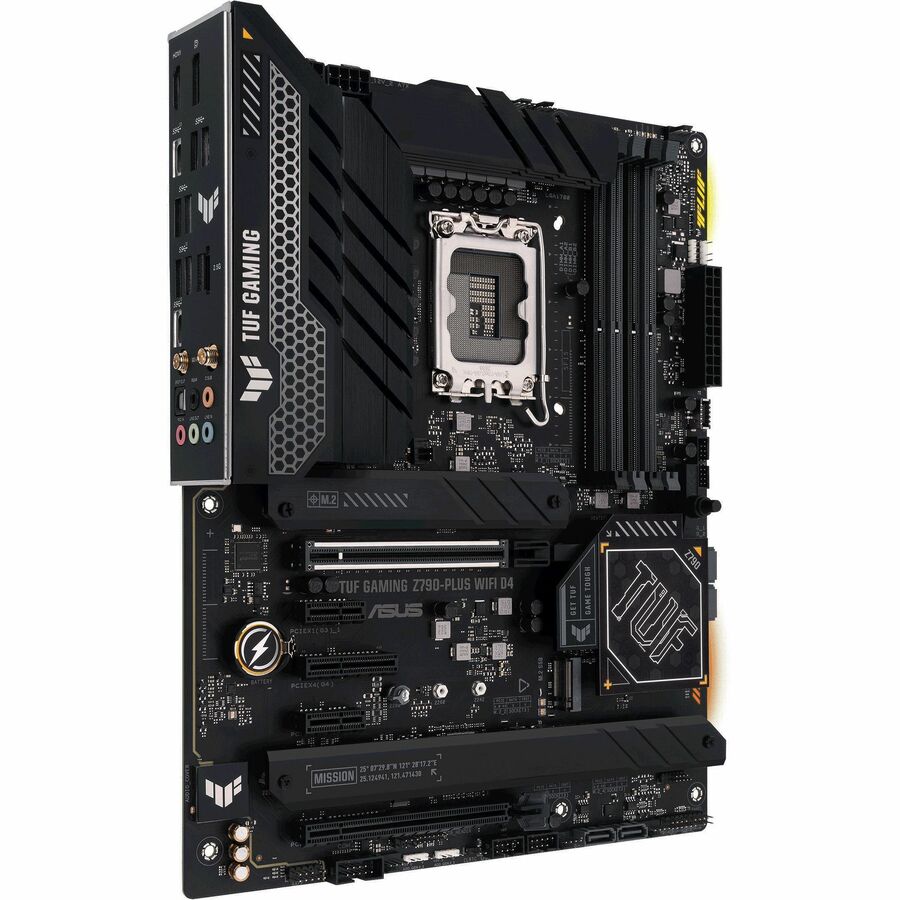

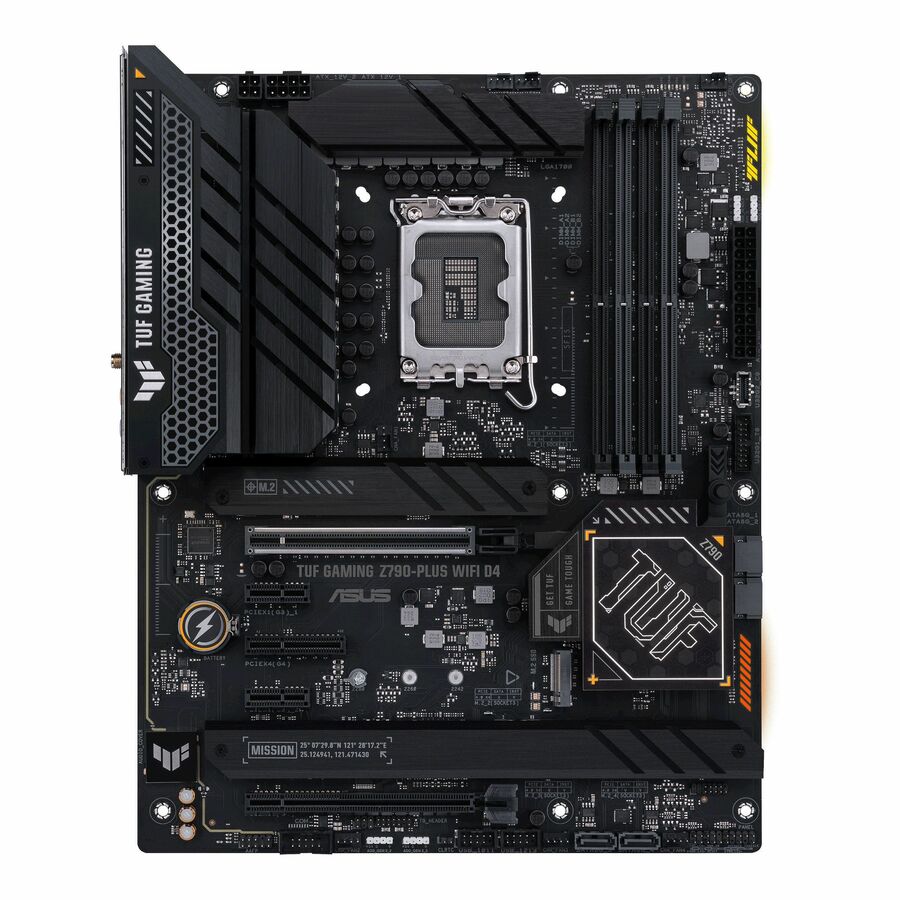

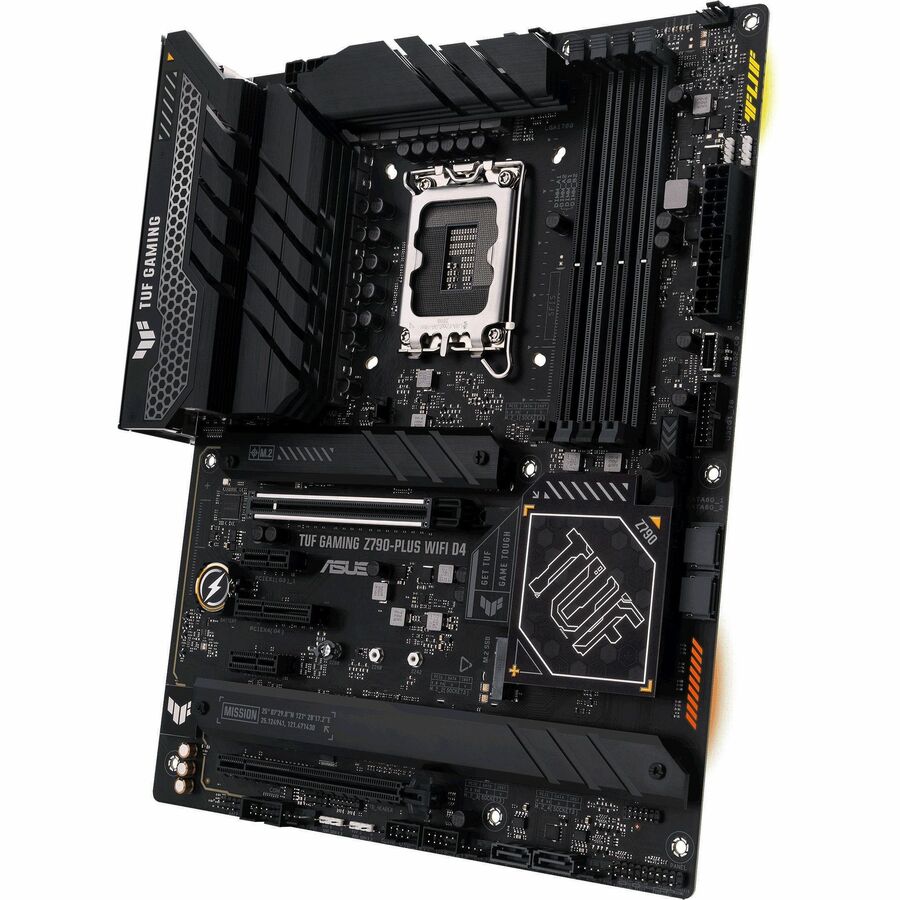

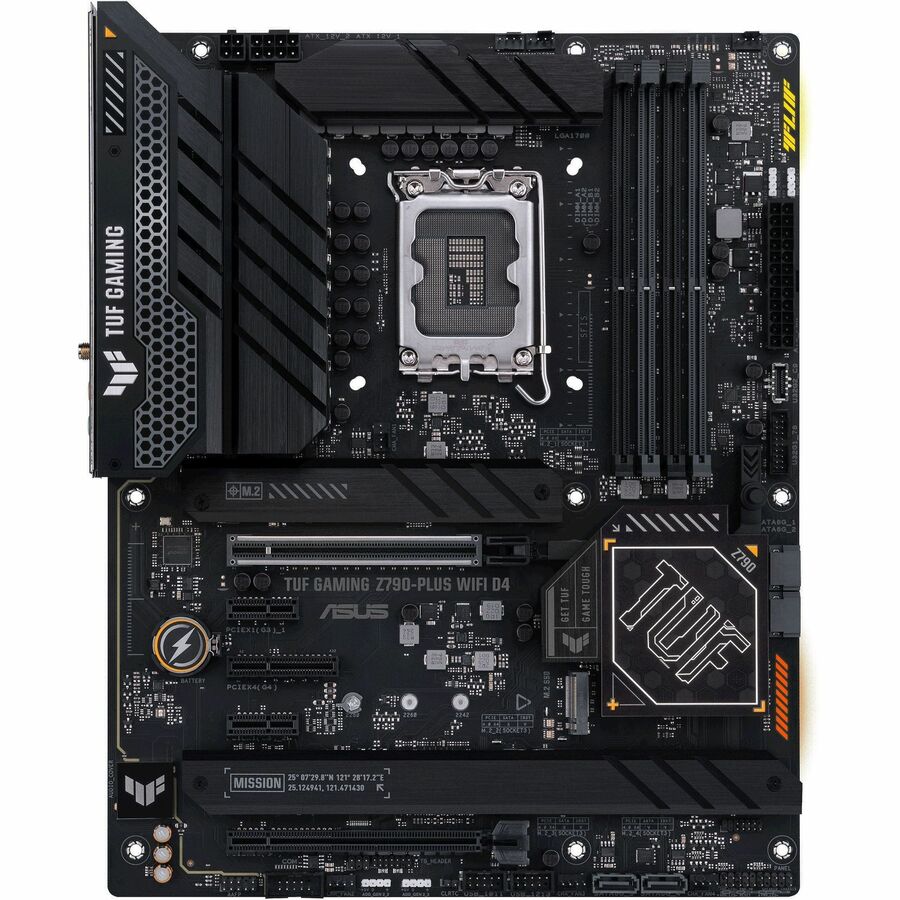

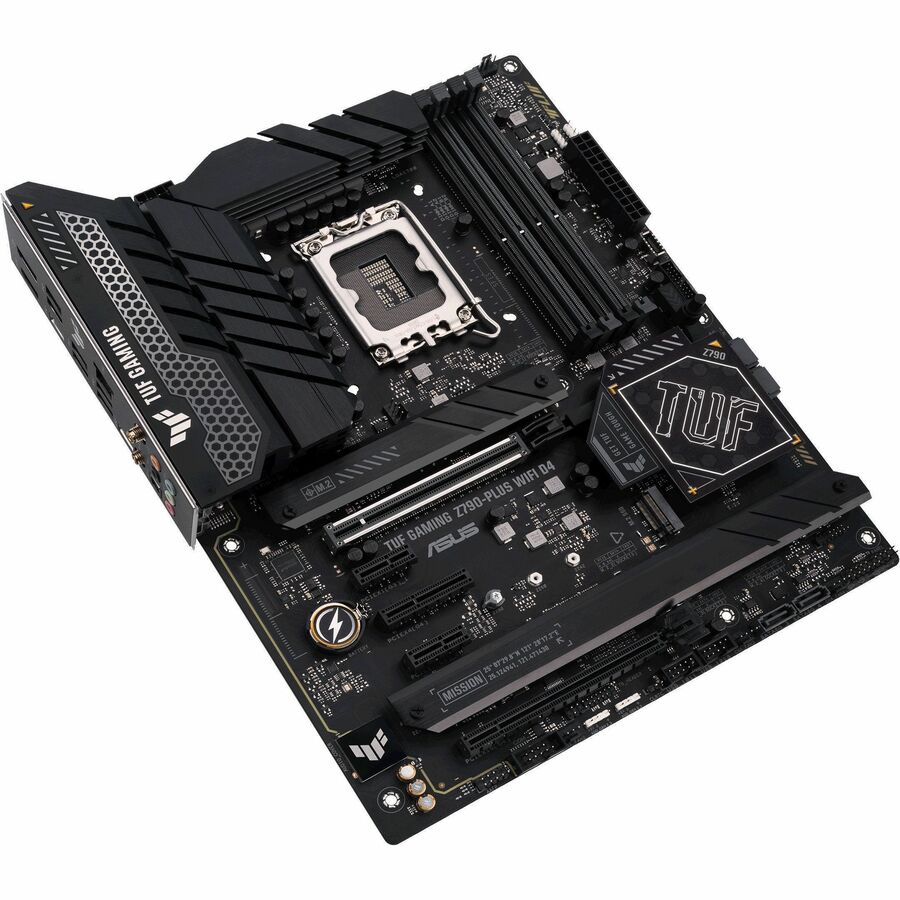

TUF Z790-PLUS WIFI D4 Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- 90MB1CR0-M0EAY0
- Category
- Motherboards
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 90MB1CR0-M0EAY0
- Category
- Motherboards
Overview
Intel ® Z790 (LGA1700) ATX Gaming motherboard, 16+1 DrMOS power stages, PCIe ® 5.0, DDR4 memory, four M.2 slots, WiFi 6 and Intel 2.5 Gb Ethernet, HDMI ® , DisplayPort?, USB 3.2 Gen 2x2 Type-C ® , front USB 3.2 Gen 2 Type C, SATA 6 Gbps, Thunderbolt? 4 header and Aura Sync RGB lighting
• Intel ® LGA 1700 socket: Ready for 13th Gen Intel ® Core? processors
• Enhanced power solution: 16+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
• Next-gen connectivity: PCIe ® 5.0, USB 3.2 Gen2x2 Type-C ® , front USB 3.2 Gen 2 Type-C, Thunderbolt? 4 header support
• Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard
• Two-Way AI Noise Cancelation: Reduces background noise for crystal-clear communication in games or video conferences
• AI Cooling II: Balances thermals and acoustics of any build with a single click
• Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
• Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support
• PC DIY design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED and SafeSlot
TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel ® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL
The TUF GAMING Z790 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Highlights
- Core processors supported for faster, dependable performance and better access to data and information
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Thunderbolt host interface lets you move data between your devices and your computer with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Specifications
| Package Contents |
|
|---|---|
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | 90MB1CR0-M0EAY0 |
| Maximum Memory Supported | 128 GB |
| S/PDIF | Yes |
| Limited Warranty | 3 Year |
| Form Factor | ATX |
| Manufacturer | ASUS Computer International |
| Product Model | Z790-PLUS WIFI D4 |
| Product Name | Z790-PLUS WIFI D4 Gaming Desktop Motherboard |
| Processor Supported | Core, Pentium Gold, Celeron |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1700 |
| Brand Name | TUF |
| Memory Technology | DDR4 SDRAM |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Number of Memory Slots | 4 |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.2 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| PCI Express Standard | PCI Express 5.0, PCI Express 4.0, PCI Express 3.0 |
| Total Number of PCI Express Slots | 5 |
| Thunderbolt | Yes |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 5 |
| Number of M.2 Interfaces | 4 |
| Memory Speed Supported | 5333 MHz, 5133 MHz, 5066 MHz, 5000 MHz, 4800 MHz, 4700 MHz, 4600 MHz, 4500 MHz, 4400 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3333 MHz, 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| 2.5Gigabit Ethernet | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Processor Generation Supported | 14th Gen, 13th Gen, 12th Gen |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| AI-powered | Yes |
