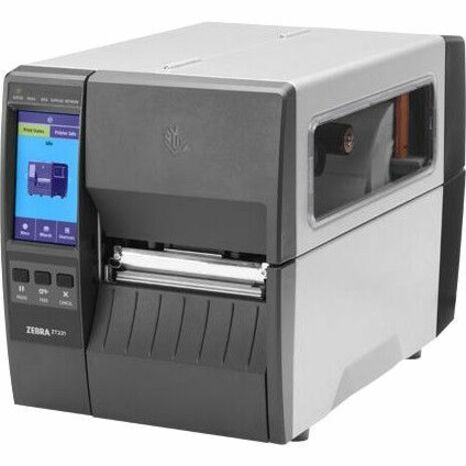

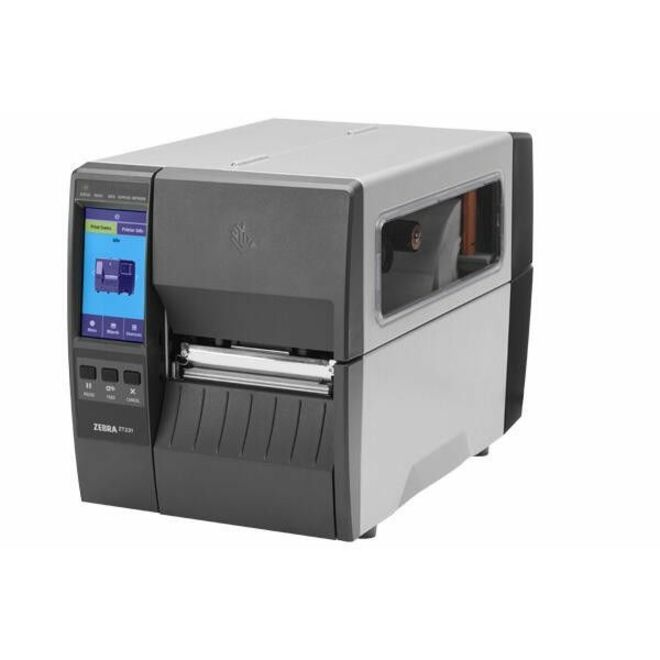

Zebra ZT231 Manufacturing, Transportation & Logistic, Healthcare, Retail Direct Thermal Printer - Monochrome - Label Print - Fast Ethernet - USB - USB Host - Serial - Bluetooth - US - With Cutter
4.3" Display Screen - Real Time Clock - 13.08 ft Print Length x 4.09" Print Width - 12 in/s Mono - 203 dpi - 4.49" Label Width - ZBI 2.0, ZPL II, ZPL, EPL, EPL2 Emulation - For PC
- SKU
- ZT23142-D01000FZ
- Category
- Label/Receipt Printers
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Zebra Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ZT23142-D01000FZ
- Category
- Label/Receipt Printers
Overview
Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up - without interruption? The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more - all in one space-saving footprint. Plus, add optional capabilities like RFID*, wireless connectivity and media handling features when you need them. But that's not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That's how Zebra defines value.
GET MORE VALUE WITH ZEBRA | Simple Operation with Smart Features
Reduce training time with the ZT231's easy-to-use 4.3" full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code.
Make It Easy for Your IT Team
Take advantage of Zebra's robust, ever growing Print DNA software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.
The Smart Choice Now and Later
The benefits of buying a ZT231 don't end at the point of purchase. Expand your printer's capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID* encoding.
BUILT TO PERFORM. ENGINEERED TO ENDURE. | Don't Compromise on Quality
With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you're backed by Zebra, the #1 leader in barcode printing.
Highlights
- Print methods: direct-thermal or thermal-transfer
- Construction: metal frame and metal enclosures
- Bi-fold media door with large clear window
- Side-loading supplies path for simplified media and ribbon loading
- Thin film printhead with E3? Element Energy? Equalizer for superior print quality
- Three-color LEDs for quick printer status
- 4.3" color resistive touch screen with intuitive menu for quick operation and settings
- Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
- ENERGY STAR® certified
- Bluetooth Low Energy (BTLE) technology for enhanced location precision
Specifications
| Application/Usage | Manufacturing, Transportation & Logistic, Healthcare, Retail |
|---|---|
| Barcode Symbology Supported | Code 11, Code 39C, Code 93, Code 128 (A/B/C), UCC Case Codes, ISBT-128, UPC-A, EAN-8, UPC-E, EAN-13, UPC-A with EAN 2 or 5 Digit Extension, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, Codabar, MSI, Planet Code, AZTEC, Codablock, PDF417, Code 49, Data Matrix, Maxi Code, QR Code, Micro PDF-417, TLC 39, RSS-14, RSS Composite |
| Product Type | Direct Thermal Printer |
| Display Screen | Yes |
| Manufacturer Part Number | ZT23142-D01000FZ |
| Media Thickness | 9.84 mil |
| Platform Supported | PC |
| Maximum Print Width | 4.09" |
| Power Source | AC Supply |
| Recommended Use | Label Print |
| Maximum Roll Diameter | 7.99" |
| Limited Warranty | 1 Year |
| Standard Memory | 256 MB |
| Weight (Approximate) | 20 lb |
| Certifications & Standards |
|
| Features | Tear Up |
| Language Emulation | ZBI 2.0, ZPL II, ZPL, EPL, EPL2 |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZT231 |
| Product Name | ZT231 Industrial Printer |
| Screen Size | 4.3" |
| Brand Name | Zebra |
| Media Type | Continuous Label, Label, Die-cut Label, Notch, Black Mark |
| Height | 11" |
| Width | 9.5" |
| Depth | 17" |
| Cutter | Yes |
| Maximum Mono Print Speed | 12 in/s |
| Bluetooth | Yes |
| Ethernet | Yes |
| Media Sensor | Transmissive Media Sensor, Reflective Media Sensor |
| Ethernet Technology | Fast Ethernet |
| USB | Yes |
| Serial Port | Yes |
| Maximum Label Width | 4.49" |
| USB Host | Yes |
| Print Color Capability | Monochrome |
| Maximum Print Length | 13.08 ft |
| Energy Star | Yes |
| Storage Relative Humidity | 5% - 85% |
| Storage Temperature | -40°F (-40°C) - 140°F (60°C) |
| Power Cable Localization | US |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 203 |
| Operating Temperature | 32°F (0°C) - 105°F (40.6°C) |
| Operating Relative Humidity | 20% - 85% |
