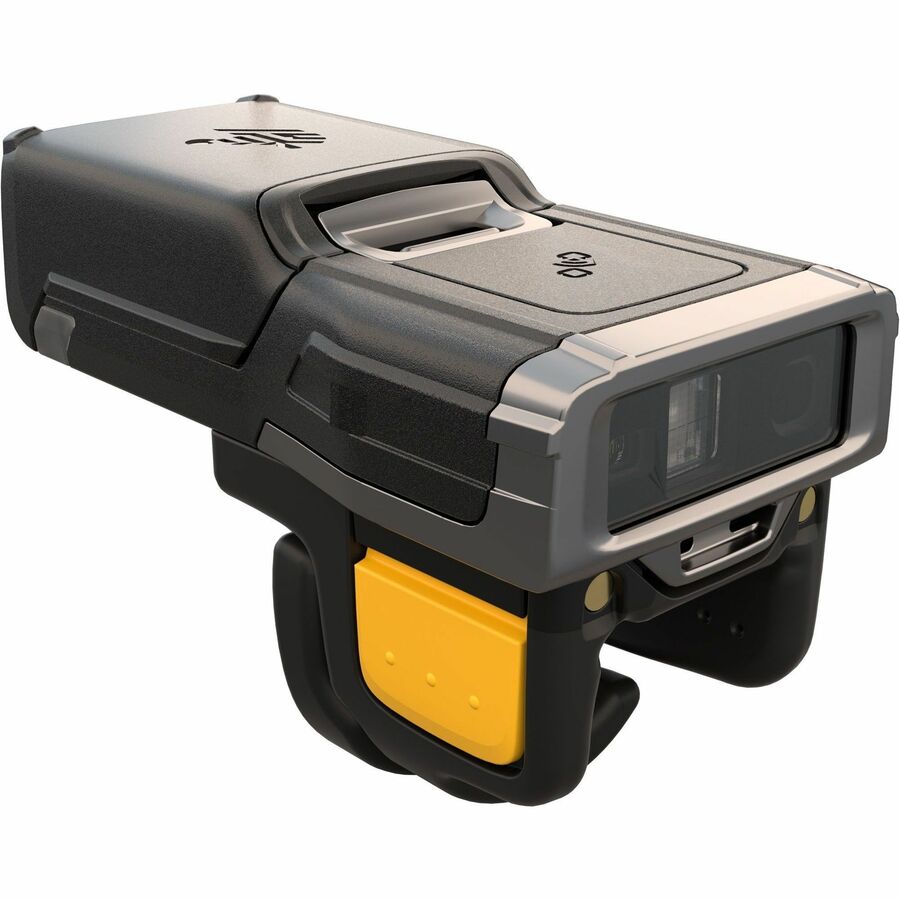

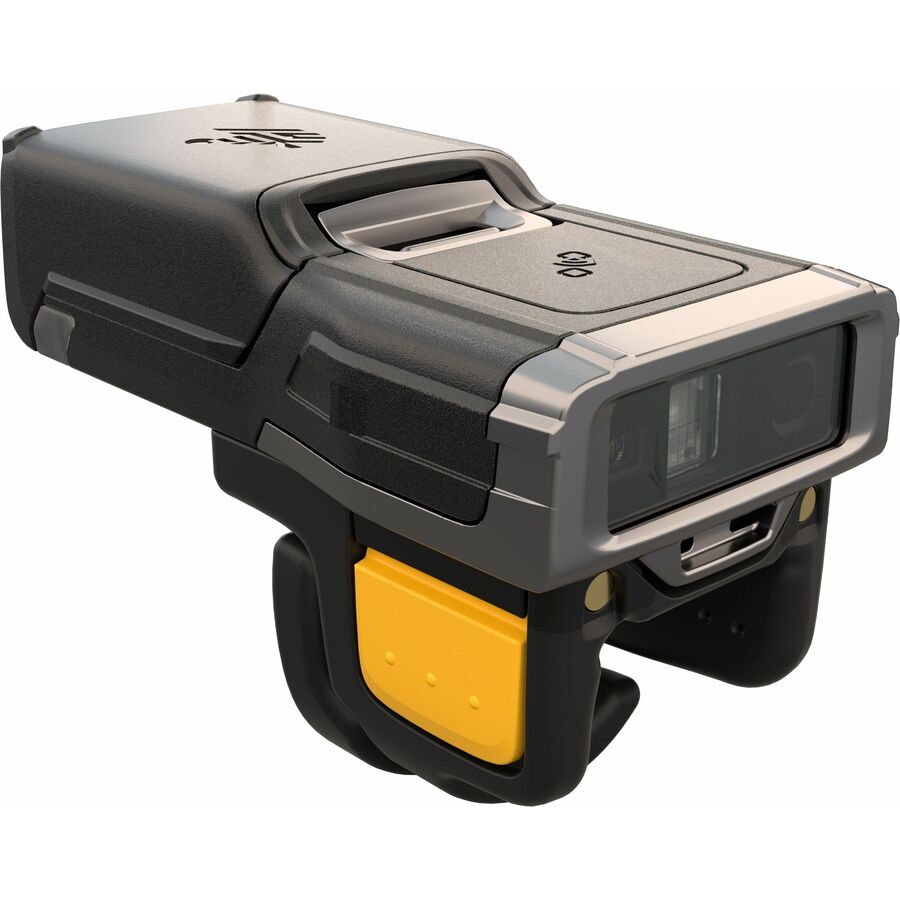

Zebra RS6100 Bluetooth Wearable Scanner
Wireless Connectivity - SE55Scan Engine - 46.17 ft Scan Distance - 1D, 2D - Laser - Imager - Area - Bluetooth - Serial - IP65 - Warehouse, Distribution, Picking, Packing, Sorting, Manufacturing, Assembly Line, Component Tracking, Inventory, Logistics
- SKU
- RS61B0-KESSXWR
- Category
- Barcode Scanners
MSRP$1,514.21
$1,170.18
Save 23%Back ordered — ships when restocked.
Genuine Zebra Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- RS61B0-KESSXWR
- Category
- Barcode Scanners
Overview
Maximum versatility, power and performance
Introducing Zebra's most powerful and versatile wearable scanner-the RS6100. This small and practically weightless wearable scanner is less than half the size and weight of its predecessor, the RS6000. An advanced multi-focus scan engine captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition-scratched, dirty, poorly printed, under shrinkwrap and more. With five interchangeable wearing options, there's a style that will maximize comfort for every user. Use it anywhere-from warehouse aisles, freezers and coolers to the seat of a fork truck and out on the dock in rain, snow, blazing summer heat or subzero winter cold. The RS6100 is always in service with its removable battery-no downtime needed for charging, just swap in a fully charged battery. Choose cordless freedom with two battery options or corded battery-free operation. And since the RS6100 and RS5100 share common trigger assemblies, batteries and mounts, upgrading from the RS5100 is easy and cost-effective.
Five Interchangeable Wearing Styles
Five different mounts provide users with the freedom to choose the wearing style they prefer to maximize comfort, simplify task execution-and increase job satisfaction. All mounting accessories are interchangeable-swap at any time to maximize user comfort for scan-intensive tasks. The Enterprise Hand Mount accessory gives every hand a snug, comfortable and secure custom fit with a range of sizes for right and left hands-and users can adjust the scanner position on the hand to achieve the perfect balance and optimal scan angle for the ultimate in comfort and user productivity. For workers who prefer to wear the scanner on one finger, there are two single finger mount options-single and double triggers. The single trigger can be removed and rotated, allowing users to easily switch between left and right finger mounting. The double trigger enables workers to change hands on the fly-without removing the trigger. All triggers support continuous scanning mode. And the optional vibrating trigger signals an error or exception, allowing users to take corrective actions. The ambidextrous, one-size-fits-all back of hand mount accommodates gloves and easily fits into the smallest of spaces. And a retracting lanyard trigger worn around the neck or on a belt keeps the scanner handy, yet out of the way
Use it Everywhere-Including The Freezer
Use the RS6100 in freezers and coolers, out on the dock in the sweltering heat and subzero cold, rain, snow-the RS6100 is built to handle it all.
Small and Practically Weightless
The RS6100 is less than half the size and weight of its predecessor, the RS6000-just over two ounces and two cubic inches.
Cordless or Corded-It's Your Choice
Pair with any Bluetooth-enabled Zebra enterprise-class handheld, tablet, wearable or vehicle mount mobile computer to utilize the full feature set of the RS6100-or pair with any existing Bluetooth smartphone, tablet or PC. Want to eliminate the need for batteries with corded operation? Power the RS6100 via a corded adapter that connects to select Zebra mobile devices, including wearable and handheld computers.
Instant Pairing-Just Tap and Go
With NFC, simply tap the RS6100 on NFC-enabled Zebra devices- no need to scan a pairing barcode or open Bluetooth settings to identify and select the device.
Direct Users With Programmable Line-of-Sight LEDs
Programmable multiple LEDs on the back of the RS6100 can provide users with feedback to improve productivity and task accuracy- confirm successful scans, direct users through the fastest path to the right item
Highlights
- Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
- Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
- With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
- Increases productivity by giving the opportunity to wander, without the tangle of cables
- Bluetooth technology - Allows compatibility with most of your smart devices
Specifications
| Application/Usage | Warehouse, Distribution, Picking, Packing, Sorting, Manufacturing, Assembly Line, Component Tracking, Inventory, Logistics |
|---|---|
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codebar/NW7 Code 11 MSI UPC/EAN I 2 of 5 Korean 3 of 5 GSI DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes OCR Symbologies: OCR-A OCR-B |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Host Interface | Serial |
| Product Type | Barcode Scanner |
| Manufacturer Part Number | RS61B0-KESSXWR |
| Connectivity Technology | Wireless |
| Durability | Water Proof, Dust Proof, Spill Resistant |
| Features | Beep, Notification LED, Vibration |
| Form Factor | Wearable |
| Length | 2.6" |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | RS6100 |
| Product Name | RS6100 Bluetooth Wearable Scanner |
| Brand Name | Zebra |
| Scanning Distance | 46.17 ft |
| Light Source | Laser |
| Width | 1.3" |
| Depth | 0.8" |
| Battery Capacity | 735 mAh |
| Bluetooth | Yes |
| Scanner Range | Standard Range |
| Drop Specification |
|
| Scan Pattern | Area |
| Image Sensor Type | Imager |
| Illumination Type | LED |
| Scan Mode | Trigger |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Illumination Color | White |
| Ingress Protection (IP) Rating | IP65 |
| Rugged | Yes |
| Scan Engine Model | SE55 |
| Scanning Capability | 1D, 2D |
| Field of View (Horizontal) | 37° |
| Field of View (Vertical) | 21° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107639 lux |
| Minimum Element Resolution (Code 39) | 3 mil |
| Maximum Element Resolution (Code 39) | 100 mil |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Maximum Element Resolution (DataMatrix) | 100 mil |
| Minimum Element Resolution (PDF417) | 5 mil |
| Maximum Element Resolution (PDF417) | 6.7 mil |
| Air Electrostatic Discharge (+/-) | 15kV DC |
| Contact Electrostatic Discharge (+/-) | 8kV DC |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Image Sensor Resolution | 2688 x 1520 |
| Humidity (Non-condensing) | 5% to 95% |
