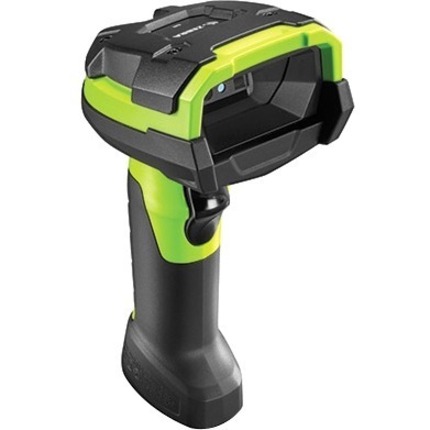

Zebra DS3608-SR Ultra-Rugged Scanner
Wireless Connectivity - 1D, 2D - LED - Imager - Bluetooth - Keyboard Wedge, USB, Serial, Ethernet, PROFINET - Industrial Green - Power Supply Included - IP65, IP67 - Warehouse, Manufacturing
- SKU
- DS3608-SR3RF50AZVW
- Category
- Barcode Scanners
MSRP$1,573.57
$934.07
Save 41%Back ordered — ships when restocked.
Genuine Zebra Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DS3608-SR3RF50AZVW
- Category
- Barcode Scanners
Overview
Unstoppable performance for standard range 1D/2D barcode capture: ?

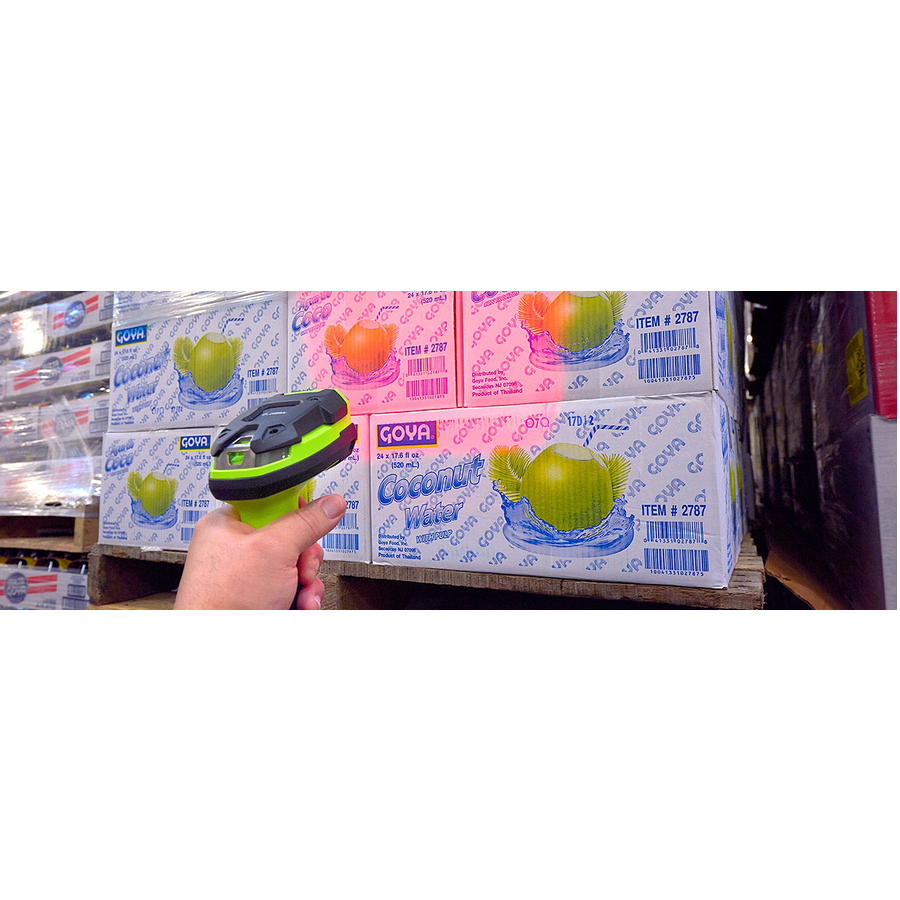

Every day, workers in your warehouse and on the manufacturing plant floor scan thousands of barcodes to
ensure product quality and on-time order delivery. Their productivity depends on the quality of the scanner
you put in their hands. When workers need to capture 1D and 2D barcodes at standard ranges, with the corded

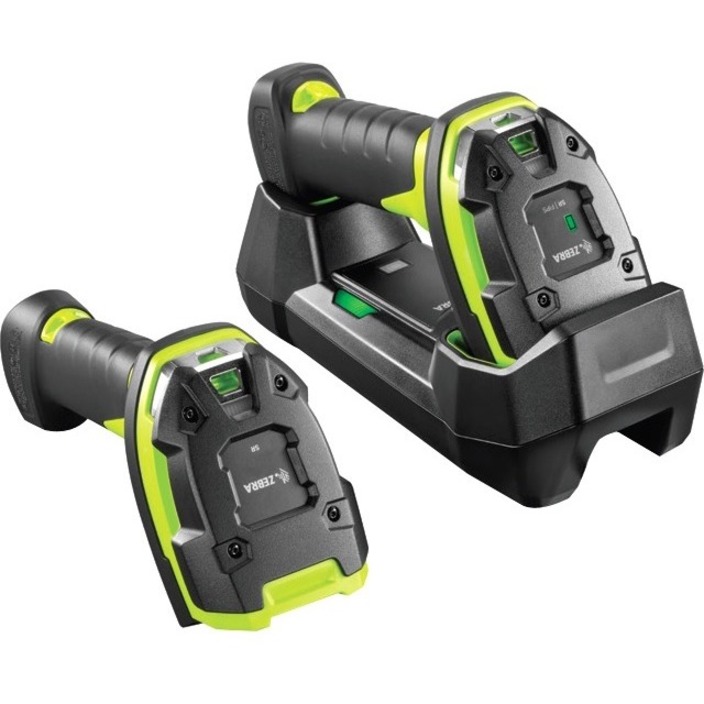

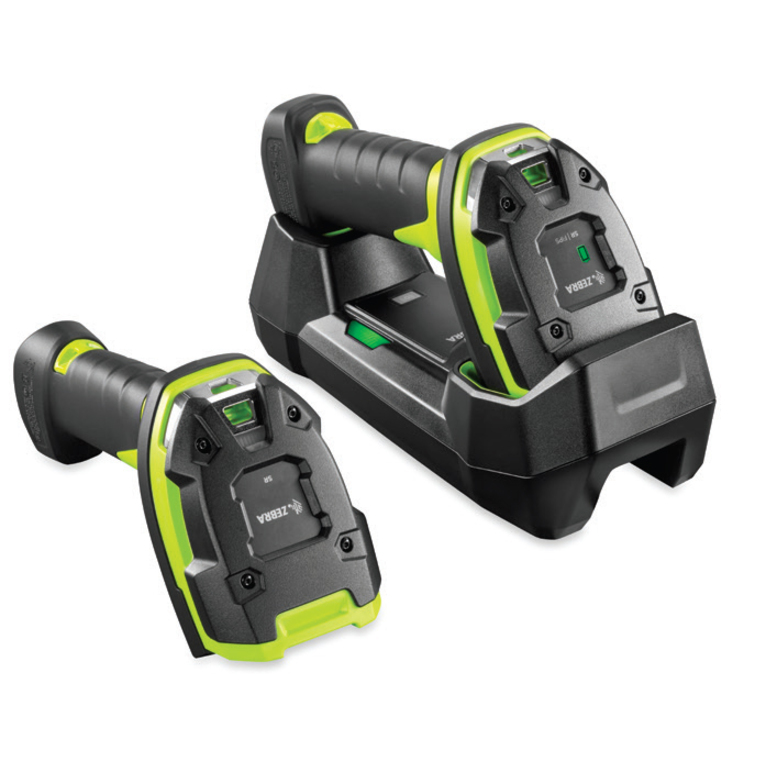

DS3608-SR and cordless DS3678-SR scanner, you can give them the best - unmatched rugged design,
unmatched scanning performance and unrivaled manageability. The advanced imager delivers lightning-fast
capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, from near
contact to nearly 5 ft./1.5 m away. The ultra-rugged design is practically indestructible - ideal for punishing
environments. The DS3608-SR/DS3678-SR couldn't be easier and less time-consuming to deploy and manage.
And when it comes to cordless technology, the DS3678-SR is loaded with Zebra-only features that put it in a class

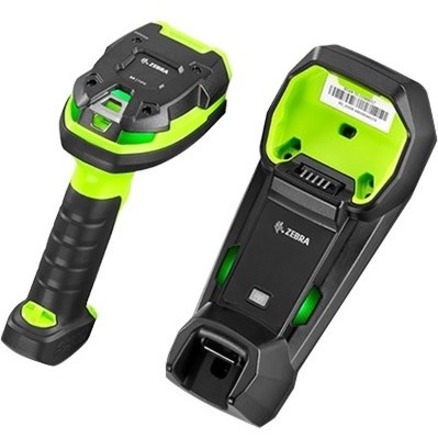

of its own, including a sealed rugged cradle, a smart battery and Zebra's Wi-Fi Friendly Mode that prevents
interference with your Wi-Fi network. The DS3608-SR/DS3678-SR - the unstoppable performance you need to
maximize workforce productivity and throughput in your operations.
Highlights
- Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
- Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
- LED aimer is a perfect choice for patient-facing applications
- Increase productivity and performance by excluding the cable
- Bluetooth technology - Allows compatibility with most of your smart devices
Specifications
| Application/Usage | Warehouse, Manufacturing |
|---|---|
| Barcode Symbology Supported | 1D Code: 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D CODE: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, DotCode |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Host Interface | Keyboard Wedge, USB, Serial, Ethernet, PROFINET |
| Product Type | Barcode Scanner Kit |
| Display Screen | Yes |
| Manufacturer Part Number | DS3608-SR3RF50AZVW |
| Weight (Approximate) | 10.76 oz |
| Connectivity Technology | Wireless |
| Durability | Water Proof, Spray Proof |
| Features | Notification LED, Beep, Vibration |
| Form Factor | Handheld |
| Input Current | 360 mA |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS3608 |
| Product Name | DS3608-SR Ultra-Rugged Scanner |
| Product Series | 3600 |
| Brand Name | Zebra |
| Light Source | LED |
| Height | 7.3" |
| Width | 3" |
| Depth | 5.2" |
| Battery Capacity | 3100 mAh |
| Bluetooth | Yes |
| Scanner Range | Standard Range |
| Drop Specification | Withstands multiple 8.0 ft./2.4 m drops to concrete |
| Image Sensor Type | Imager |
| Illumination Type | LED |
| Scan Mode | Trigger |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Product Color | Industrial Green |
| Power Supply Included | Yes |
| Color Family | Green |
| Ingress Protection (IP) Rating | IP65, IP67 |
| Rugged | Yes |
| Scanning Capability | 1D, 2D |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 7.5 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Air Electrostatic Discharge (+/-) | 25kV |
| Contact Electrostatic Discharge (+/-) | 10kV |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Image Sensor Resolution | 1280 x 800 |
| Humidity (Non-condensing) | 5% to 95% |
