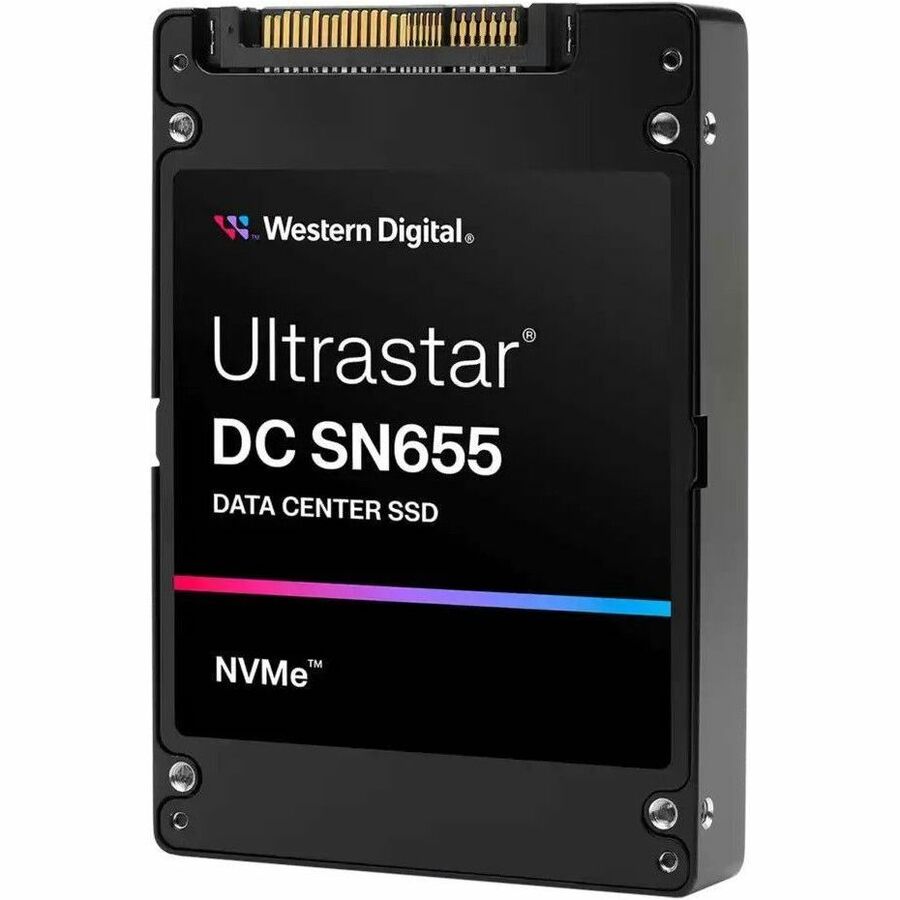

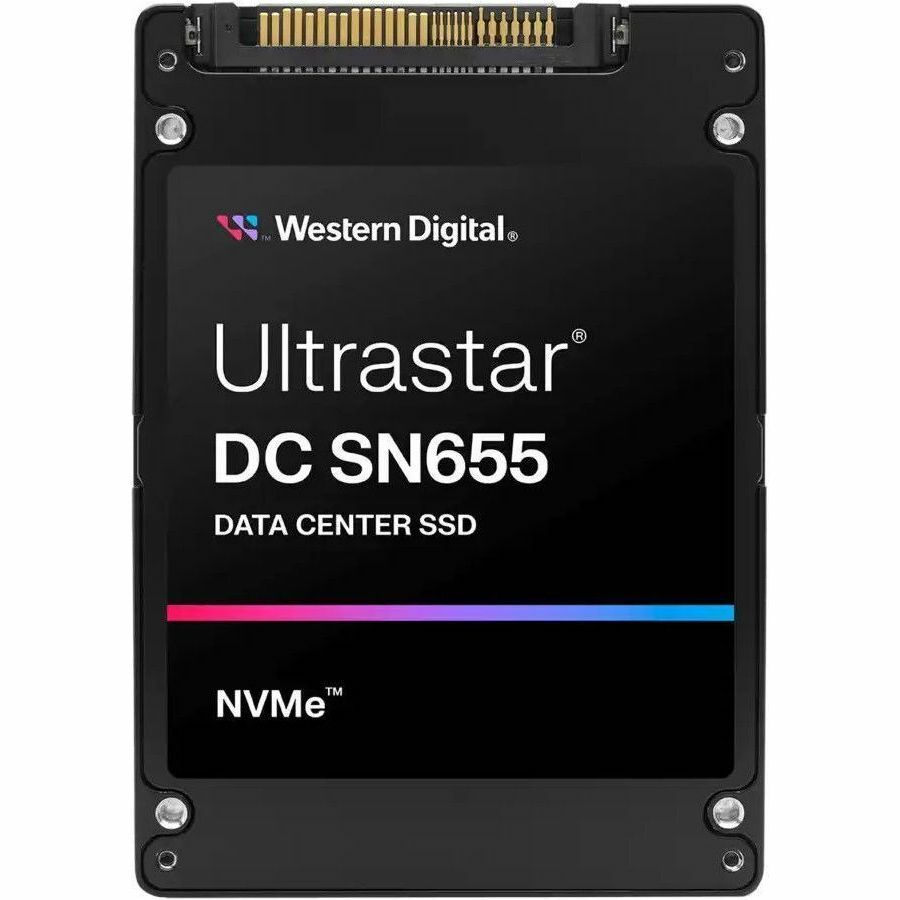

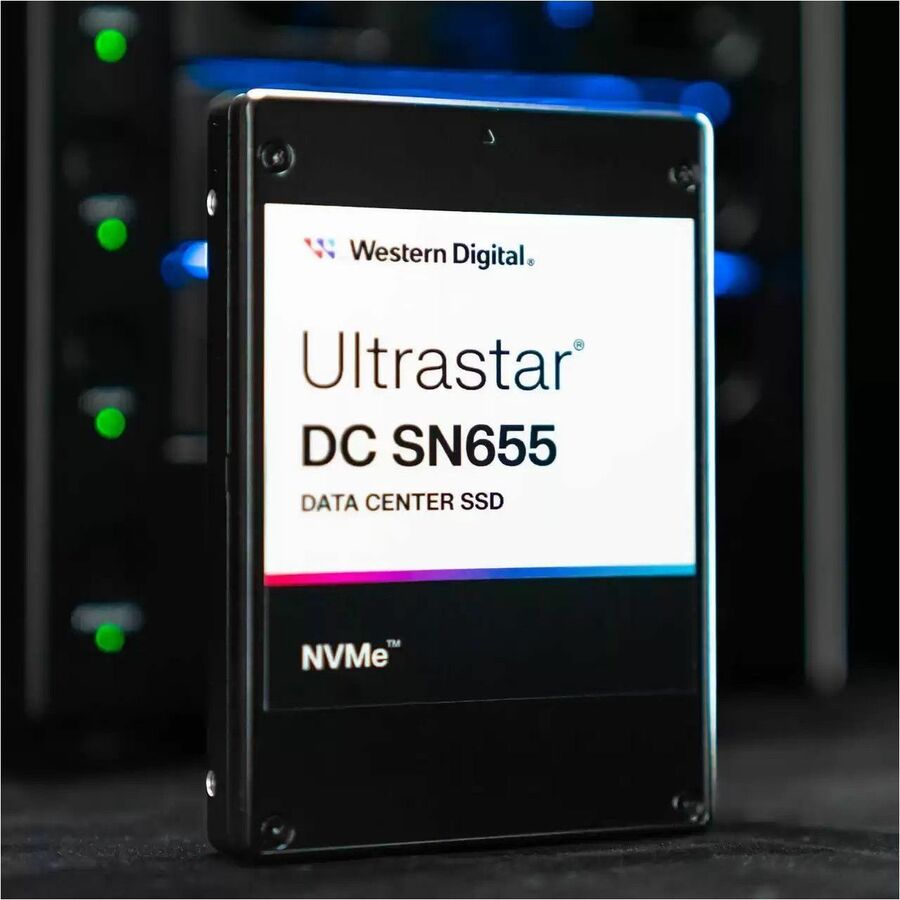

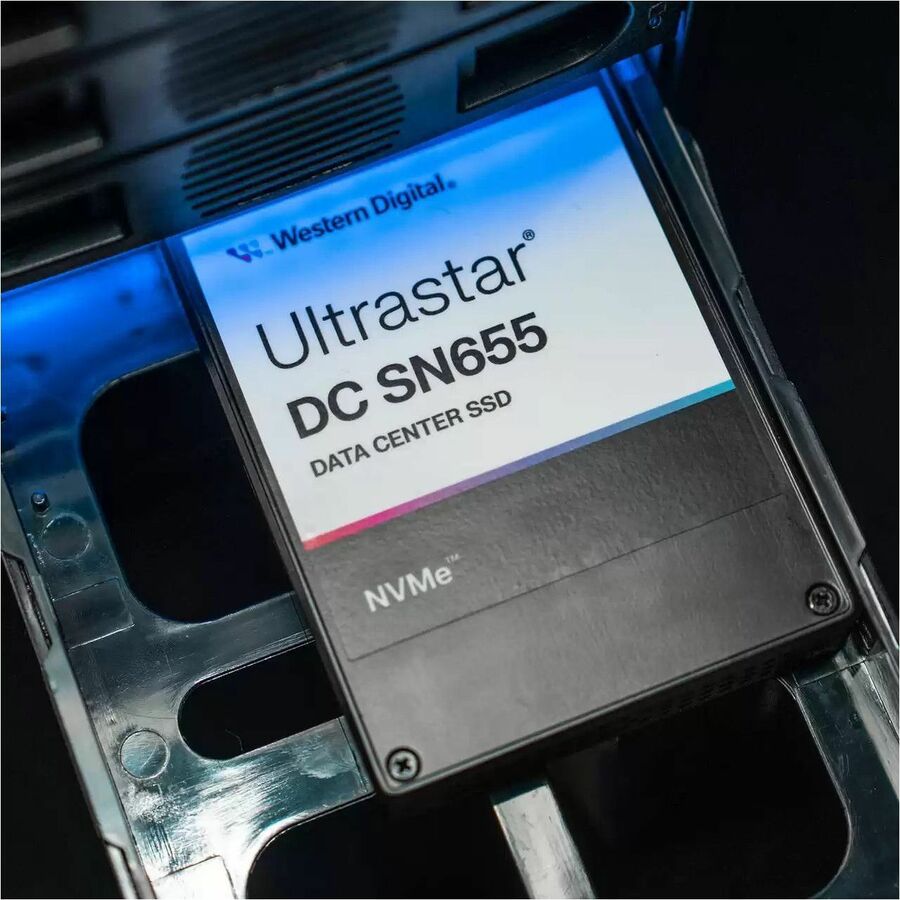

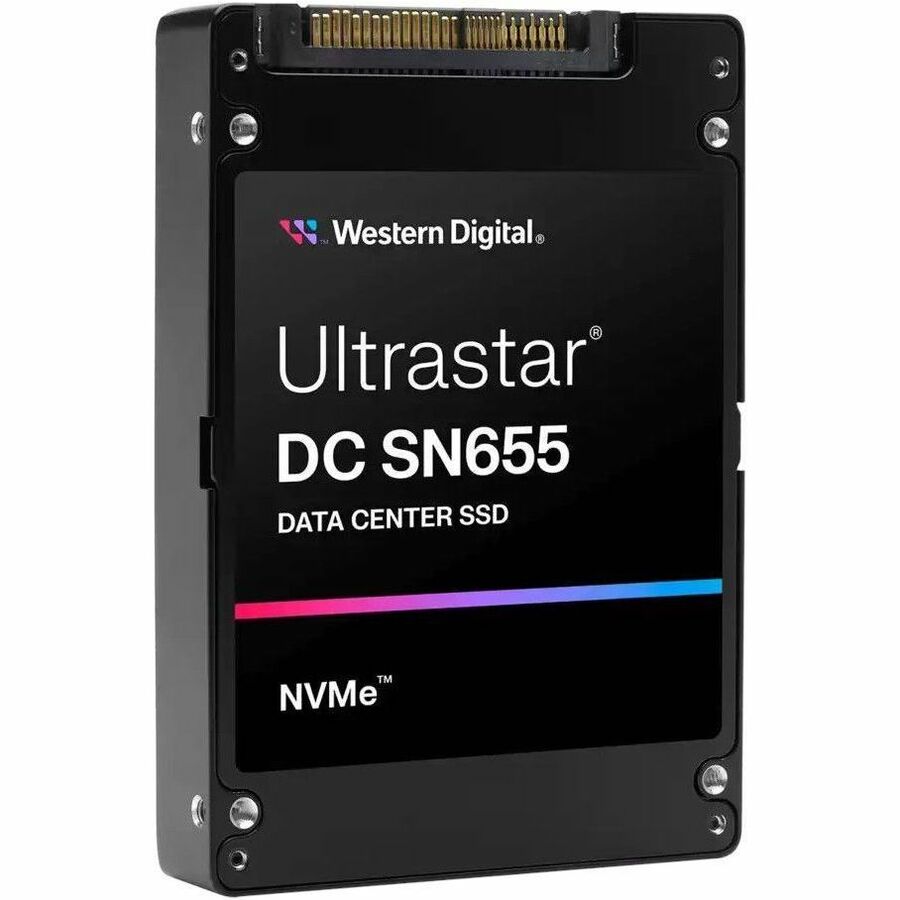

WD Ultrastar DC SN655 WUS5EA138ESP7E1 3.84 TB Solid State Drive - U.3 15 mm Internal - PCI Express NVMe (PCI Express NVMe 4.0) - Read Intensive
Western Digital

WD Ultrastar DC SN655 WUS5EA138ESP7E1 3.84 TB Solid State Drive - U.3 15 mm Internal - PCI Express NVMe (PCI Express NVMe 4.0) - Read Intensive

Storage Server, Server Device Supported - 1 DWPD - 6800 MB/s Maximum Read Transfer Rate - 5 Year Warranty

SKU
0TS2458
Category
Hard Drives/Solid State Drives

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
0TS2458
Category
Hard Drives/Solid State Drives

Overview

Data strategy, not just data storage

Ultrastar NVMe? enterprise SSDs continue to be the ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.

Unlocking the Full Potential of Enterprise SSDs

With dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.

Features

Ultrastar DC SN655 NVMe SSDs includes the next generation Western Digital NVMe 1.4b controller with PCIe Generation 4.0 interface and Western Digital BiCS5 TLC 3D NAND to enable higher capacities and performance at scale for increasingly larger application workloads. Designed and built for the standard 2.5" SSD storage infrastructure, the SN655 includes support for U.2 and U.3 backplanes and features power loss protection and 2.5M MTBF (projected) and 1.0 DW/D with a 5 year limited warranty.

Emerging Workloads

Ultrastar DC SN65x NVMe SSDs are optimized for cloud and scaleout workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/watt.

Highlights

  • Power loss protection, end-to-end data path protection, variable sector sizes, and more
  • Western Digital NVMe 1.4 Compliant Controller and PCle® 4.0
  • Western Digital BiCS5 3D TLC NAND

Specifications

Product TypeSolid State Drive
Device SupportedStorage Server, Server
Storage Capacity3.84 TB
Manufacturer Part Number0TS2458
Platform SupportedLinux, PC
Limited Warranty5 Year
Weight (Approximate)5.20 oz
Drive TypeInternal
Form FactorU.3 15 mm
Length4"
ManufacturerWestern Digital Corporation
Product ModelWUS5EA138ESP7E1
Product NameUltrastar DC SN655 NVMe SSD
Product LineUltrastar
Product SeriesDC SN655
Brand NameWD
Height0.6"
Width2.8"
Maximum Read Transfer Rate6800 MB/s
Maximum Write Transfer Rate2600 MB/s
Drive InterfacePCI Express NVMe
Drive Interface StandardPCI Express NVMe 4.0
Random 4KB Read1000000IOPS
Random 4KB Write112000IOPS
Operating System CompatibilityWindows, Windows Server, Linux
Endurance (DWPD)1
Endurance TypeRead Intensive
