Vertiv PowerIT VP6U60A3 Upgradeable Outlet Level Monitoring HD rPDU, Vertical, Three Phase, 24 Combination C13/C19 Outlets, 60/63A, 240/415V WYE, 0U
Vertiv

Vertiv PowerIT VP6U60A3 Upgradeable Outlet Level Monitoring HD rPDU, Vertical, Three Phase, 24 Combination C13/C19 Outlets, 60/63A, 240/415V WYE, 0U

Rack power distribution unit, 43.4kW, 3P+N+E (IP44) plug, TAA Compliance, RoHS, China RoHS, UL-listed, CE-marked, 3-year warranty extending to 5-year warranty if registered within 120 days of purchase

SKU
VP6U60A3
Category
PDUs

MSRP$5,065.00

$3,403.68

Save 33%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
VP6U60A3
Category
PDUs

Overview

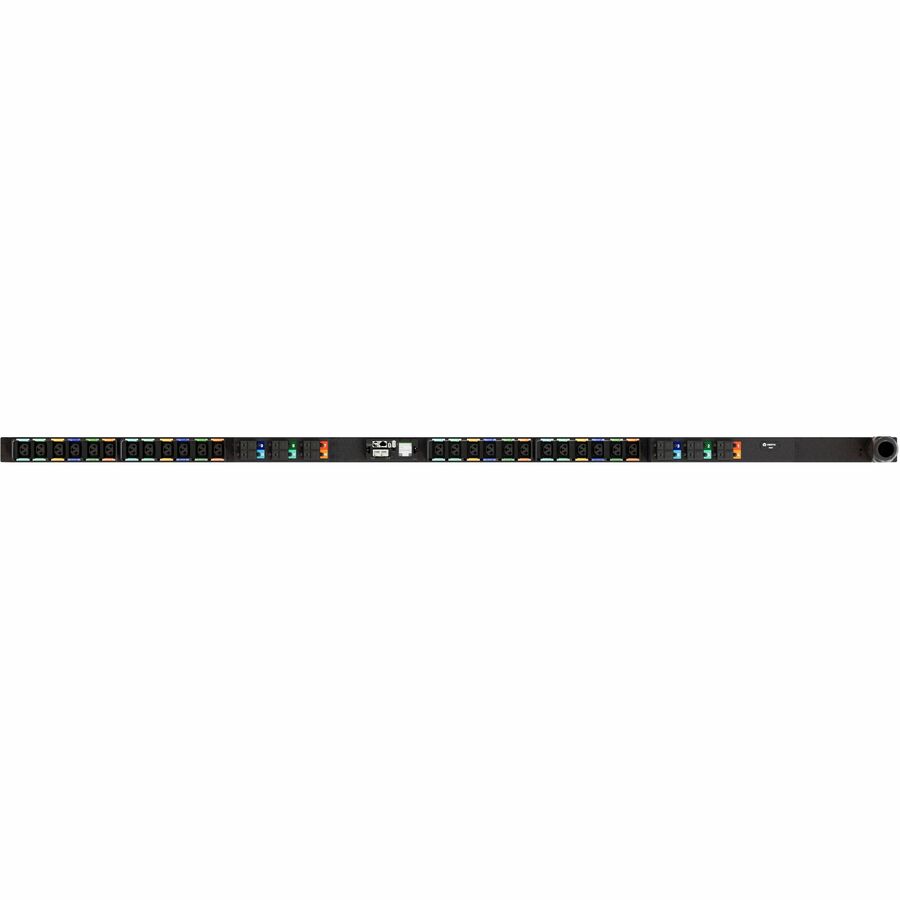

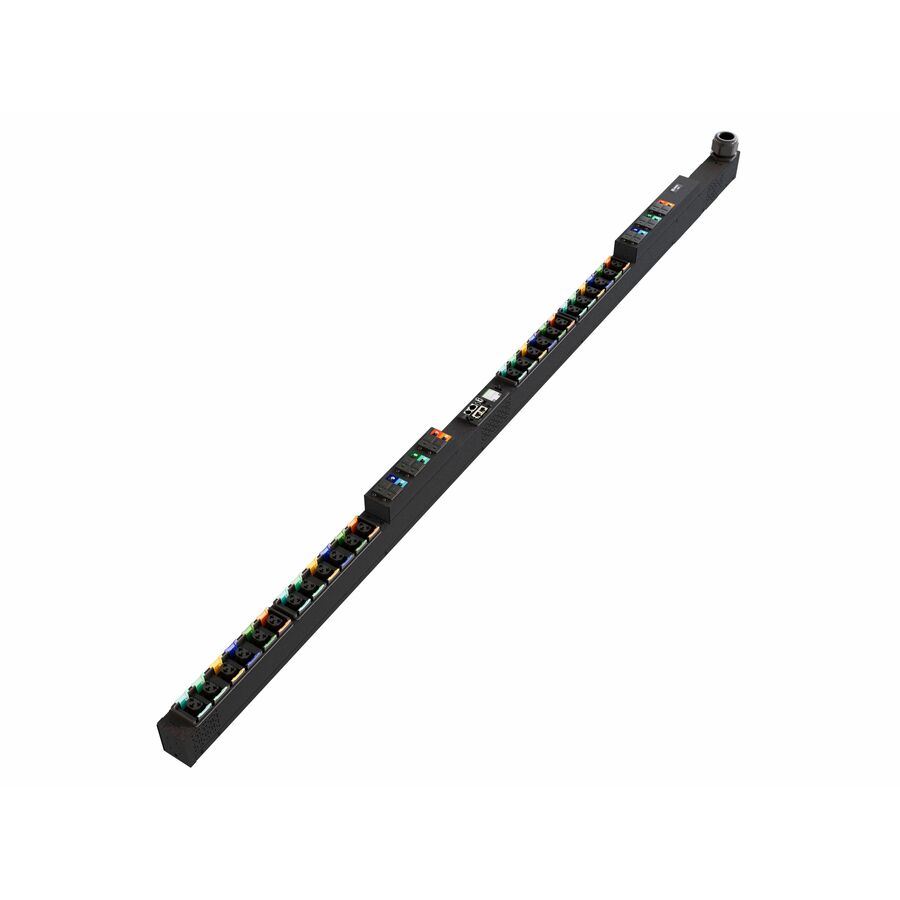

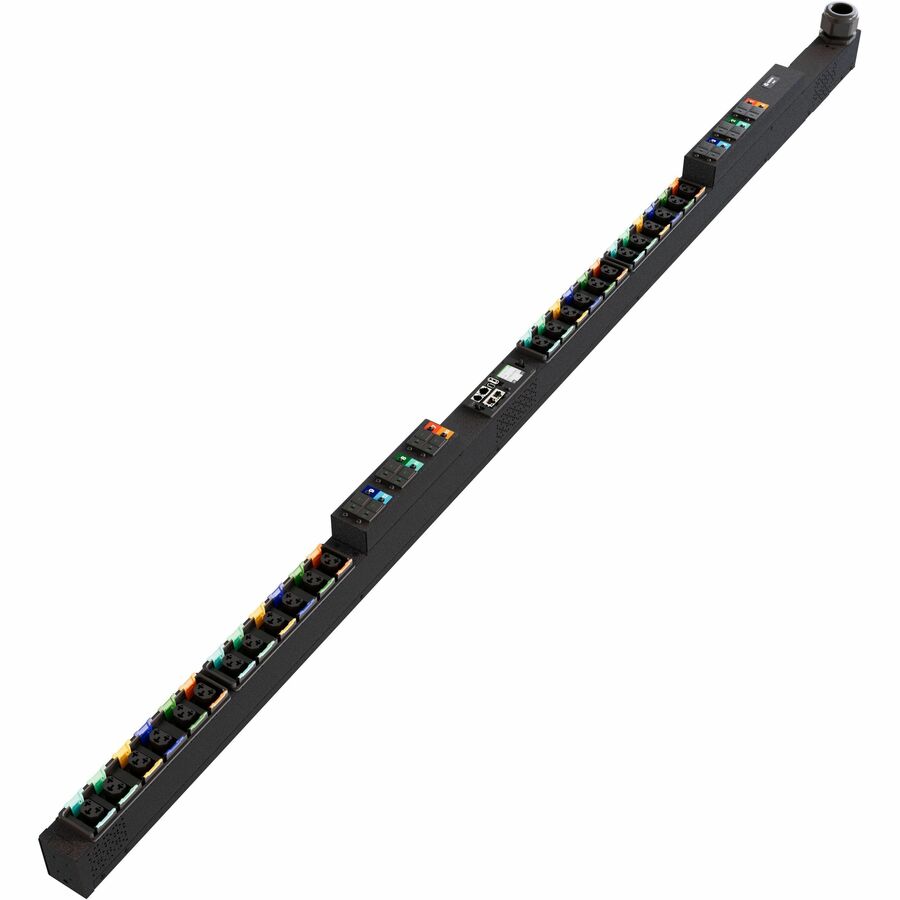

The Vertiv PowerIT Monitored Outlet Level High Density Rack Power Distribution Unit (rPDU) VP6U60A3 is an upgradeable, 60/63A, 240/415V WYE, 0U, vertical rPDU with input and outlet level monitoring. It has 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. It also has a 3P+N+E (IP44) plug with 43.4kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL-listed and CE-marked, meeting an important requirement for data centers. It is also RoHS-certified and individually tested to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase. More from the Manufacturer

VP1U60A2

Power Rating (kW)

43.4

Input Voltage

240/415V WYE

Combination C13/C19 Outlets

36

60°C Working Ambient

Variants

Yes

IMD-5M

No

Fault-Tolerant Daisy Chaining

No

Remote Control of Individual Outlet

No

Real-Time Monitoring and Remote Power Cycling

No

Vertiv Intelligence Director

No

VP4NA0A0

Power Rating (kW)

28.8

Input Voltage

1~ 240V/3~ 208V

Combination C13/C19 Outlets

24

60°C Working Ambient

Variants

Yes

IMD-5M

Yes

Fault-Tolerant Daisy Chaining

Yes

Remote Control of Individual Outlet

No

Real-Time Monitoring and Remote Power Cycling

Yes

Vertiv Intelligence Director

Yes

VP5UA0A0

Power Rating (kW)

57.6

Input Voltage

240V/415V WYE

Combination C13/C19 Outlets

36

60°C Working Ambient

Variants

Yes

IMD-5M

Yes

Fault-Tolerant Daisy Chaining

Yes

Remote Control of Individual Outlet

Yes

Real-Time Monitoring and Remote Power Cycling

Yes

Vertiv Intelligence Director

Yes

Warranty

Additional Warranty Information: 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years Limited Warranty: 5 Year

About Vertiv

Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity​ As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!​

Highlights

  • Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
  • Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
  • Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
  • Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
  • Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase

Specifications

Additional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Product TypePDU
Input Voltage230 V AC, 415 V AC
Manufacturer Part NumberVP6U60A3
Limited Warranty5 Year
Output Voltage240 V AC
FeaturesLCD Display, Touch Screen Display
Form FactorRack
Input Current63 A
Length72"
Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Syslog
  • TACACS+
ManufacturerVertiv
Product NameMonitored Outlet Level VP6U60A3 PDU
Mount TypeRack-mountable
Product LineGeist Upgradeable
Protection TypeOvercurrent Protection
Product SeriesG
Rack Height0U
Brand NameVertiv Geist
Plug/Connector Type3P+N+E (IP44)
Country of OriginUnited States
Cord Length10 ft
Width2"
Depth2.6"
PhaseThree Phase
Receptacle TypeCombination C13/C19
Network (RJ-45)Yes
TAA CompliantYes
PDU TypeMonitored
Remote Outlet SwitchingNo
Mounting OrientationVertical
Power Rating (Watt)43.40 kW
Product ColorBlack
Color FamilyBlack
Receptacle Detail24 x Combination C13/C19
Plug/Connector Detail1 x 3P+N+E (IP44)
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS)
