Vertiv Geist Switched Rack PDU with Next Generation IMD - 0U| 30A| 208V| (24) Combination C13/C19 Receptacles| NEMA L6-30P Plug| 4.9kW| VP5N30AP
Redundant Power-Sharing Port | High-Contrast Display | Internal Orientation Sensor | Enhanced Security | Interchangeable Monitoring Device | UL Listed | TAA-Compliant | RoHS Certified | Hyperscale| 3-Year Warranty Which Extends to 5-Year Warranty if Registered Within 120 Days of Purchase
- SKU
- VP5N30AP
- Category
- PDUs
MSRP$2,437.00
$1,637.66
Save 33%Back ordered — ships when restocked.
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- VP5N30AP
- Category
- PDUs
Overview

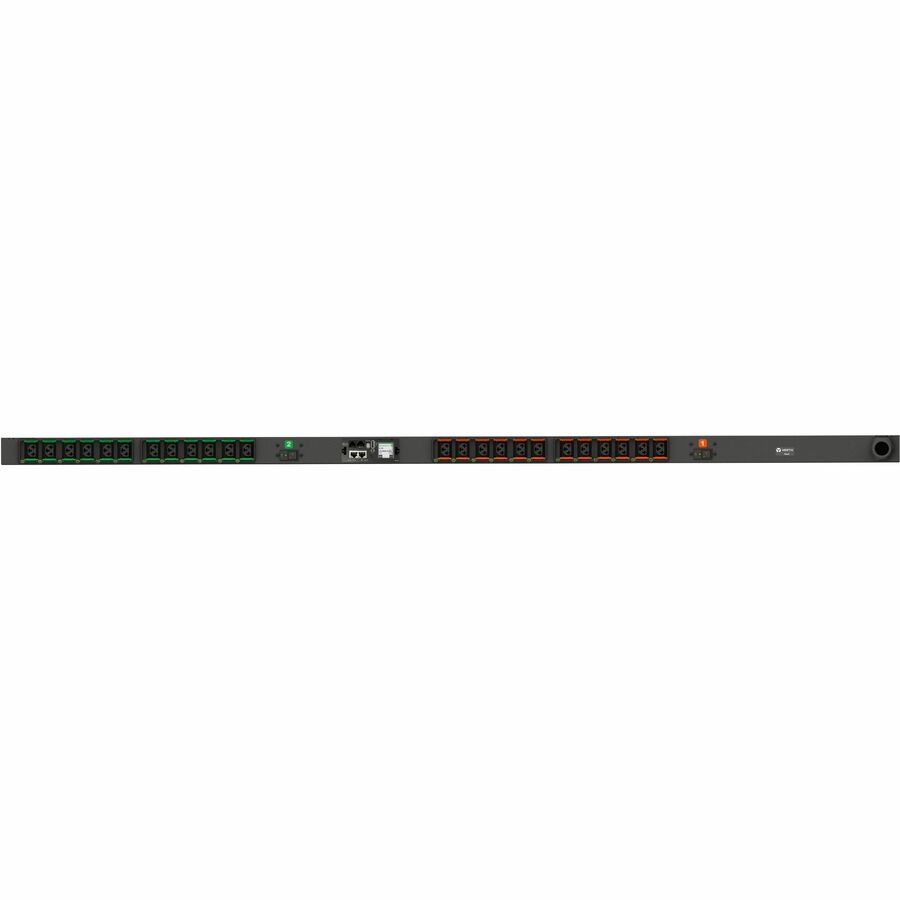

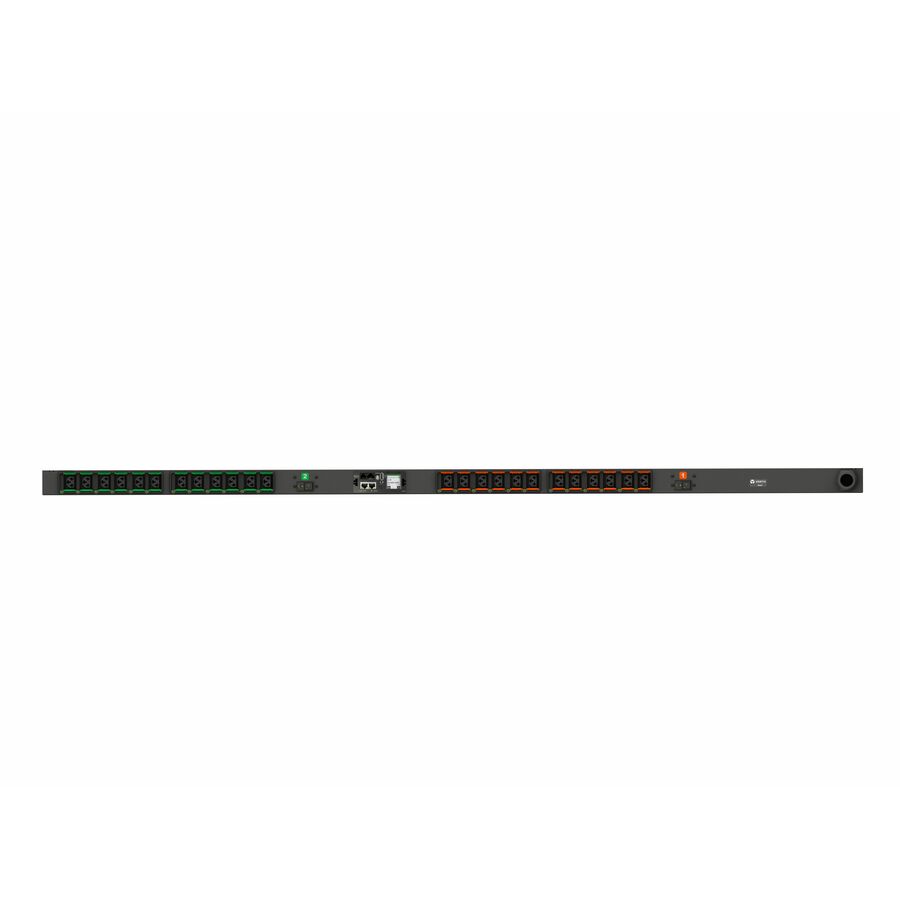

The Vertiv Geist Switched RPDU VP5N30AP is a 30A, 208V, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (24) Combination C13/C19 receptacles and a NEMA L6-30P plug providing 4.9kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability. More from the Manufacturer
RELIABLE AND EFFICIENT
The Vertiv Geist Switched Rack PDU offers remote input power monitoring, as well as remote outlet level control allowing users to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment.
NEXT GENERATION IMD

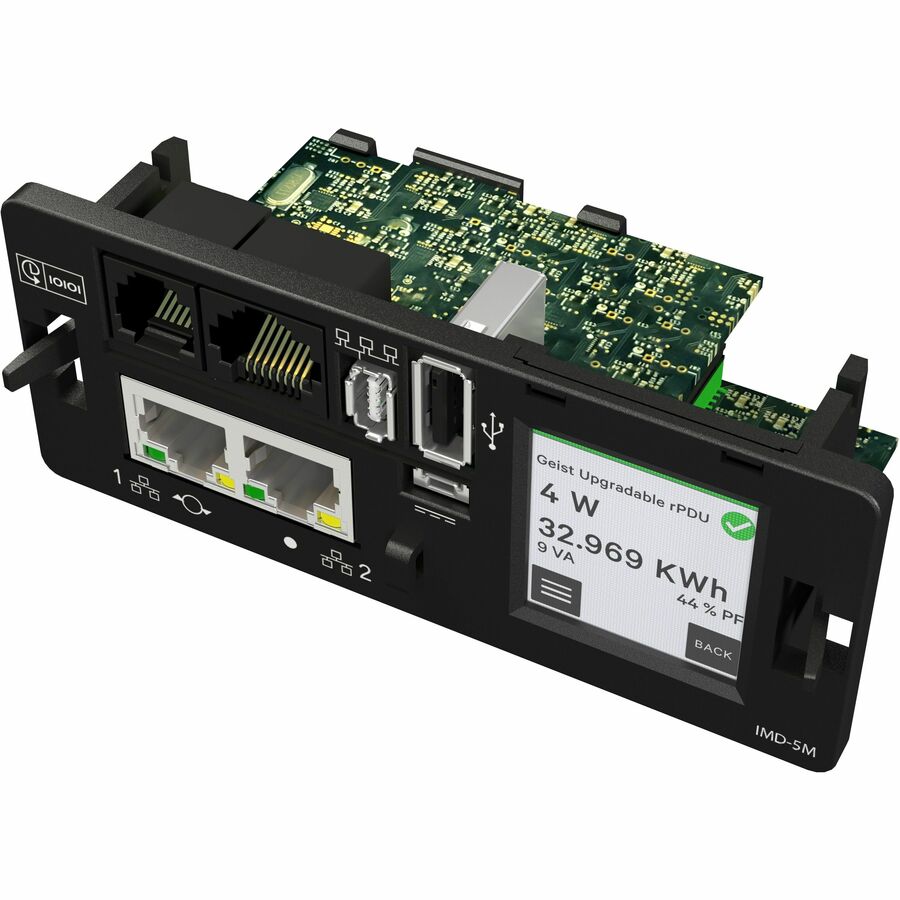

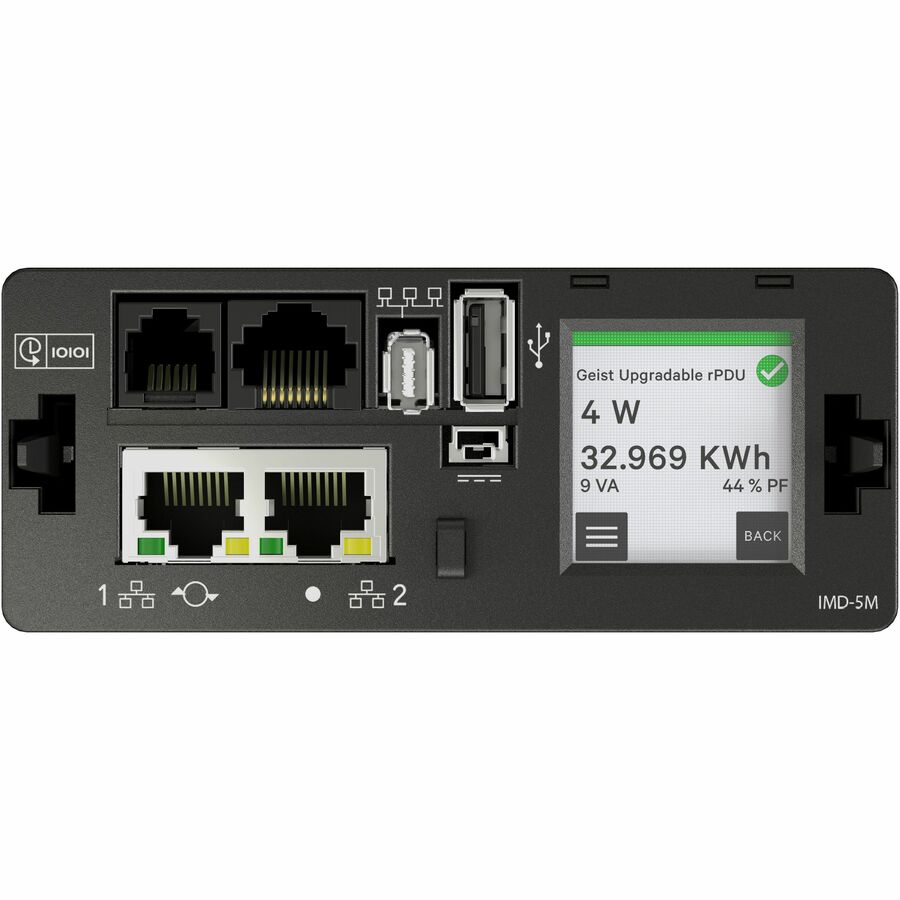

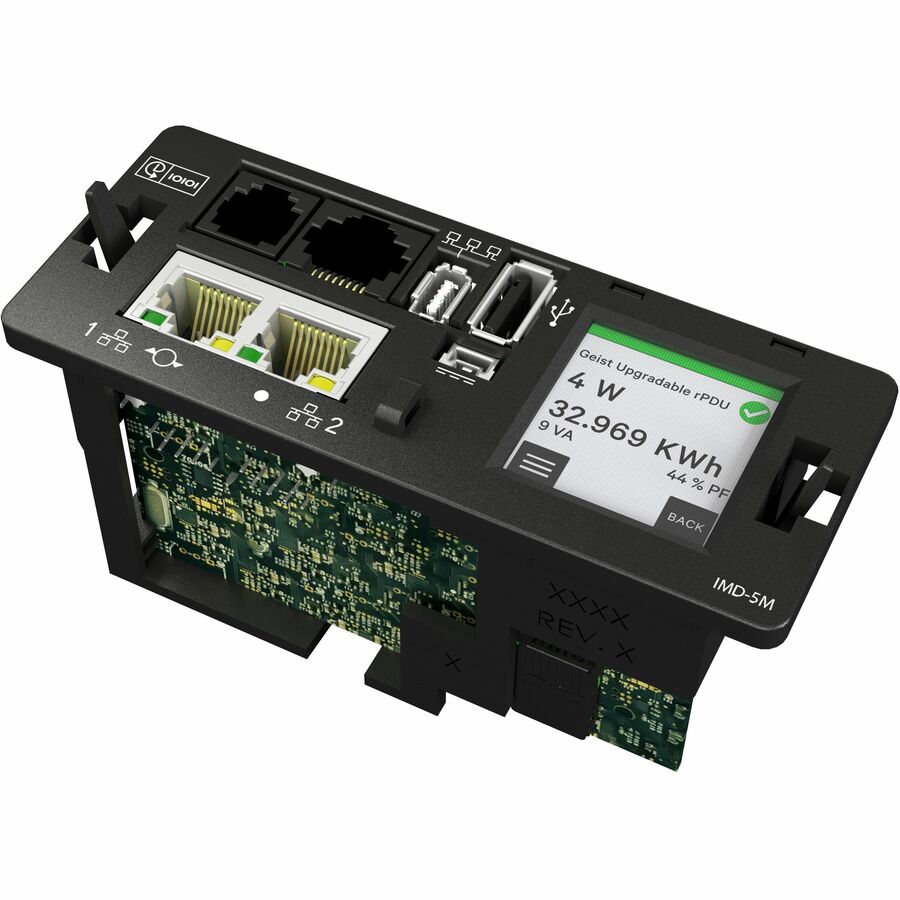

Integrated with the Vertiv Geist Next Generation IMD with 128x128 high-visibility LCD that displays power data. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation.
SECURES DATA
The Vertiv Geist Next Generation IMD helps protect your data and operations with enhanced security features with a secured boot that utilizes a hardware-based trust anchor. The integrated redundant power-sharing port connects two IMDs in the rack and provides backup power.
UL-LISTED and TAA-COMPLIANT
All Vertiv Geist RPDUs are individually tested for functionality and reliability. This Vertiv Geist Monitored rPDU is UL-listed, TAA-compliant, and RoHS certified. It helps ensure a smoother selection, procurement, and deployment process for those who are under the federal, state, and local governments. All Vertiv Geist Rack PDUs are backed with a standard three-year warranty that automatically extends to five years if the product is registered within 120 days of purchase.
Product Comparison
VP7N30AU
Input: L6-30P
Outlet: (20) U-Lock C13 and (4) U-Lock C19
Current: 30A
Voltage: 208V
Power Capacity: 4.9kW
VP5N30A5
Input: NEMA L5-30P
Outlet: (24) NEMA 5-20R
Current: 30A
Voltage: 120V
Power Capacity: 2.8kW
VP5N30AU
Input: NEMA L6-30P
Outlet: (20) U-Lock C13 and (4) U-Lock C19
Current: 30A
Voltage: 208V
Power Capacity: 4.9kW
VP5N20AB
Input: NEMA L6-20P
Outlet: (21) U-Lock C13 and (3) U-Lock C19
Current: 20A
Voltage: 208V
Power Capacity: 3.3kW
VP5N30A0
Input: NEMA L21-30P
Outlet: (18) U-Lock C13 and (6) U-Lock C19
Current: 30A
Voltage: 120V/208V WYE
Power Capacity: 8.6kW
VP7N30AN
Input: L6-30P
Outlet: (30) U-Lock C13 and (6) U-Lock C19
Current: 30A
Voltage: 208V
Power Capacity: 4.9kW
VP7N30AM
Input: L15-30P
Outlet: (30) U-Lock C13 and (6) U-Lock C19
Current: 30A
Voltage: 208V
Power Capacity: 8.6kW
VP5N20A4
Input: L5-20P
Outlet: (24) NEMA 5-20R
Current: 20A
Voltage: 120V
Power Capacity: 1.9kW
VP5N11A0
Input: NEMA 5-15P
Outlet: (6) NEMA 5-15R
Current: 15A
Voltage: 120V
Power Capacity: 1.4kW
VP5N21A1
Input: NEMA L5-20P
Outlet: (12) NEMA 5-20R
Current: 20A
Voltage: 120V
Power Capacity: 1.9kW
VP5N31A0
Input: NEMA L5-30P
Outlet: (12) NEMA 5-20R
Current: 30A
Voltage: 120V
Power Capacity: 2.8kW
VP5N31A1
Input: NEMA L6-30P
Outlet: (12) Combination C13/C19
Current: 30A
Voltage: 208V
Power Capacity: 4.9kW
VP7N30AP
Input: NEMA L6-30P
Outlet: (24) Combination C13/C19
Current: 30A
Voltage: 208V
Power Capacity: 4.9kW
VP5N30AP
Input: NEMA L6-30P
Outlet: (24) Combination C13/C19
Current: 30A
Voltage: 208V
Power Capacity: 4.9kW
Warranty
Additional Warranty Information: <p>5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years </p> Limited Warranty: 5 Year
About Vertiv
Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!
Highlights
- Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
- VP5N30AP is a 30A, 208V, rack PDU with (24) Combination C13/C19 receptacles and a NEMA L6-30P plug
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Specifications
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
|---|---|
| Product Type | PDU |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | VP5N30AP |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 20 lb |
| Features | LCD Display, Touch Screen Display |
| Form Factor | Rack |
| Input Current | 30 A |
| Management |
|
| Manufacturer | Vertiv |
| Product Name | GU VP5N30AP PDU |
| Mount Type | Rack-mountable |
| Product Line | Geist Upgradeable |
| Protection Type | Overcurrent Protection |
| Product Series | N |
| Rack Height | 0U |
| Brand Name | Vertiv Geist |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage Range | 200 V AC - 240 V AC |
| Country of Origin | United States |
| Cord Length | 10 ft |
| Height | 66.3" |
| Width | 2" |
| Depth | 2.6" |
| Phase | Single Phase |
| Receptacle Type | Combination C13/C19 |
| Environmentally Friendly | Yes |
| Output Voltage Range | 200 V AC - 240 V AC |
| Network (RJ-45) | Yes |
| TAA Compliant | Yes |
| PDU Type | Switched |
| Remote Outlet Switching | Yes |
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 4900 W |
| Product Color | Black |
| Color Family | Black |
| Receptacle Detail | 24 x Combination C13/C19 |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
