Vertiv Geist Switched RPDU with Next Generation IMD - 0U| 30A| 120V/208V WYE| 8.6kW| NEMA L21-30P| 18 U-Lock C13| 6 U-Lock C19 Receptacles| VP5N30A0
Vertiv

Vertiv Geist Switched RPDU with Next Generation IMD - 0U| 30A| 120V/208V WYE| 8.6kW| NEMA L21-30P| 18 U-Lock C13| 6 U-Lock C19 Receptacles| VP5N30A0

Redundant Power-Sharing Port | High-Contrast Display | Internal Orientation Sensor | Enhanced Security | Interchangeable Monitoring Device | UL Listed | TAA-Compliant | RoHS Certified | Hyperscale| 3-Year Warranty Which Extends to 5-Year Warranty if Registered Within 120 Days of Purchase

SKU
VP5N30A0
Category
PDUs

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
VP5N30A0
Category
PDUs

Overview

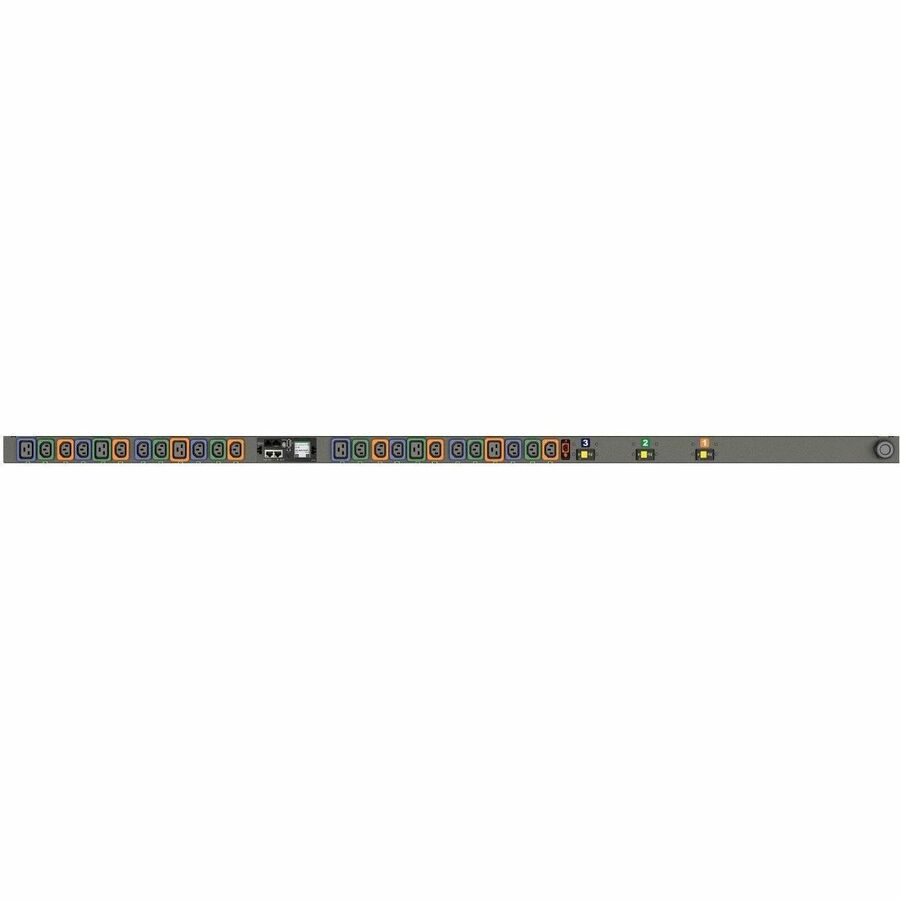

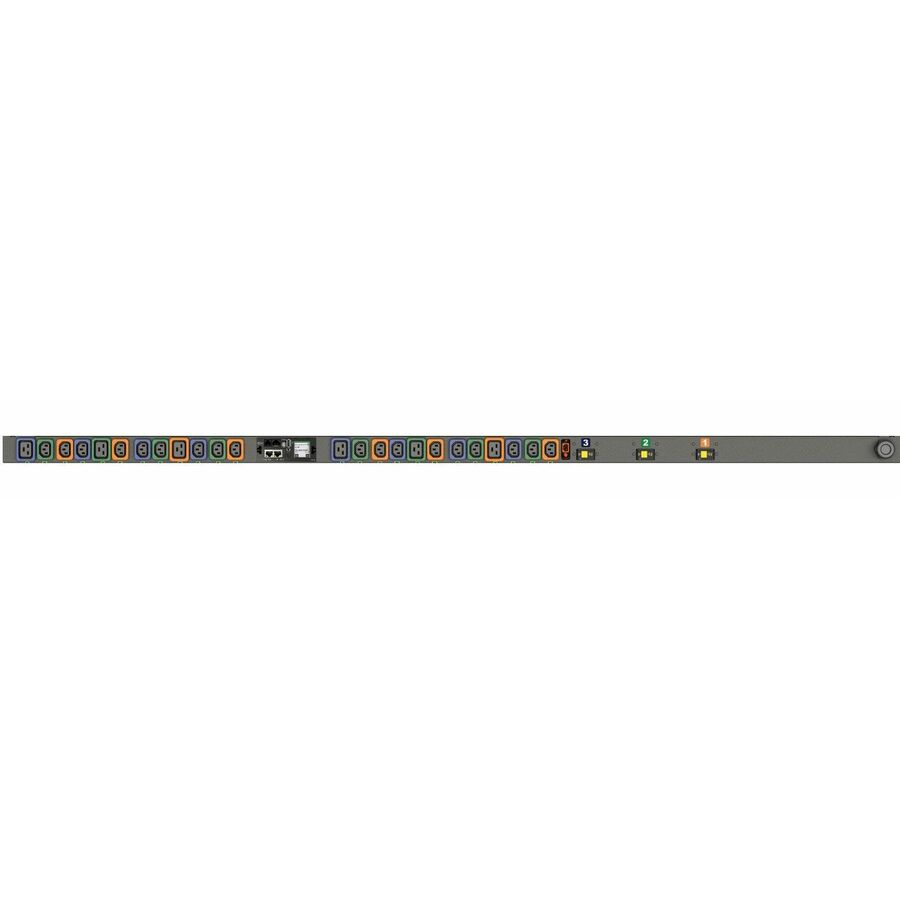

The Vertiv Geist Switched RPDU VP5N30A0 is a 30A, 120V/208V WYE, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (18) U-Lock C13 and (6) U-Lock C19 receptacles and a NEMA L21-30P plug providing 8.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability. More from the Manufacturer

RELIABLE AND EFFICIENT

The Vertiv Geist Switched Rack PDU offers remote input power monitoring, as well as remote outlet level control allowing users to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment.

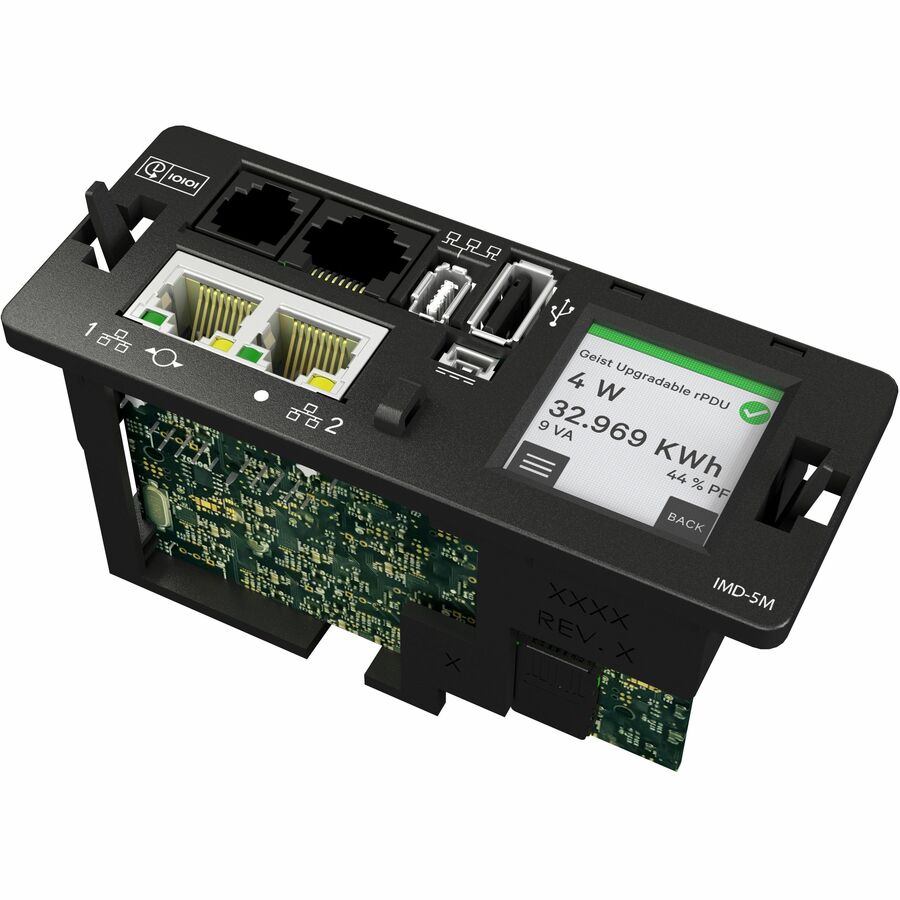

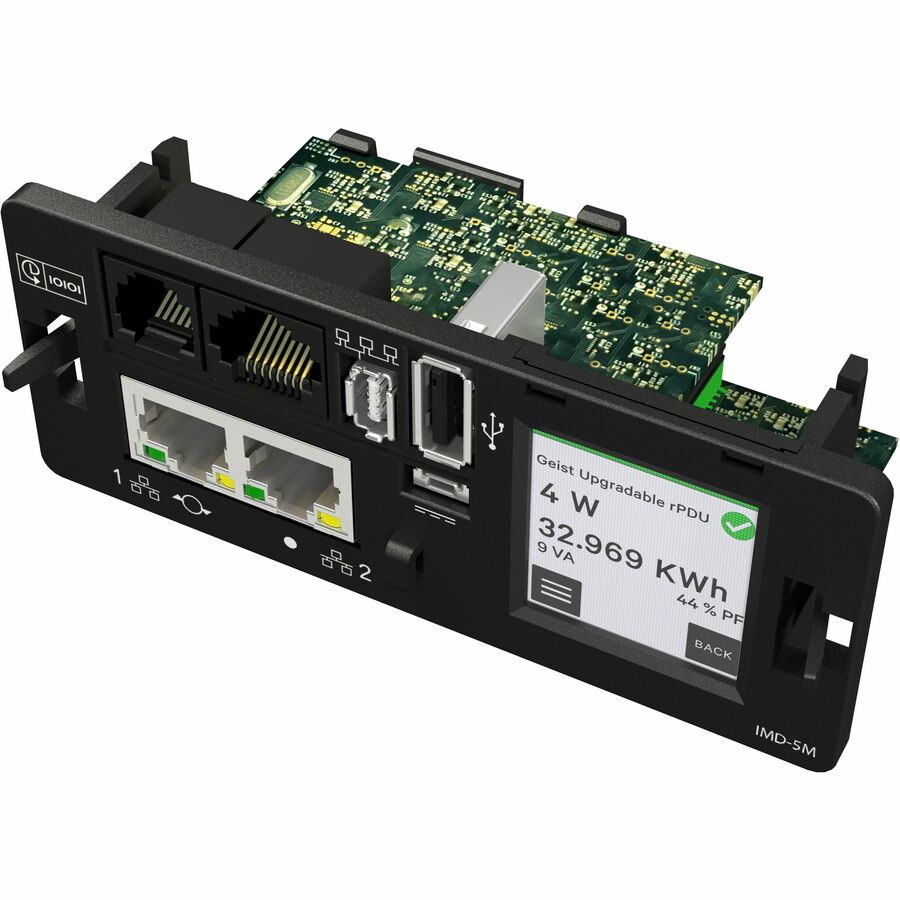

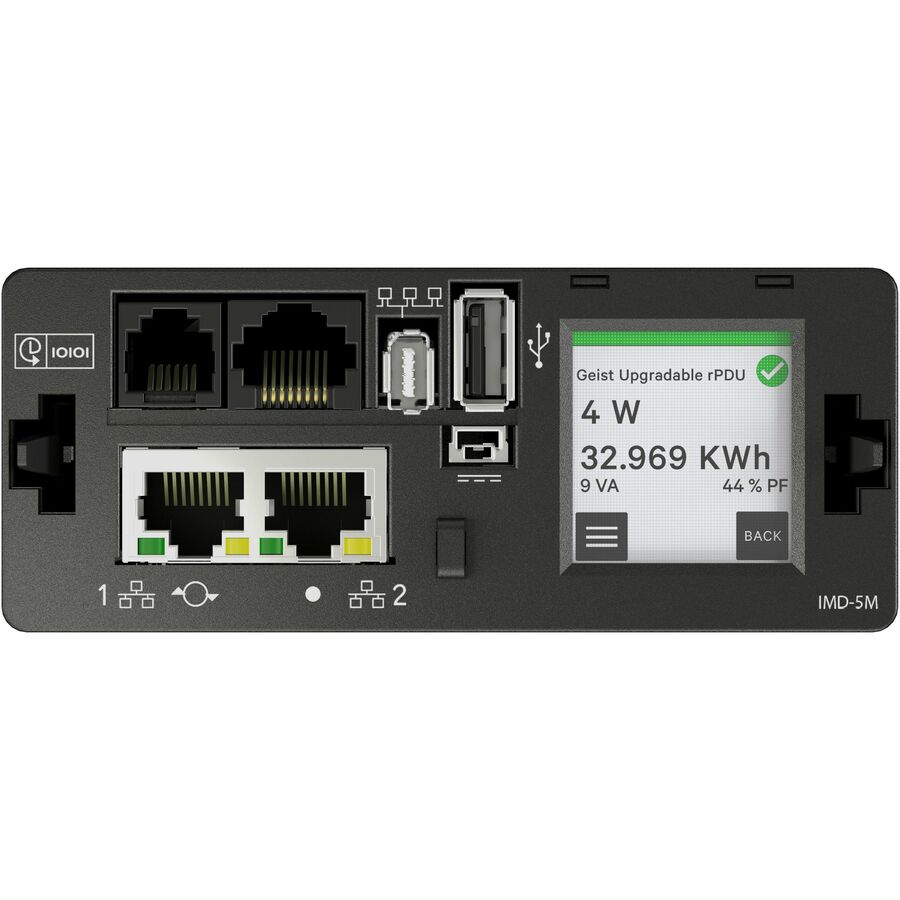

NEXT GENERATION IMD

Integrated with the Vertiv Geist Next Generation IMD with 128x128 high-visibility LCD that displays power data. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation.

SECURES DATA

The Vertiv Geist Next Generation IMD helps protect your data and operations with enhanced security features with a secured boot that utilizes a hardware-based trust anchor. The integrated redundant power-sharing port connects two IMDs in the rack and provides backup power.

UL-LISTED and TAA-COMPLIANT

All Vertiv Geist RPDUs are individually tested for functionality and reliability. This Vertiv Geist Monitored rPDU is UL-listed, TAA-compliant, and RoHS certified. It helps ensure a smoother selection, procurement, and deployment process for those who are under the federal, state, and local governments. All Vertiv Geist Rack PDUs are backed with a standard three-year warranty that automatically extends to five years if the product is registered within 120 days of purchase.

Product Comparison

VP7N30AU

Input: L6-30P

Outlet: (20) U-Lock C13 and (4) U-Lock C19

Current: 30A

Voltage: 208V

Power Capacity: 4.9kW

VP5N30A5

Input: NEMA L5-30P

Outlet: (24) NEMA 5-20R

Current: 30A

Voltage: 120V

Power Capacity: 2.8kW

VP5N30AU

Input: NEMA L6-30P

Outlet: (20) U-Lock C13 and (4) U-Lock C19

Current: 30A

Voltage: 208V

Power Capacity: 4.9kW

VP5N20AB

Input: NEMA L6-20P

Outlet: (21) U-Lock C13 and (3) U-Lock C19

Current: 20A

Voltage: 208V

Power Capacity: 3.3kW

VP5N30A0

Input: NEMA L21-30P

Outlet: (18) U-Lock C13 and (6) U-Lock C19

Current: 30A

Voltage: 120V/208V WYE

Power Capacity: 8.6kW

VP7N30AN

Input: L6-30P

Outlet: (30) U-Lock C13 and (6) U-Lock C19

Current: 30A

Voltage: 208V

Power Capacity: 4.9kW

VP7N30AM

Input: L15-30P

Outlet: (30) U-Lock C13 and (6) U-Lock C19

Current: 30A

Voltage: 208V

Power Capacity: 8.6kW

VP5N20A4

Input: L5-20P

Outlet: (24) NEMA 5-20R

Current: 20A

Voltage: 120V

Power Capacity: 1.9kW

VP5N11A0

Input: NEMA 5-15P

Outlet: (6) NEMA 5-15R

Current: 15A

Voltage: 120V

Power Capacity: 1.4kW

VP5N21A1

Input: NEMA L5-20P

Outlet: (12) NEMA 5-20R

Current: 20A

Voltage: 120V

Power Capacity: 1.9kW

VP5N31A0

Input: NEMA L5-30P

Outlet: (12) NEMA 5-20R

Current: 30A

Voltage: 120V

Power Capacity: 2.8kW

VP5N31A1

Input: NEMA L6-30P

Outlet: (12) Combination C13/C19

Current: 30A

Voltage: 208V

Power Capacity: 4.9kW

VP7N30AP

Input: NEMA L6-30P

Outlet: (24) Combination C13/C19

Current: 30A

Voltage: 208V

Power Capacity: 4.9kW

VP5N30AP

Input: NEMA L6-30P

Outlet: (24) Combination C13/C19

Current: 30A

Voltage: 208V

Power Capacity: 4.9kW

Warranty

Additional Warranty Information: 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years Limited Warranty: 5 Year

About Vertiv

Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity​ As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!​

Highlights

  • Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
  • VP5N30A0 is a rack mount PDU with 18 U-Lock C13 and 6 U-Lock C19 receptacles and a NEMA L21-30P plug
  • Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
  • Helps ensure that data and operations are protected with the enhanced security features
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified

Specifications

Additional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Product TypePDU
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberVP5N30A0
Limited Warranty5 Year
Output Voltage208 V AC
Weight (Approximate)22 lb
FeaturesLCD Display, Touch Screen Display
Form FactorRack
Input Current30 A
Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Syslog
  • TACACS+
ManufacturerVertiv
Product NameGU VP5N30A0 PDU
Mount TypeRack-mountable
Product LineGeist Upgradeable
Product SeriesN
Rack Height0U
Brand NameVertiv Geist
Plug/Connector TypeNEMA L21-30P
Input Voltage Range100 V AC - 120 V AC, 200 V AC - 240 V AC
Country of OriginUnited States
Cord Length10 ft
Height66.3"
Width2"
Depth2.6"
PhaseThree Phase
Receptacle TypeU-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Environmentally FriendlyYes
Network (RJ-45)Yes
TAA CompliantYes
PDU TypeSwitched
Remote Outlet SwitchingYes
Mounting OrientationVertical
Power Rating (Watt)8600 W
Product ColorBlack
Color FamilyBlack
Locking ReceptaclesUlock
Receptacle Detail18 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19
Plug/Connector Detail1 x NEMA L21-30P
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
