Vertiv Geist Switched Rack PDU - 1U Rack| 30A| C13/C19| L6-30P| Horizontal PDU

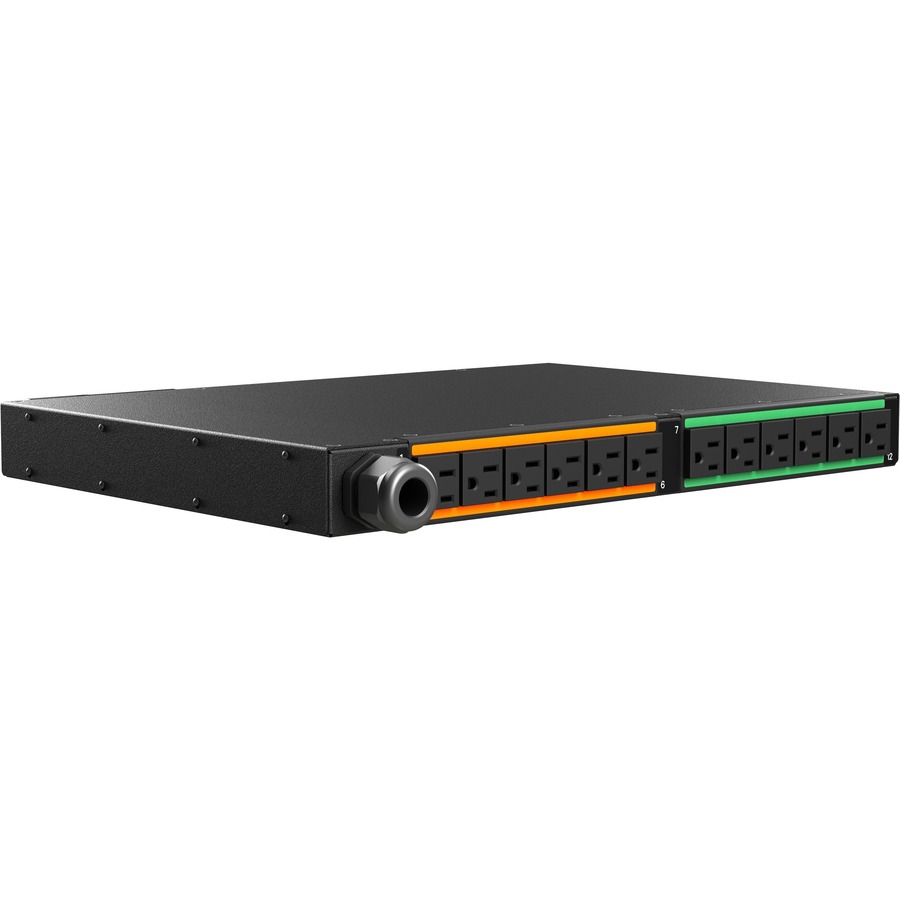

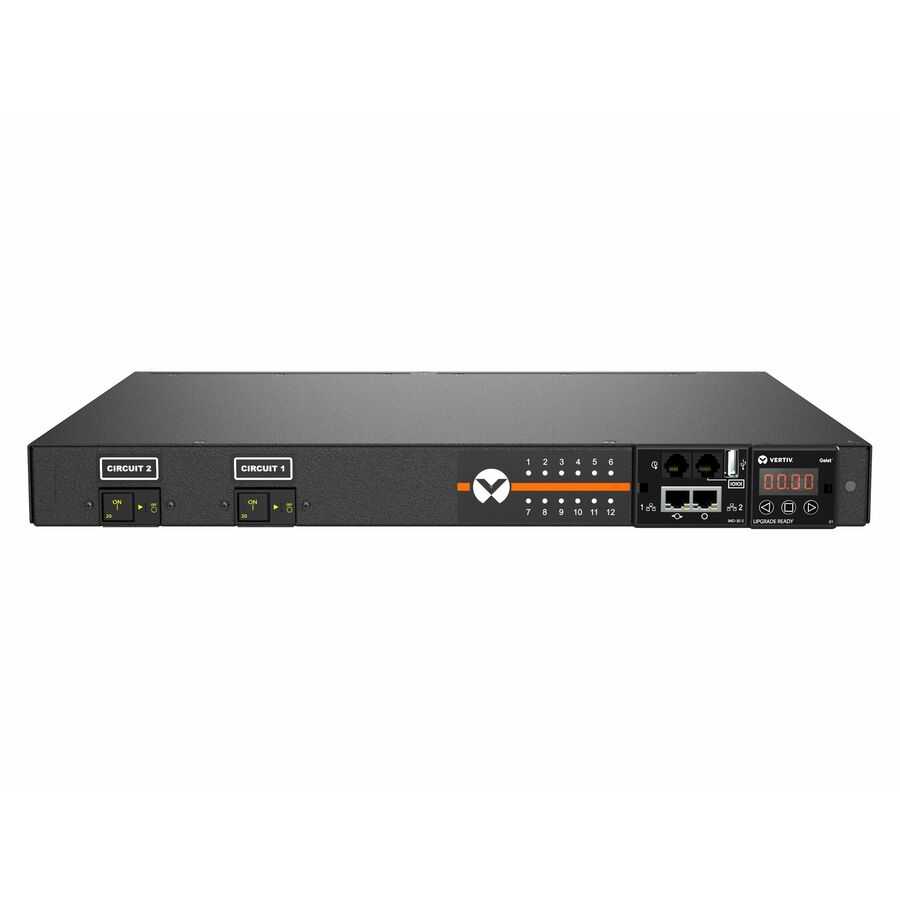

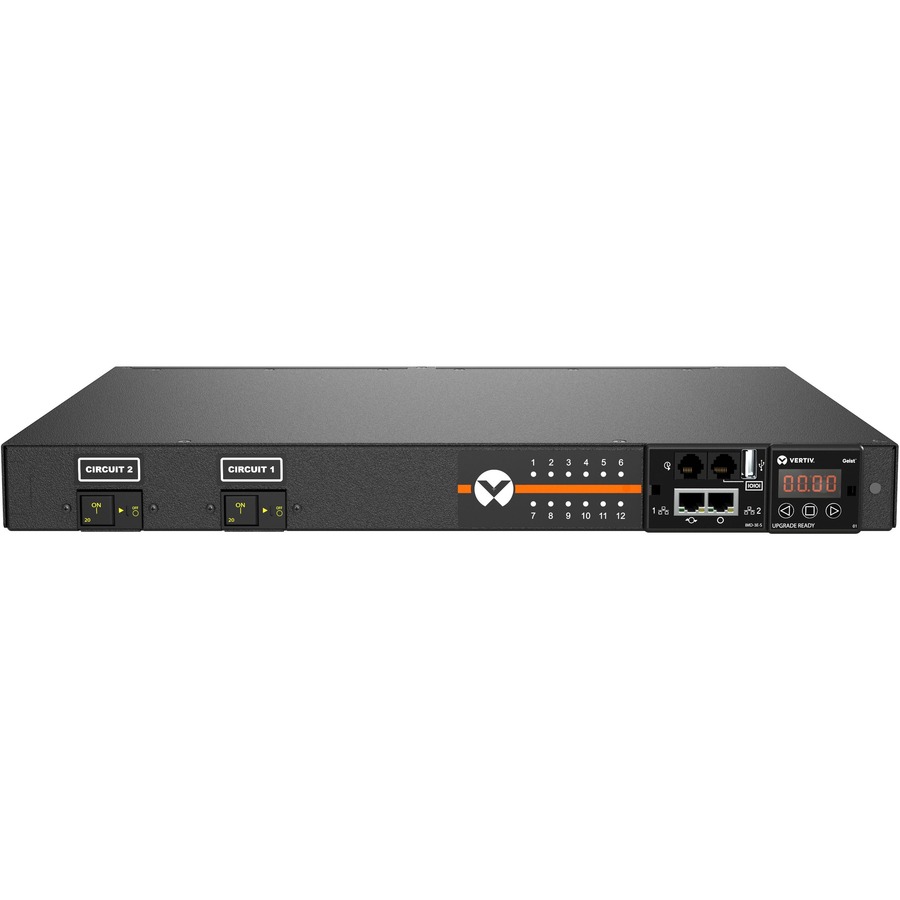

The Vertiv Geist Switched Rack PDU VP53100 is a 30A, 208V 1U horizontal rack power distribution unit (PDU) with input power monitoring and outlet level switching. The VP53100 features 12 Combination Outlet C13 / C19receptacles and a NEMA L6-30P plug with a 10ft cord providing 4.9kW in power capacity. This Switched rPDU allows you to turn off receptacles to avoid accidental overloads and power cycle equipment remotely to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. It also supports Visible Light Communication (VLC) technology so you can view complete power usage data from a mobile device with the Vertiv rPDU Scanner application. The IMD includes ports for serial communication and environmental monitoring, and dual ethernet ports. Simplify management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. All Vertiv Geist Switched PDUs are UL-Listed, meeting an important requirement for data centers, and each unit undergoes individual testing for functionality to ensure your network is powered by a reliable power distribution unit.

More from the Manufacturer

Horizontal Power Distribution with Outlet Level Switching

The Vertiv Geist Upgradeable Horizontal Switched Rack PDU delivers reliable power distribution in a horizontal form factor. Mounted in the U-space, this 1U rack PDU offers easy access to the network card and local LED display from the front of the rack, unlike 0U vertical rack PDUs installed at the back. The small form factor also makes it ideal for short racks and small network cabinets. This family of Switched rPDUs come with input power monitoring and outlet level switching, allowing you to remotely manage receptacles to avoid accidental overloads and reboot unresponsive critical IT equipment. Depending on the needs of your business, you can choose between a variety of models of the Vertiv Geist Horizontal Switched Rack PDU.

Select models are equipped with Combination Outlet C13/C19, which accommodate C14 and C20 plugs interchangeably, allowing you to support common IT equipment using just one rack PDU. High-retention and P-Lock compatible hybrid outlets reduce the risk of downtime caused by accidental disconnection of cords

Other models feature NEMA 5-15R or NEMA 5-20R outlets

Analyze the unit’s power distribution and environmental data through a Web browser to evaluate energy usage and maximize uptime

Visible Light Communication (VLC) Technology allows you to view comprehensive data from a mobile device with the Vertiv rPDU scanner application

Addition of optional environmental sensors allow you to monitor environmental data like temperature, humidity, and door position.

All Vertiv Geist Rack Power Distribution Units are individually tested, and meet the following compliance requirements: TAA-Compliance, RoHS UL, and CE.

Add an additional two years on top of the standard three-year warranty if you register your unit within 120 days of purchase.

HORIZONTAL RACK PDU

The horizontal form factor makes the Vertiv Geist Upgradeable Horizontal Rack PDU ideal for short racks and small network closets that don’t have a lot of space for a long, vertical PDU. Depending on your business needs, you can choose between a PDU with six outlets, or a unit with 12 outlets.

OUTLET FLEXIBILITY

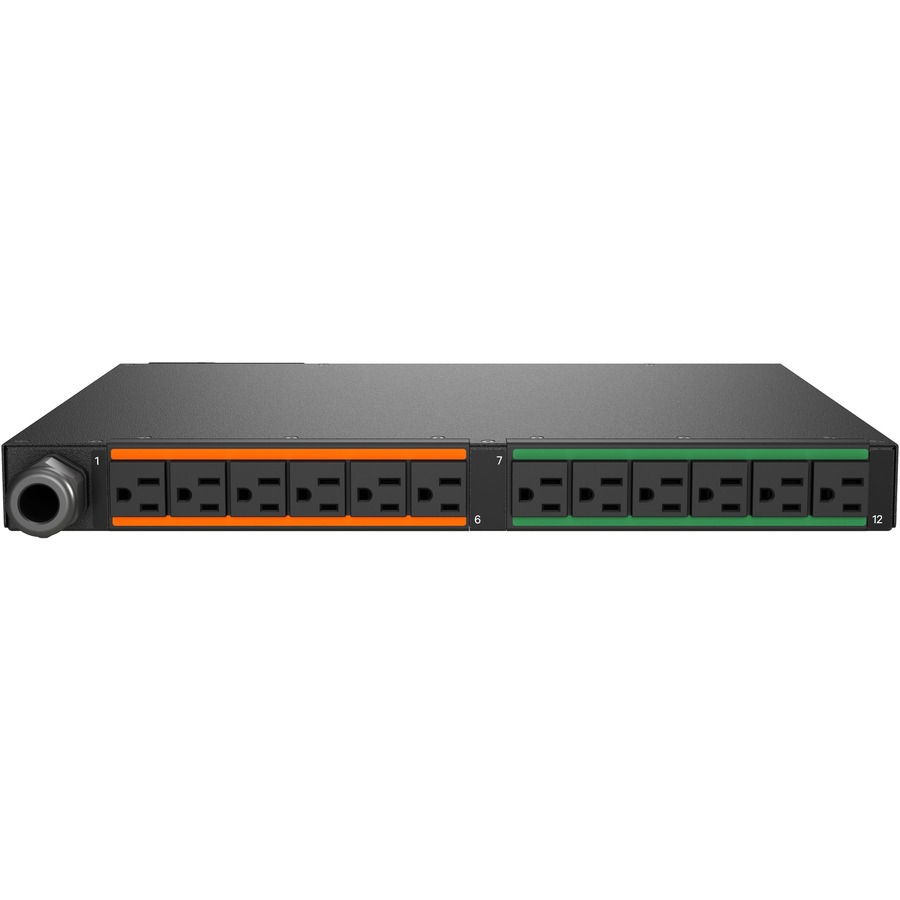

Select models in this line of Vertiv Geist Upgradeable Horizontal Rack PDUs are equipped with the Combination Outlets C13/C19. These hybrid outlets function as both a C13 and C19 receptacle. The outlets accommodate both C14 and C20 plug types interchangeably, providing you the flexibility to support common critical IT equipment using just a single 1U rack PDU.

OUTLET FLEXIBILITY

The hot-swappable Interchangeable Monitoring Device provides you with confidence that as technology advances you can easily update the intelligence on your Rack PDU to the latest technology available allowing you to seamlessly evolve with the growth of your operation.

INDIVIDUAL TESTING

All Vertiv Geist Rack PDUs undergo rigorous individual testing to ensure the quality, functionality, and reliability of each unit. No batch testing means your network is powered by a reliable smart power strip.

GLOBAL COMPLIANCE

The Vertiv Geist Horizontal Rack PDU meets global requirements including RoHS, China RoHS, and UL Certification.

WARRANTY

Receive an additional two years on top of the default three-year warranty if you register your unit within 120 days of purchase.

Applications

GROCERIES

Groceries and convenience stores conduct business for long stretches of time, if not the whole day. To lessen the risk of downtime, these stores require robust power distribution but have little room for IT equipment. With its small form factor, the Vertiv Geist Horizontal Switched Rack PDU can be placed under the checkout counters of these stores and deliver reliable power distribution without taking up too much space.

FAST FOOD/RETAIL

To provide the best customer experience, locations like fast food restaurants and retail stores offer online transactions, making continuous uptime necessary for the business. But these locations usually have IT racks that have no room for long vertical 0U PDUs. As a 1U rack PDU, the Vertiv Geist Horizontal Switched rPDU is mounted in the U-space, making it ideal for short and cramped network closets.

EDUCATION

Education has become increasingly dependent on connectivity. Even dorm rooms have critical IT equipment that need power distribution to stay online, but traditional 0U vertical PDUs might have more outlets than are necessary or take up too much space for these situations. Since most models are equipped with no more than 12 outlets, the Vertiv Geist Horizontal Switched rPDU can be an ideal solution for similar IT challenges.

FINANCE

Financial institutions cannot afford any kind of downtime since they support online transactions around the clock. Having a reliable power distribution unit can help their IT equipment stay online 24/7. The Vertiv Geist rPDU, which undergoes individual testing for functionality, ensures your business is powered by a PDU that meets global standards.

ENTERPRISE DATA CENTER

Enterprise Data Centers power thousands of servers and switches, making remote power monitoring and management necessary. With advanced power monitoring and outlet level switching, the Vertiv Geist Horizontal Switched rPDU can help data center managers analyze data and maximize uptime by remotely turning off receptacles to avoid accidental overloads, or power cycling outlets to reboot unresponsive IT equipment.

COLOCATIONS

Colocation facilities offer services to all kinds of clients, even those who require just a small partial space inside a rack. With its 1U horizontal form factor, the Vertiv Geist Horizontal Switched rPDU can help system integrators provide reliable and intelligent power distribution to those clients without taking up the U space that can be used for clients that require a vertical PDU.
