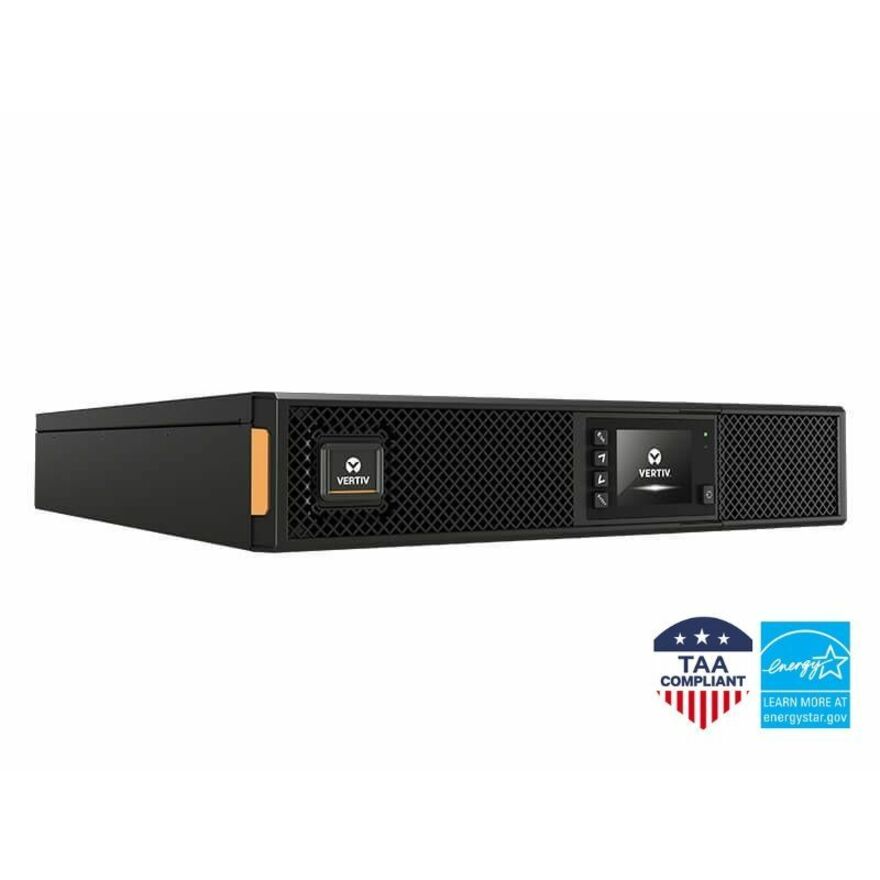

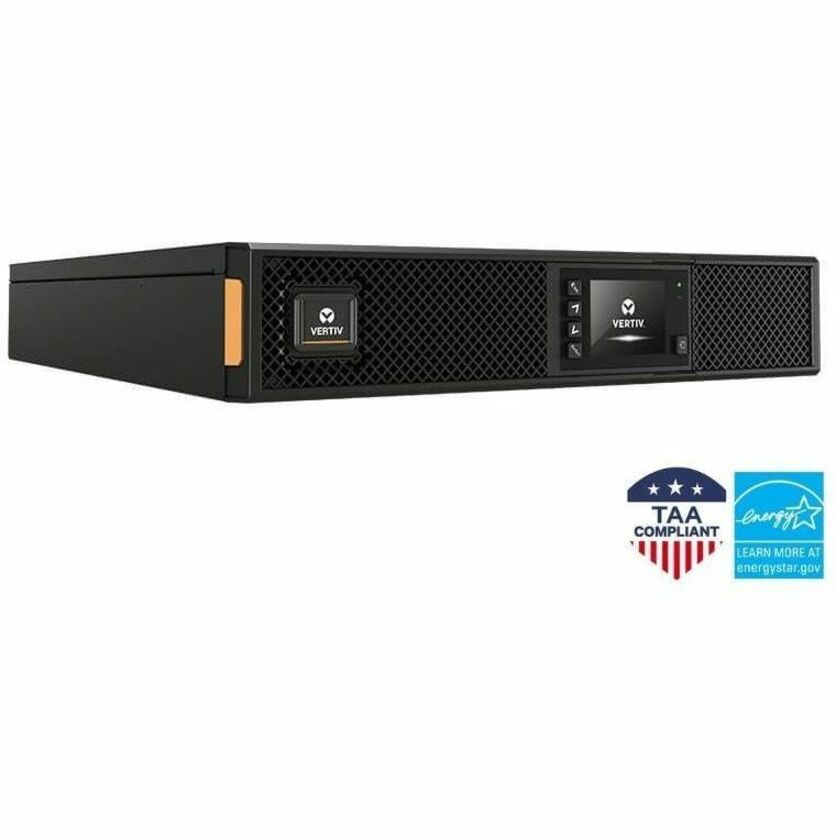

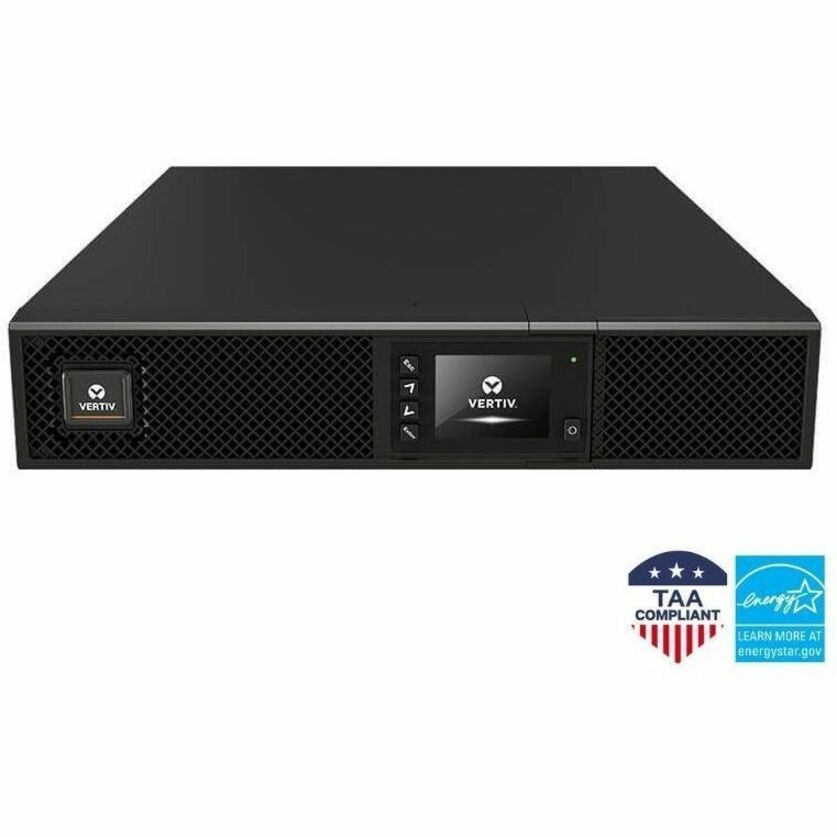

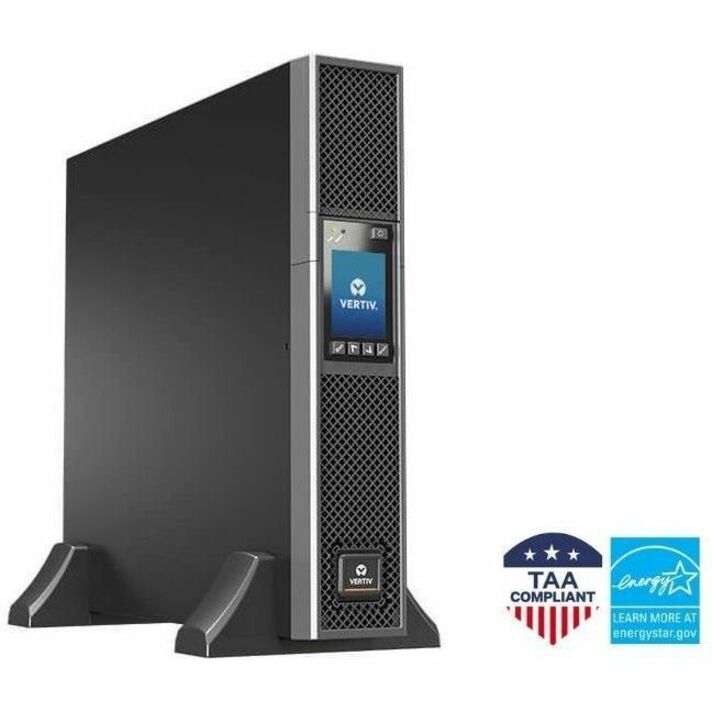

Vertiv Liebert GXT5 TAA UPS with RDU120 Card - 1000VA/1000W 120V Rack/Tower
2U | Double Conversion | 1.0 Output Power Factor | Energy Star 2.0 certified with NEMA 5-15P plug, Colored Graphic LCD, Extended Runtime Capability | 3-Year Warranty with Optional Extended 2-year Warranty
- SKU
- GXT5-1000LVRT2UXLTAAN
- Category
- General Purpose UPS
MSRP$2,498.00
$1,678.66
Save 33%Back ordered — ships when restocked.
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GXT5-1000LVRT2UXLTAAN
- Category
- General Purpose UPS
Overview
The Vertiv Liebert GXT5 TAA-compliant online UPS, with a capacity of 1kVA/1kW, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure in centralized and edge applications. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. It can support a wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is Energy Star 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with RDU120 network card for remote management.
More from the Manufacturer
More from the Manufacturer
Vertiv Liebert GXT5 TAA UPS with RDU120 Network Card
True Online UPS from 1000 to 3000VA
The Vertiv Liebert GXT5 TAA UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. It protects critical equipment against outages and every type of power disturbance without drawing on battery power, which extends battery life and minimizes replacements. This single-phase UPS operates with high power efficiency is intended for both centralized and edge applications. The unit includes a rack mounting hardware kit and base for tower installation in open environments. With available Vertiv LIFE Services, data center managers can reduce the risk of unexpected downtime through remote diagnostic and preventive monitoring. It comes with Vertiv RDU120 card, which allows users to manage up to 100 distributed units with the free Vertiv Trellis Power Insight Application. Available in capacities from 1000VA to 3000VA in rack and tower configurations, the Vertiv Liebert GXT5 UPS includes:
Compact 2U rack/tower convertible systems that are easy to install, configure and operate
Scalable runtimes with external battery cabinets and hot-swappable internal batteries
High power factor (PF 0.9-1.0) ensures the connection of more loads and IT equipment
TAA compliant UPS designed for government and government-affiliated environments
Programmable individual output socket for optimum battery usage and connected equipment power control
High normal operating efficiency and ultimate efficiency with Vertiv’s active eco-mode
User-friendly interface includes gravity sensing graphical color display
Vertiv RDU120 network card for remote monitoring/management
Key Features
COMPLETE POWER PROTECTION
The Vertiv Liebert GXT5 TAA UPS provides online double conversion technology to protect critical equipment against outages. It offers continuous power conditioning to eliminate disturbances such as blackouts, brownouts, saps, surges or noise interference. During an outage, this UPS seamlessly transfers to battery with no interruption in power to supported equipment. Programmable sockets help extend runtime for the most critical loads and smart disconnection of the less critical equipment. Scalable runtime options with matching auto-detection external battery cabinets provide additional flexibility when extended uninterrupted power is required. The auto-detection feature of the external battery cabinet ensures the proper set-up and configuration of the system runtime allowing users to plan critical systems support accurately.
REMOTE MANAGEMENT CAPABILITIES
The Vertiv Liebert GXT5 TAA UPS comes with the Vertiv RDU120 card to provide remote, SNMP and web UI-based monitoring. With the use of free Vertiv Power Insight software, data center managers can consolidate their view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass view of the backup systems. The network card enables SNMP-based management that can maximize uptime, minimize onsite support and keep data secure. It allows remote infrastructure visibility and provide actionable information for continuous availability. Compatible with environmental sensors, it can also monitor heat, humidity and other factors in remote locations.
UNINTERRUPTIBLE POWER SUPPLY TECHNOLOGY
The Vertiv Liebert GXT5 TAA UPS is easy to deploy with convertible rack/tower design that offers installation flexibility, and its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and configuration are also made easy with auto-detection of external battery cabinets for additional runtime solutions. High efficiency operation of this UPS means you get protection while being energy conscience.
Applications
SERVER AND ROUTER PROTECTION
The Vertiv Liebert GXT5 TAA UPS is ideal for protecting servers and routers in rack or tower configurations in small offices, network closets and remote locations. The compact Vertiv Liebert GXT5 TAA UPS takes up only 2U of rack space and 15.7 to 21.3-inch depth. A rack mounting hardware kit is included with each unit, as well as a base for tower installation in open environments.
GOVERNMENT & GOVERNMENT CONTRACTORS
The government require advanced information and communication technologies as it often deals with demanding clients and confidential data. Its critical systems require high reliability and availability for efficiency, security and optimal work. The Vertiv Liebert GXT5 TAA UPS system provides premium protection to its high-end equipment in delivering services or executing programs. This battery backup allows government personnel to safeguard data and protect expensive electronic systems when power outages and power disturbances occur. With TAA compliance, this UPS meets government or government-affiliated environments’ requirement for safe operation.
CRITICAL SYSTEMS IN EDUCATION
School districts require that their data protected and their systems available when needed. These days, schools, colleges and universities are equipped with latest technologies to make teaching and learning easier. They have secure server rooms and data cabinets to hold packets of data for students or for education staff only. However, power disturbances can cause disruptions to IT systems that teachers and administrators heavily rely on. The Vertiv Liebert GXT5 TAA UPS can provide school personnel peace of mind that Wi-Fi routers, small equipment racks, and other important systems are protected from damage and data loss.
BRANCH OFFICE/DISTRIBUTED IT AND EDGE
With true online protection and remote management capabilities, the Vertiv Liebert GXT5 TAA UPS provides reliable protection for the unique requirements of retail stores, bank branches and other distributed IT applications. Where IT downtime can disrupt business and on-site personnel are unprepared to deal with service issues, the Vertiv Liebert GXT5 TAA UPS delivers reliable power protection.
A smarter, simpler, more self-sufficient edge of the network is converging with broader industry and consumer trends, including the Internet of Things (IoT) and the rollout of 5G networks, to drive powerful, low-latency computing closer to the end-user. The Vertiv Liebert GXT5 TAA UPS provides the reliability and manageability critical edge applications require.
GXT5-1000LVRT2UXLTAAN
Power (VA/W): 1000VA/1000W
Output Power Factor: 1.0
Internal Battery Run Time (Full Load): 6.7 min
Internal Battery Run Time (Half Load): 17.9 min
Unit Weight lbs (kg): 37 (16.8)
Remote Management Capabilities: It comes with Vertiv RDU120 communications card to enable remote monitoring / management (SNMP, web, and optional environmental sensors)
Unit Dimensions WxDxH inches (mm): 16.9 x 15.7 x 3.4
(430 x 400 x 85)
Warranty: Standard 3-year warranty; option for 1-2 years warranty extension
Form Factor: 2U Rack/Tower
GXT5-1500LVRT2UXLTAAN
Power (VA/W): 1500VA/1350W
Output Power Factor: 0.9
Internal Battery Run Time (Full Load): 6.7 min
Internal Battery Run Time (Half Load): 18.8 min
Unit Weight lbs (kg): 46.2(21)
Remote Management Capabilities: It comes with Vertiv RDU120 communications card to enable remote monitoring / management (SNMP, web, and optional environmental sensors)
Unit Dimensions WxDxH inches (mm): 16.9 x 18.5 x 3.4
(430 x 400 x 85)
Warranty: Standard 3-year warranty; option for 1-2 years warranty extension
Form Factor: 2U Rack/Tower
GXT5-2000LVRT2UXLTAAN
Power (VA/W): 2000VA/1800W
Output Power Factor: 0.9
Internal Battery Run Time (Full Load): 4 min
Internal Battery Run Time (Half Load): 12.3 min
Unit Weight lbs (kg): 47.5 (21.6)
Remote Management Capabilities: It comes with Vertiv RDU120 communications card to enable remote monitoring / management (SNMP, web, and optional environmental sensors)
Unit Dimensions WxDxH inches (mm): 16.9 x 18.5 x 3.4
(430 x 400 x 85)
Warranty: Standard 3-year warranty; option for 1-2 years warranty extension
Form Factor: 2U Rack/Tower
GXT5-3000LVRT2UXLTAAN
Power (VA/W): 3000VA/2700W
Output Power Factor: 0.9
Internal Battery Run Time (Full Load): 4 min
Internal Battery Run Time (Half Load): 12.6 min
Unit Weight lbs (kg): 66 (30)
Remote Management Capabilities: It comes with Vertiv RDU120 communications card to enable remote monitoring / management (SNMP, web, and optional environmental sensors)
Unit Dimensions WxDxH inches (mm): 16.9 x 21.3 x 3.4
(430 x 400 x 85)
Warranty: Standard 3-year warranty; option for 1-2 years warranty extension
Form Factor: 2U Rack/Tower
Warranty
Additional Warranty Information: 3-Year Warranty with Optional Extended 2-year Warranty Limited Warranty: 3 Year
About Vertiv
Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!
Highlights
- Reliable, easy-to-manage power protection and battery backup with 1kVA (1kW) capacity
- High power factor (1.0) for more usable power, which allows more connected loads saving space and costs
- Energy Star 2.0 certified with active ECO mode efficiency up to 98%
- With TAA compliance, this UPS ensures safe operation in government or government-affiliated environment
- It comes with RDU120 network card for remote management and FREE Power Insight management software
Specifications
| Additional Warranty Information | 3-Year Warranty with Optional Extended 2-year Warranty |
|---|---|
| Application/Usage | Healthcare, IT Infrastructure, Mission Critical Equipment, IT Equipment |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Double Conversion Online UPS |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | GXT5-1000LVRT2UXLTAAN |
| Limited Warranty | 3 Year |
| Output Voltage | 110 V AC, 115 V AC, 120 V AC, 125 V AC |
| Weight (Approximate) | 37 lb |
| Form Factor | Rack/Tower |
| Manufacturer | Vertiv |
| Product Name | GXT5 1000VA Rack/Tower UPS |
| Network Management | Network Card |
| Waveform Type | Pure Sine Wave |
| Product Series | GXT5 |
| Rack Height | 2U |
| Brand Name | Vertiv Liebert |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 60 V AC - 150 V AC |
| Country of Origin | Mexico |
| Height | 3.40" |
| Width | 16.90" |
| Depth | 15.70" |
| Input Frequency | 70 Hz |
| Phase | Single Phase |
| Battery Size | 12V |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| USB | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Number of Batteries | 3 |
| Backup/Run Time (Half Load) | 15 Minute |
| Backup/Run Time (Full Load) | 6 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 1000 W |
| TAA Compliant | Yes |
| Energy Star | Yes |
| EPO Port | Yes |
| Maximum Operating Elevation | 9842.52 ft |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Output Power Factor | 1.0 |
| Environmental Sensors | Temperature Sensor, Humidity Sensor, Leak Detection Sensor |
| Number of External Battery Cabinets | 1 |
| Receptacle Detail | 6 x NEMA 5-15R |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
