Vertiv
Great Lakes Wall Mount
For Equipment - 12U Rack Height28" Rack Depth - Wall Mountable Enclosed Cabinet - Winter White - 200 lb Maximum Weight Capacity - 1 Year Warranty
- SKU
- GL24WMCMS-W-SC-AF-CM
- Category
- Rack Equipment
MSRP$2,332.00
$1,654.16
Save 29%Back ordered
Back ordered — ships when restocked.
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GL24WMCMS-W-SC-AF-CM
- Category
- Rack Equipment
Overview
Warranty
Limited Warranty: 1 Year
Highlights

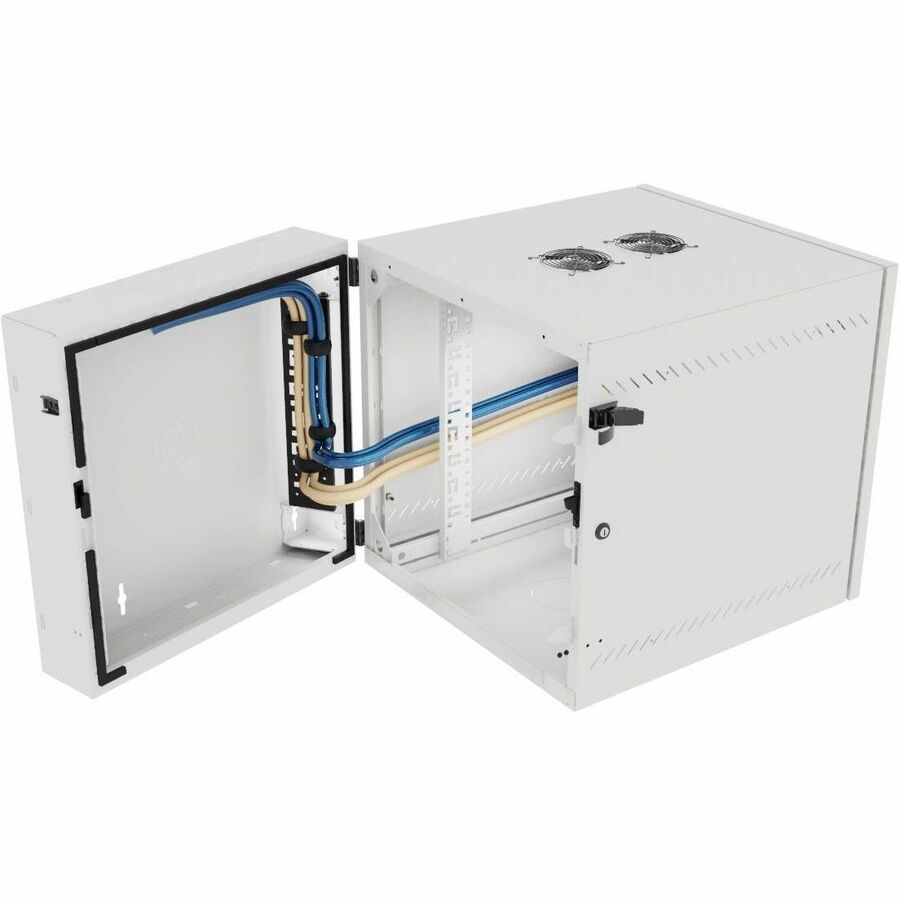

- Two pair of #12-24 tapped mounting rails (depth adjustable)
- Offset mounting rails create nearly 3.5" of dedicated cable management space between the rail and side
- Rails feature a horizontal/vertical cable tie down pattern and provisions for optional cable management "D" rings
- Nominal concentric conduit knockouts on top, bottom, and back of rear section
- Provisions on top and bottom for fan assembly
- Optional dust kit to protect equipment in contaminated areas
- 150mm x 25mm Standard door handle cutout
- Reversible mounting for left-hand or right-hand opening
- Color: Black, Winter White
- Standards: UL2416, RoHS II
Specifications
| Application/Usage | Equipment |
|---|---|
| Package Contents |
|
| Product Type | Rack Cabinet |
| Manufacturer Part Number | GL24WMCMS-W-SC-AF-CM |
| Limited Warranty | 1 Year |
| Ventilation | Yes |
| Features | Cinch Strap, Heavy Duty Hinge, Lockable Rear Door, Fan Cutout, Adjustable Depth, Adjustable Mounting Rails, Lockable Front Door, Cable Management, Cooling Fan, Combination Handle |
| Form Factor | Wall Mountable |
| Manufacturer | Vertiv |
| Product Name | Wall Mount |
| Product Series | WMCM |
| Rack Height | 12U |
| Brand Name | Great Lakes |
| Height | 24" |
| Width | 24" |
| Depth | 30.5" |
| Maximum Weight Capacity | 200 lb |
| Rack Depth | 28" |
| Product Color | Winter White |
| Color Family | White |
| Rack Type | Enclosed Cabinet |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
