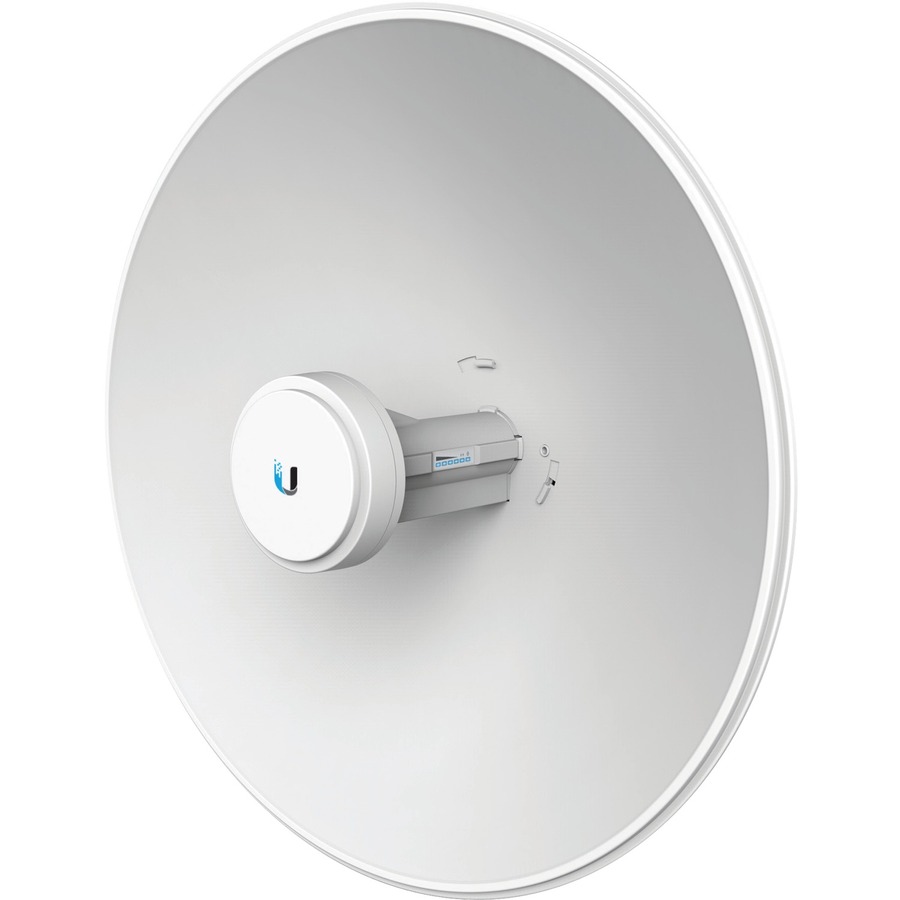

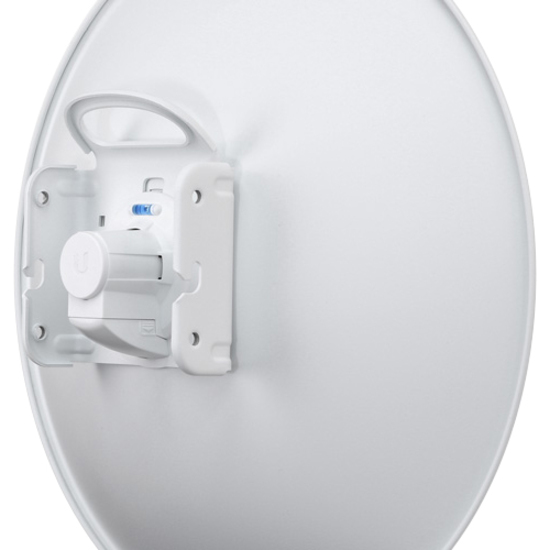

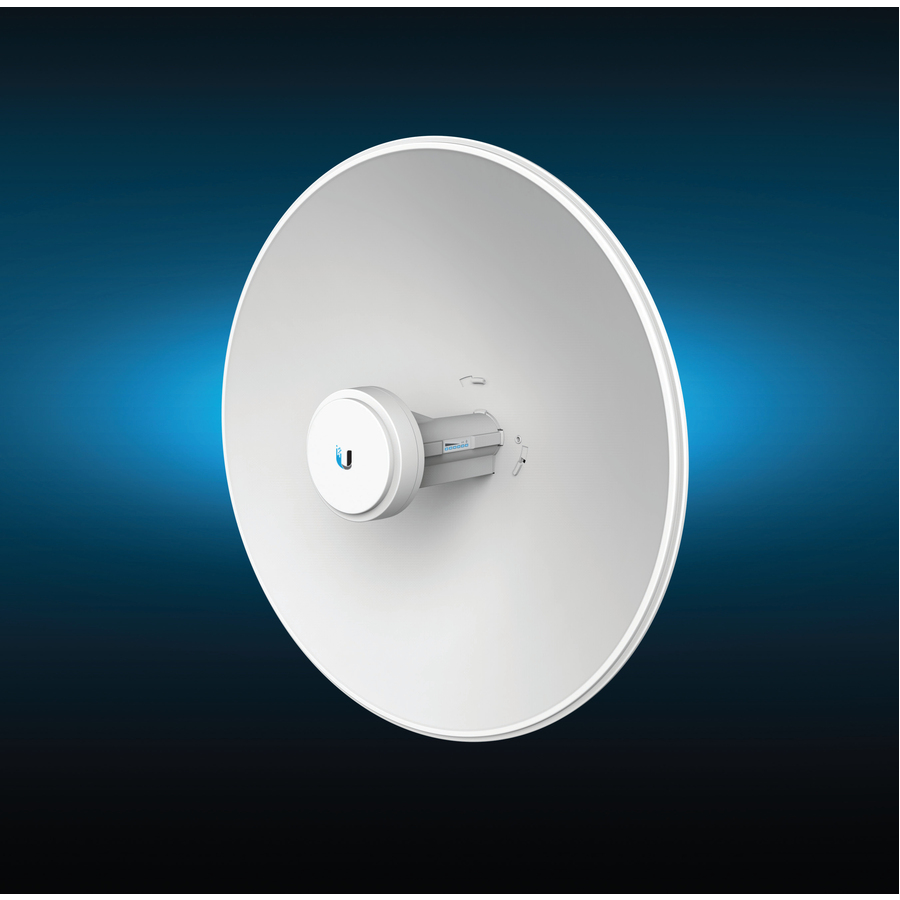

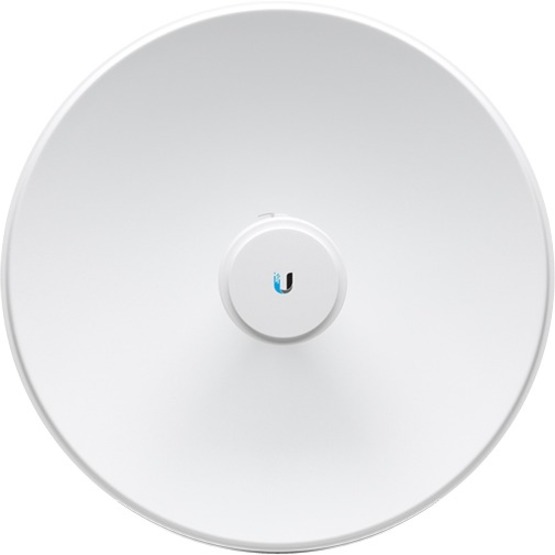

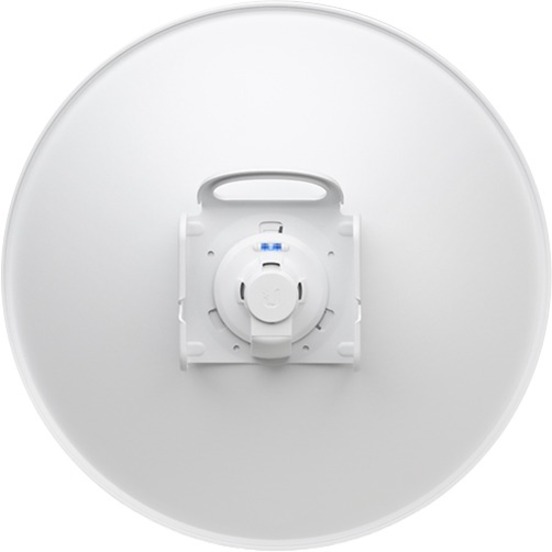

Ubiquiti PowerBeam ac PBE-2AC-400 IEEE 802.11ac 450 Mbit/s Wireless Bridge

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 2AC, with dedicated Wi-Fi management.

Improved Noise Immunity

The PowerBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

Ubiquiti's InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Featuring high performance and innovative design, the PowerBeam 2AC is versatile and cost-effective to deploy.

Software

airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX ac products.

Powerful Wireless Features

• High-performance airMAX ac CPE

• airMAX ac Protocol Support

• Long-Range Point-to-Point (PtP) Link Mode

• Selectable Channel Width

• PtP: 10/20/40 MHz

• PtMP: 10/20/40 MHz Automatic Channel Selection

• Transmit Power Control: Automatic/Manual

• Automatic Distance Selection (ACK Timing)

• Strongest WPA2 Security

Usability Enhancements

• airMagic® Channel Selection Tool

• Redesigned User Interface

• Dynamic Configuration Changes

• Instant Input Validation

• HTML5 Technology Optimization for Mobile Devices

• Detailed Device Statistics

• Comprehensive Array of Diagnostic Tools, Including RF Diagnostics and airView® Spectrum Analyzer

Advanced RF Analytics

airMAX ac devices feature a multi -radio architecture to power a revolutionary RF analytics engine.

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 2.4 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.

Real-Time Reporting

airOS 8 displays the following RF information:

• Persistent RF Error Vector Magnitude (EVM) constellation diagrams

• Signal, Noise, and Interference (SNI) diagrams

• Carrier to Interference-plus-Noise Ratio (CINR) histograms

Spectral Analysis

airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:

• Constantly monitors environmental noise

• Collects energy data points in real -time spectral views

• Helps optimize channel selection, network design, and wireless performance

In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level.

airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

UNMS App

The PowerBeam 2AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Accessing airOS via Wi-Fi

The UNMS ? App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play ? (Android). UNMS allows you to set up, configure, and manage the PowerBeam 2AC and offers various configuration options once you're connected or logged in.
