TRENDnet 6-Outlet Managed Rackmount Power Distribution Unit
Managed, Bypass - 6 x NEMA 5-15R, 1 x NEMA 5-15R - 120 V AC - Surge Protection - Network (RJ-45) - 1U - Rack-mountable
- SKU
- TPI-06
- Category
- PDUs
$288.34
Back ordered — ships when restocked.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TPI-06
- Category
- PDUs
Overview

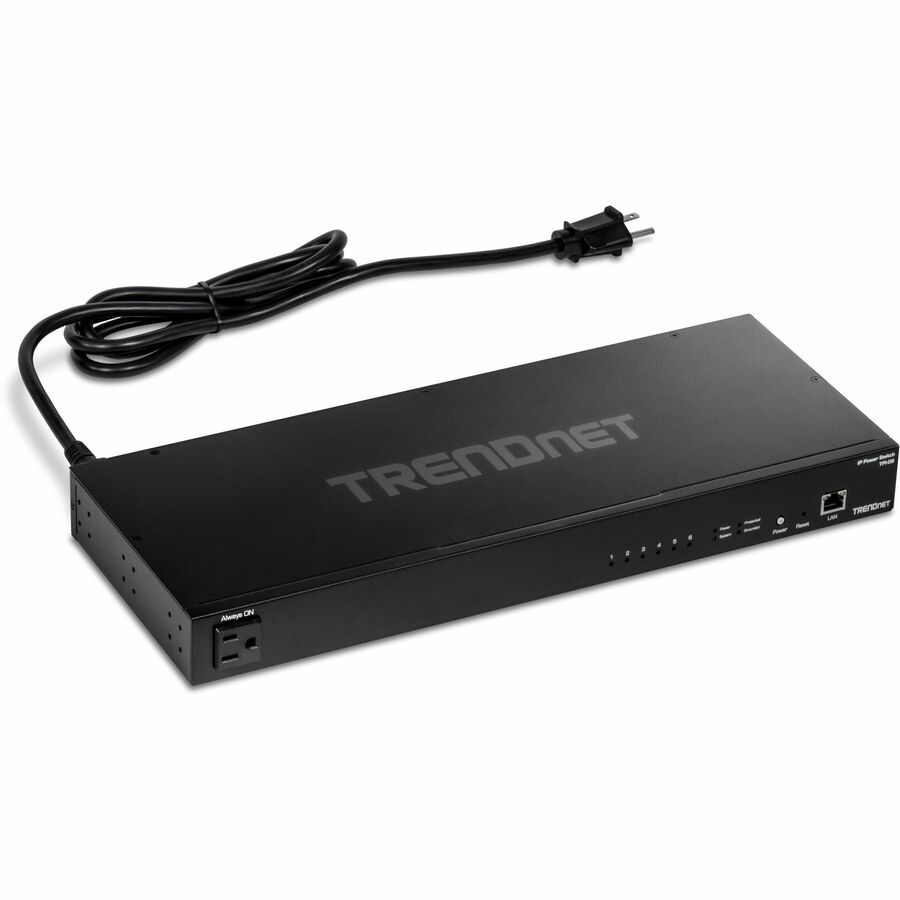

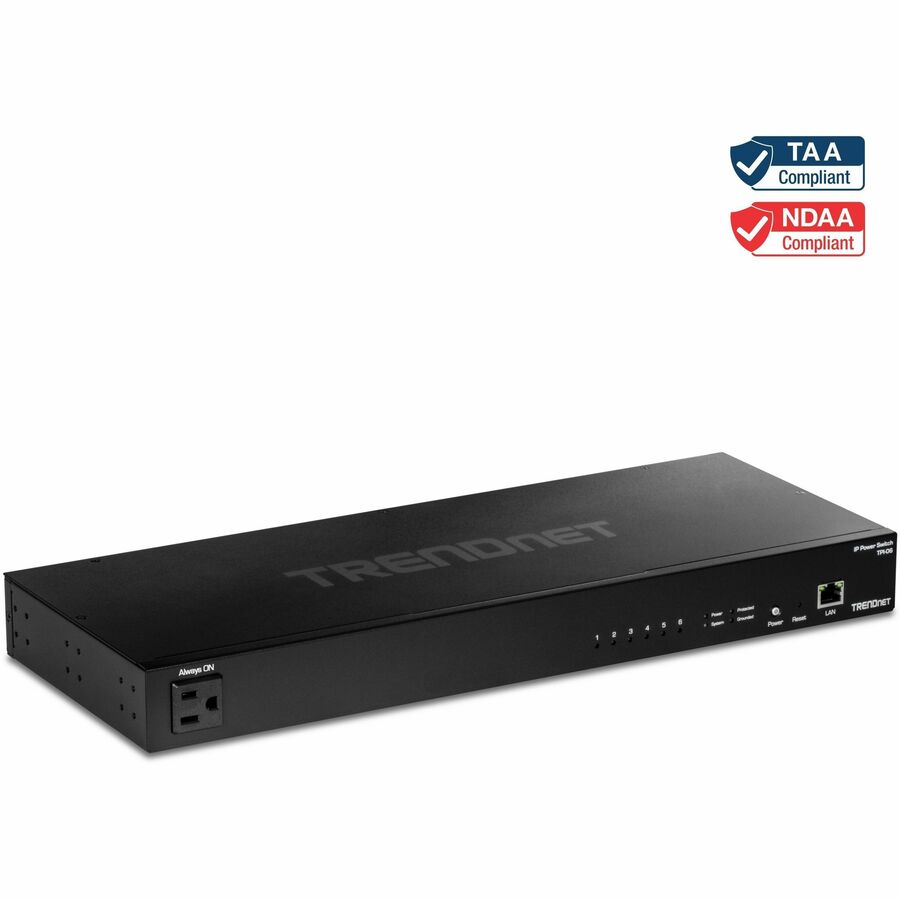

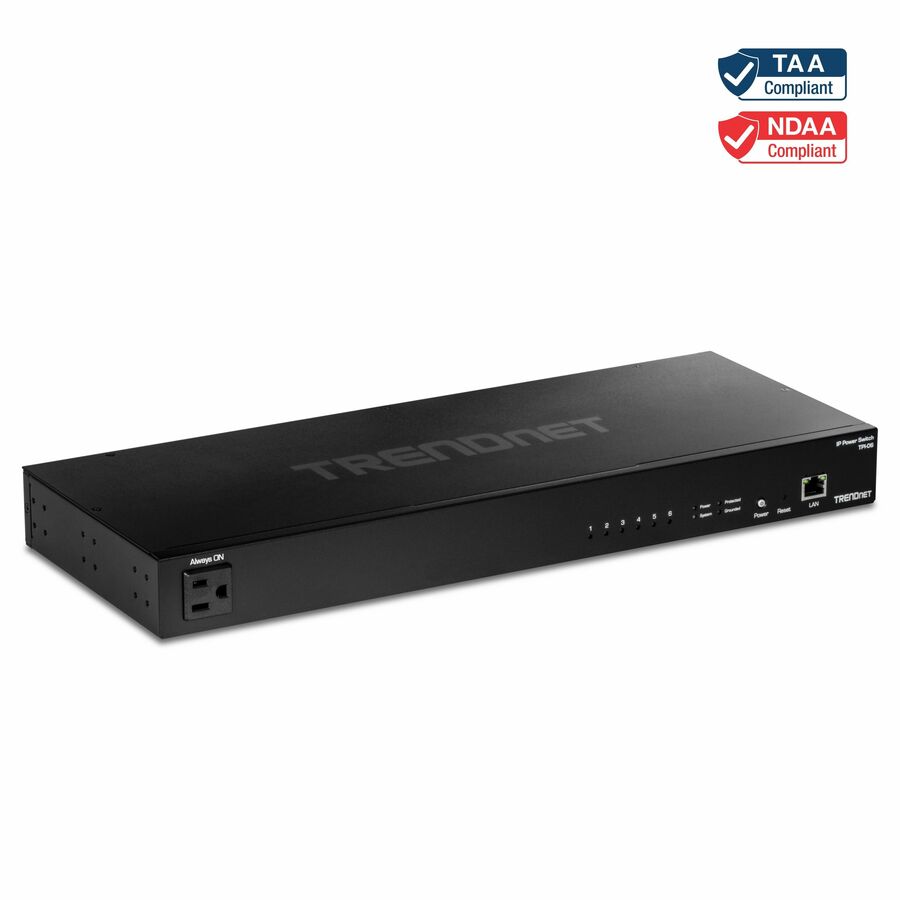

TRENDnet's 6-Outlet Managed Rackmount Power Distribution Unit, model TPI-06, provides a networkable power solution with intelligent monitoring and management capabilities. Automate outlet reboot settings in case of connection loss to ensure efficient usage of available resources, control power consumption, and protect the safety of connected equipment. Fanless design eliminates operating noise. The 6-Outlet Managed Rackmount Power Distribution Unit features six NEMA 5-15R managed power outlets, one NEMA 5-15R bypass power outlet, and one gigabit port. Each managed power outlet is controllable individually. The TPI-06 PDU filters AC for best electronics performance, while simultaneously reducing excess energy usage with power scheduling.
Easily manage and configure the power distribution unit remotely with TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with TRENDnet's reliable cloud service.
DEVICE INTERFACE: 6 x NEMA 5-15R Managed Power Outlets (15A max. @ 120V AC); 1 x NEMA 5-15R-Bypass Power Outlet (15A max. @ 120V AC); 1 x Gigabit port; LED indicators; 1U 19? Rack mountable

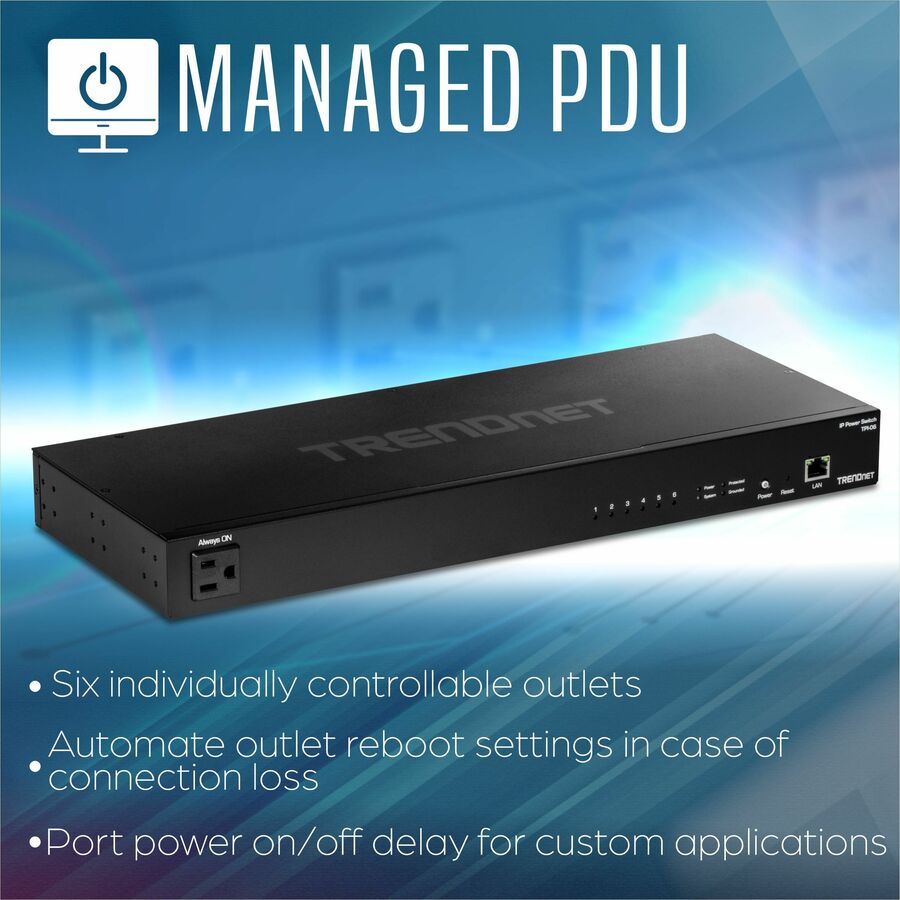

MANAGED POWER DISTRIBUTION UNIT: Supports individual controllable power outlets, and ability to assign a power schedule to automate the process.
MANAGE OUTLET CONTROL: Each managed power outlet can be individually controlled. Utilize port power on/off delay for custom applications.

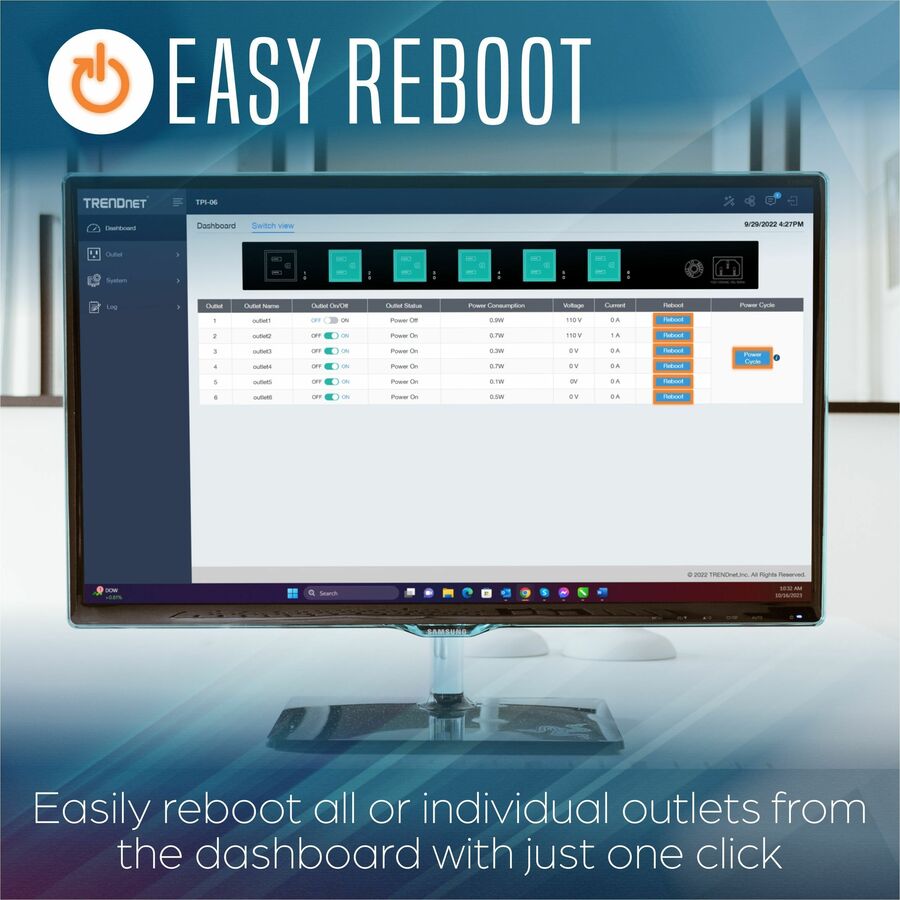

MONITOR POWER CONSUMPTION: View per outlet energy usage via dashboard.
OVERLOAD AND SURGE PROTECTION: Protect your connected equipment from power surges with overload protection 15A and dangerous voltage conditions with surge protection 2160J
EMAIL NOTIFICATIONS: Set up email notifications for safe voltage, overload break, and host timeout events
OPTIMIZED PERFORMANCE: Power distribution unit filters the alternating current (AC) for best electronic performance, while simultaneously reducing excess energy usage with power scheduling.
LED INDICATORS: The LED indicators conveniently convey AC ground status
Input Voltage 100-120VAC
Certifications: UL 62368-1
NDAA / TAA compliant (U.S. and Canada only)
More from the Manufacturer
Highlights

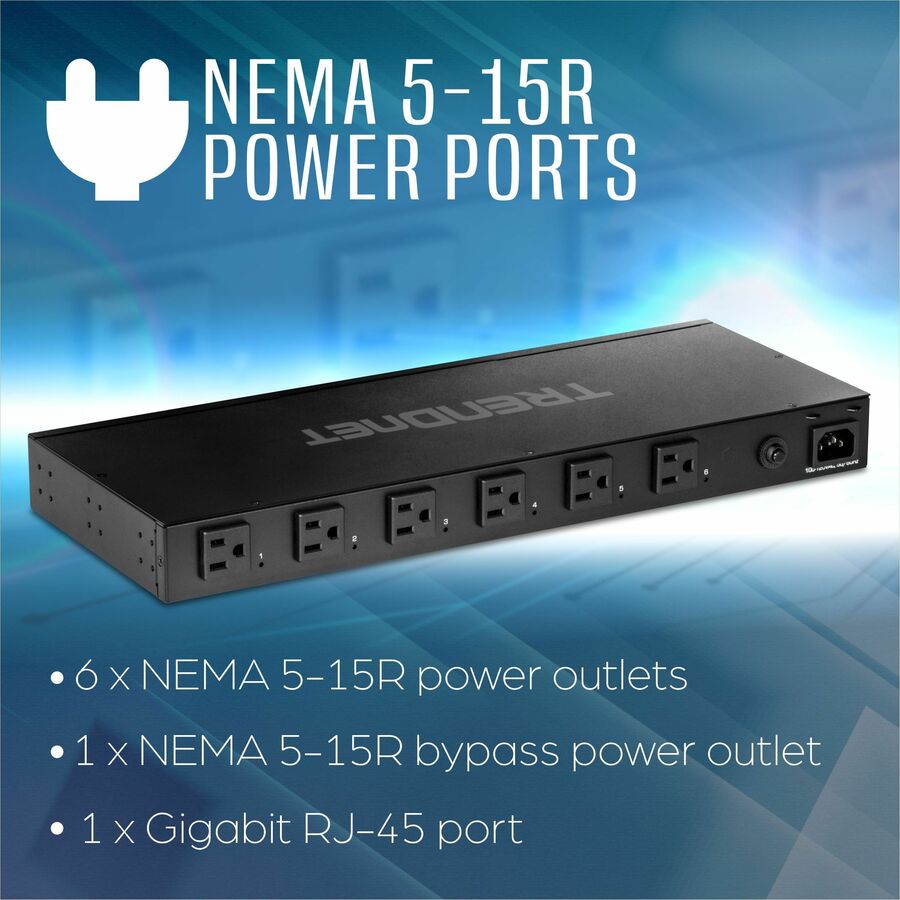

- 6 x NEMA 5-15R managed power outlets
- 1 x NEMA 5-15R bypass power outlet
- 1 x Gigabit port
- Individual controllable outlets
- Automate outlet reboot settings in case of connection loss
- Port power on/off delay for custom applications
- Manage outlet control and monitor power consumption
- Remote cloud management with TRENDnet Hive (Additional fee applies)
- Protects connected equipment from power surges & dangerous voltage conditions
- Filters AC for best electronics performance
- LED indicators conveniently convey AC ground status
- View per outlet energy usage via dashboard
- Reduces excess energy consumption by creating power schedules
- Event email notifications
- 1U 19" Rack mountable
- Input Voltage 100-120VAC
- Certifications: UL 62368-1
Specifications
| Application/Usage | Server Rack/Cabinet |
|---|---|
| Package Contents |
|
| Product Type | PDU |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | TPI-06 |
| Power Source | Power Supply |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 5.25 lb |
| Management | Hive Cloud |
| Manufacturer | TRENDnet |
| Product Model | TPI-06 |
| Product Name | 6-Outlet Managed Rackmount Power Distribution Unit |
| Mount Type | Rack-mountable |
| Protection Type | Surge Protection |
| Rack Height | 1U |
| Brand Name | TRENDnet |
| Input Voltage Range | 100 V AC - 120 V AC |
| Country of Origin | Taiwan |
| Height | 6.7" |
| Width | 17.3" |
| Depth | 1.7" |
| Receptacle Type | NEMA 5-15R |
| Output Voltage Range | 100 V AC - 120 V AC |
| Network (RJ-45) | Yes |
| PDU Type | Managed, Bypass |
| Power Rating (Watt) | 6.87 W |
| Receptacle Detail | 6 x NEMA 5-15R, 1 x NEMA 5-15R |
