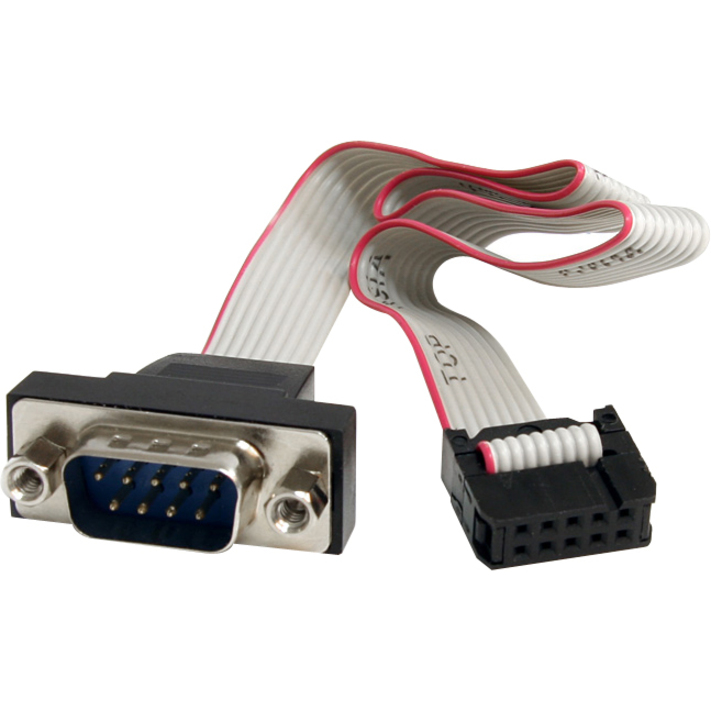

StarTech 16in 9 Pin Serial Male to 10 Pin Motherboard Header Panel Mount Cable
Turn a Motherboard IDC Serial Header into a Panel-Mountable 9-Pin RS232 Serial Connector - panel mount db9 - motherboard to rs232 - serial header -internal serial cable
- SKU
- PNL9M16
- Category
- Connector Cables
MSRP$10.24
$6.37
Save 38%In stock: 1,097
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PNL9M16
- Category
- Connector Cables
Overview
Turn a Motherboard IDC Serial Header into a Panel-Mountable 9-Pin RS232 Serial Connector. The PNL9M16 16-inch IDC Serial to Panel Mount Serial Cable, features a 10-pin (IDC) motherboard header connection on one end and a panel mount DB9 male connector port on the other - a simple answer for adding a DB9 (RS232) serial port to any computer system which has an RS232 serial panel mount receptacle.This cost-effective solution bridges the compatibility gap between modern computers and legacy serial peripherals. More from the Manufacturer More from the Manufacturer
Highlights
- This data transfer cable provides splendid performance and clear connectivity
- Fully compatible with motherboards
Specifications
| Cable Length | 1.33 ft |
|---|---|
| Product Type | Data Transfer Cable |
| Device Supported | Motherboard |
| Manufacturer Part Number | PNL9M16 |
| Packaged Quantity | 1 Each |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 0.03 lb |
| Manufacturer | StarTech.com |
| Product Name | 16in 9 Pin Serial Male to 10 Pin Motherboard Header Panel Mount Cable |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Connector Type on First End | DB-9 RS-232 Serial - Male |
| Connector Type on Second End | IDC RS-232 Serial - Female |
| Product Color | Gray |
| Color Family | Gray |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial - Male |
| Connector on Second End Details | 1 x 10-pin IDC RS-232 Serial - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
