StarTech Low Profile 16in Parallel Port Header Cable Adapter with Bracket - DB25 (F) to IDC26
Add a 25-pin parallel port to the back of your low profile/small form factor computer from your motherboard - db25 to idc26 - db25 header - parallel port bracket - parallel port header cable - low profile slot plate
- SKU
- PLATE25F16LP
- Category
- Connector Cables
MSRP$8.19
$4.07
Save 50%In stock: 795
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PLATE25F16LP
- Category
- Connector Cables
Overview

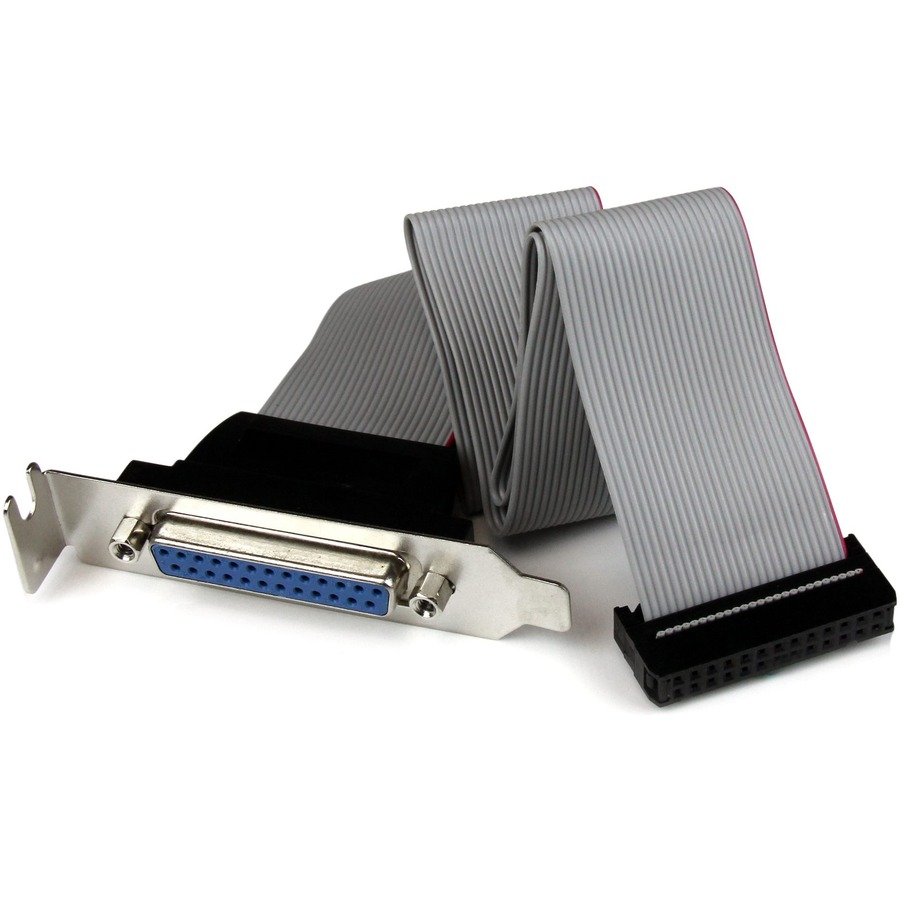

The PLATE25F16LP DB25 to IDC26 Parallel Port Bracket adds a DB25 parallel port to the rear panel of a low profile/small form factor computer, which connects to an IDC26 header connector on the motherboard.Backed by Lifetime Warranty and constructed of only top quality components, our Parallel Port Header Cable offers a cost-effective solution for adding a Parallel device connection using a compatible motherboard. More from the Manufacturer More from the Manufacturer
Highlights

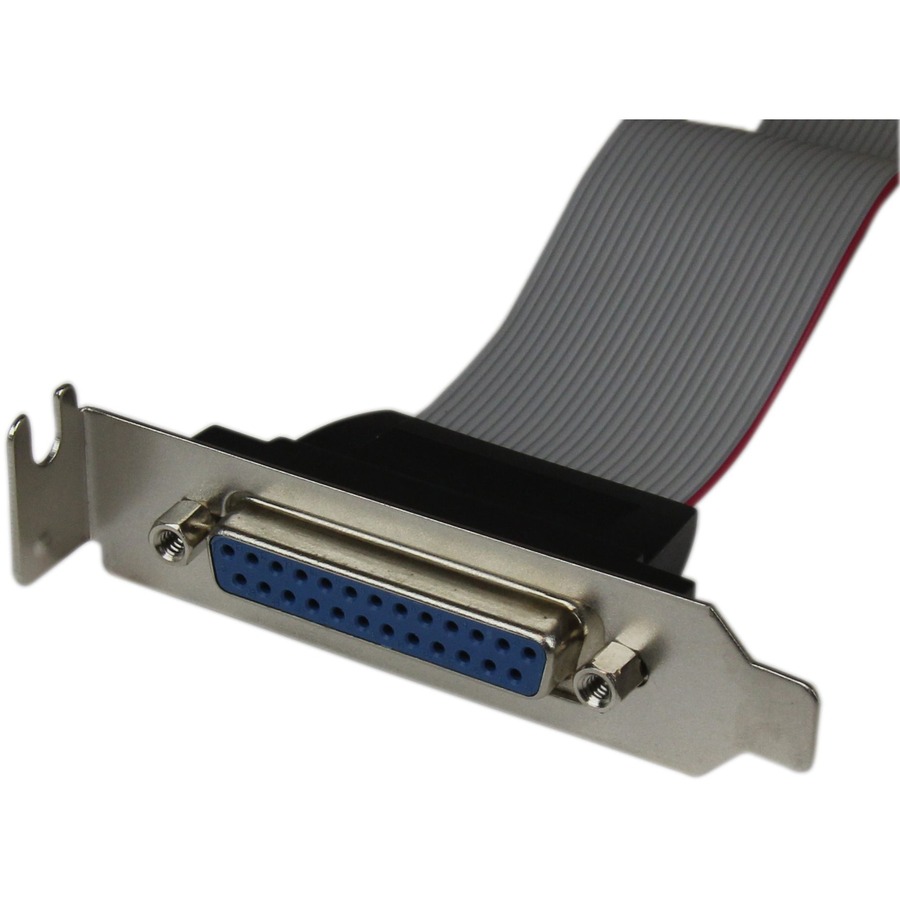

- 1x Parallel DB25 (female) connector

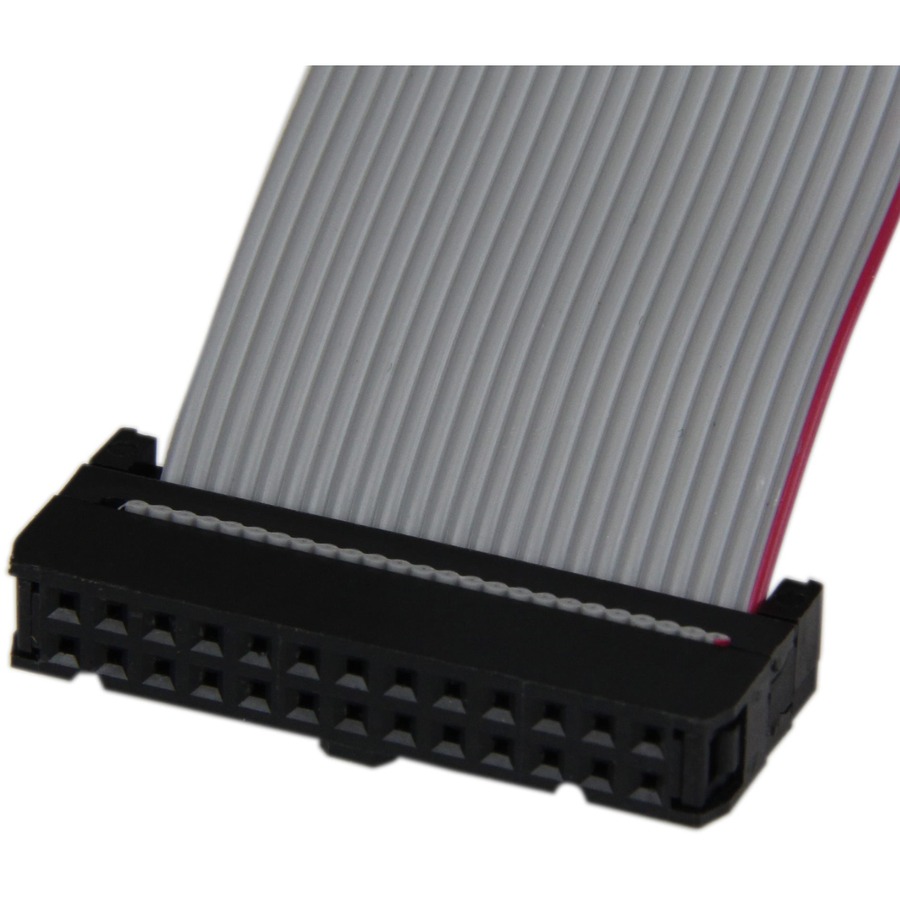

- 1x IDC-26 (female) connector
Specifications
| Cable Length | 1.33 ft |
|---|---|
| Product Type | Data Transfer Cable |
| Device Supported | Motherboard |
| Manufacturer Part Number | PLATE25F16LP |
| Packaged Quantity | 1 Each |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 0.10 lb |
| Manufacturer | StarTech.com |
| Product Name | DB-25/IDC Data Transfer Cable |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, REACH, WEEE |
| Cable Type | DB-25/IDC |
| Connector Type on First End | DB-25 Parallel - Female |
| Connector Type on Second End | IDC IDE - Female |
| American Wire Gauge | 28 AWG |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Gray |
| Color Family | Gray |
| Connector on First End Details | 1 x 25-pin DB-25 Parallel - Female |
| Connector on Second End Details | 1 x 26-pin IDC IDE - Female |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
