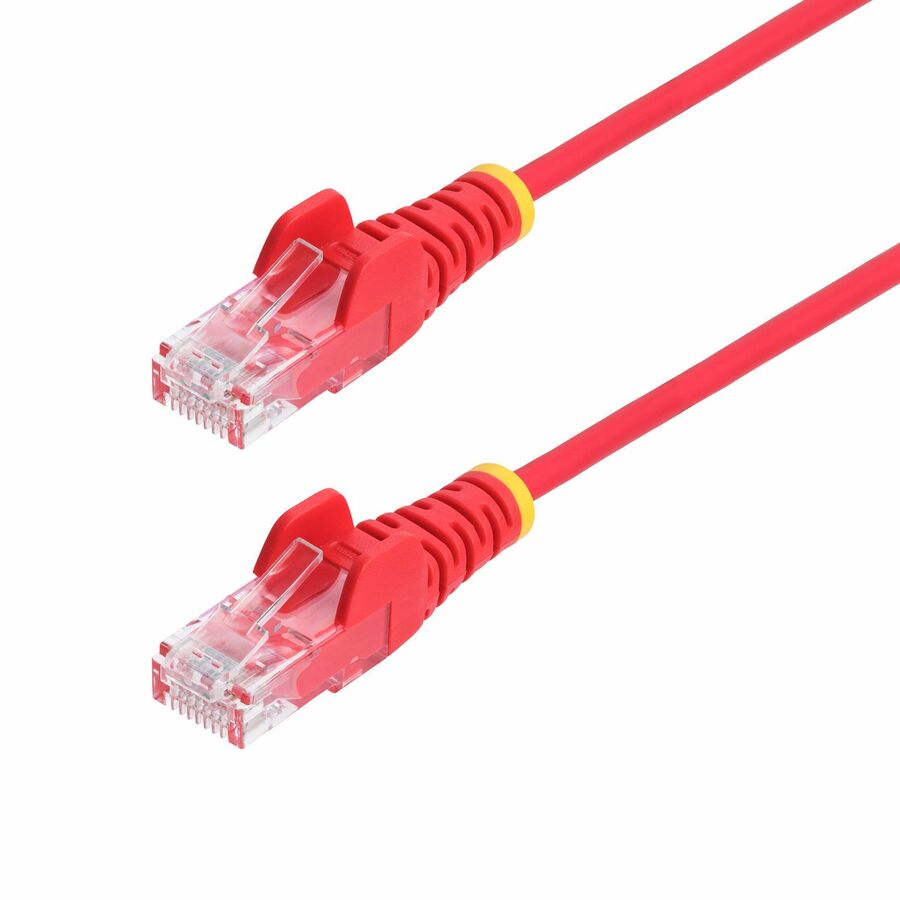

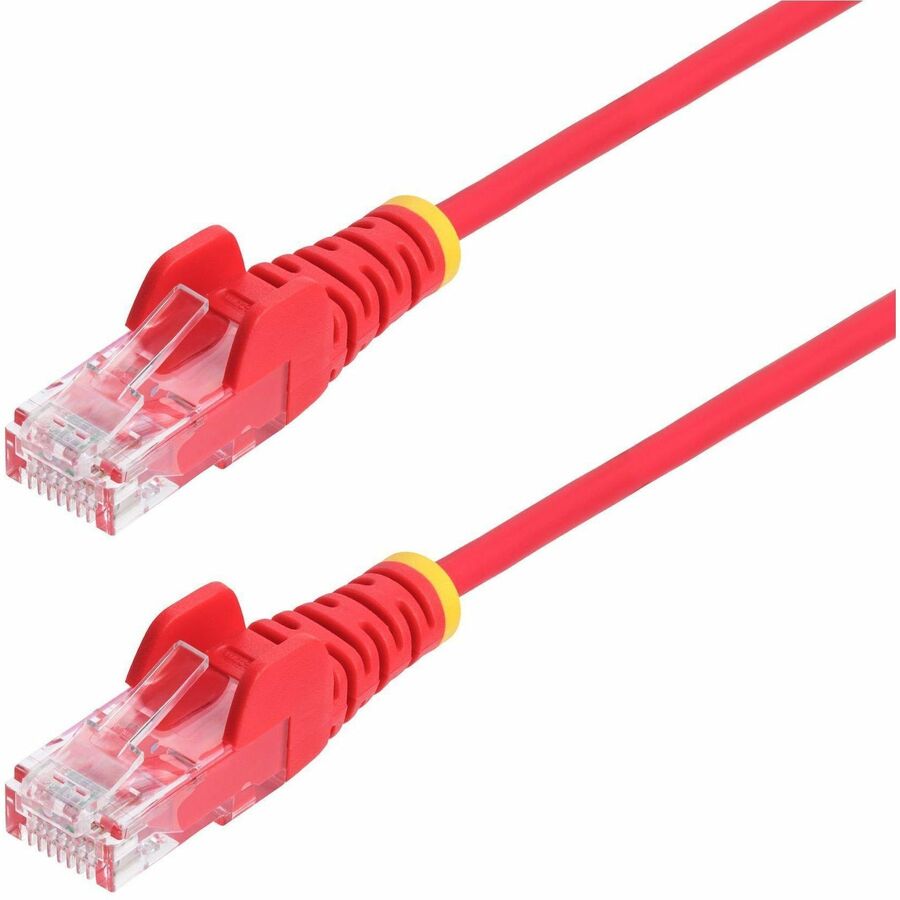

StarTech 5ft Red Slim CAT6 Ethernet Cable, Slim Snagless RJ45, UTP, LSZH, 28AWG Bare Copper, Slim Network Patch Cord
Slim UTP Cat6 Cable supports 10Gbps and 100W PoE; Ideal for crowded installations; 36% slimmer for improved airflow; Low Near-End Crosstalk (NEXT) and Return Loss (RL); Gold-Plated Contacts; 28AWG Bare Copper Wire; Flexible LSZH jacket
- SKU
- N6PAT5RDS
- Category
- Connector Cables
MSRP$9.21
$4.61
Save 50%In stock: 844
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- N6PAT5RDS
- Category
- Connector Cables
Overview
This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations.
Improved Airflow
The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.

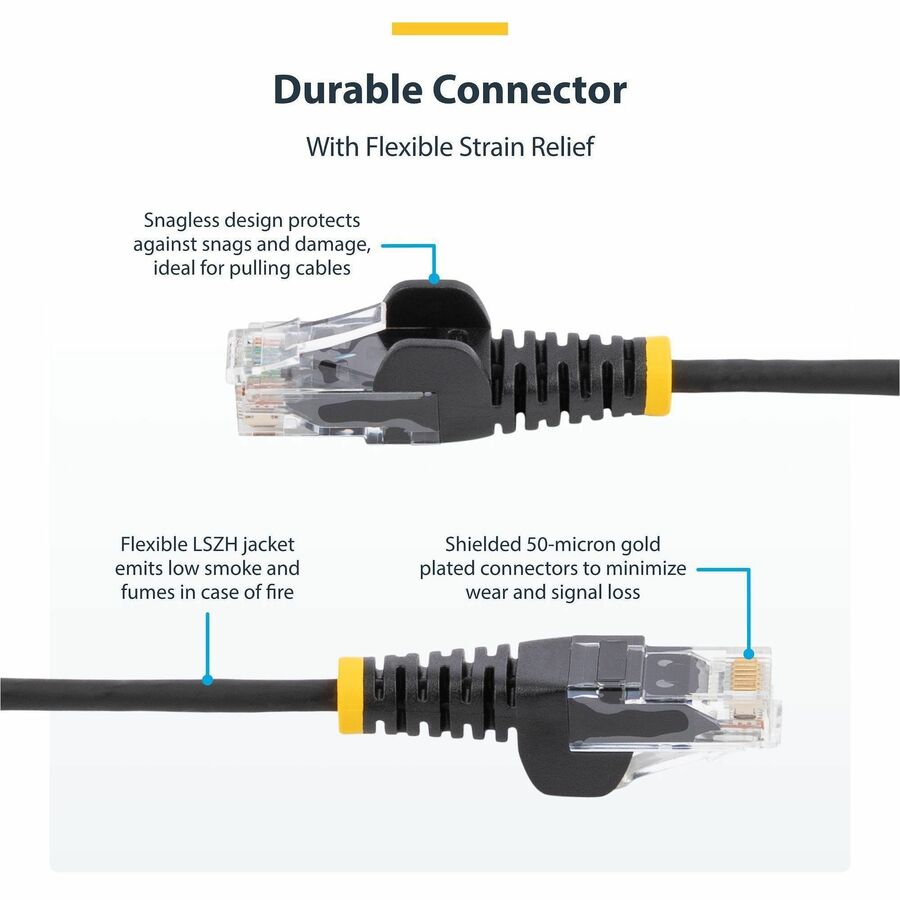

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.
Durable Construction

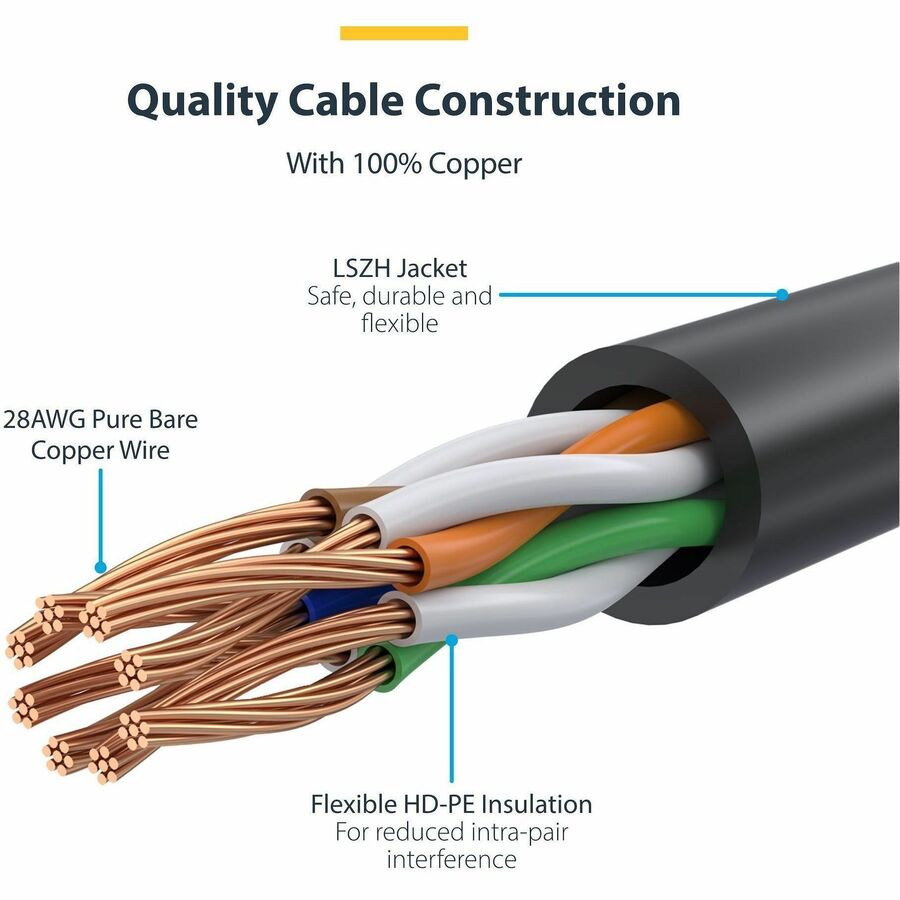

The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered. Tested for Reliability
Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer? to meet ANSI/TIA-568.2-D Category 6 specifications, ensuring consistent signal integrity with minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 100W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications. More from the Manufacturer
Highlights
- SLIM CAT6 CABLE: Streamline cabling in crowded setups using Slim Cat6 Cables; 36% slimmer diameter enables greater flexibility than standard Cat6 cabling; Supports Power over Ethernet (PoE++) up to 100W; Low Near-End Crosstalk (NEXT) and Return Loss (RL)
- QUALITY CONSTRUCTION: Snagless 50-micron gold-plated contacts enable a precise fit to minimize signal loss; 28AWG Pure Bare Copper wire delivers consistent power and throughput; Low-Smoke Zero Halogen (LSZH) jacket is flexible for routing in tight spaces
- SAFETY AND RELIABILITY: Compliant with ANSI/TIA-568-C.2 standards for guaranteed Cat6 performance; LSZH jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted; PoE++ specifications complies with IEEE 802.3bt Type 4
- APPLICATIONS: Ideal for high-density network closets and cable management panels; Slim Cat6 cables enhance accessibility when troubleshooting and promote improved airflow between devices; Connect reliably to PoE devices such as IP or boardroom cameras
- SPECS: 5-foot; Red; Snagless RJ45; 10 Gbps; 250MHz; 100W PoE++; UTP; Gold-Plated Contacts; LSZH Jacket; 28AWG Pure Bare Copper Wire; 3.6mm (0.14in) Cable O.D.; Individually Tested; Supports Cat 6 and Cat 5/5e
Specifications
| Cable Length | 5 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Network Device, Rack, Patch Panel, PoE Switch, IP Camera |
| Jacket Type | LSZH |
| Manufacturer Part Number | N6PAT5RDS |
| Packaged Quantity | 1 |
| Shielding | No |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 0.08 lb |
| Features | Flame Retardant, Flexible, Near End Cross Talk (NEXT), PoE, PoE++, Snag Free, Strain Relief, Stranded, Wear Resistant |
| Manufacturer | StarTech.com |
| Product Name | Slim Cat6 Ethernet Cable - LSZH |
| Product Line | Slim |
| Number of Conductors | 8 |
| Brand Name | StarTech.com |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network |
| Connector Type on Second End | RJ-45 Network |
| American Wire Gauge | 28 AWG |
| Contact Plating | Gold |
| Product Color | Red |
| Color Family | Red |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Product Material | Bare Copper |
| Number of Pairs | 4 |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Cable Shielding Type | Unshielded Twisted Pair (UTP) |
