StarTech 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, 40G, Low Insertion Loss, Fiber Jumper Cord
3m (9.8ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable; OFNP Plenum; 8F Type-A; 50/125um Core; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 3.0mm; Temp Range: -10 to 70°C (14 to 158°F)
- SKU
- MPO8LCPL3M
- Category
- Connector Cables
MSRP$72.99
$57.60
Save 21%In stock: 135
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MPO8LCPL3M
- Category
- Connector Cables
Overview

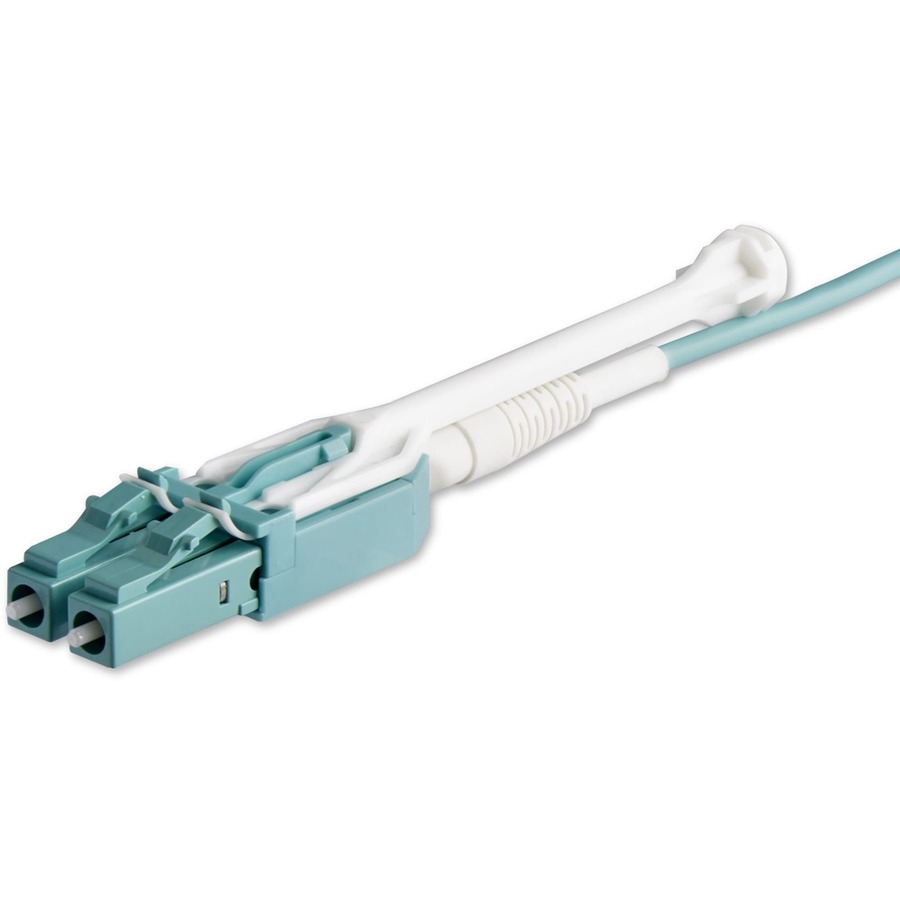

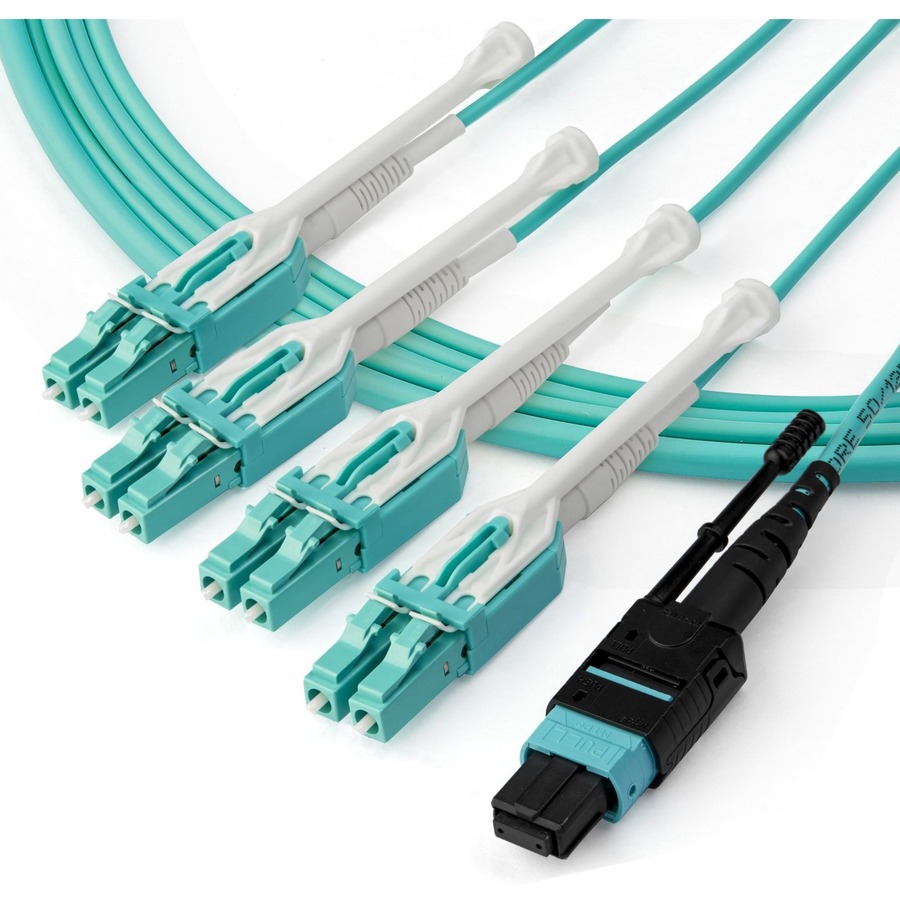

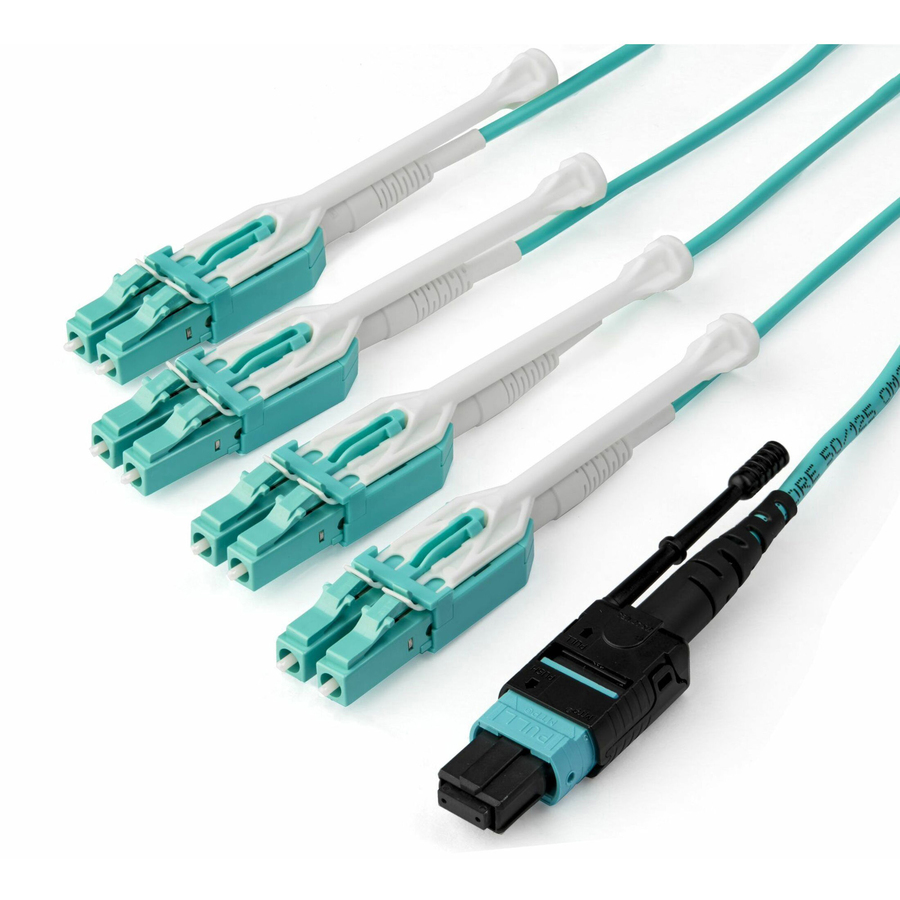

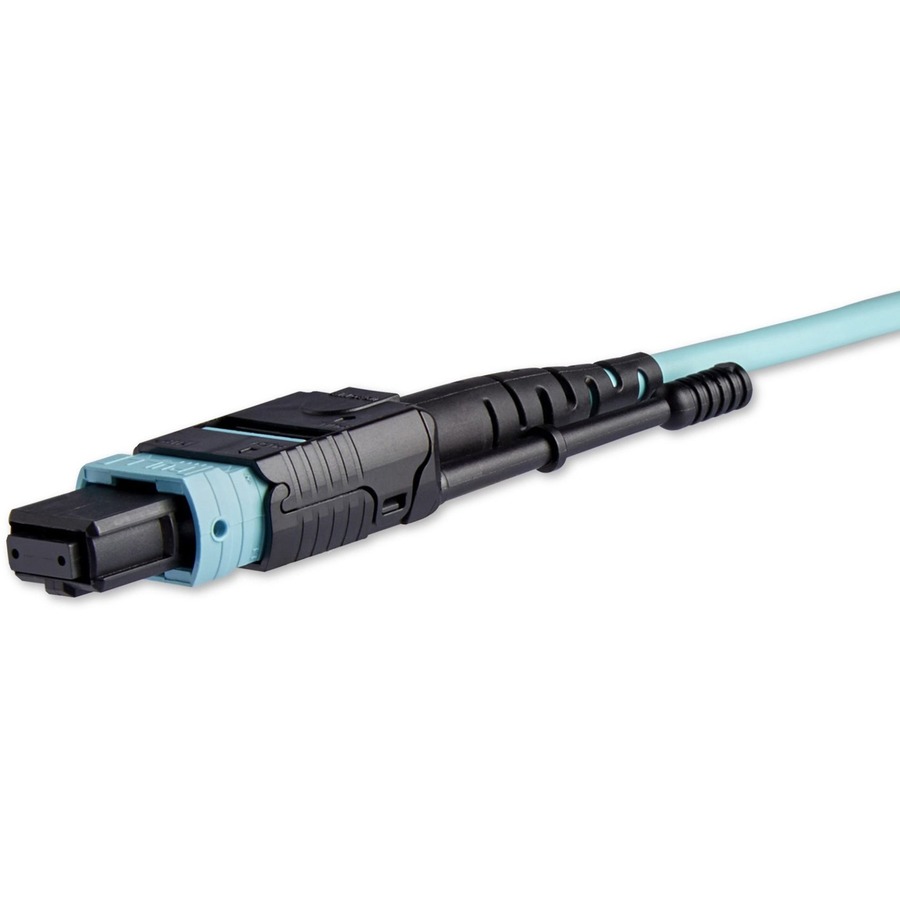

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers. The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL3M from StarTech.com is backed by a lifetime warranty.
Highlights
- OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
- QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125"m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
- RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
- COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
- SPECS: 3m (9.8ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: 0.5dB (MTP), 0.2dB (LC)
Specifications
| Cable Length | 9.84 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Network Device, Patch Panel, Hub, Switch, Media Converter, Router |
| Jacket Type | Plenum, CMP, OFNP |
| Manufacturer Part Number | MPO8LCPL3M |
| Packaged Quantity | 1 Each |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 0.12 lb |
| Features | Uniboot Connector, Push-Pull Tab |
| Manufacturer | StarTech.com |
| Product Name | Fiber Optic Patch Duplex Network Cable |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Cable Characteristic | Patch Cable |
| Environmentally Friendly | Yes |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Product Color | Aqua |
| Color Family | Green |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 8 x LC Network - Male |
| Connector Gender on First End | Female |
| Connector Gender on Second End | Male |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
