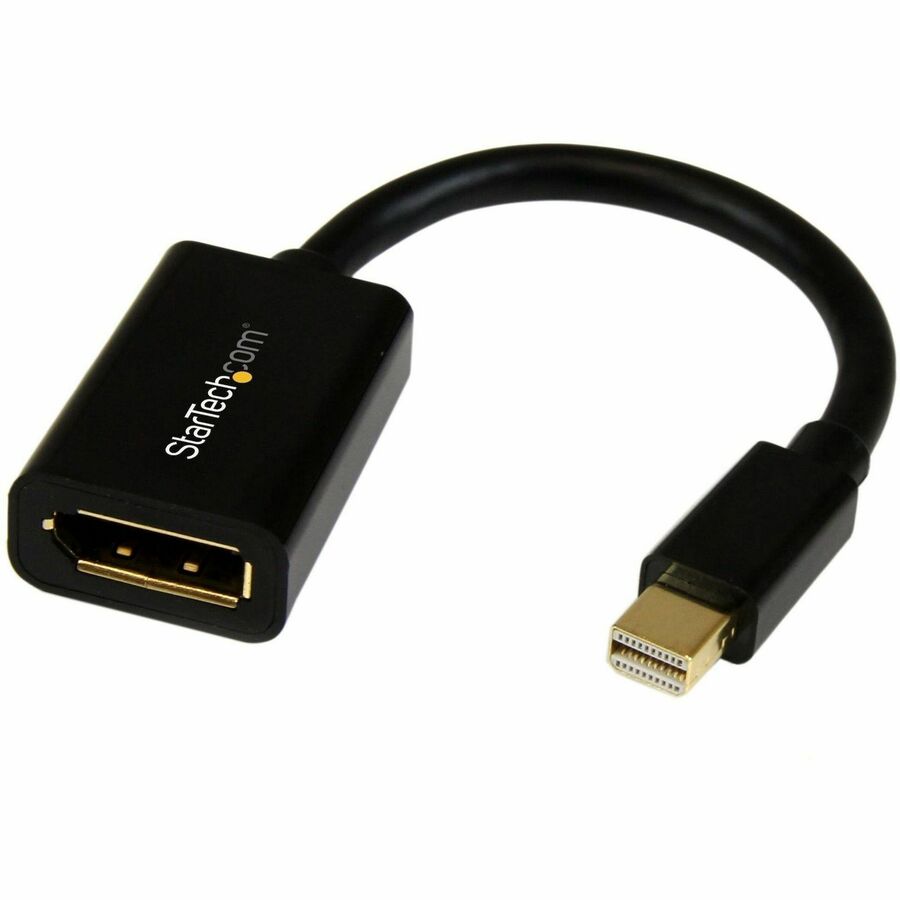

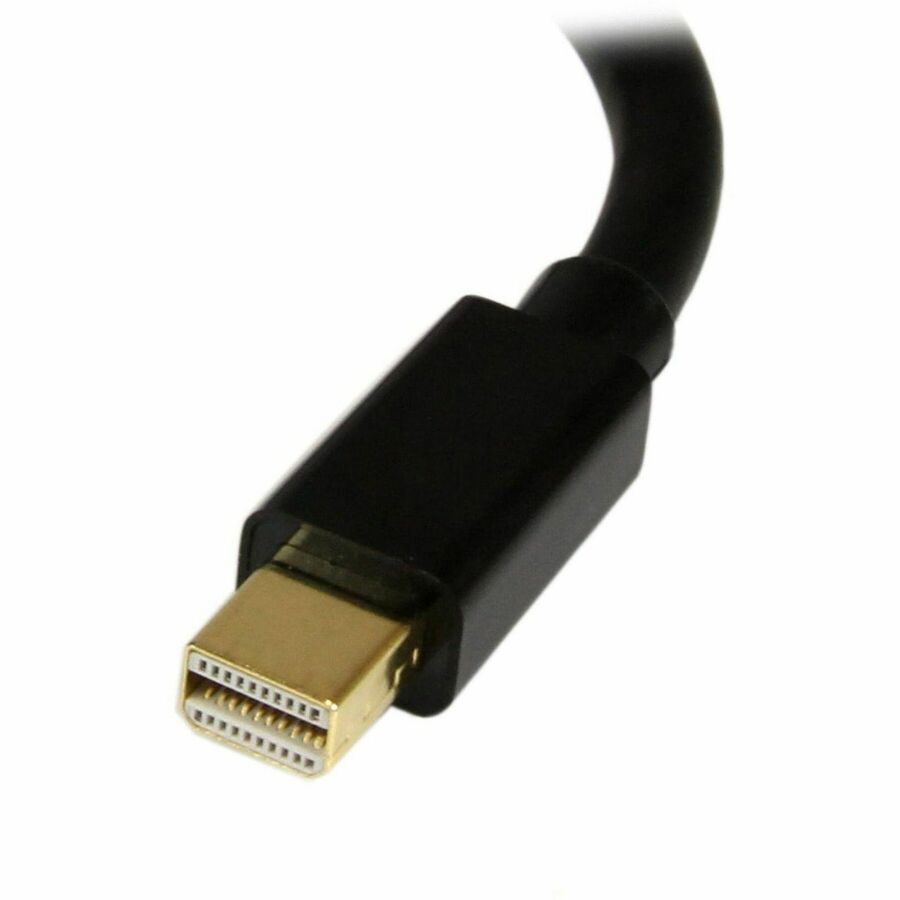

StarTech Mini DisplayPort to DisplayPort Adapter, 4K x 2K Video, Ultra HD Mini DP to DP Converter, mDP to DP 1.2 Adapter, Male/Female
Mini DisplayPort to DisplayPort adapter converter; 4K x 2K video (3840x2400p 60Hz); mDP 1.2/21.6 Gbps/HBR2/8Ch Audio; 6in cable - Durable PVC strain relief; Connect laptop w/Mini DP or Thunderbolt 2/workstations to a UHD/4K monitor/display/projector
- SKU
- MDP2DPMF6IN
- Category
- Connector Cables
MSRP$14.34
$9.37
Save 35%In stock: 8,116
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MDP2DPMF6IN
- Category
- Connector Cables
Overview
The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device. Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt? ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays. More from the Manufacturer More from the Manufacturer
Highlights
- MINI DISPLAYPORT to DISPLAYPORT 1.2 ADAPTER: mDP to DP adapter supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz); 6" (15 cm) attached cable
- RELIABLE DESIGN: Mini DisplayPort to DisplayPort adapter has durable ABS connectors w/ flexible PVC strain relief & jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides added EMI shielding & noise imunity
- QUALITY CONSTRUCTION: 32AWG wire w/ gold-plated connectors for improved signal integrity/reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video/audio; Mini DP to DP converter backwards compatible w/DP1.1
- APPLICATIONS: Video adapter is ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations w/ AMD FirePro? W9100/8100, NVIDIA NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 1-6
- SPECS: 6 inch (15 cm) | Black | DisplayPort v1.2 | Mini-DP Male to Standard DP Female adapter | 32 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: HBR 2, MST, GTC | Lifetime Warranty
Specifications
| Application/Usage | Home, Office |
|---|---|
| Cable Length | 6" |
| Product Type | A/V Cable |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | Monitor, Notebook, Audio/Video Device, Desktop Computer, Display |
| Manufacturer Part Number | MDP2DPMF6IN |
| Packaged Quantity | 1 Each |
| Shielding | Yes |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 0.04 lb |
| Features | Multi-Stream Transport (MST) Support, Flexible, Strain Relief, Fray Resistant, Damage Resistant, EMI Protection, Plug & Play |
| Manufacturer | StarTech.com |
| Product Name | 6in Mini DisplayPort to DisplayPort Video Cable Adapter - M/F |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Cable Type | DisplayPort/Mini DisplayPort |
| Connector Type on First End | Mini DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Plating | Nickel, Gold |
| American Wire Gauge | 32 AWG |
| Supported Resolution | 3840 x 2400 |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
