StarTech 3ft 1m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Slim Cord
StarTech.com

StarTech 3ft 1m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Slim Cord

3.3ft VESA Certified mini DP to DisplayPort 1.4 cable | 8K 60Hz (7680x4320) or 4K 120Hz w/DSC 1.2 | HDR HBR3 HDCP 2.2 | 32ch audio - Strain relief absorbs bend stress | Slim 34 AWG cable - Works w/ mDP 1.2/Thunderbolt 2 hosts - Nvidia/AMD video cards

SKU
DP14MDPMM1MB
Category
Connector Cables

MSRP$27.66

$22.04

Save 20%

In stock: 121

Get a quote

Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DP14MDPMM1MB
Category
Connector Cables

Overview

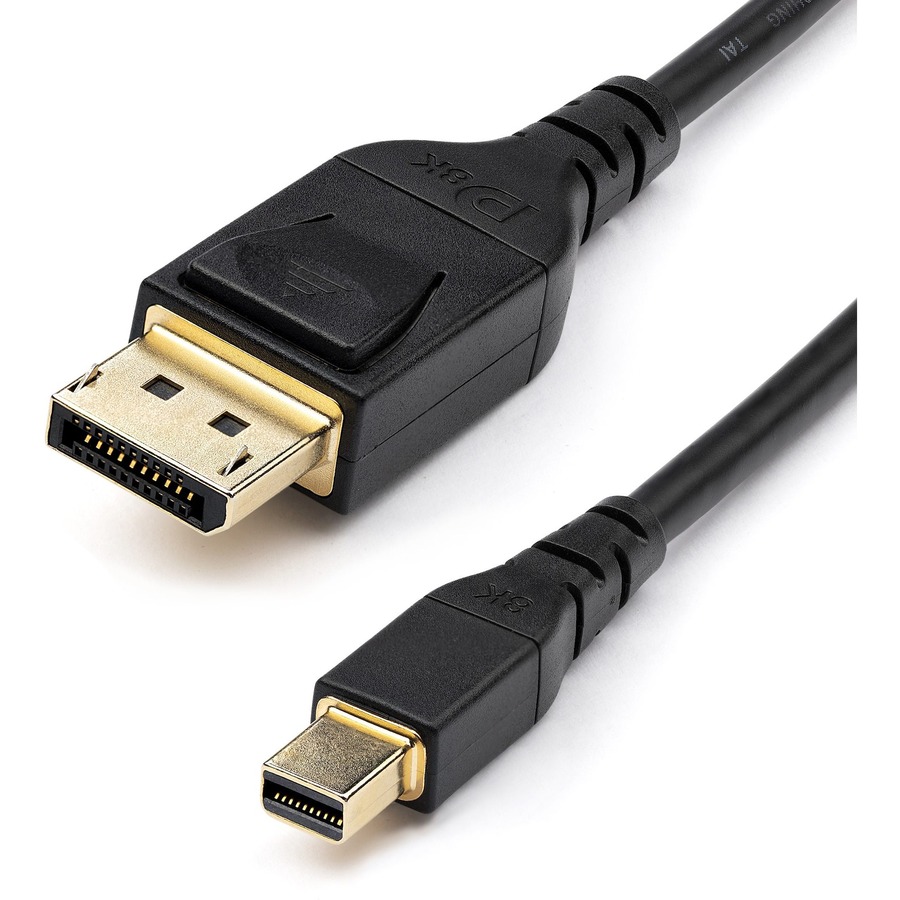

This 1 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection. Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports: Multi-Stream Transport (MST) for daisy chaining multiple monitors. Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio. HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards. Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate. Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays. Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as: Radeon? VII, SSG, WX x100, Pro and FirePro? series. Nvidia Quadro P series. Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications. Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection. The DP14MDPMM1MB is backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer

Highlights

  • mDP to DisplayPort 1.4 CABLE: 3.3ft (1m) VESA Certified with 32.4Gbps bandwidth; 8K 60Hz (7680x4320) w/ DSC, 4K 120Hz (3840x2160), HDR meta transport, HBR3, 32 ch audio, MST monitor daisy-chain, FEC error control; Works with DisplayHDR certified Monitors
  • RELIABLE: Built with internal wire manager to ensure signal integrity; Al-Mylar foil with Braid and metal connector sub-structure provide EMI shielding; Latching connector on DP end to prevent accidental disconnection
  • DURABLE: PVC jacket of this slim (outer diameter: 4.5mm) video cable (34 AWG) absorbs stress of frequent bends with strain relief protecting the core of the DisplayPort cord; Gold plated connectors prevent oxidization and tarnish
  • BROAD COMPATIBILITY: Works with Nvidia Quadro: P620, P600, P400, and AMD Radeon Pro: VII, SSG, WX9100/4100/3200/3100/2100, W5700/5500 & FirePro: W9100/900/600/4100; Works with mDP 1.2 and Thunderbolt 2 host device (1080p/4K)
  • SPECS: 3.3ft (1m) | Black | DisplayPort 1.4 | Mini DP Male to DP Male | 34 AWG | Jacket: PVC | EMI Shielding |Supported Protocols: HBR 3, 4:4:4 Chroma Subsampling, DSC 1.2, HDCP 2.2, MST | Lifetime Warranty

Specifications

Cable Length3.28 ft
Product TypeVideo Cable
CompatibilityNvidia Quadro Graphic Cards: P620 P600 P400 AMD Graphic Cards: Radeon Pro VII Radeon Pro SSG Radeon Pro WX9100 Radeon Pro WX4100 Radeon Pro WX3200 Radeon Pro WX3100 Radeon Pro WX2100 Radeon Pro W5700 Radeon Pro W5500 FirePro W9100 FirePro 900 FirePro 600 FirePro 4100
Data Transfer Rate32.4 Gbit/s
Device SupportedAudio/Video Device, Notebook, Workstation, TV, Monitor, Projector, PC, MAC, Computer, Graphics Card
Manufacturer Part NumberDP14MDPMM1MB
Packaged Quantity1 Each
ShieldingYes
Limited WarrantyLifetime
FeaturesDisplay Stream Compression (DSC) 1.2, HDCP 2.2, Strain Relief, Bend Resistant, Stress Resistant, Latching Connector, DPCP, Multi-Stream Transport (MST) Support, Forward Error Correction (FEC) Support, EMI Protection, Tarnish Resistant
ManufacturerStarTech.com
Product NameMini Displayport to Displayport Cable
Brand NameStarTech.com
Country of OriginChina
Environmentally FriendlyYes
Environmental CertificationEU RoHS
Cable TypeDisplayPort/Mini DisplayPort
Connector Type on First EndDisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second EndMini DisplayPort 1.2 Digital Audio/Video - Male
Connector PlatingGold
American Wire Gauge34 AWG
Supported Resolution7680 x 4320
Jacket MaterialPolyvinyl Chloride (PVC)
Product ColorBlack
Color FamilyBlack
Connector on First End Details1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on First EndMale
Connector Gender on Second EndMale
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
