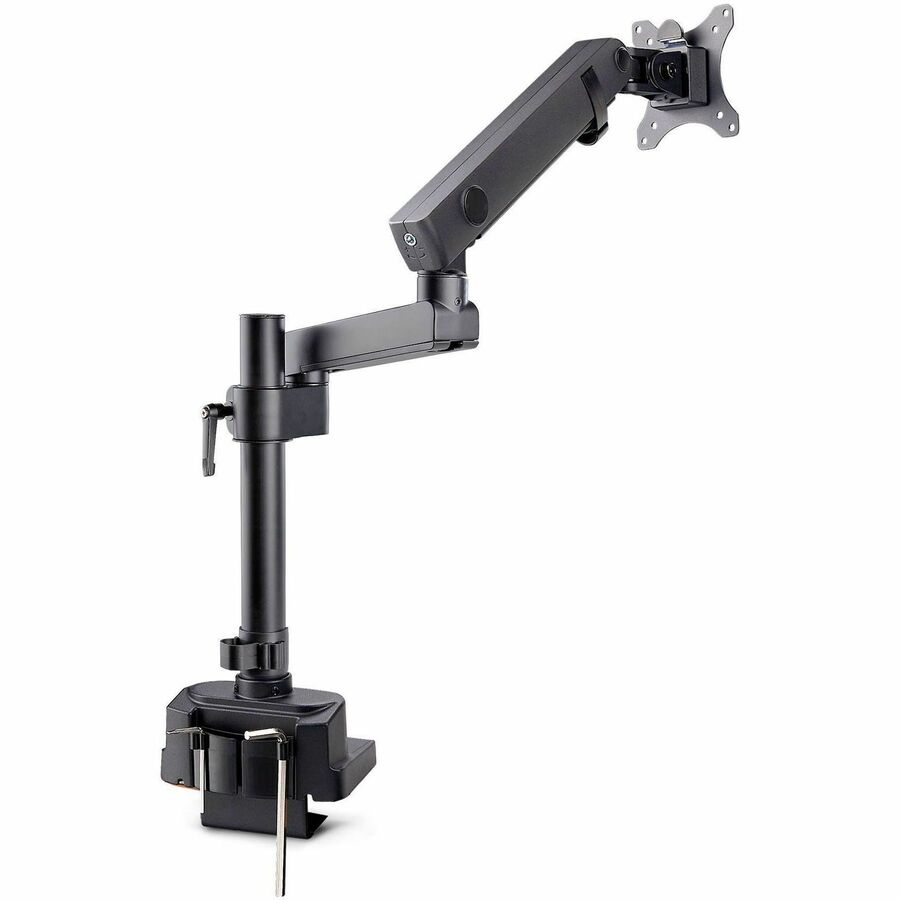

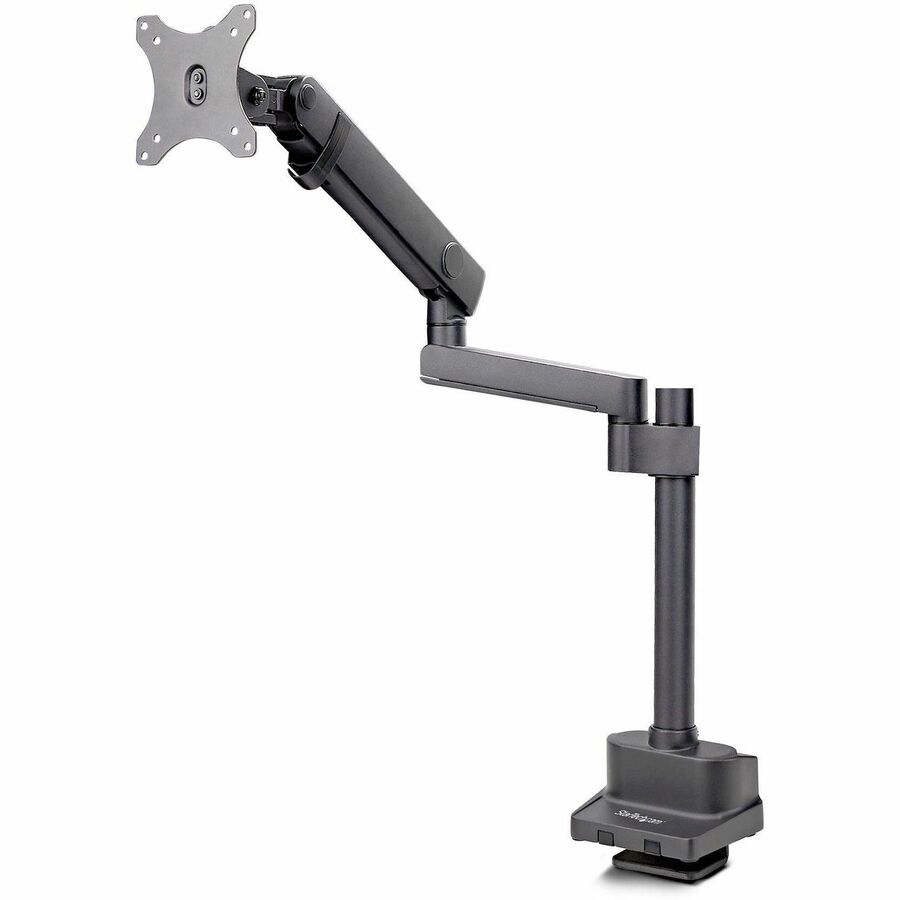

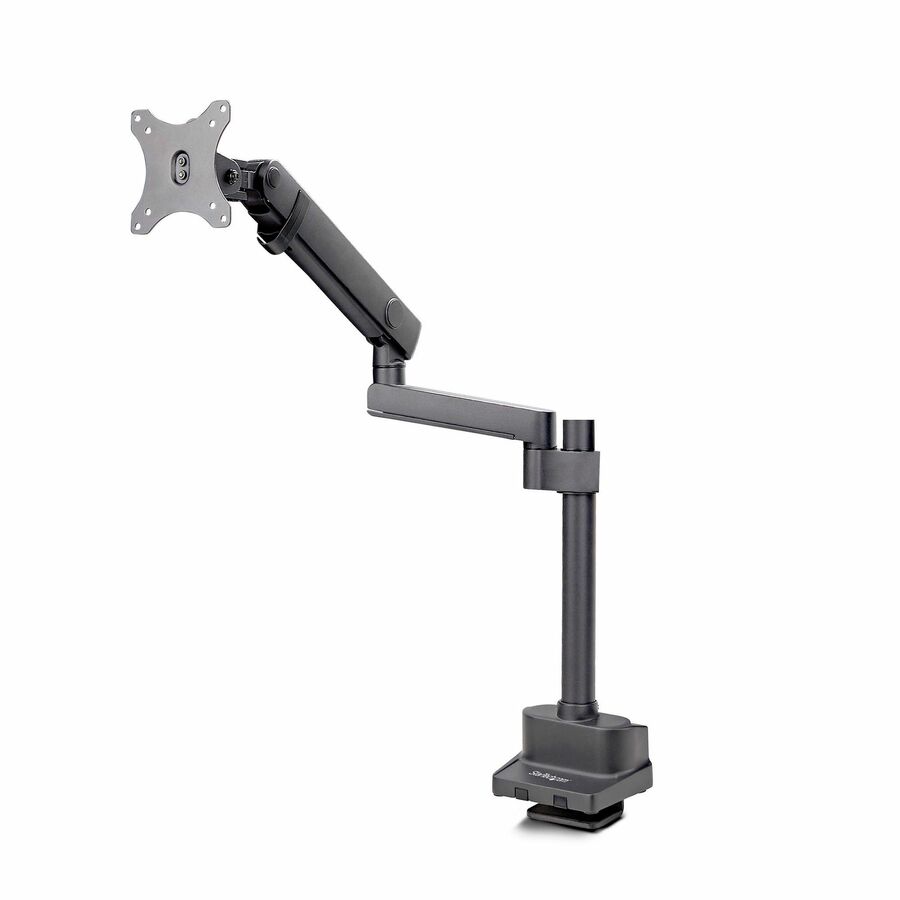

StarTech Desk Mount Monitor Arm, Up to 40inch Screen/17.6lb (8kg), Mechanical Spring-Assisted Arm, C-Clamp/Grommet, VESA 75x75/100x100
Monitor desk mount for up to a 40" display/17.6lb - C-clamp/grommet mounting - Simplified top-screw desk clamp installation - Mechanical spring-assisted steel arm w/multiple toolless adjustments - Quick-release VESA plate enables portrait/landscape
- SKU
- ARMPIVOT2
- Category
- Mounting Kits
$128.00
In stock: 1,070
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ARMPIVOT2
- Category
- Mounting Kits
Overview
This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.

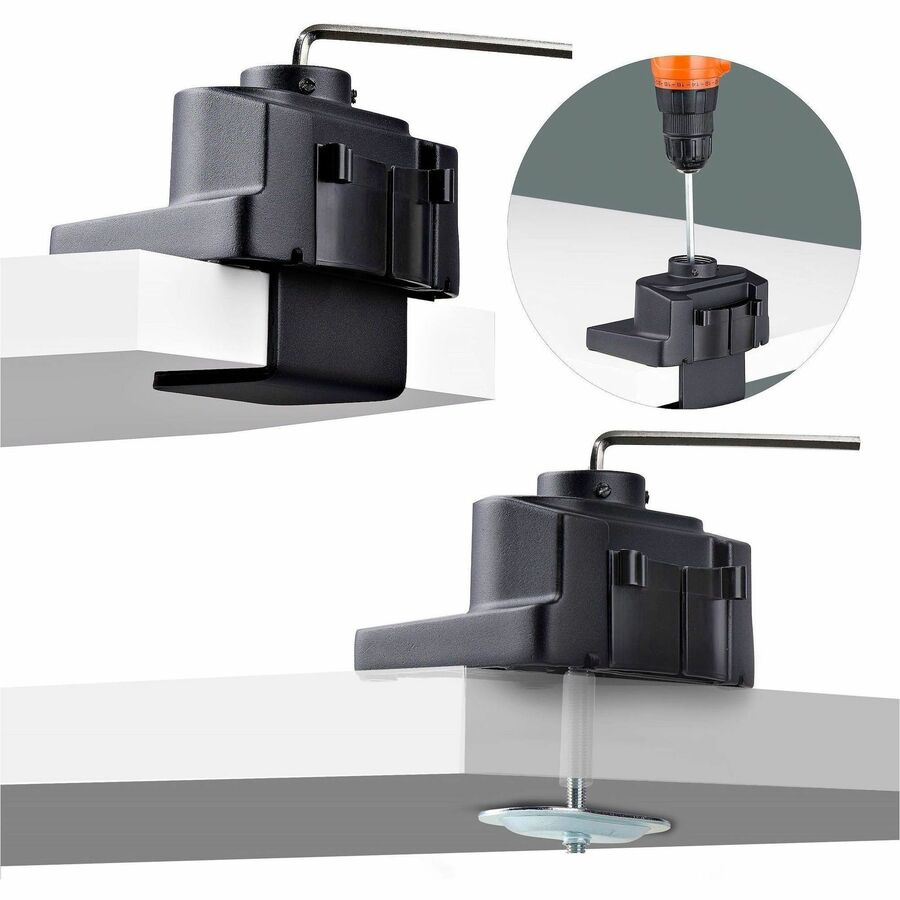

Top-Down Installation
The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.
Height Adjustment with One Smooth Motion
Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.

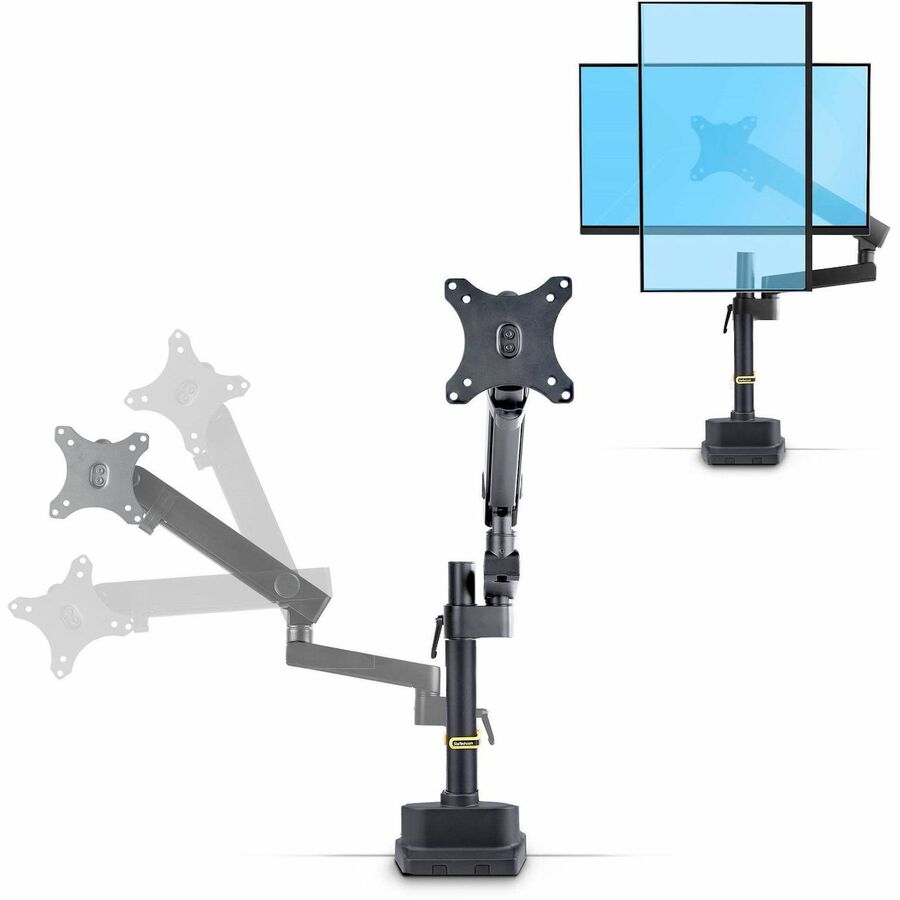

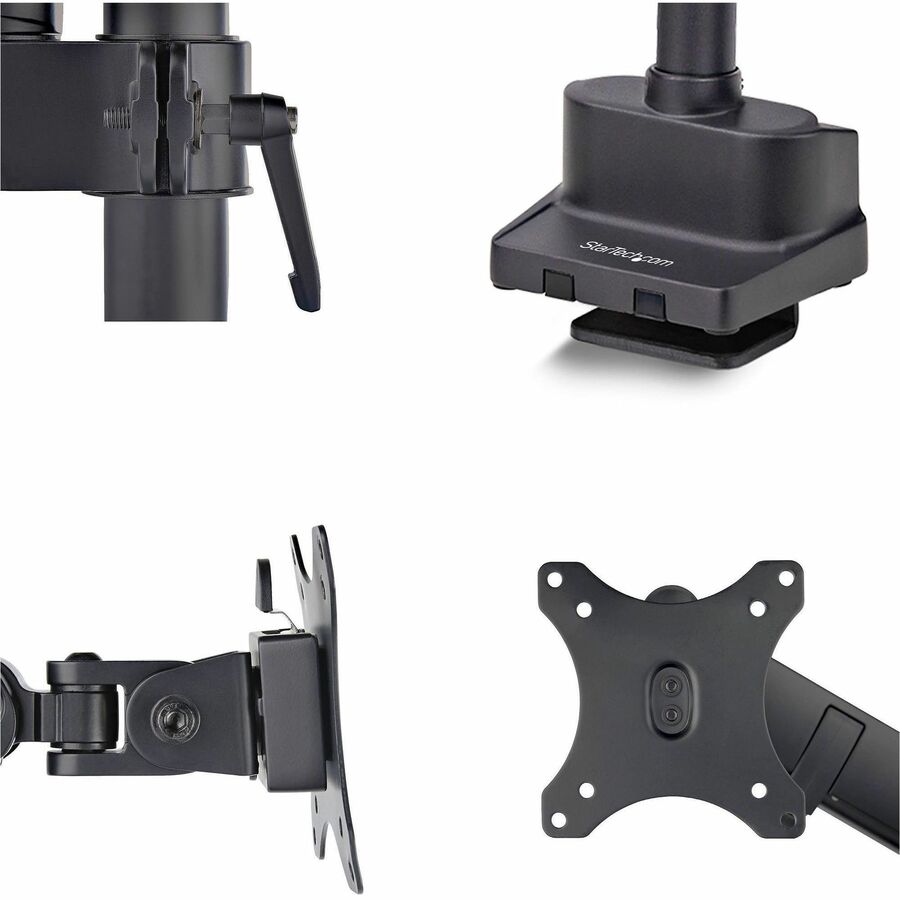

Range of Motion
Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Cable Management
Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.
Highlights
- DESK MOUNT MONITOR ARM: Single monitor mount supports up to a 40-inch display and 17.6lb (8kg); VESA plate supports 75x75/100x100mm patterns; Articulating and height adjustable steel arm; C-clamp/grommet mounting
- EASY INSTALLATION: Unique top-screw desk clamp for hassle-free installation without the need to go under the desk; Interchangeable C-clamp/grommet mount for desks up to 2" (5cm) thick; Includes tools for arm tension adjustment; Quick-release VESA plate
- MECHANICAL SPRING ONE-TOUCH ADJUSTMENT: Full-motion arm features a high-quality mechanical spring for smooth and effortless one-touch motion; Mechanical springs are more robust and resistant to wear over time compared to gas springs; Backed for 5 years
- RANGE OF MOTION: Toolless adjustments of +/-180° swivel, +/-90° tilt, and +/-90° screen rotation for portrait/landscape orientations; Max height 24.4" (62cm); Max arm extension 23.1" (59.4cm) from the pole; Adjustable height along the 11.1" (28.3cm) pole
- ORGANIZED WORKSPACE: Cable clips and a cable management channel under the arm keeps cables out of sight and help maintain a tidy setup; Keep the hex keys within arm's reach using the tool storage clip located at the back of the base
Specifications
| Application/Usage | Desk, Workspace |
|---|---|
| Package Contents | 1 x Base Assembly 1 x Spring Arm 1 x Swivel Arm 1 x Pole 1 x VESA Plate 1 x Arm Shoulder 1 x 3mm Hex Key 1 x 6mm Hex Key 1 x Tool Holder 1 x Cable Management Clip 1 x Grommet Plate 1 x Grommet Screw 4 x M4x12mm Screws 4 x M5x12mm Screws 4 x Washers 1 x Product Documentation |
| Product Type | Mounting Arm |
| Device Supported | Monitor, Display Screen |
| Manufacturer Part Number | ARMPIVOT2 |
| Packaged Quantity | 1 |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 7.90 lb |
| Durability | Wear Resistant |
| Features | Spring Arm, Grommet, Tool-less Adjustment, Ergonomic, Robust, Durable, Adjustable Arm, Flexible, Articulating Arm, Quick Release Mechanism, Pan, Swivel, Tilt, Rotate, Cable Management, Cable Clip, Easy to Install, Adjustable Tension, Full Motion, Pivot, Extendable Arm |
| Form Factor | Desk, Desktop |
| Length | 27.70" |
| Manufacturer | StarTech.com |
| Product Name | Mounting Arm |
| Maximum Load Capacity | 17.60 lb |
| Brand Name | StarTech.com |
| Orientation | Landscape/Portrait |
| Height | 23.90" |
| Width | 4.50" |
| Minimum Screen Size Supported | 17" |
| Maximum Screen Size Supported | 40" |
| VESA Mount Compatible | Yes |
| Number of Displays Supported | 1 |
| Mounting Pattern | 75 x 75, 100 x 100 |
| Product Color | Black |
| Color Family | Black |
| Height Adjustment Type | Mechanical Spring |
| Minimum Extended Height | 7.10" |
| Minimum Swivel Angle | -180° |
| Maximum Swivel Angle | 180° |
| Product Material | Steel, Plastic |
| Minimum Tilt Angle | -90° |
| Maximum Tilt Angle | 90° |
| Height Adjustable | Yes |
| Maximum Rotate Angle | 360° |
| Maximum Pan Angle | 180° |
| Mount Function | Desktop, Articulating, Pan, Swivel, Tilt, Rotate, Cable Management, Pivot, Extendable |
