StarTech Crossbar Triple Monitor Desk Mount For Up To 3x 27in Screens, VESA 75x75/100x100, Tool-Less Arm Adjustments, C-Clamp/Grommet
Crossbar triple monitor desk mount for 27in displays, VESA 75x75/100x100; Spring-assisted arm w/multiple toolless adjustments +/-180deg swivel; +/-90deg tilt; VESA plate +/-90deg for landscape/portrait; C-clamp/grommet; Max desk thickness 3.1in
- SKU
- 3M1A3SG-MONITOR-ARM
- Category
- Mounting Kits
$283.60
In stock: 409
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 3M1A3SG-MONITOR-ARM
- Category
- Mounting Kits
Overview

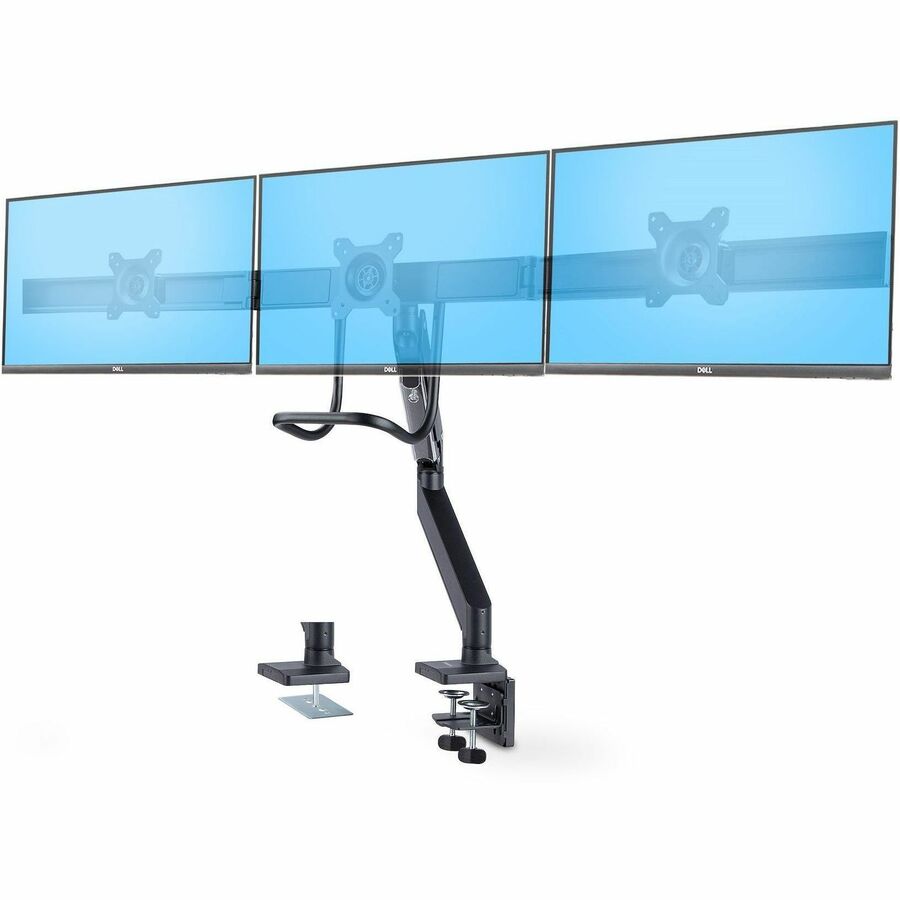

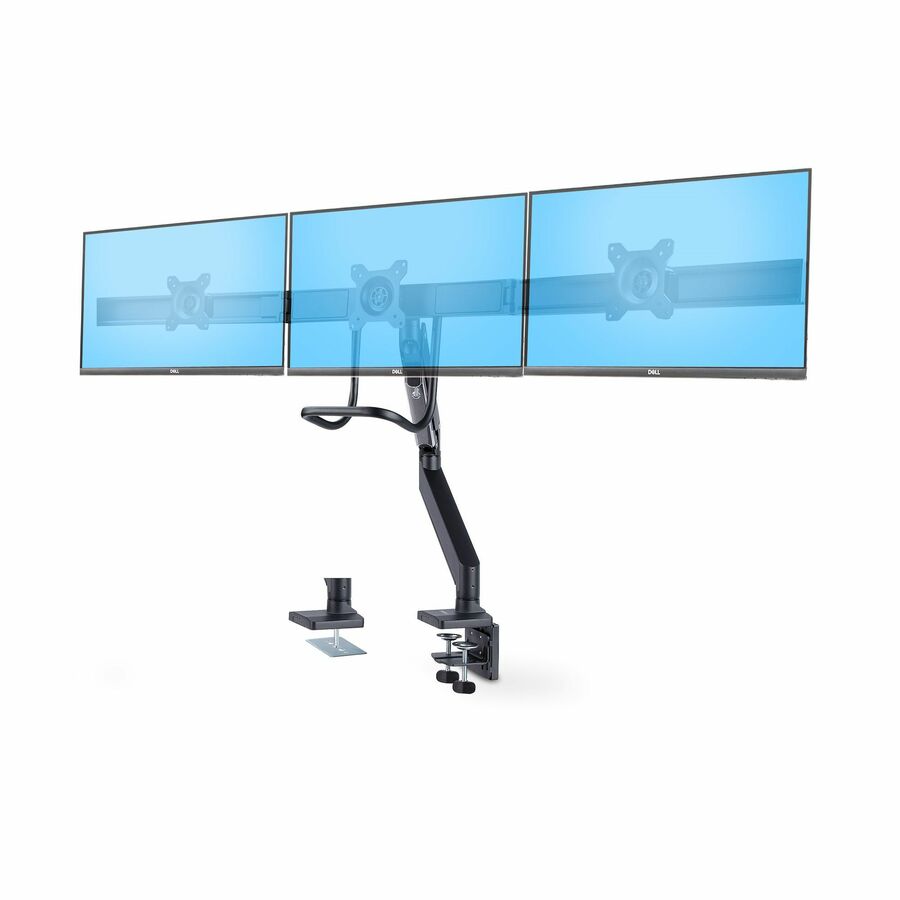

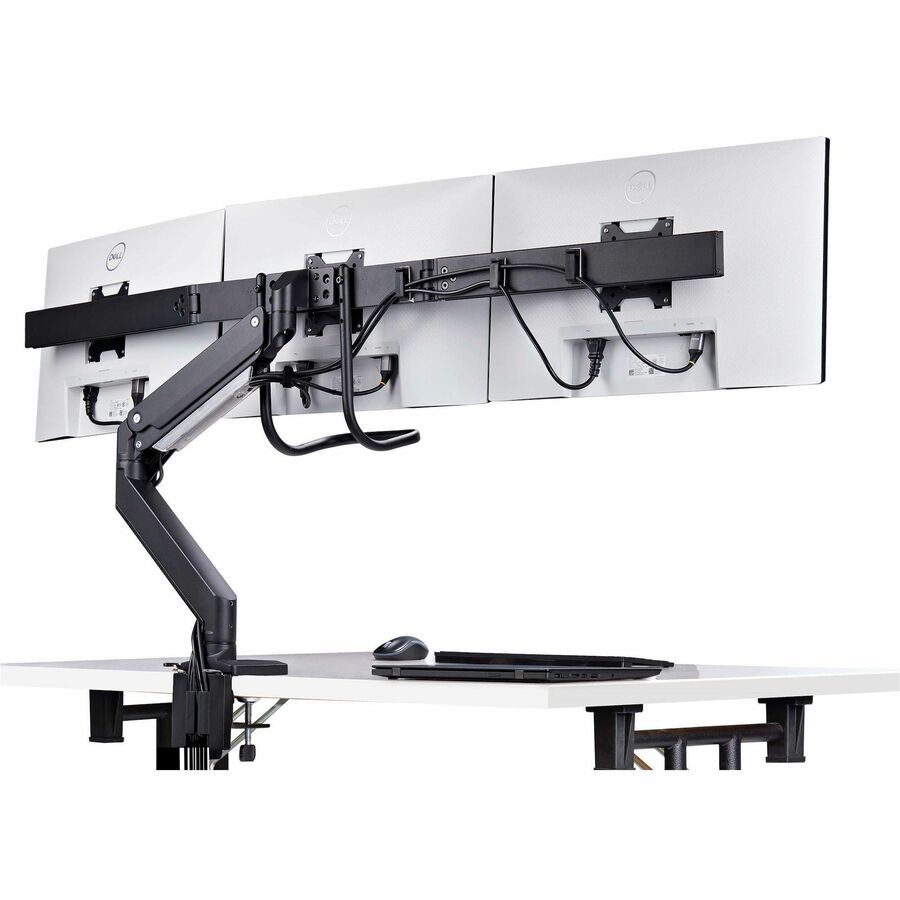

This crossbar monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. A built-in handle enables moving all monitors simultaneously, while the spring-assisted arm allows multiple adjustments to suit different ergonomic needs.

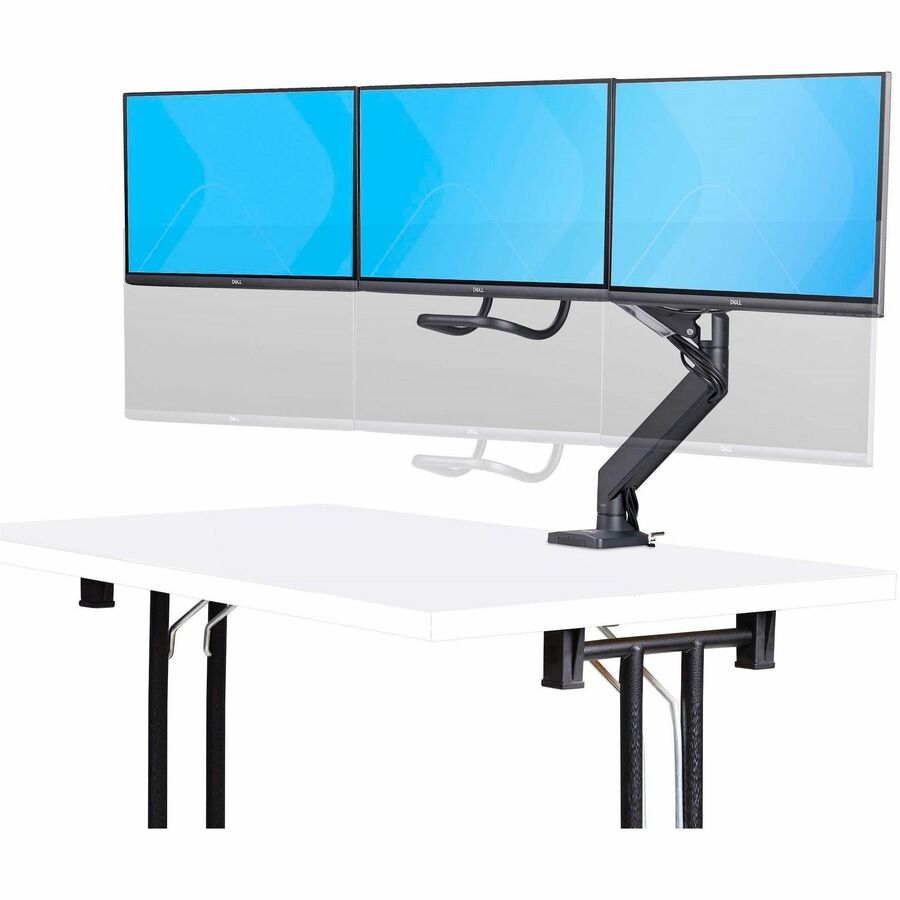

Height Adjustment with One Smooth Motion
The spring arm enables toolless height adjustment of up to 13in (330mm) with effortless one-touch motion. The max arm extension is 20.7in (526mm), and the weight capacity is 13.2lb (6kg) per monitor.
Visual Experience
This triple monitor mount features micro height adjustment screws on the VESA plate that enable perfect alignment of all three monitors. This is ideal for bezel-less or slim bezel displays, helping to create a more extensive and seamless viewing area. The outer displays' VESA mounts slide along the crossbar, allowing further adjustments.
Range of Motion
The monitor crossbar allows toolless adjustments of +/-15° horizontal swivel of the outer displays. The monitors' VESA mounts enable +/-10° horizontal swivel, +5/-15° tilt, and 360° screen rotation for portrait or landscape orientations.

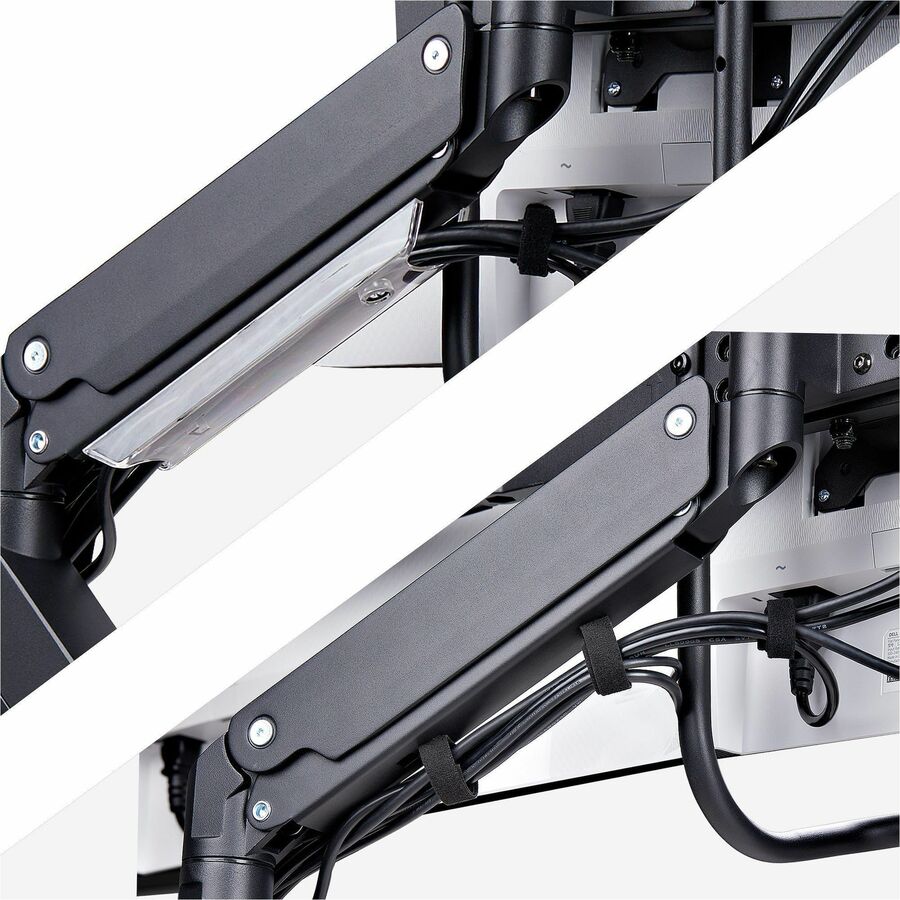

Cable Management
To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip at the base maintains an organized workspace.
Highlights
- DESK MOUNT MONITOR ARM: Crossbar triple monitor VESA mount (75x75/100x100mm) supports up to 13.2lb (6kg) 27-inch displays; Articulating and height adjustable steel arm; C-clamp/grommet mounting
- SYNCHRONIZED MOTION: Micro height-adjustment screws on VESA plate to perfectly align monitors for a seamless visual experience; Ergonomic three-monitor mount w/toolless adjustments of +/-15° swivel, +5/-15° tilt, 360° screen rotation portrait/landscape
- ONE-TOUCH ADJUSTMENT: Spring-assisted arm w/height range of up to 13in (330mm); Built-in handle for smooth and effortless one-touch motion; Monitor stand includes tools to adjust the arm tension to match the monitor weight; Max arm extension 29in (736mm)

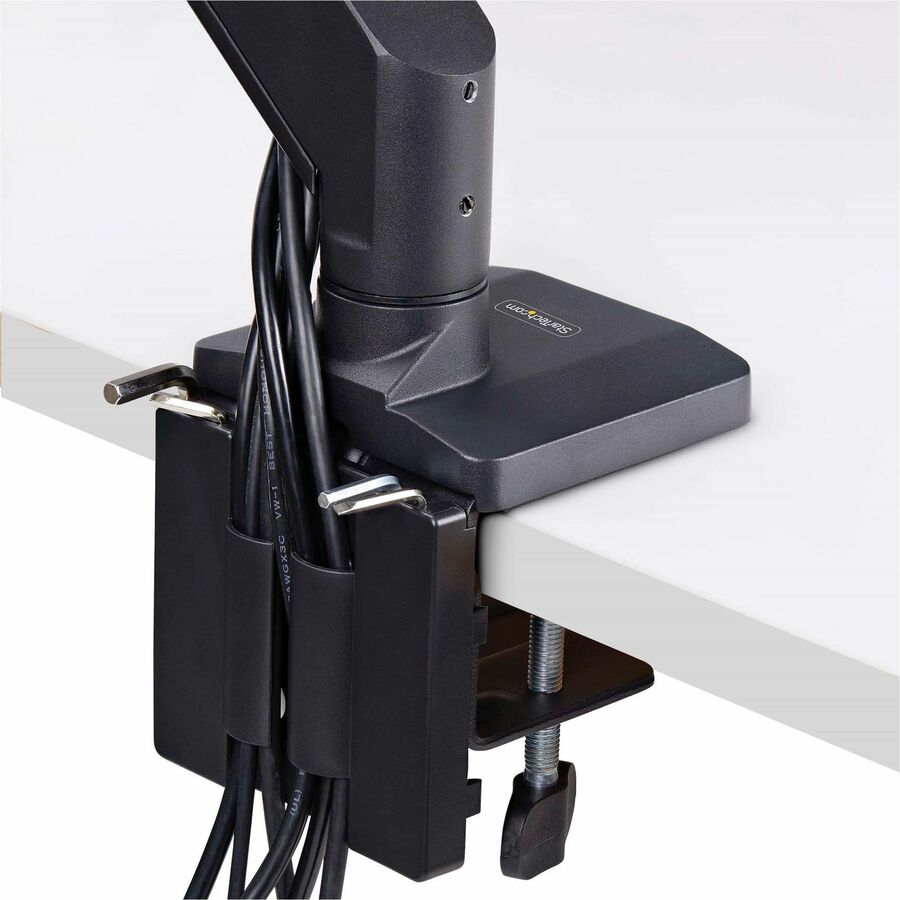

- MOUNTING OPTIONS: Interchangeable desk C-clamp or grommet mount for desks up to 3.1-inches (80mm) thick; When engaged, the rotation stop mechanism prevents the arm from rotating more than +/90°(180° total), preventing the arm from hitting cubicle walls
- ORGANIZED WORKSPACE: Enhance productivity and multi-tasking on high-performance workstations; Multi-monitor mount with cable management channels along the arms to keep cables out of sight; A cable clip at the base helps maintain a tidy setup
Specifications
| Application/Usage | Workspace |
|---|---|
| Package Contents | 1 x Base Mount 1 x Base Pad 1 x Swivel Arm 1 x Spring Arm 1 x Crossbar Left 1 x Crossbar, Right 1 x Crossbar, Center 3 x VESA Monitor Mount 1 x Grab Handle 4 x Flat Head Screws 1 x Grommet Base Plate 1 x Grommet Screw 1 x Grommet Plate 1 x Tool Holder 2 x Desk Clamping Discs 1 x Desk Clamp, Lower 1 x Desk Clamp, Upper 2 x Hand Knobs 10 x Countersunk Screws 4 x Button Head Screws 1 x 3mm Hex Key 1 x 4mm Hex key 1 x 6mm Hex Key 2 x M4x10mm Screws 2 x M5x8mm Screws 12 x M4x12mm Screws 12 x M5x12mm Screws 12 x Washers 2 x Small Washers 6 x Hook and Loop Straps (Crossbar) 2 x Hook and Loop Straps (Spring Arm) 6 x Cable Management Clips (Crossbar) 1 x User Manual |
| Product Type | Mounting Arm |
| Device Supported | Monitor, Display |
| Manufacturer Part Number | 3M1A3SG-MONITOR-ARM |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 18.60 lb |
| Features | Tool-less Adjustment, Grommet, Spring Arm, Ergonomic, Handle, Adjustable, Micro Adjustment, Swivel, Tilt, Rotate, Cable Management, Cable Clip, Articulating Arm, Pivot |
| Form Factor | Desk |
| Length | 56.40" |
| Manufacturer | StarTech.com |
| Product Name | Mounting Arm |
| Maximum Load Capacity | 39.68 lb |
| Brand Name | StarTech.com |
| Orientation | Landscape/Portrait |
| Height | 23.40" |
| Width | 24.80" |
| Minimum Screen Size Supported | 17" |
| Maximum Screen Size Supported | 27" |
| VESA Mount Compatible | Yes |
| Number of Displays Supported | 3 |
| Mounting Pattern | 75 x 75, 100 x 100 |
| Product Color | Black |
| Color Family | Black |
| Height Adjustment Type | Gas Spring |
| Minimum Swivel Angle | 10° |
| Maximum Swivel Angle | 15° |
| Product Material | Steel, Aluminum, Plastic |
| Minimum Tilt Angle | 5° |
| Maximum Tilt Angle | 15° |
| Minimum Load Capacity | 13.23 lb |
| Height Adjustable | Yes |
| Maximum Rotate Angle | 360° |
