StarTech 6.6ft/2m USB to Null Modem Serial Adapter Cable, COM Retention, FTDI, RS232, Changeable DB9 Screws/Nuts, Windows/macOS/Linux
StarTech.com

StarTech 6.6ft/2m USB to Null Modem Serial Adapter Cable, COM Retention, FTDI, RS232, Changeable DB9 Screws/Nuts, Windows/macOS/Linux

Add a DB9 RS232 null modem serial port to a desktop/laptop using a USB-A port; Changeable DB9 Screws/Nuts; Screws pre-installed; Nuts included for device/cable compatibility; 6.6ft/2m Cable; Copper shielding; LED Indicators; FTDI; Windows/macOS/Linux

SKU
1P6FFCN-USB-SERIAL
Category
Connector Cables

MSRP$44.06

$35.31

Save 20%

In stock: 318

Get a quote

Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
1P6FFCN-USB-SERIAL
Category
Connector Cables

Overview

Add RS-232 DCE serial communications support to a desktop or laptop computer and resolve DCE/DTE conflicts directly without the need for additional cross-wired serial cables or adapters.

Serial Port Expansion

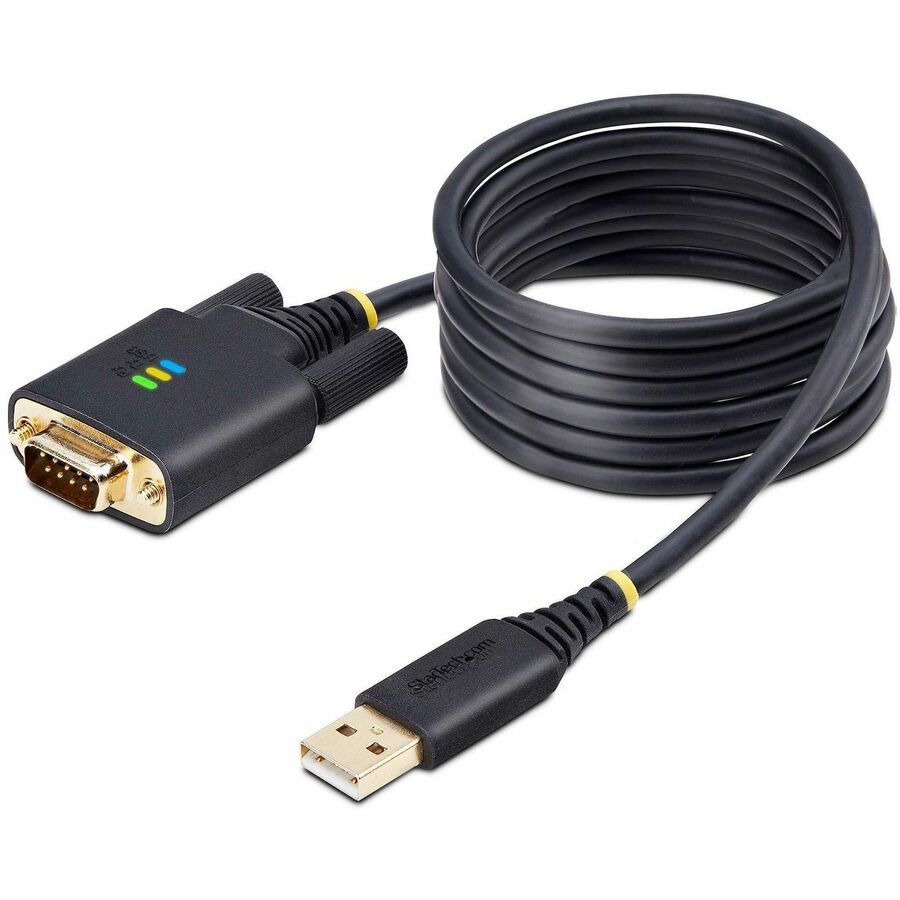

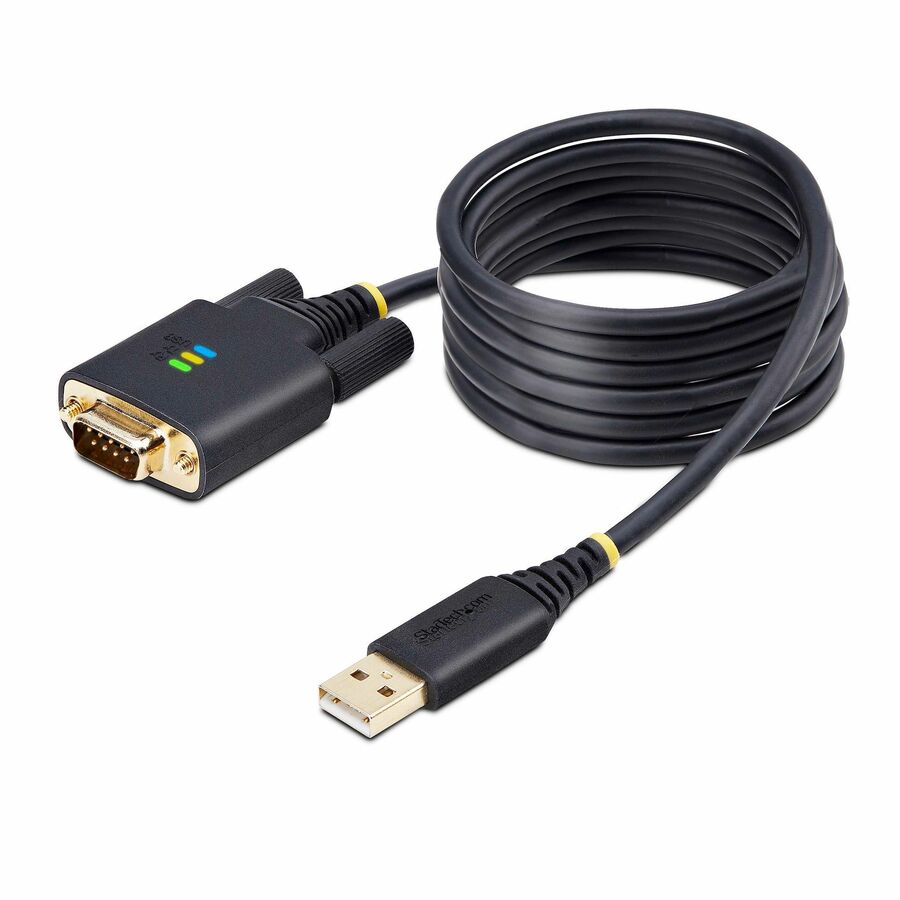

The 6.6-foot (2-meter) Null Modem USB Serial Adapter adds an RS-232 serial DB/DE-9 (female) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.

LED Indicators

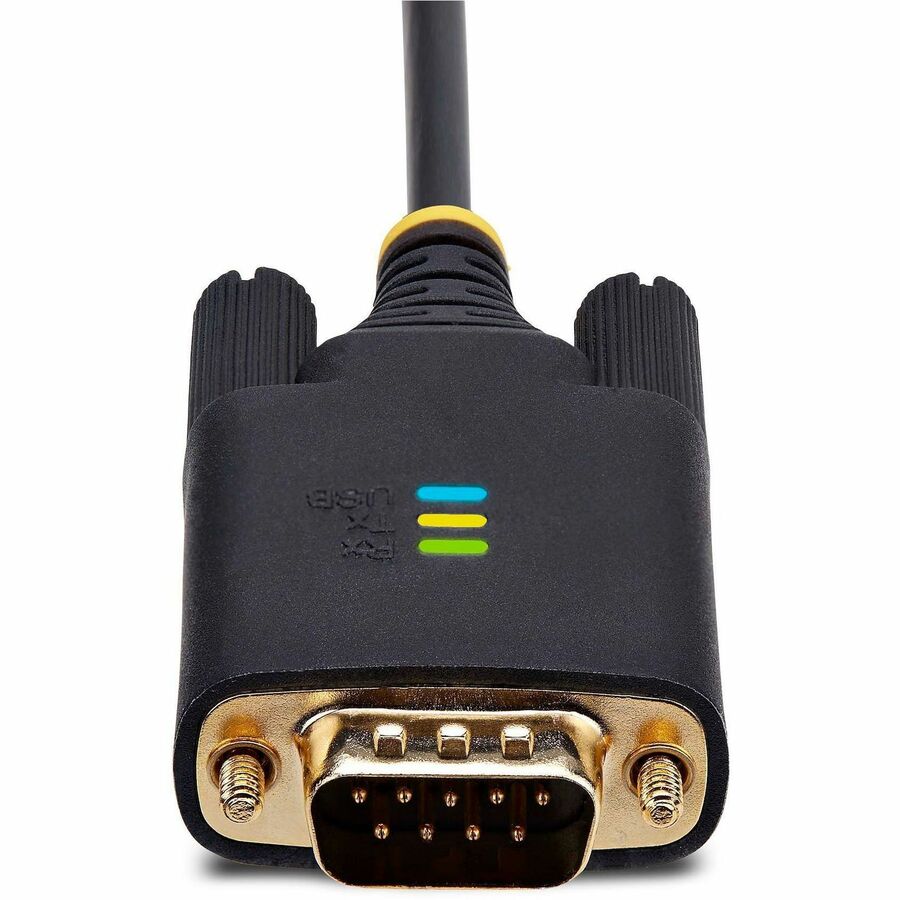

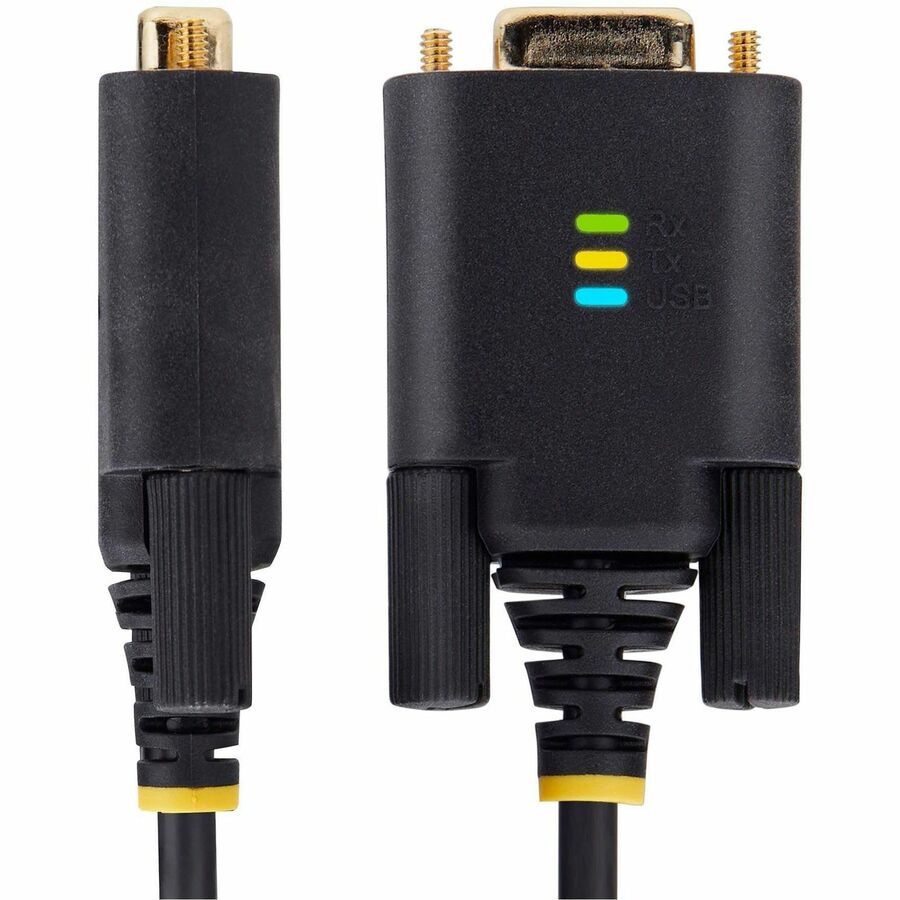

Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.

Seamless Connectivity

The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.

Built To Last

The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.

Highlights

  • INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add a null modem RS232 port to a computer using a USB-A port
  • LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
  • COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign; Resolve DCE/DTE conflicts without using cross-wired cables/adapters
  • BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Extended operating temperature of -40°C to 80°C
  • TECH SPECS: 6.6-foot (2-meter) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte RX and 256 Byte TX FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits

Specifications

Package Contents
  • Serial/USB Data Transfer Cable
  • 2 x DB9 Nuts
  • 1 x Quick-Start Guide
Cable Length6.60 ft
Product TypeData Transfer Cable
Data Transfer Rate480 Mbit/s
Device SupportedDesktop Computer, Notebook, Peripheral Device, Monitor, Sensor, Barcode Scanner, Receipt Printer, POS Device
Manufacturer Part Number1P6FFCN-USB-SERIAL
Packaged Quantity1
ShieldingYes
Limited Warranty2 Year
Weight (Approximate)0.16 lb
FeaturesLED Indicator, Screw Lock, Rugged, EMI/RF Protection, Molded
ManufacturerStarTech.com
Product NameSerial/USB Data Transfer Cable
Brand NameStarTech.com
Cable TypeSerial/USB
Connector Type on First EndUSB 2.0 Type A - Male
Connector Type on Second EndDB-9 RS-232 Serial - Female
Connector PlatingGold
Shielding MaterialCopper
Product ColorBlack
Color FamilyBlack
Connector on First End Details1 - 4-Pin USB 2.0 Type-A - Male
Connector on Second End Details1 - 9 pin DB-9 RS-232 Serial - Female
Product MaterialThermoplastic Elastomer (TPE)
Connector Gender on First EndMale
Connector Gender on Second EndFemale
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
