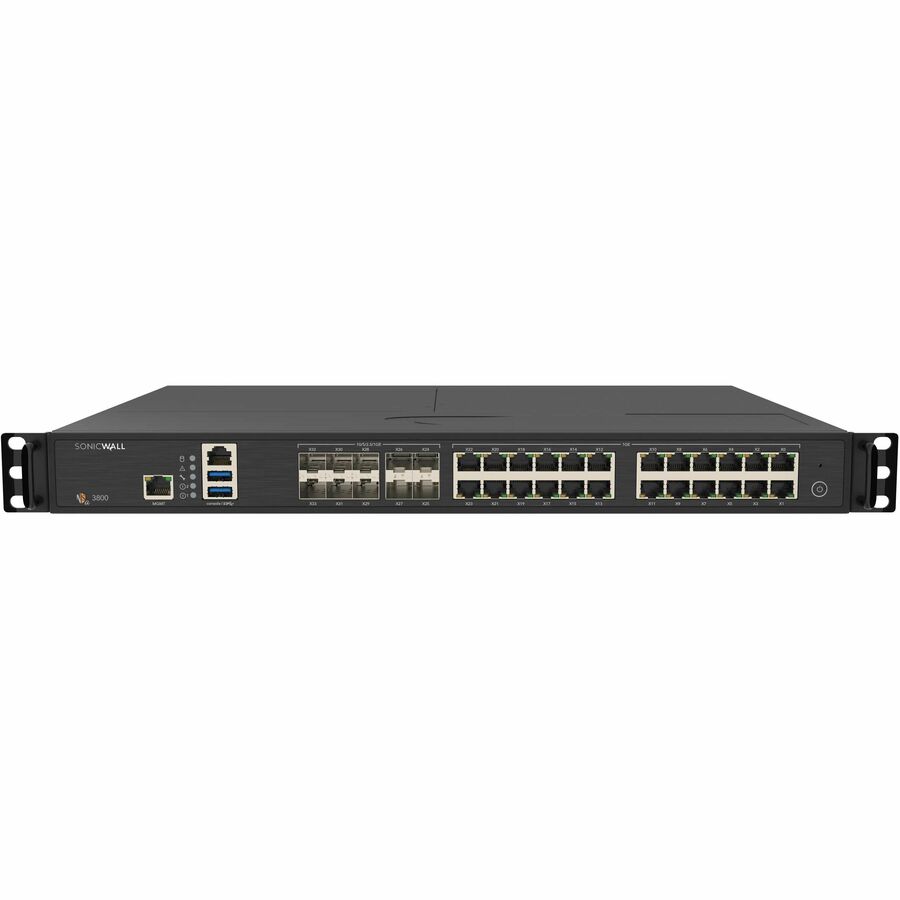

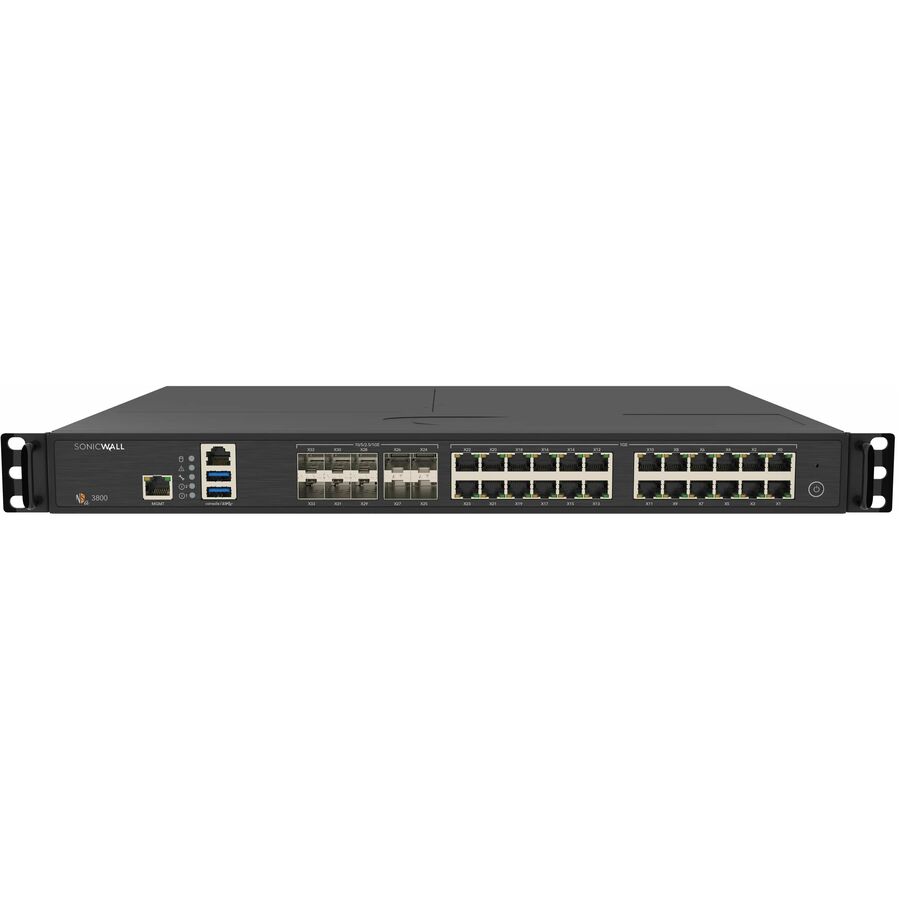

SonicWall NSa 3800 Network Security/Firewall Appliance
SonicWall

SonicWall NSa 3800 Network Security/Firewall Appliance

Centralized Management - 24 Port - 1000Base-T, 10GBase-X - 10 Gigabit Ethernet - 12 Gbit/s Firewall Throughput - TLS, TLS 1.3, SSL, DES, 3DES, AES (128-bit), AES (192-bit), AES (256-bit), MD5, SHA-1 - 1000 VPN - 24 x RJ-45 - 10 Total Expansion Slots - 1 Year TOTALSECURE ESSENTIAL EDITION - 50 Hz, 60 Hz - 1U - Rack-mountable

SKU
03-SSC-4649
Category
Network Security & Firewalls

MSRP$8,831.30

$7,813.94

Save 12%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SonicWall through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
03-SSC-4649
Category
Network Security & Firewalls

Overview

SonicWall latest mid-range next-gen firewalls, Network Security Appliance (NSa) 2800 and 3800 offer medium and large enterprises industry-leading threat prevention performance at the lowest total cost of ownership in their class. The firewalls are the cornerstones of the threat protection solution that includes simplified centralized firewall management, Zero Trust enablement, flexible licensing with an option of managed firewall services, and an embedded cyber warranty for risk mitigation.

The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck

Gen 8 NSa firewalls drives strong security with a comprehensive solution encompassing of threat protection, centralized management, reporting and analytics, security and managed service options, Secure Service Edge (SSE) integration, and cyber warranty

Hardware

NSa 2800 and 3800, built with the latest hardware components, deliver multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, including multiple 10 GbE, the firewall solutions support network and hardware redundancy with high availability and dual power supplies.

Architecture

The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterprise level workflows. It offers easy policy configuration, zero-touch deployment and flexible management - all of which allow enterprises to improve both their security and operational efficiency

NSa 2800 and 3800 support advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliance provides a single-pane-of-glass interface to manage both switches and access points.

Threat Protection and Security Services

Built to mitigate the advanced cyberattacks of today and tomorrow, the Gen 8 NSa Series offers access to SonicWall's advanced firewall security services, allowing you to protect your entire IT infrastructure. Solutions and services such as Cloud Application Security, Capture Advanced Threat Protection (ATP) cloud-based sandboxing, patented Real-Time Deep Memory Inspection (RTDMI?) and Reassembly-Free Deep Packet Inspection (RFDPI) - for all traffic including TLS 1.3 - offer comprehensive gateway protection from most stealthy and dangerous malware, including zero-day and encrypted threats.

Flexible licensing includes Hardware Only, Essential, Advanced and Managed Protection Security Suite (MPSS) to meet your unique needs. MPSS augments resources with managed services for firewalls

A Cloud Secure Edge Connector integration provides secure access to their private applications behind the firewalls. Users and devices can adhere to a Zero-Trust framework for application access

Cyber Warranty

An embedded cyber warranty is offered as part of your security services to mitigate costs of security breach, meet compliance requirements and promote peace of mind.

Highlights

  • Form Factor: 1U Rackable Mounted
  • Multi-gigabit Threat and Malware Analysis Throughput
  • Superior TLS performance (sessions and throughput)
  • Best-in-class price-performance
  • Expandable storage
  • Advanced DNS Filtering
  • Reputation-based Content Filtering Service (CFS 5.0)
  • Simplified Centralized SaaS and On-Premises management via Network Security Manager
  • Wi-Fi 6 firewall management
  • SonicPlatform Support

Specifications

Product TypeNetwork Security/Firewall Appliance
Firewall Protection SupportedThreat Protection, Zero Trust Network Access (ZTNA), Intrusion Prevention, Application Control, Malware Protection, URL Filtering, DNS Security, Content Filtering, Cloud Sandboxing, Real-Time Deep Memory Inspection (RTDMI), Reassembly-free Deep Packet Inspection, Malicious Traffic, SSL Inspection, SSL Decryption, TLS Decryption, TLS Inspection, Dead Peer Detection, Antivirus, Anti-spyware, Packet Inspection, Distributed Denial of Service (DDoS), Botnet Filtering, Web Content Filtering
Manufacturer Part Number03-SSC-4649
Connectivity TechnologyWired
Form FactorRack-mountable
Frequency50 Hz, 60 Hz
ManufacturerSonicWall Inc.
Product ModelNSa 3800
Product NameNSa 3800 Network Security/Firewall Appliance
Power Consumption102.30 W
Product SeriesNSa
Brand NameSonicWall
Expansion Slot TypeExpansion Slot, SFP+
Height1.8"
Width16.9"
Depth12.8"
ManageableYes
Network Standard1000Base-T, 10GBase-X
Compatible Rack Unit1U
VPN Throughput1 GB/s
Encryption StandardTLS, TLS 1.3, SSL, DES, 3DES, AES (128-bit), AES (192-bit), AES (256-bit), MD5, SHA-1
Firewall Throughput12 Gbit/s
IPS Throughput1 GB/s
Ethernet Technology10 Gigabit Ethernet
USBYes
Number of Network (RJ-45) Ports24
Number of SFP+ Slots10
FunctionalityCentralized Management
Total Number of Ports24
Total Number of Expansion Slots10
Number of VPN Supported1000
Support/Service Duration1 Year
Data Link ProtocolsHTTP, HTTPS, L2TP, PPTP, TCP/IP
Support/Service TypeTOTALSECURE ESSENTIAL EDITION
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
New Connections Per Second90000
