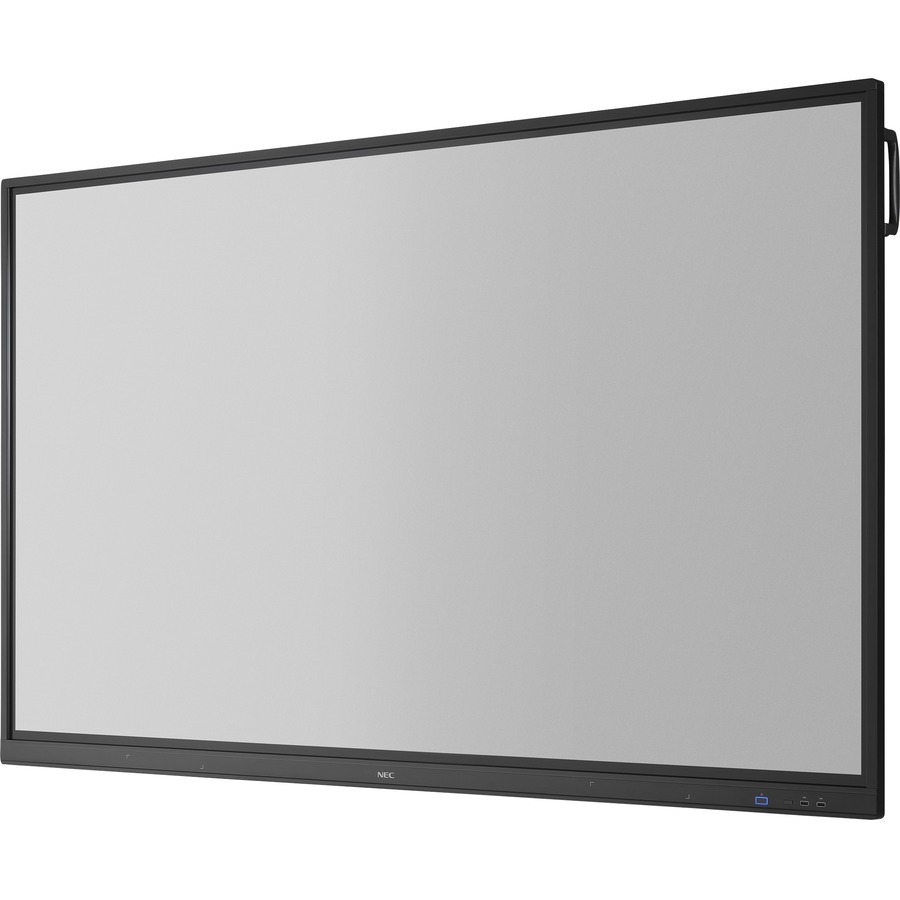

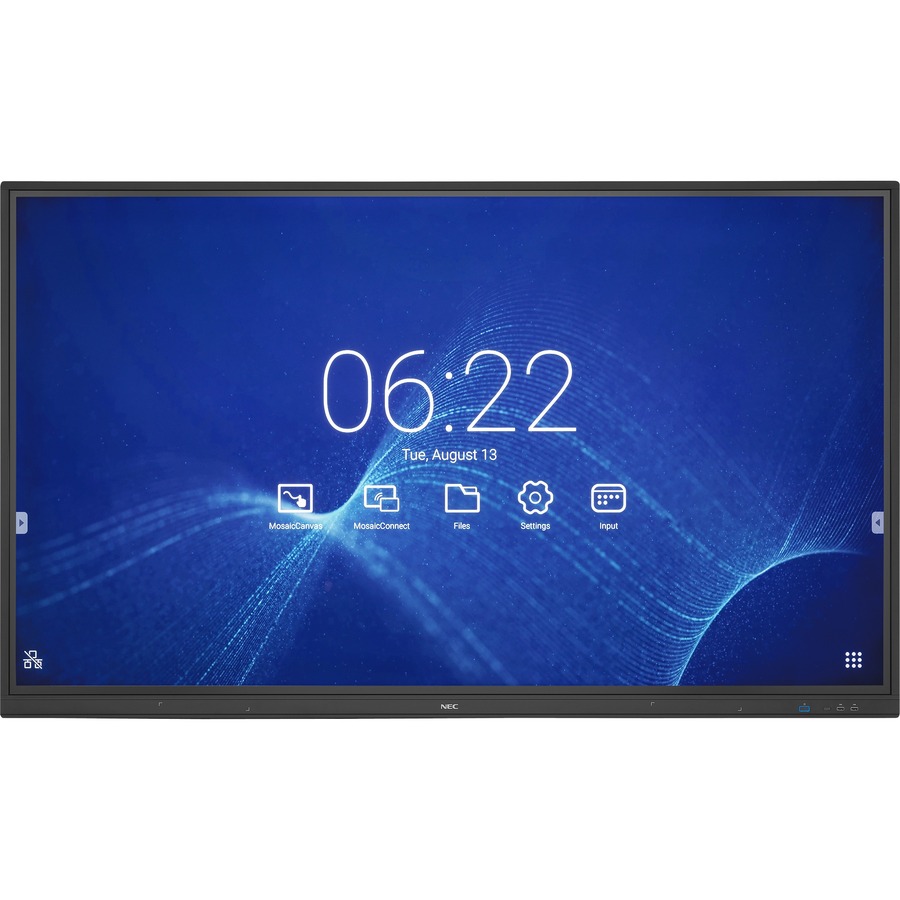

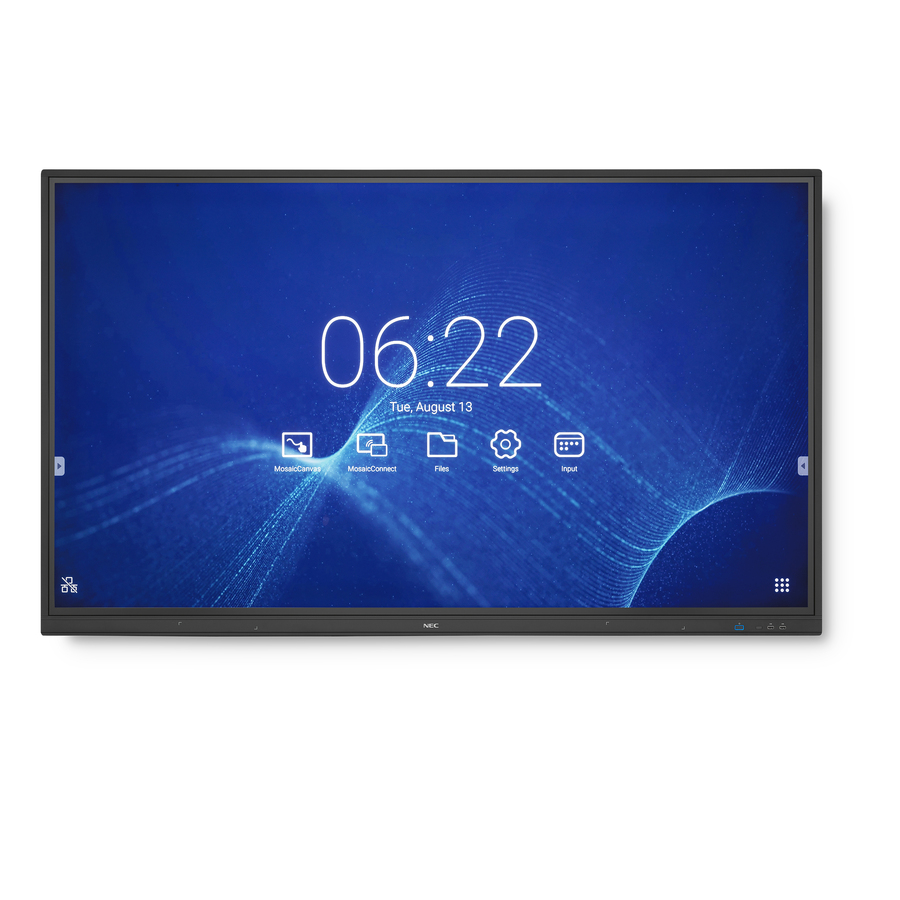

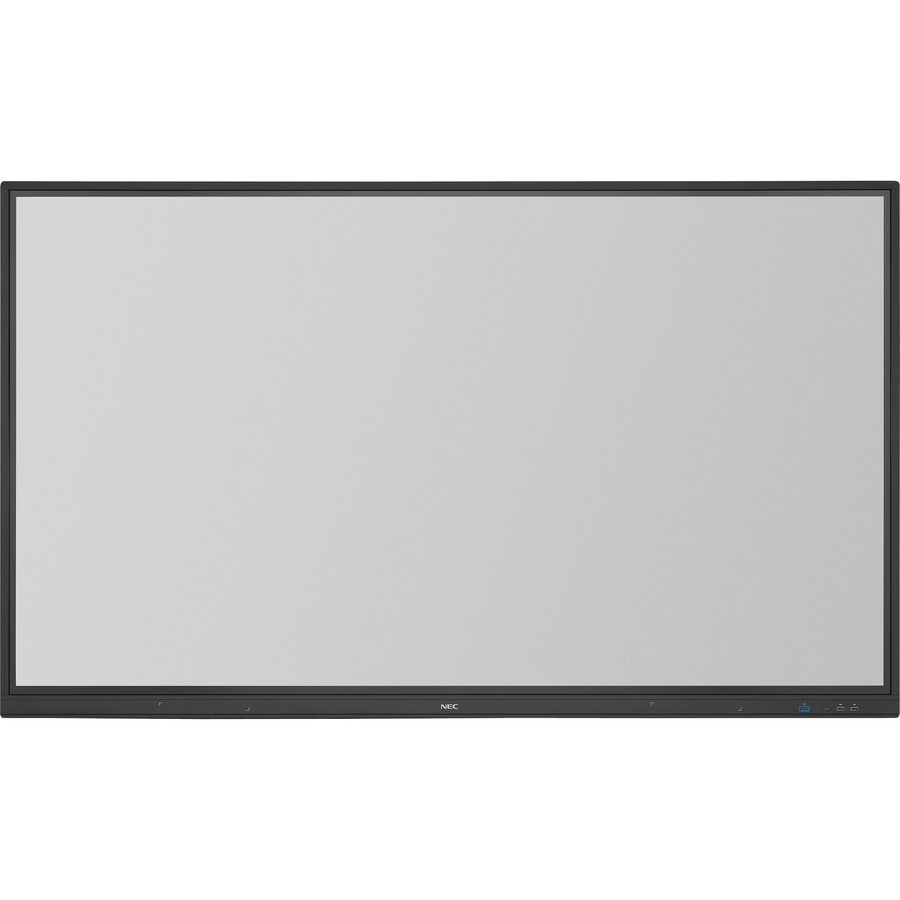

NEC Display 86" UHD Collaborative Board
86" LCD - Infrared (IrDA) - Touchscreen - 16:9 Aspect Ratio - 3840 x 2160 - Direct LED - 350 Nit - 1,200:1 Contrast Ratio - 2160p - USB - HDMI - VGA - TAA Compliant
- SKU
- CB861Q
- Category
- Collaboration Displays
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Sharp through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CB861Q
- Category
- Collaboration Displays
Overview
With industry leading experience in superior design and customer focus, the 86" NEC CB861Q allows for all in one collaborative experience. New contemporary and slim mechanical design with a built in SoC preloaded with Mosaic whiteboarding and wireless presenting software. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 USB2.0 x2, and VGA inputs, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Open Pluggable Specification (OPS). The CB861Q boasts a 350 cd/m² brightness along with a new anti-glare surface that allows for efficient readability.
• 86" UHD collaborative display
• Integrated 10pt IR touch with built in Linux based 8.0 SoC

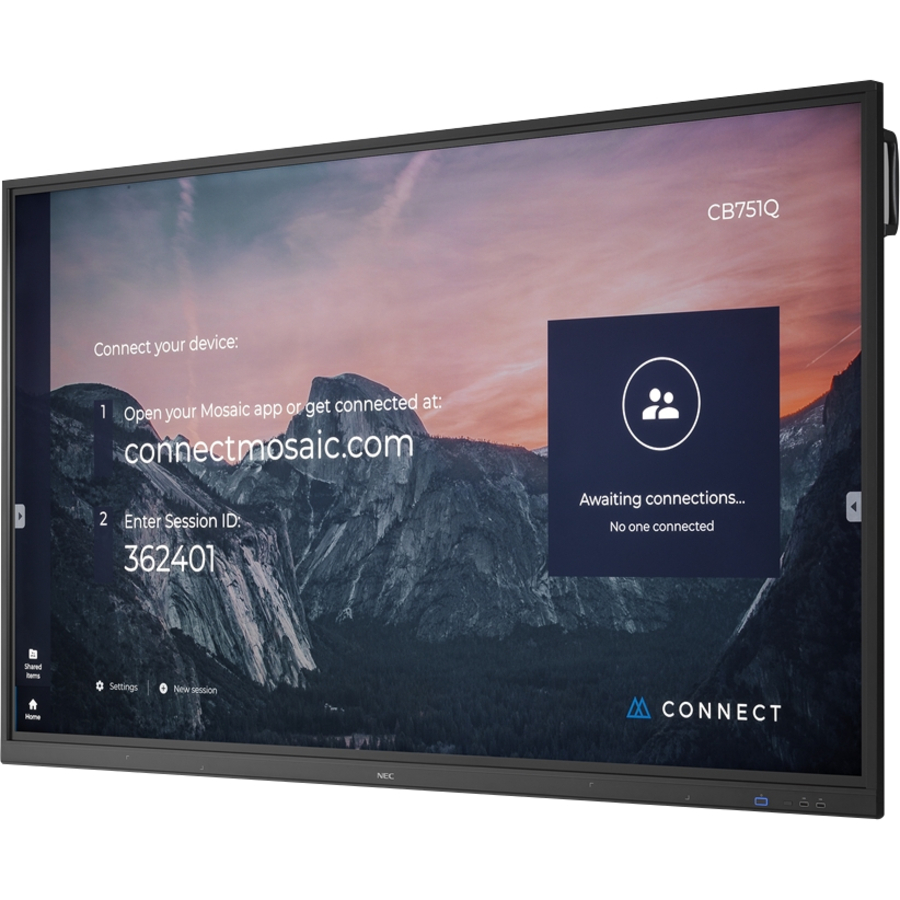

• Mosaic wireless presentation software

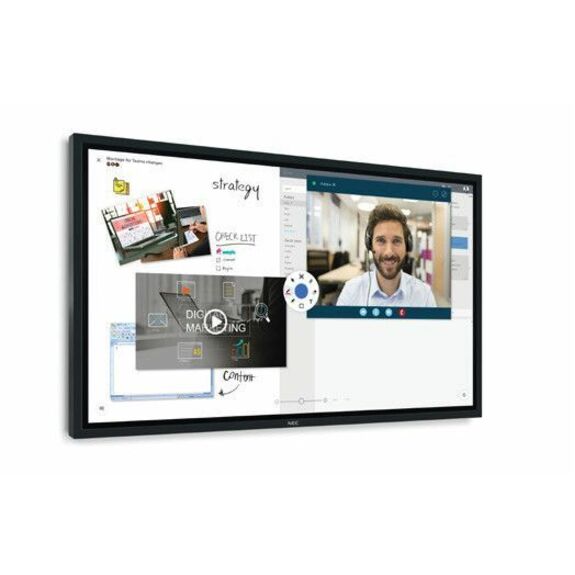

• Mosaic Canvas interactive whiteboard software
• Browser
• Annotation tools
• OPS slot
• 3x HDMI 2.0, VGA, LAN, 6x USB, RS-232
• 350cd/m^2 MAX
• 3yr warranty

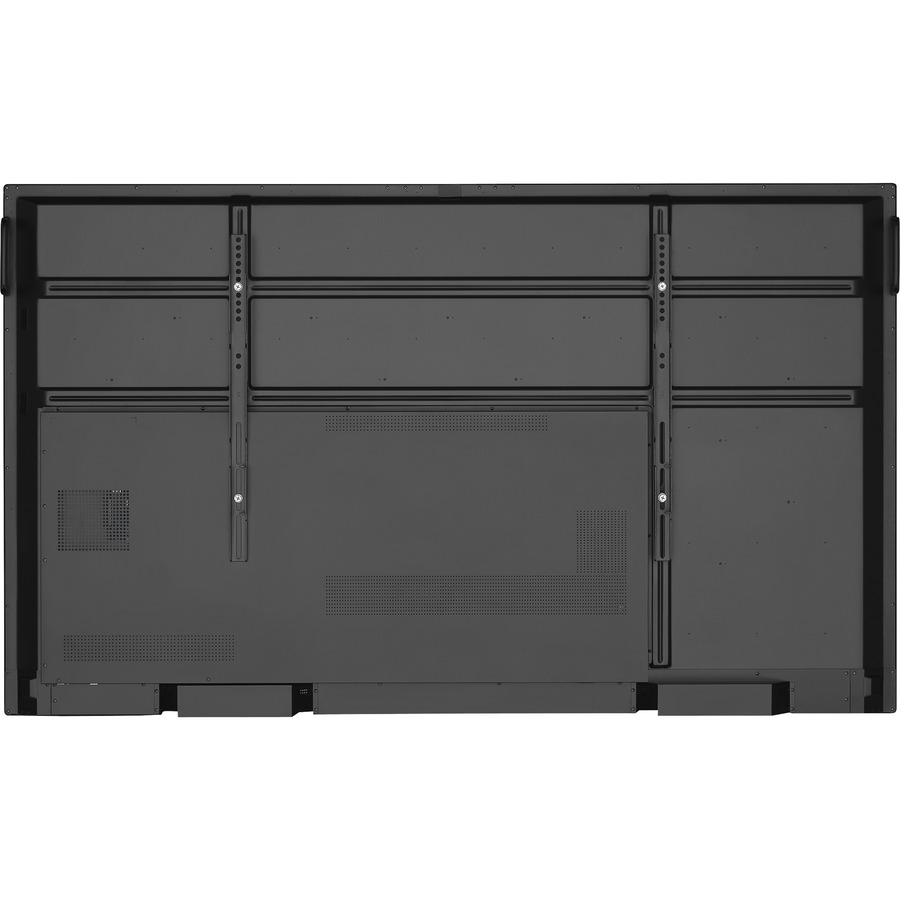

• Wall mount included
Specifications
| Aspect Ratio | 16:9 |
|---|---|
| Package Contents |
|
| Software Included | Wireless presentation and whiteboarding software |
| Product Type | Collaboration Display |
| Contrast Ratio | 1,200:1 |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | CB861Q |
| Response Time | 9 ms |
| Screen Resolution | 3840 x 2160 |
| Speakers | Yes |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 142.40 lb |
| Brightness | 350 Nit |
| Manufacturer | Sharp |
| Product Model | CB861Q |
| Product Name | 86" UHD Collaborative Board |
| Power Consumption | 620 W |
| Viewable Screen Size | 86" |
| Brand Name | NEC Display |
| Screen Mode | 4K UHD |
| Height | 45.7" |
| Width | 77" |
| Depth | 3.4" |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Scan Format | 2160p |
| Environmentally Friendly | Yes |
| Touchscreen | Yes |
| Number of Speakers | 2 |
| Ethernet | Yes |
| Display Screen Type | LCD |
| Display Screen Technology | Super In-plane Switching (S-IPS) Technology |
| Touchscreen Technology | Infrared (IrDA) |
| USB | Yes |
| HDMI | Yes |
| Backlight Technology | Direct LED |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 600 |
| RMS Output Power | 24 W |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Total Number of USB Ports | 6 |
| Serial | Yes |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
