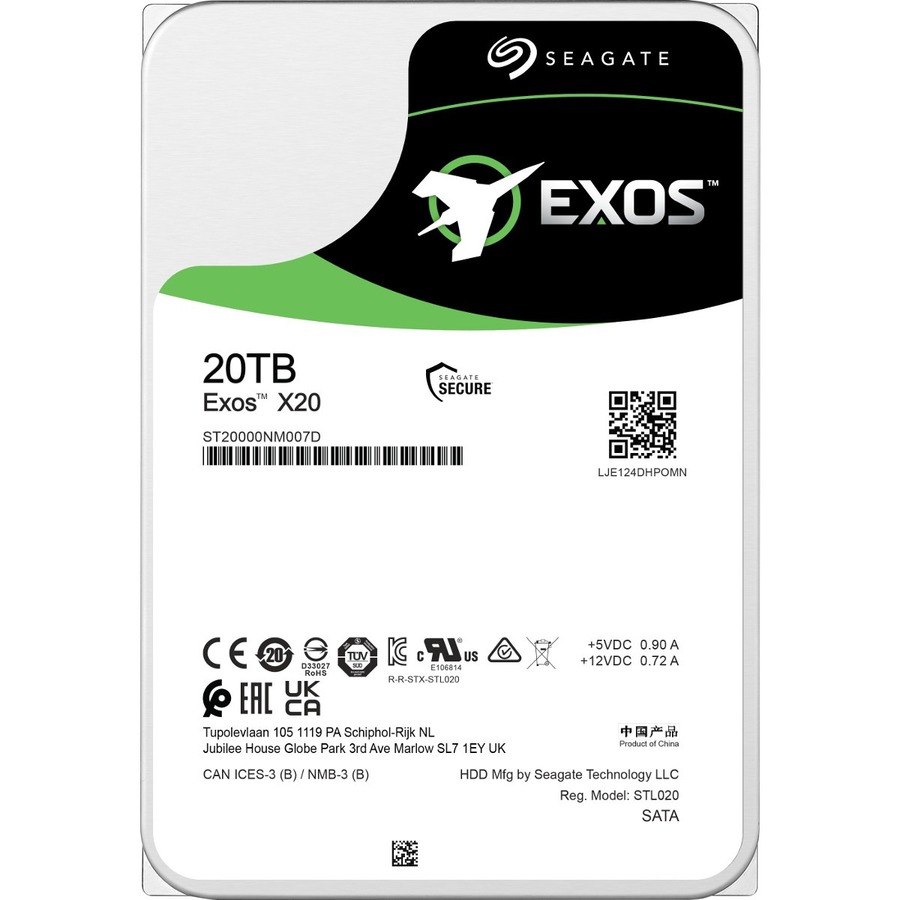

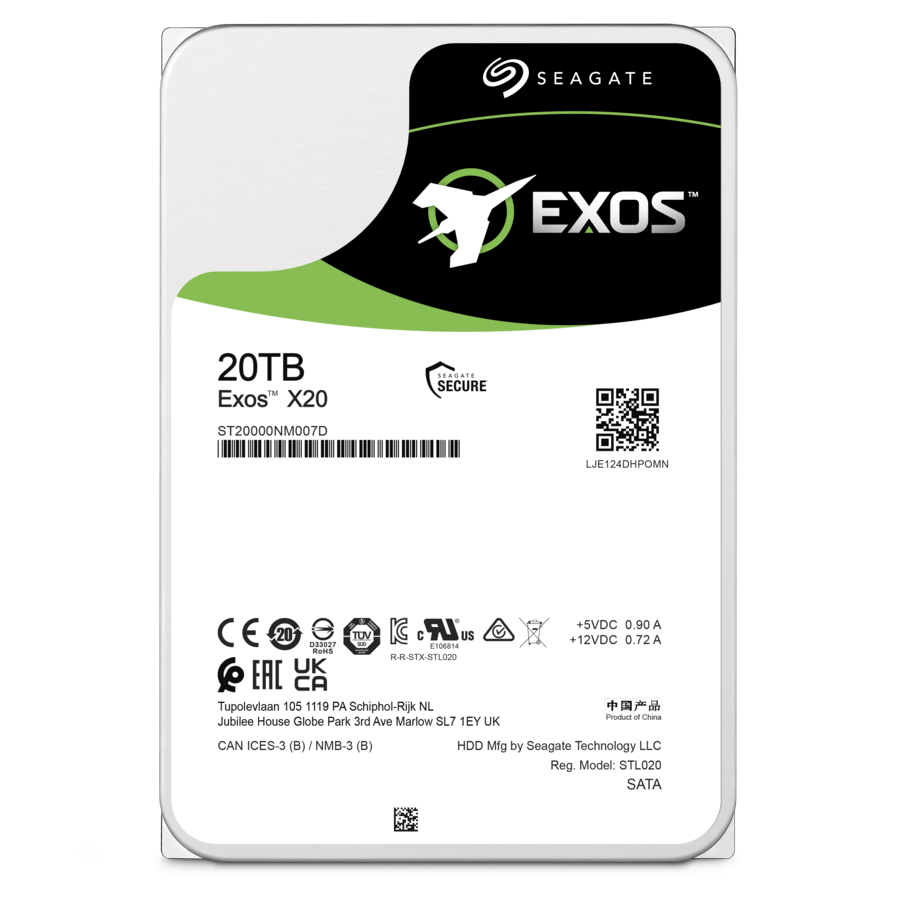

Seagate Exos X20 ST20000NM007D 20 TB Hard Drive - Internal - SATA (SATA/600) - Conventional Magnetic Recording (CMR) Method
Storage System, Video Surveillance System Device Supported - 7200rpm - Hot Pluggable - 512e/4Kn Format
- SKU
- ST20000NM007D
- Category
- Hard Drives/Solid State Drives
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Seagate Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ST20000NM007D
- Category
- Hard Drives/Solid State Drives
Overview
"Designed with the highest rack-space efficiency and protected with Seagate Secure? Exos X20 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind."
Maximum Storage Capacity for Highest Rack Space Efficiency
Market-leading 20 TB HDD offering the highest capacity available for more petabytes per rack
Highly reliable performance with enhanced caching, making it the logical choice for cloud data centre and massive scale-out data centre applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance? feature optimises Watts/TB
Maximise total cost of ownership savings through lower power and weight with helium sealed-drive design
Proven helium side-sealing weld technology for added handling robustness and leak protection
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security - Seagate Secure features for safe, affordable, fast and easy drive retirement
Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating
Highlights
- With 20 TB capacity, you have ample space to store a vast number of images, extensive hours of video, or a large collection of songs
- Delivers increased storage capacity with maximum performance, giving you the space you need without compromising speed
- Enjoy rapid processing speeds with 256 MB cache buffer for enhanced performance
- Experience faster data storage with the SATA/600 interface, designed to optimize burst performance for enhanced efficiency
- Provides expanded storage capacity with optimal efficiency, ensuring you have ample space for all your needs
Specifications
| Product Type | Hard Drive |
|---|---|
| Buffer | 256 MB |
| Device Supported | Storage System, Video Surveillance System |
| Storage Capacity | 20 TB |
| Manufacturer Part Number | ST20000NM007D |
| Weight (Approximate) | 1.48 lb |
| Drive Type | Internal |
| Manufacturer | Seagate Technology |
| Product Model | ST20000NM007D |
| Product Name | Exos X20 ST20000NM007D Hard Drive |
| Product Line | Exos |
| Product Series | X20 |
| Brand Name | Seagate |
| Height | 1" |
| Width | 4" |
| Depth | 5.8" |
| Wireless LAN | No |
| Hot Pluggable | Yes |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Random 4KB Read | 168000IOPS |
| Random 4KB Write | 550000IOPS |
| Spindle Speed (rpm) | 7200 |
| Disk Format | 512e/4Kn |
| Recording Technology | Conventional Magnetic Recording (CMR) |
