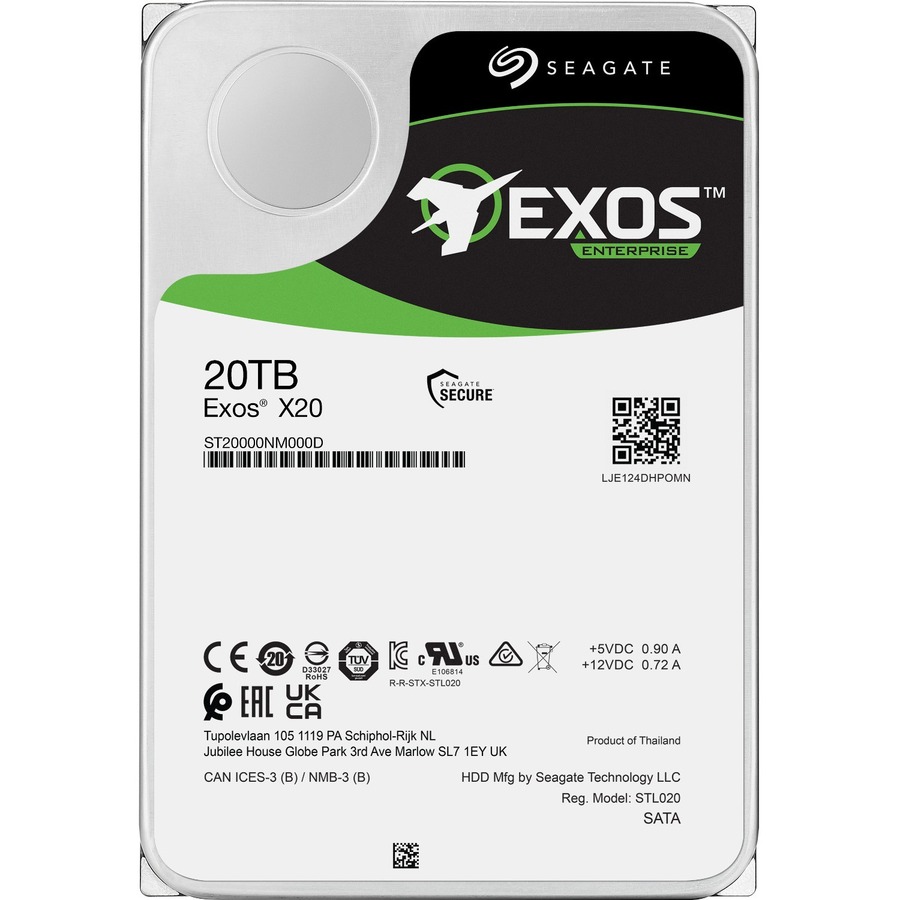

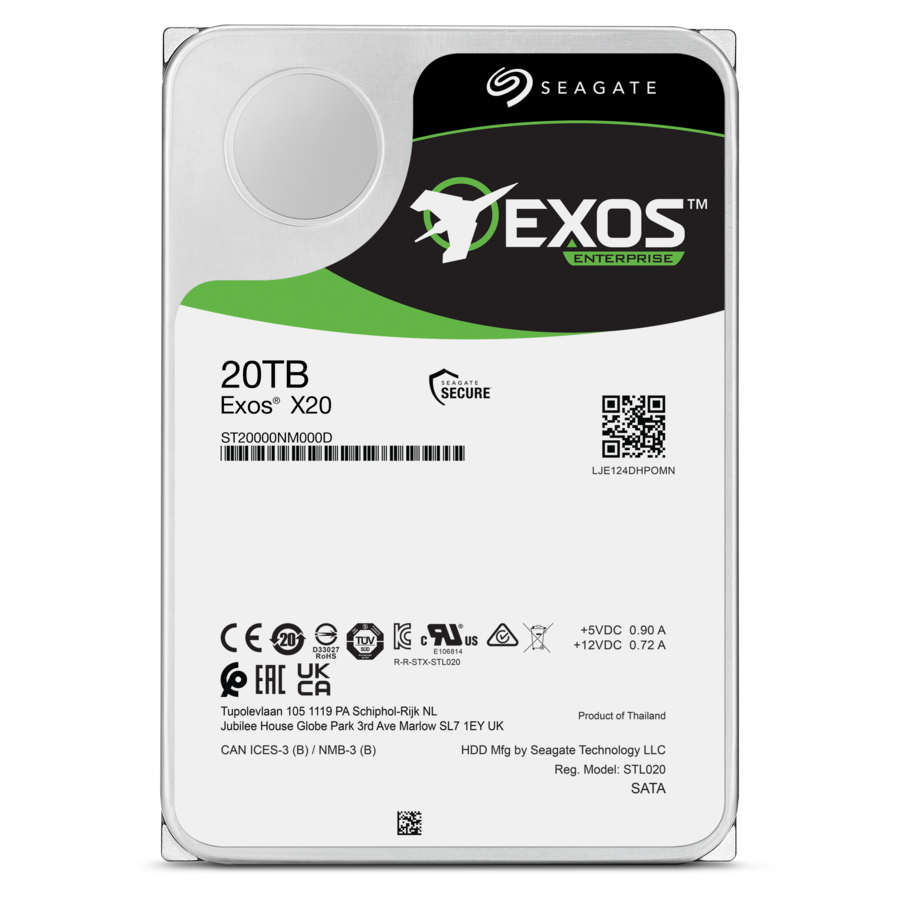

Seagate Exos X20 ST20000NM000D 20 TB Hard Drive - Internal - SATA (SATA/600) - Conventional Magnetic Recording (CMR) Method
Seagate Technology

Seagate Exos X20 ST20000NM000D 20 TB Hard Drive - Internal - SATA (SATA/600) - Conventional Magnetic Recording (CMR) Method

Storage System, Video Surveillance System Device Supported - 7200rpm - 285 MB/s Maximum Read Transfer Rate - Hot Pluggable - 512e/4Kn Format - 5 Year Warranty

SKU
ST20000NM000D
Category
Hard Drives/Solid State Drives

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Seagate Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
ST20000NM000D
Category
Hard Drives/Solid State Drives

Overview

"Designed with the highest rack-space efficiency and protected with Seagate Secure? Exos X20 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind."

Maximum Storage Capacity for Highest Rack Space Efficiency

Market-leading 20 TB HDD offering the highest capacity available for more petabytes per rack

Highly reliable performance with enhanced caching, making it the logical choice for cloud data centre and massive scale-out data centre applications

Hyperscale SATA model tuned for large data transfers and low latency

PowerBalance? feature optimises Watts/TB

Maximise total cost of ownership savings through lower power and weight with helium sealed-drive design

Proven helium side-sealing weld technology for added handling robustness and leak protection

Digital environmental sensors to monitor internal drive conditions for optimal operation and performance

Data protection and security - Seagate Secure features for safe, affordable, fast and easy drive retirement

Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating

Highlights

  • Scalable hyperscale applications/cloud data centres
  • Massive scale-out data centres
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore - D2D, virtual tape
  • Centralised surveillance

Specifications

Product TypeHard Drive
Buffer256 MB
Device SupportedStorage System, Video Surveillance System
Storage Capacity20 TB
Manufacturer Part NumberST20000NM000D
Limited Warranty5 Year
Weight (Approximate)1.48 lb
Drive TypeInternal
ManufacturerSeagate Technology
Product ModelST20000NM000D
Product NameExos X20 ST20000NM000D Hard Drive
Product LineExos
Product SeriesX20
Brand NameSeagate
Height1"
Width4"
Depth5.8"
Wireless LANNo
Maximum Read Transfer Rate285 MB/s
Maximum Write Transfer Rate272 MB/s
Hot PluggableYes
Drive InterfaceSATA
Drive Interface StandardSATA/600
Random 4KB Read168IOPS
Random 4KB Write550IOPS
Spindle Speed (rpm)7200
Disk Format512e/4Kn
Recording TechnologyConventional Magnetic Recording (CMR)
