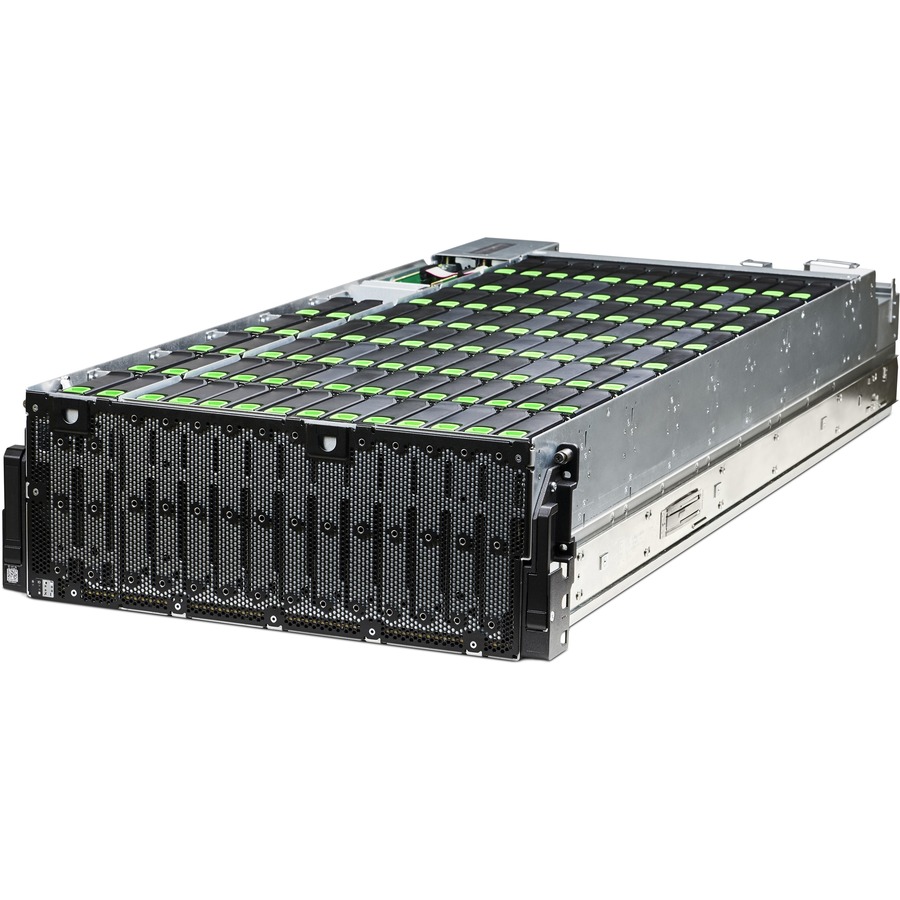

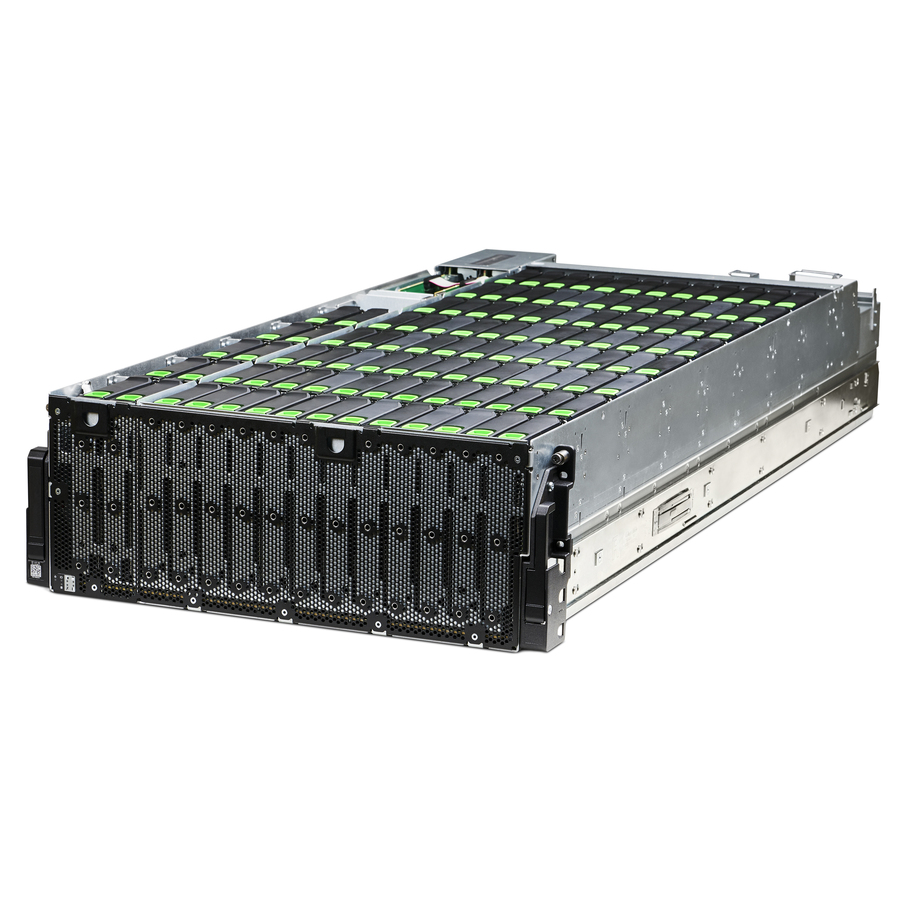

Seagate CORVAULT 4U106 RAID 12G SAS Self Healing Managed Rackmount Storage System - includes 2.12PB 106x 20TB 3.5" Exos Hard Drives (HDD), 1.2m deep, advanced data protection, autonomous drive regeneration (ADR), ADAPT rebuild, 5-year limited warranty
106 x HDD Supported - 2170.88 TB Supported HDD Capacity - 106 x HDD Installed - 2170.88 TB Installed HDD Capacity - Serial Attached SCSI (SAS) - Serial Attached SCSI (SAS) Controller - RAID Supported - 106 x Total Bays - Gigabit Ethernet - SNMP, SSL, SSH, SMTP, HTTP, HTTPS - 4 SAS Port(s) External - 4U
- SKU
- R4106I212000001
- Category
- Storage Arrays & Servers
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Seagate Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- R4106I212000001
- Category
- Storage Arrays & Servers
Overview
Exos® CORVAULT Self Healing Storage redefines petabyte-scale storage infrastructure with industry-leading innovation in every aspect of the system.
Key Advantages
Introducing a new category of intelligent storage. Exos CORVAULT delivers sophisticated data protection, security and streamlined management to tackle the challenges of an exascale world.
Reliable and Self-healing . Field-proven design with five-nines (99.999%) availability. Autonomous Drive Regeneration (ADR) reduces human intervention and e-waste by automatically renewing hard drives "in situ" and on the fly.
Hyperscale-class efficiencies. Combining maximum data density of up to 2.120 PB raw (using 20 TB drives) in 4U with the latest hard drive technology delivers storage efficiencies similar to cutting-edge cloud service providers.
Architected for speed and resilience. Redundant active-active controllers powered by the 6th gen VelosCT ASIC and ADAPT erasure code data protection software dramatically streamline overhead, throughput, management and recovery.
Powerful configuration and management. One-button configuration accelerates deployment, while informative remote diagnostics and non-disruptive system updates simplify maintenance.
Seagate Secure built in. Hard drives are self-encrypting (SED) for maximum security without controller-level overhead. SFTP for secure file transfer. Optional FIPS 140-3 configuration.
Highlights
- DAS Storage System offers maximum storage efficiency and convenience
- Holds up to 106 HDDs to let you expand limitlessly
- Holds 106 HDDs for up to 2170.88 tb of storage
- RAID technology - data reliability, fault tolerance and improved overall performance
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
Specifications
| Host Interface | 12Gb/s SAS |
|---|---|
| Product Type | DAS Storage System |
| Manufacturer Part Number | R4106I212000001 |
| Protocols | SNMP, SSL, SSH, SMTP, HTTP, HTTPS |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 289.91 lb |
| Manufacturer | Seagate Technology |
| Product Name | Exos CORVAULT DAS Storage System |
| Controller Type | Serial Attached SCSI (SAS) |
| Rack Height | 4U |
| Brand Name | Seagate |
| Height | 6.9" |
| Width | 17.4" |
| Depth | 44.8" |
| Environmentally Friendly | Yes |
| Redundant Power Supply | Yes |
| Hard Drive Interface | Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 106 |
| Maximum Power Supply Wattage | 2000 W |
| Total Hard Drive Capacity Supported | 2170.88 TB |
| Total Hard Drive Capacity Installed | 2170.88 TB |
| Number of Hard Drives Supported | 106 |
| Number of Hard Drives Installed | 106 |
| Number of SAS Ports (External) | 4 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
