APC Symmetra LX Extended Run Rack-mount w/ 3 SYBT5, 208V
Lead Acid - Hot Swappable - 3 Year Minimum Battery Life - 5 Year Maximum Battery Life
- SKU
- SYARMXR3B3
- Category
- UPS Batteries
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SYARMXR3B3
- Category
- UPS Batteries
Overview

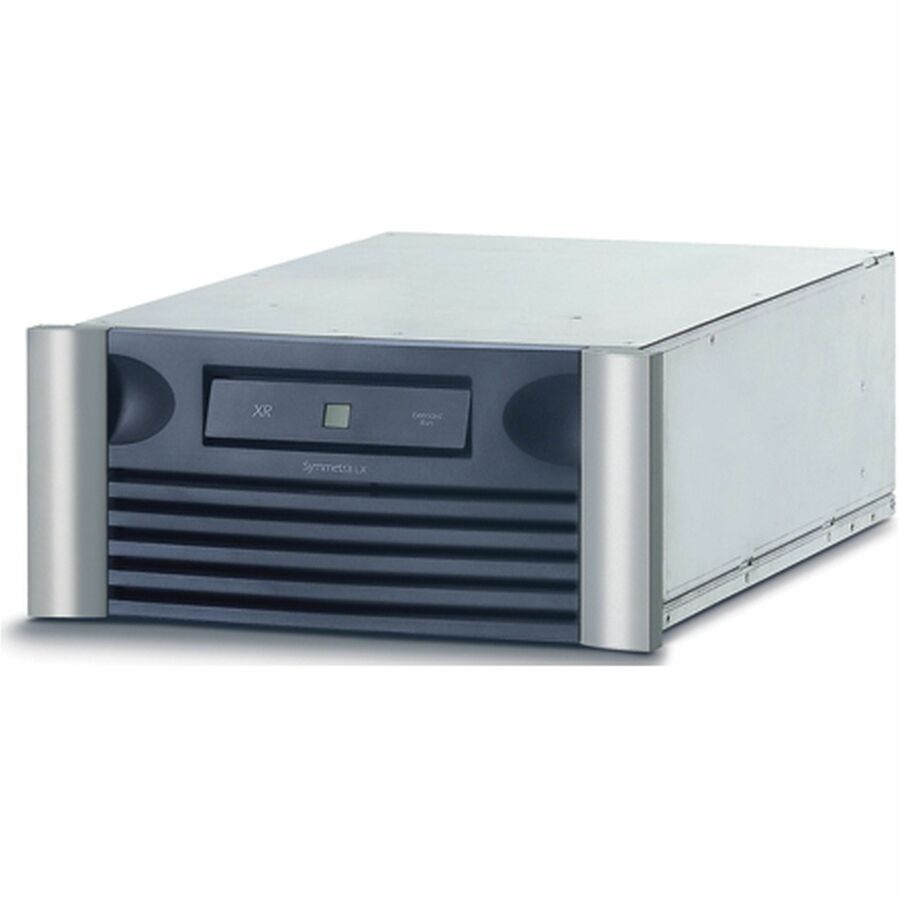

The APC Symmetra LX Extended Runtime Battery is equipped with three SYBT5 battery modules, operating at 208V This unit is designed for high availability and scalability, making it ideal for critical power applications. It features a 5U rack-mountable form factor, ensuring efficient use of space in data centers. It includes lead-acid batteries from Panasonic. The unit supports a wide operating temperature range from 0 to 40°C and can function at altitudes up to 10,000 feet.
Warranty
Limited Warranty: 2 Year
Highlights
- XR frame: Connect to the APC Symmetra LX UPS or an existing XR frame to gain more runtime in case of a power outage.
- Comes pre-populated with (3) SYBT5 battery modules.
- Form factor: rackmount; rack height: 5U.
- Can daisy chain multiple XR frames for even more runtime.
- Lead-acid battery type.
- 2-year repair or replace warranty.
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Package Contents |
|
| Product Type | Battery Unit |
| Compatibility | APC Symmetra LX Series UPS |
| Hot Swappable | Yes |
| Manufacturer Part Number | SYARMXR3B3 |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 251.53 lb |
| Manufacturer | Schneider Electric SA |
| Product Name | Symmetra LX Extended Run Rack-mount with 3 SYBT5 |
| Brand Name | APC |
| Height | 8.5" |
| Width | 18.6" |
| Depth | 27" |
| Environmentally Friendly | Yes |
| Battery Energy | 2592 VAh |
| Maximum Operating Temperature | 104°F (40°C) |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Maximum Battery Life | 5 Year |
| Minimum Battery Life | 3 Year |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
