Schneider Electric
APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input; (6) L14-30R output
6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A
- SKU
- SBP16KRMP4U
- Category
- Transfer Switches
MSRP$3,175.00
$2,051.66
Save 35%Back ordered
Back ordered — ships when restocked.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SBP16KRMP4U
- Category
- Transfer Switches
Overview

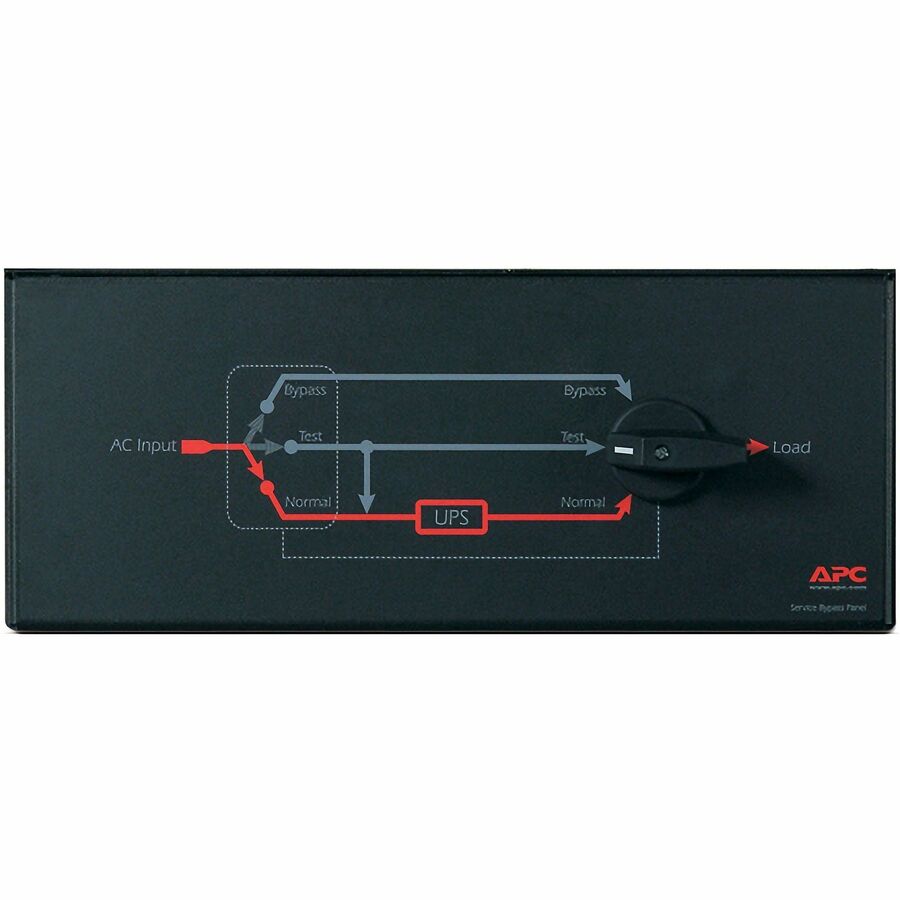

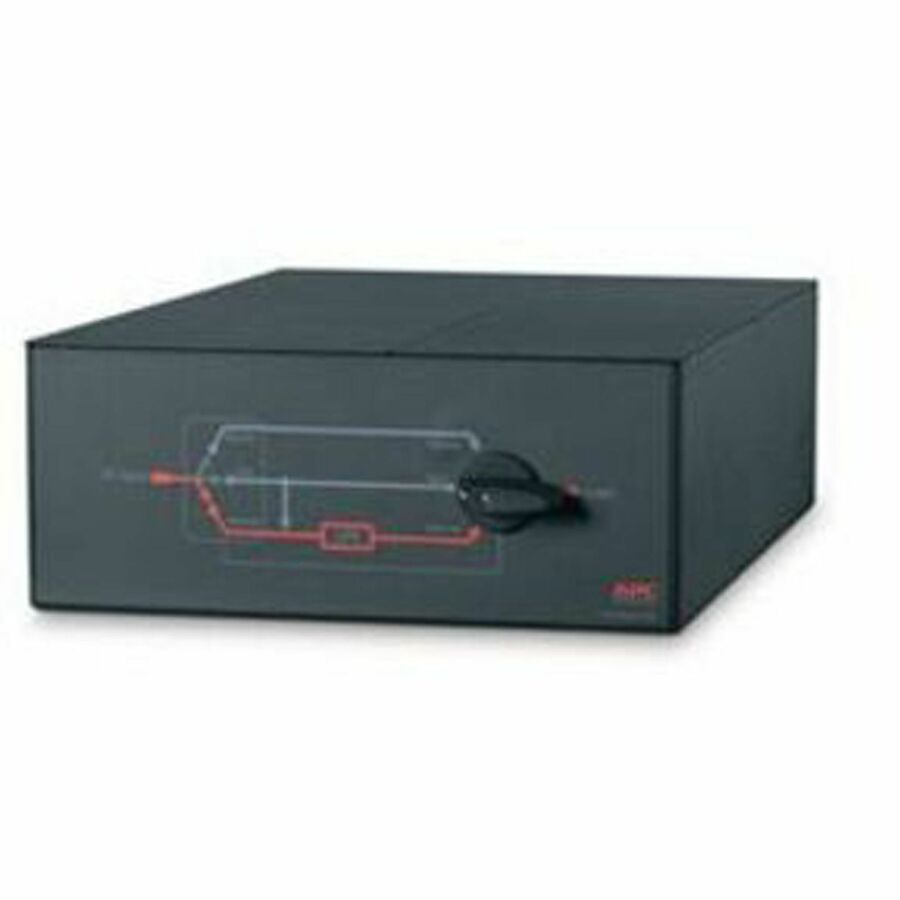

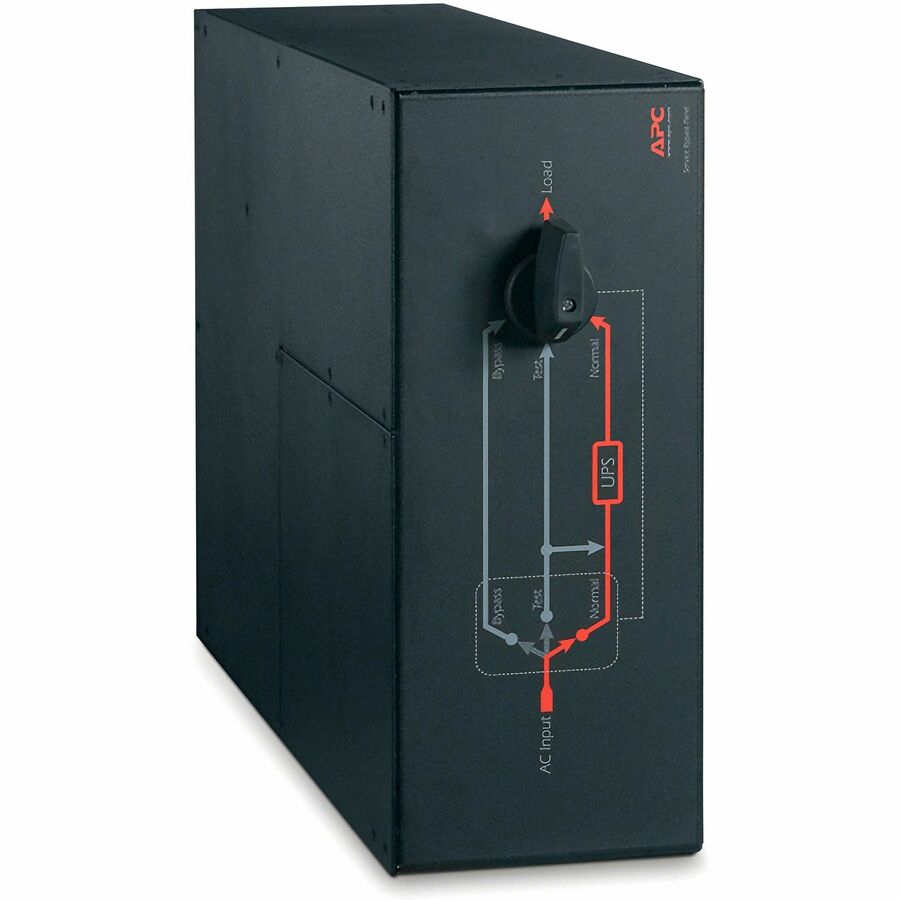

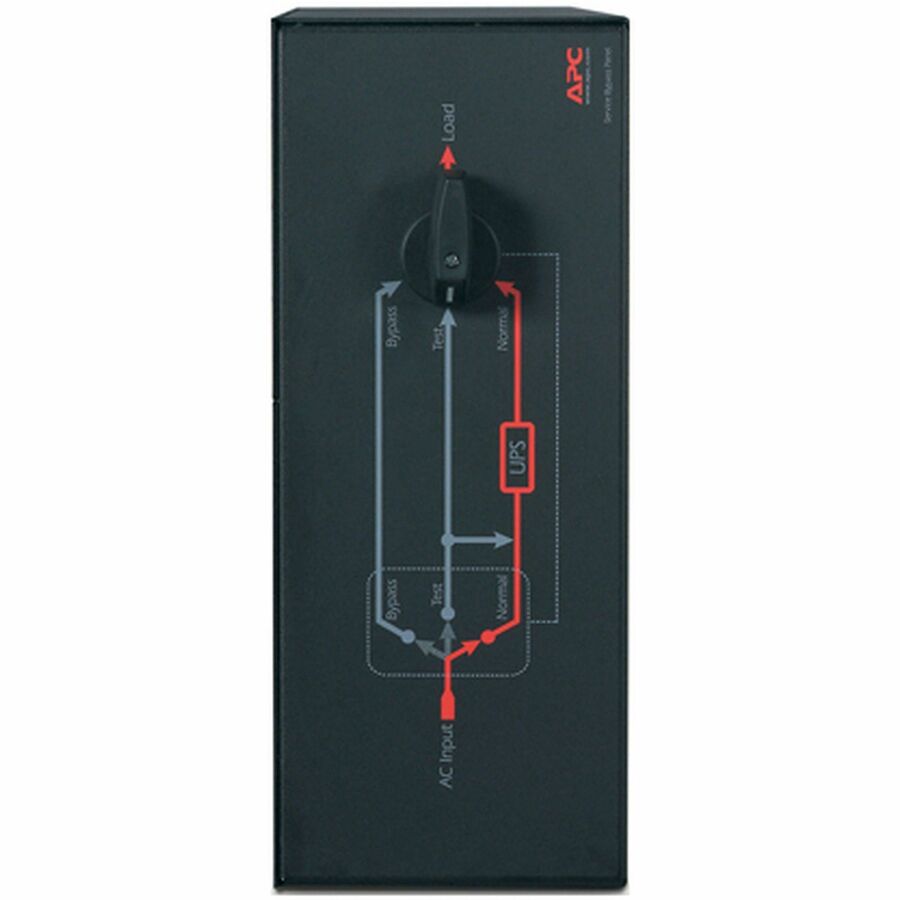

The APC Service Bypass Panel supports output voltage of 200V and 208V. It includes 6 NEMA L14-30R outlets. It features a 4U rack-mount design and is rack mountable.
Warranty
Limited Warranty: 2 Year
Highlights
- Supports up to 100A, ideal for large-scale applications

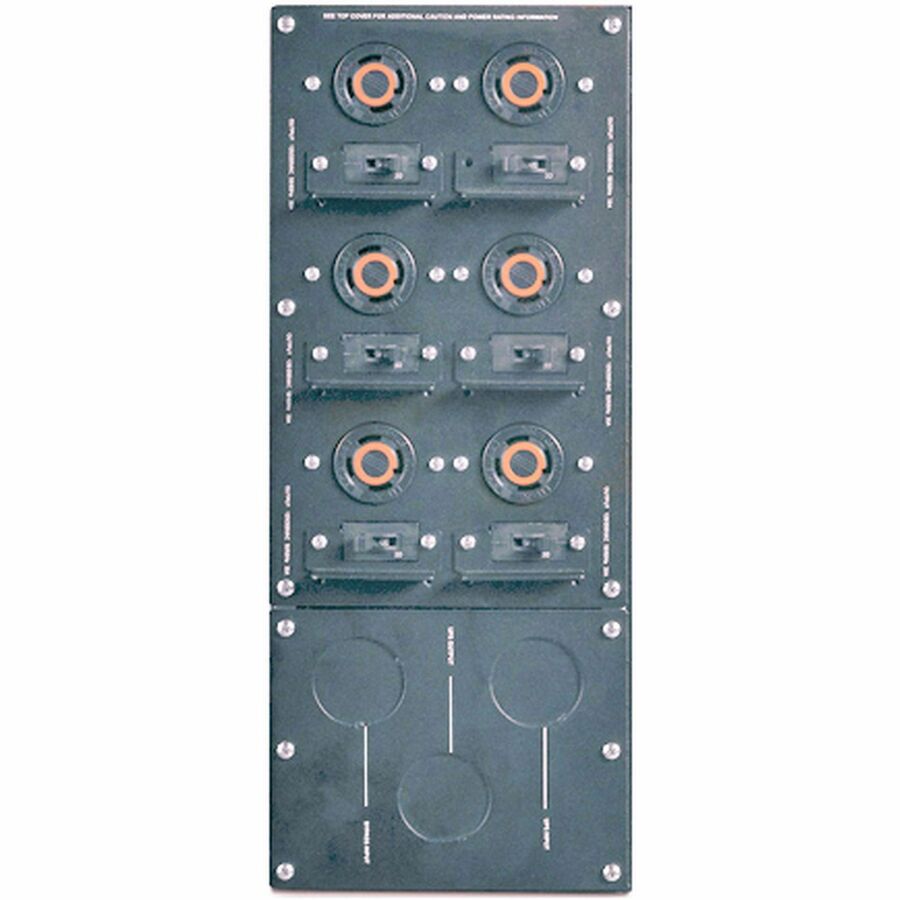

- Provides 6 L14-30R output connectors for flexible power distribution
- Features a bypass switch for uninterrupted maintenance
- Designed for rack installation, saving space in data centers
Specifications
| Package Contents |
|
|---|---|
| Product Type | Bypass Panel |
| Input Voltage | 208 V AC |
| Manufacturer Part Number | SBP16KRMP4U |
| Packaged Quantity | 1 Each |
| Limited Warranty | 2 Year |
| Output Voltage | 200 V AC, 208 V AC |
| Weight (Approximate) | 51.10 lb |
| Current | 100 A |
| Form Factor | Rack-mountable |
| Manufacturer | Schneider Electric SA |
| Product Name | 19" Rack Mountable 100A Maintenance Bypass Panel |
| Protection Type | Overload |
| Receptacles | 6 x NEMA L14-30R |
| Rack Height | 4U |
| Brand Name | APC |
| Plug/Connector Type | Hard Wire 3-wire, Hard Wire 4-wire |
| Country of Origin | China |
| Height | 7" |
| Width | 17" |
| Depth | 26.5" |
| Environmentally Friendly | Yes |
| Load Capacity (VA) | 20 kW |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
