APC Service Bypass Panel- 200/208/240V 100A MBB Hardwire input (3) L6-30R (3) L6-20R output

3 x NEMA L6-20R, 3 x NEMA L6-30R - 20 kW - 200 V AC, 208 V AC - 100 A, 100 A, 100 A

SKU: SBP10KRMT4U
Category: Transfer Switches

MSRP$3,455.00

$2,231.68

Save 35%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SBP10KRMT4U
Category: Transfer Switches

Overview

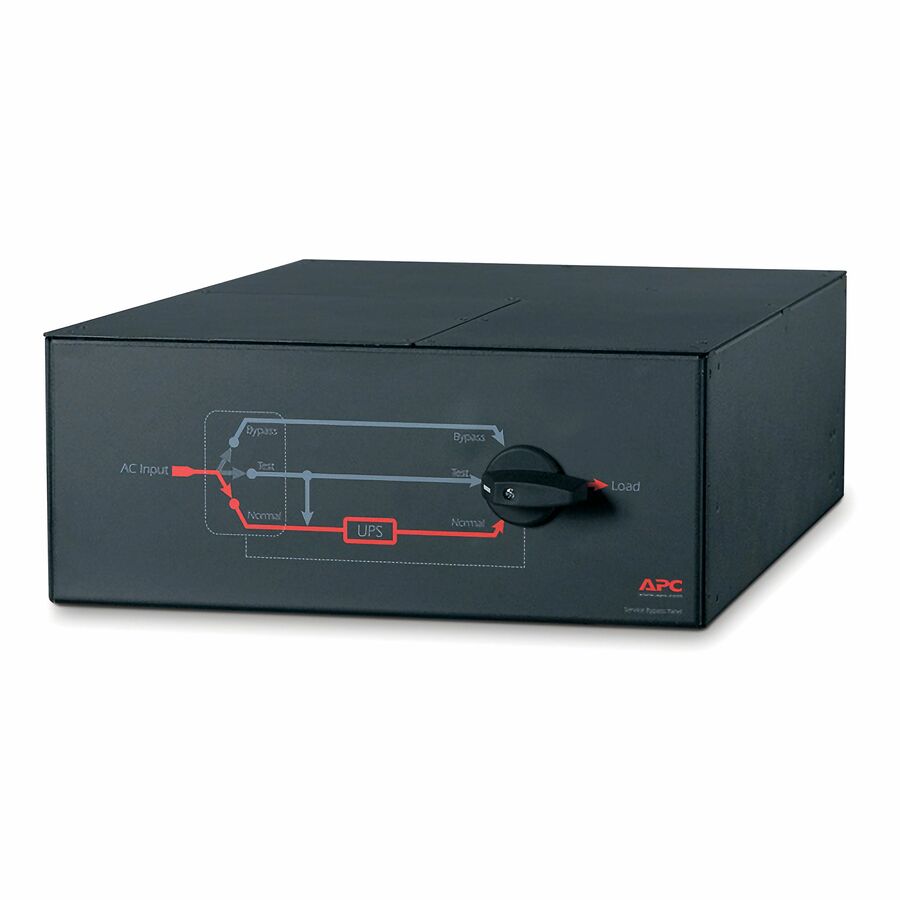

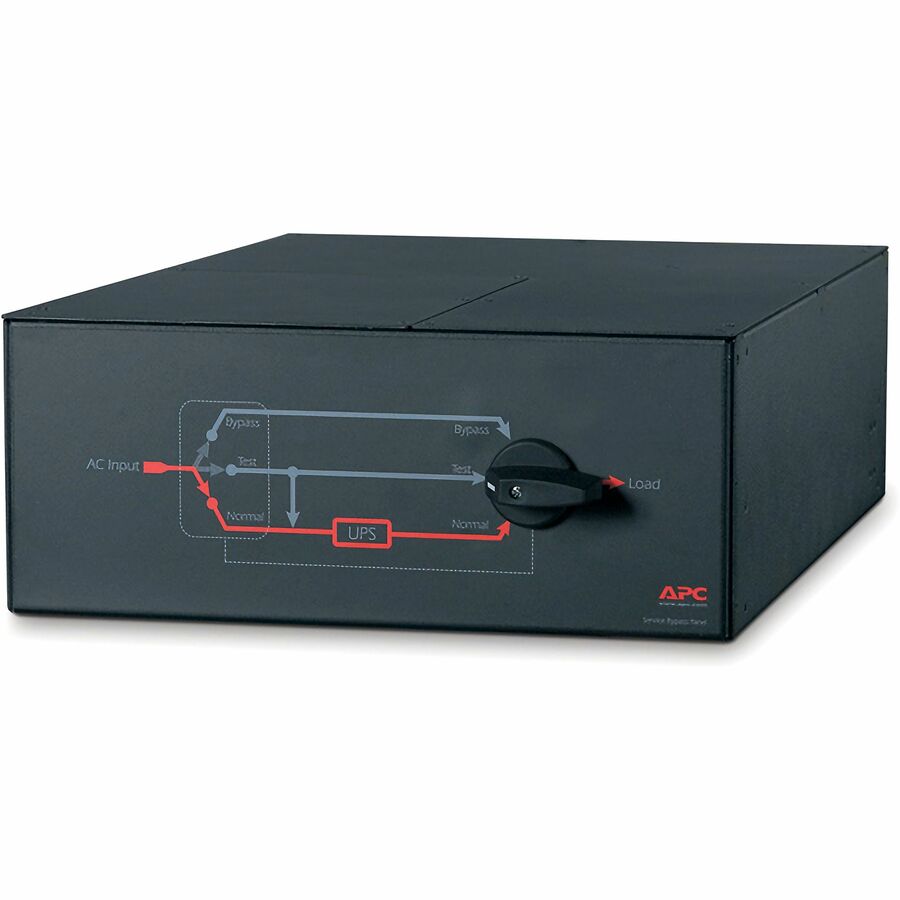

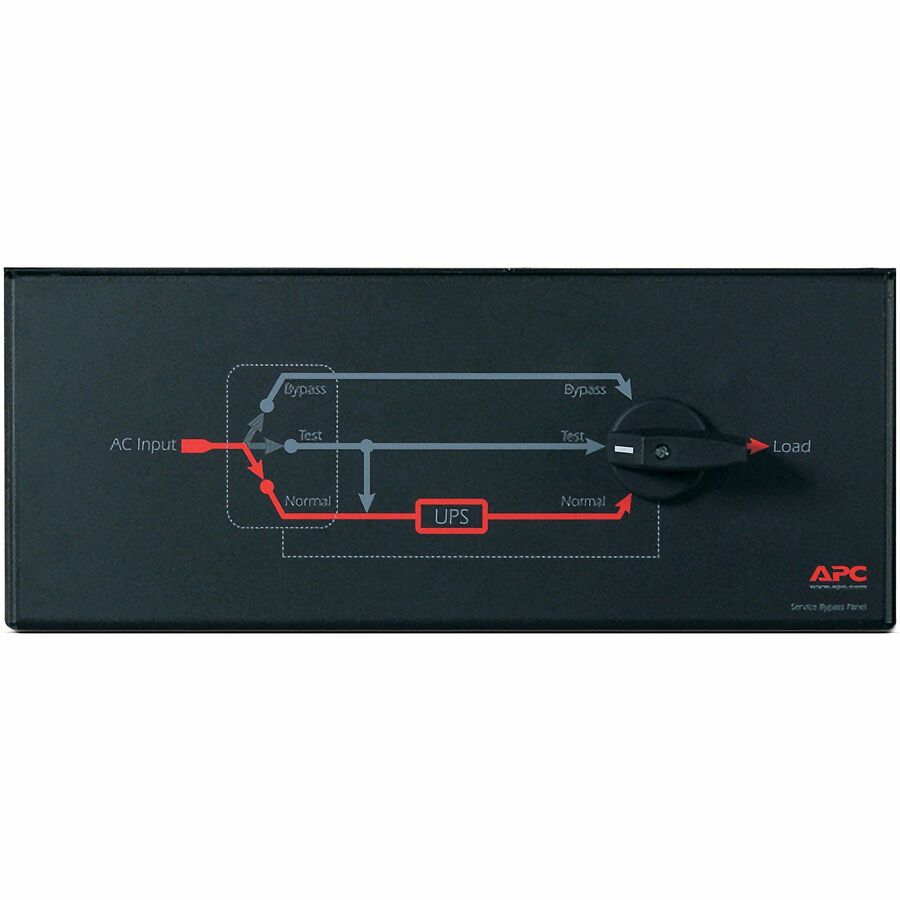

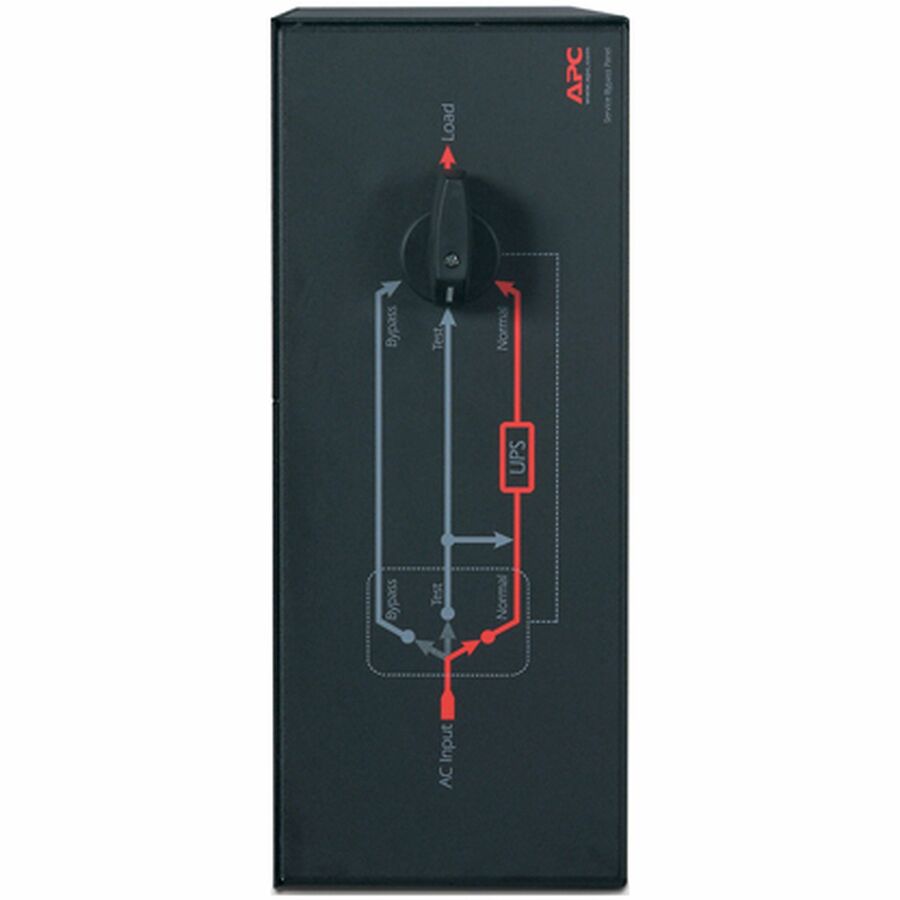

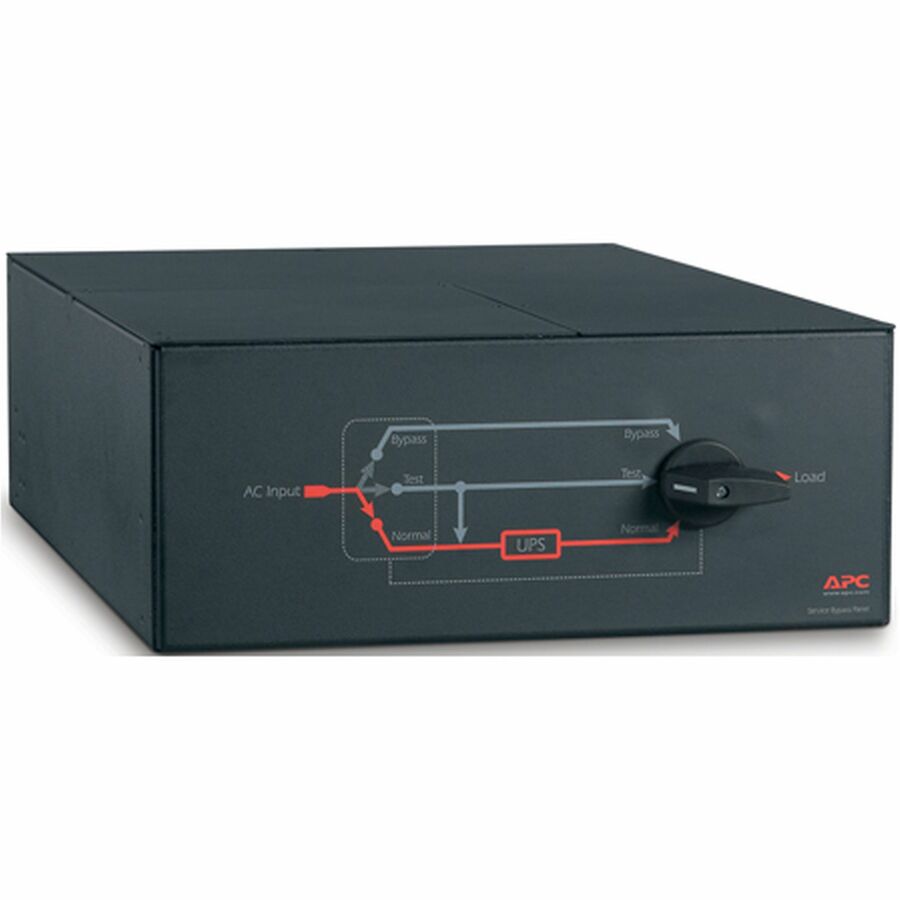

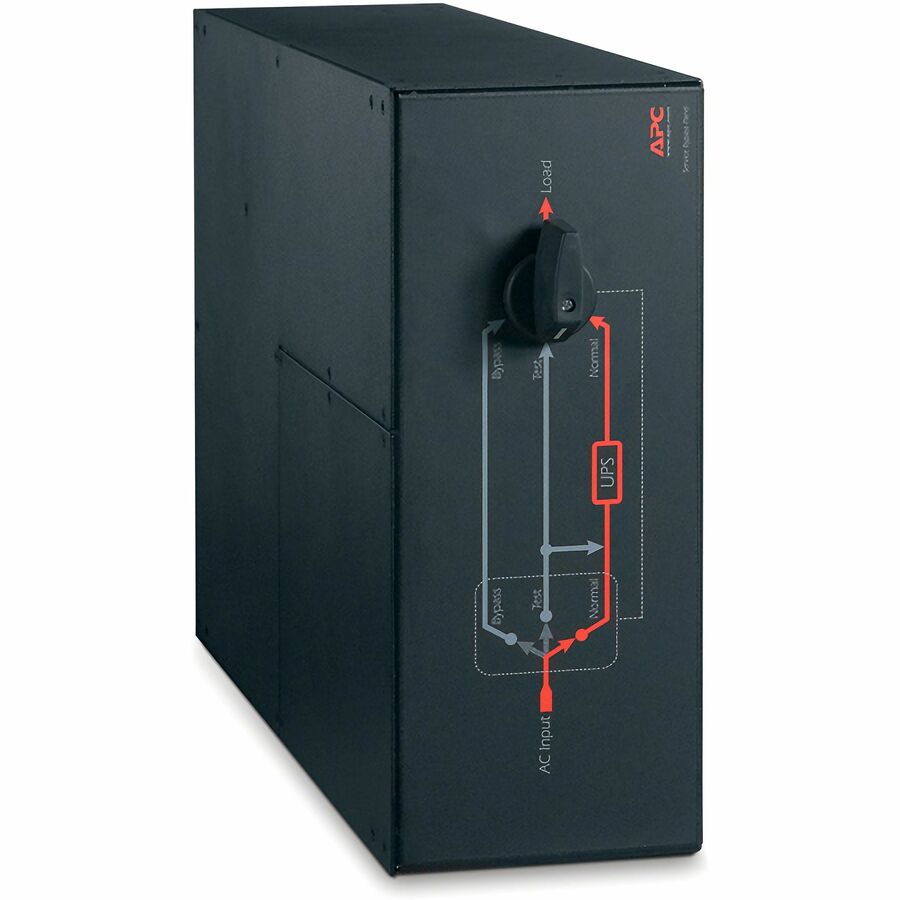

The APC Service Bypass Panel support voltage of 200 and 208 and 240V. It includes 3 NEMA L6-30R and 3 NEMA L6-20R outlets. It features a 4U rack-mount design and is rack mountable. The unit includes rack mounting brackets, user manual, and installation guide.

Warranty

Limited Warranty: 2 Year

Highlights

Supports up to 100A, ideal for high-demand environments
Equipped with 3 L6-30R and 3 L6-20R output connectors for flexible power distribution
Features a bypass switch for uninterrupted maintenance
Ensures secure and stable hardwired connections

Specifications

Package Contents	19" Rack Mountable 100A Maintenance Bypass Panel Installation guide Rack mounting brackets User manual
Product Type	Bypass Panel
Input Voltage	200 V AC, 208 V AC
Manufacturer Part Number	SBP10KRMT4U
Packaged Quantity	1 Each
Limited Warranty	2 Year
Output Voltage	200 V AC, 208 V AC
Weight (Approximate)	48.10 lb
Current	100 A
Form Factor	Rack-mountable
Manufacturer	Schneider Electric SA
Product Name	19" Rack Mountable 100A Maintenance Bypass Panel
Protection Type	Overload
Receptacles	3 x NEMA L6-20R, 3 x NEMA L6-30R
Rack Height	4U
Brand Name	APC
Plug/Connector Type	Hard Wire 3-wire
Country of Origin	China
Height	7"
Width	17"
Depth	26.5"
Environmentally Friendly	Yes
Load Capacity (VA)	20 kW
Product Color	Black
Color Family	Black
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
