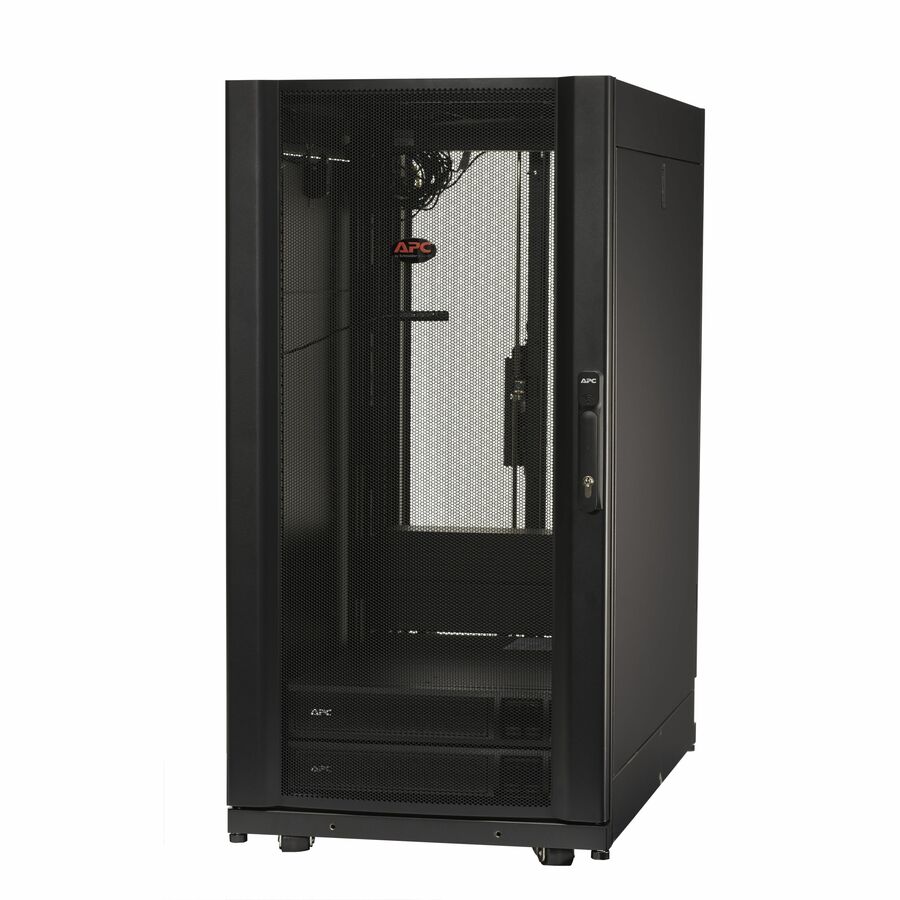

Ecostruxure Micro Data Center, with 24U SX rack, 3kVA, 120V, 60 Hz, pre assembled, 1199H x 600W x 1070D mm

For Server, Networking, Blade Server, Storage, Converged Infrastructure, A/V Equipment - 24U Rack Height x 19" Rack Width x 36.02" Rack Depth - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity - 1 Year Warranty

SKU: MDC24SX3KVAT
Category: Rack Equipment

MSRP$22,220.00

$14,260.60

Save 36%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: MDC24SX3KVAT
Category: Rack Equipment

Overview

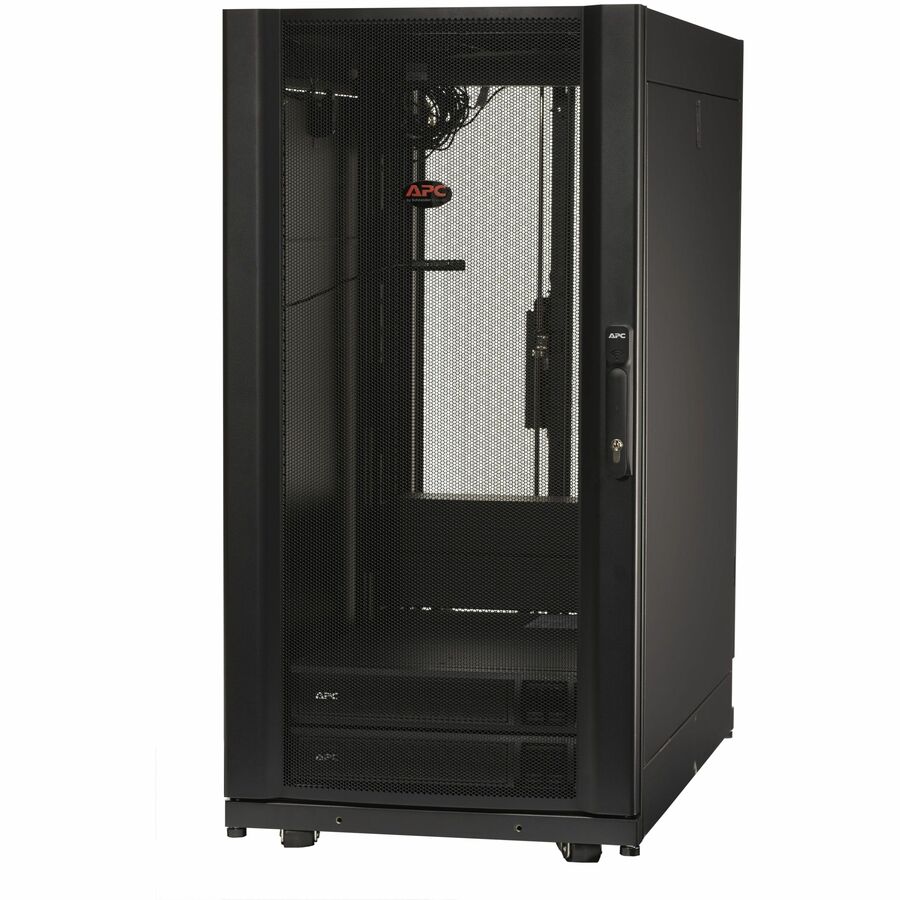

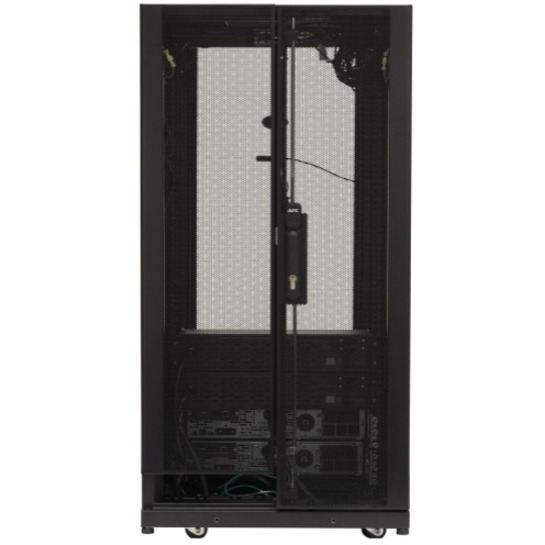

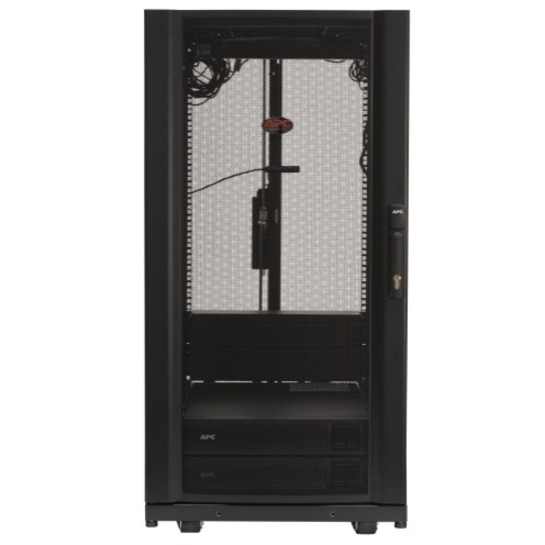

It is an Ecostruxure Micro Data Center with a 24U SX rack, providing 3kVA of power at 120V and 60 Hz. It comes pre-assembled with a shock-packaged rack, two UPS units, two switched rack PDUs, a NetBotz 250 with rack access handles, a temperature or humidity probe, blanking panels, and a brush strip. It weighs 190.51kgs and the static permissible load is 3000lbs.

Warranty

Limited Warranty: 1 Year

Highlights

It comes pre-assembled, which simplifies deployment and reduces installation time
It includes a 3kVA UPS, providing reliable power backup
The unit is equipped with NetBotz 250 for enhanced security
Includes two switched rack PDUs, allowing for effective power distribution

Specifications

Application/Usage	Server, Networking, Blade Server, Storage, Converged Infrastructure, A/V Equipment
Package Contents	NetShelter SX 24U 600 mm Wide x 1070 mm Deep Enclosure - 1250 lb. Shock Packaging (AR3104SP1) APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card (SMX3000RMLV2UNC) 2 x Rack PDU, Switched, 2U, 30A, 120V, (16)5-20 (AP7902B) Power Cord Kit (5 ea), C13 to 5-15P, 0.6m (AP9891) NetBotz 250 Appliance & Rack Access, 125 kHz (NBACS125) Horizontal Cable Organizer 1U w/brush strip (AR8429) 10 x 1U 19" Black Modular Toolless Airflow Management Blanking Panel - (AR8136BLK)
Product Type	Rack Cabinet
Manufacturer Part Number	MDC24SX3KVAT
Limited Warranty	1 Year
Weight (Approximate)	420 lb
Manufacturer	Schneider Electric SA
Product Model	MDC24SX3KVAT
Product Name	Micro DC 24U SX, 3KVA, 120V
Rack Width	19"
Rack Height	24U
Brand Name	APC by Schneider Electric
Assembly Required	No
Height	47.2"
Width	23.6"
Depth	42.1"
Environmentally Friendly	Yes
Static/Stationary Weight Capacity	3000 lb
Dynamic/Rolling Weight Capacity	2250 lb
Rack Depth	36.02"
Product Color	Black
Color Family	Black
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Mounting Preference	No Preference
