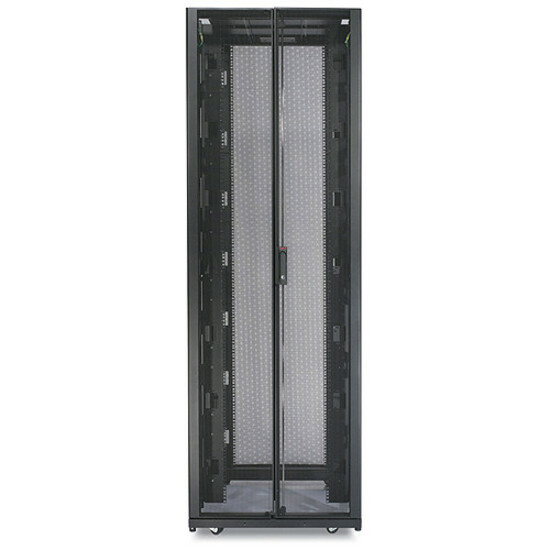

APC by Schneider Electric NetShelter SX AR3357SP Rack Cabinet

NetShelter SX cabinet and packaging system designed to safely integrate, transport, unload and deploy up to 2000 lbs (907 kg) of IT equipment. The cabinet is paired with a shock absorbing pallet, unloading ramp, and impact resistant shell. The system has been engineered, tested and approved for secure shipment of fully converged systems.

More from the Manufacturer

Overview

Safely integrate, transport, and deploy up to 2000 lb. (909 kg) of IT equipment.

Cabinet comes with a shock absorbing pallet, unloading ramp, and impact-resistant shell.

Engineered, tested, and approved for secure shipment of fully converged systems.

Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment.

What’s in the Box:

Baying hardware

Documentation CD

Key(s)

Keyed-alike doors and side panels

Leveling feet

Mounting hardware

Pre-installed casters

Side panels

Features

Safely integrate, transport, and deploy up to 2000 lb. (909 kg) of IT equipment.

Today’s converged and hyper-converged infrastructures and off-premise data centers require fully populated IT cabinets to be safely shipped to customer or colocation sites for fast, low-risk deployment. The loss of or damage to even a single rack can run up to a million dollars or more.

NetShelter SX from APC by Schneider Electric simplifies “rack and stack” and protects IT equipment for lower costs, reduced risk, and fast deployment.

Safely load, transport, unload, and deploy a cabinet with up to 2000 lb. (909 kg) of IT equipment installed. NetShelter SX absorbs impact and vibration to protect IT equipment and ensure it arrives safely to the site. Once it’s there, simply place and connect the cabinet and it’s ready to go—without any installation, setup, or downtime.

Tested to International Safety Transit Association (ISTA) 3E shipping standards

Certified to UL 2416 standard (Outline of Investigation for Information Technology & Communication Equipment Cabinet, Enclosures and Racks, Information Technology Equipment)

Designed to California Office of Statewide Health Planning & Development (OSHPD) structural seismic compliance requirements

Safe for shipping most servers and equipment

Meets Cisco requirements for in-rack shipment of Cisco UCS servers

OEM for Dell cabinets

Easy installation, integration, and configuration

Shock packaging features complete outer wrap and protective inserts with reusable locking clips to shield gear from dust and debris, conceal internal contents, and allow for integrator branding. It removes easily for complete access to the cabinet and, once the cabinet has been populated, re-assembles fast for shipping.

Complete rack stability and cabinet maneuverability

A proven frame design, heavy-gauge mounting rails, and heavy-duty casters provide 3000 lb./1364 kg static load (via leveling feet), 2250 lb./1020 kg dynamic load, and 2000 lb. (909 kg) shipping load ratings while offering a smoother rolling profile for ample maneuverability at the delivery site. During transportation and shipping, the pallet brackets secure the rack to the pallet, removing the weight from and protecting the casters.

Impact-and vibration-resistance

A multi-layer pallet supports and evenly distributes the cabinet load to absorb impact and vibration during integration and transit. The robust equipment fastening system includes 24 additional fasteners to support the load, even under high vibration, during transportation and shipping.

Integrated electrical grounding

The cabinet roof, side panels, and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.

Compatible with industry-leading products

Combine with other Schneider Electric rack accessory products to create a complete rack system, and integrate with InfraStruxure for complete infrastructure support with power, cooling, and thermal containment. Also vendor-neutral mounting guarantees compatibility with all EIA-310 compliant 19" equipment.

Convenience features for easy access

All NetShelter SX cabinets come with enclosure adjustment tools and hardware. Other features enable easy access, including easily removable cable access roof, cable access openings with pre-installed brushes, quick release doors, equipment mounting rails integrated with patch cabling systems, and more.

Warranty and Equipment Protection Policy

5-year repair or replace.

Technical Specification

Physical

Maximum Height

88.9 inches (2258 mm, 225.8 cm)

Maximum Width

29.53 inches (750 mm, 75.0 cm)

Maximum Depth

47.24 inches (1200 mm, 120.0 cm)

Rack Height

48U

Net Weight

408.0 lb. (185.45 kg)

Shipping Weight

665.0 lb. (301.64 kg)

Shipping Height

96.5 inches (2451 mm, 245.1 cm)

Shipping Width

43.5 inches (1105 mm, 110.5 cm)

Shipping Depth

52.0 inches (1321 mm, 132.1 cm)

Color

Black

Maximum Mounting Depth

41.26 inches (1048.0 mm, 104.8 cm)

Minimum Mounting Depth

10.31 inches

Rack Width

19"

Weight Capacity (dynamic load)

2250.0 lb. (1022.73 kg)

Weight Capacity (static load)

3000.0 lb. (1363.64 kg)

Weight Capacity (shipping load)

2000.0 lb. (909.09 kg)

Environmental

Protection Class

IP 20

Conformance

Approvals

UL 2416, UL 60950-1

Standard warranty

5 year repair or replace

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs

PEP

ePEP - Racks & Enclosures

EOLI

EoLi - Racks & Enclosures

Other Environmental Compliance

China RoHS
